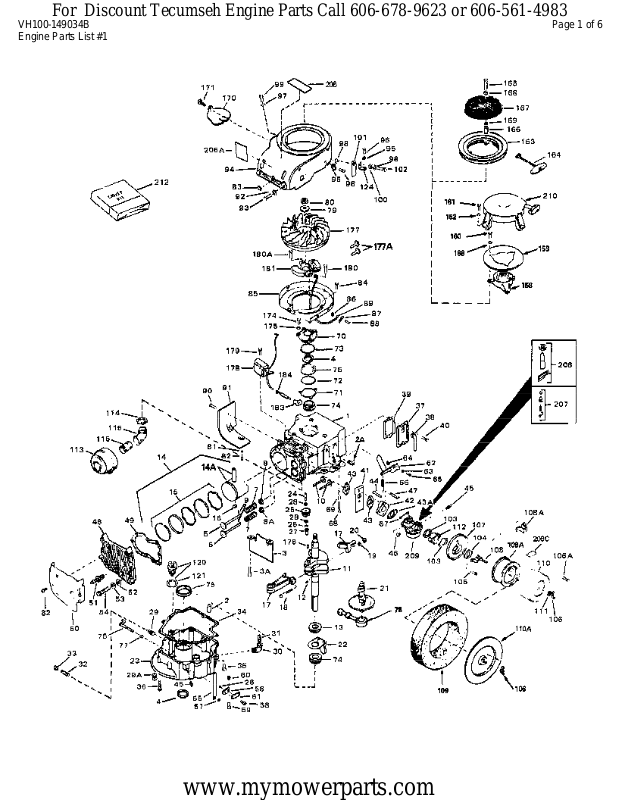

Engine Parts List #1
Page 1 of 6
www.mymowerparts.com
Page 2
VH100-149034B
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 6
Ref # Part Number Qty Description
1 33089 Cylinder Assy. (3-5/16" Bore)0
2 27652 Pin, Dowel0
3A 650128 Screw0
3 33359 Baffle, Oil0
4 31950 Seal, Oil0
5 31940 Valve, Intake (Std.)0
5 31941 Valve, Intake (1/32" oversize)0
6 31942 Valve, Exhaust (Std.)0
6 31943 Valve, Exhaust (1/32" oversize)0
7 31944 Spring, Valve0
8 31945 Cap, Valve spring (Std.)0
8 31946 Cap, Valve spring (1/32" oversize)0
8A 31945 Cap, Valve spring (Std.)0
8A 31946 Cap, Valve spring (1/32" oversize)0
9 20810 Pin, Valve spring retaining0
10 31939 Lifter, Valve0
11 33409A Crankshaft Assy.0
12 29783 Pin, Crankshaft gear0
13 33091 Gear, Crankshaft0
14A 32001C Piston & Pin Assy. (Std.) (3-5/16")0
14A 32002B Piston & Pin Assy. (.010 oversize)0
14A 32003B Piston & Pin Assy. (.020 oversize)0
14A 32619B Piston & Pin Assy. (.030 oversize)0
14A 32620B Piston & Pin Assy. (.040 oversize)0
14 34508 Piston, Pin & Ring Assy. (Std.) (3-5/16")0
14 34509 Piston, Pin & Ring Assy. (.010 oversize)0
14 34510 Piston, Pin & Ring Assy. (.020 oversize)0
14 34523 Piston, Pin & Ring Assy. (.040 oversize)0
14 34850 Piston, Pin & Ring Assy. (.030 oversize)0
15 32004 Ring Set, Piston (Std.) (3-5/16")0
15 32005 Ring Set, Piston (.010 oversize)0
15 32006 Ring Set, Piston (.020 oversize)0
15 32623 Ring Set, Piston (.030 oversize)0
15 32624 Ring Set, Piston (.040 oversize)0
16 31919 Ring, Piston pin retaining0
17 33093A Rod Assy., Connecting (Std.)0
17 34383 Rod Assy., Connecting (.010 undersize)0
17 34384 Rod Assy., Connecting (.020 undersize)0
18 32077 Bolt, Connecting rod0
19 26073 Washer, Connecting rod bolt0
20 28264 Nut0
21 32150 Camshaft Assy. (Mechanical Compression0
23 33094 Flange, Mounting0
24 31930 Shaft, Mechanical governor0
25 31947 Gear Assy., Governor0
26 29193 Ring, Retaining0
27 31948 Spool, Governor0
28 30590A Washer, Flat0
29 31927 Plug, Oil drain (3/8-18 sq. hd.)0
34 31956A Gasket, Mounting flange0
35 30564 Screw0
36 650588 Screw, Hex hd. Sems, 1/4-20 x 20
37 31957 Breather Assy.0
38 27627 Tube, Breather0
39 31958 Gasket, Breather0
40 650128 Screw0
41 31959 Baffle, Air0
