V50-60164G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

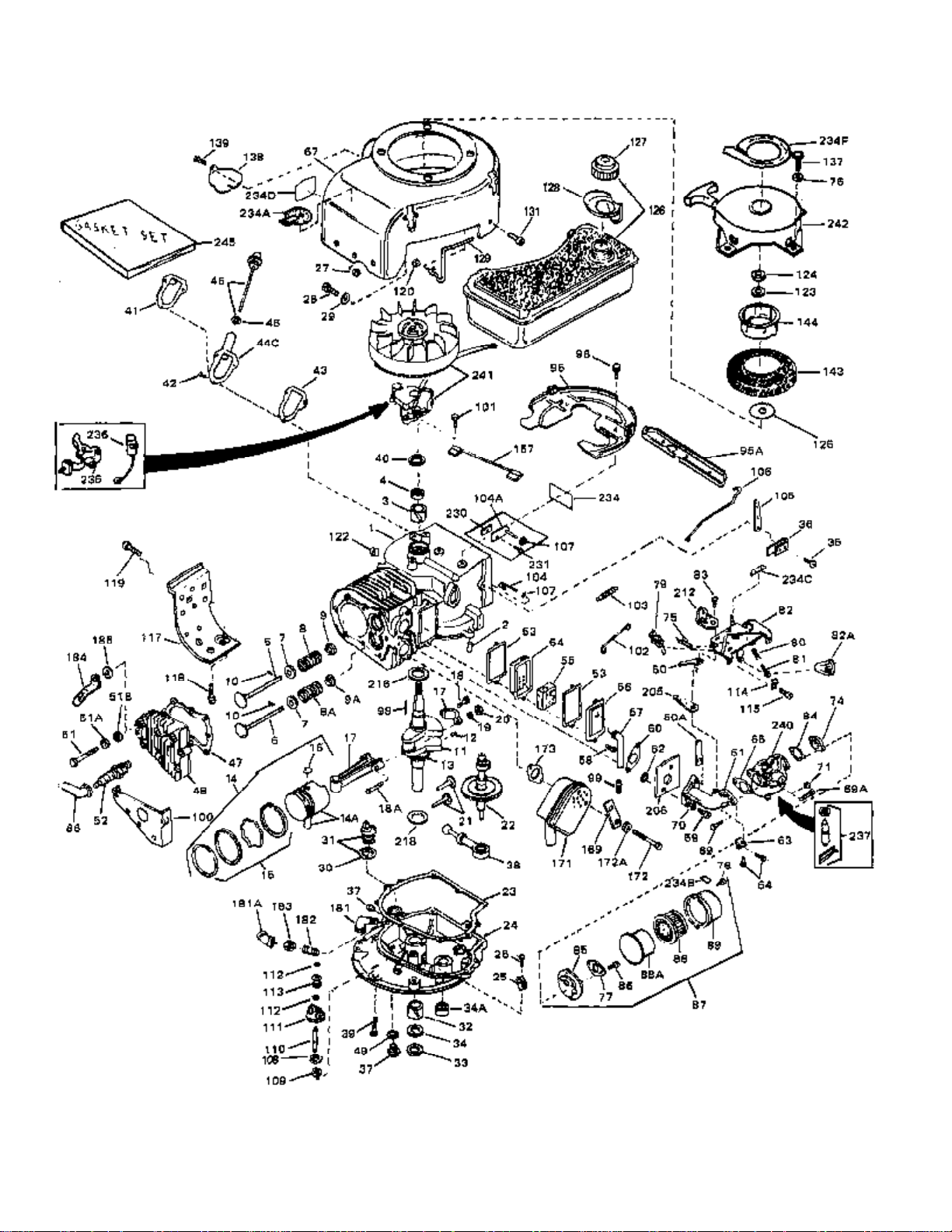

Engine Parts List #1
Page 1 of 8
www.mymowerparts.com
V50-60164G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 8
Ref # Part Number Qty Description
1 31536B Cylinder Assy. (2-5/8" Bore)0
2 27652 Pin, Dowel0
3 31461 Bushing, Crankshaft0
4 27876B Seal, Oil0
5 27877A Valve, Intake (Standard)0
5 27880A Valve, Intake (1/32" oversize)0
6 27878A Valve, Intake (Standard)0
6 27880A Valve, Intake (1/32" oversize)0
7 27882 Cap, Upper valve spring0
8A 27881 Spring, Valve0
8 27881 Spring, Valve0
9A 32581 Cap, Lower valve spring0
9 32581 Cap, Lower valve spring0
10 20810 Pin, Valve spring retaining0
11 29477A Crankshaft Assy.0
12 29783 Pin, Crankshaft gear0
13 27884 Gear, Crankshaft0
14 34531 Piston, Pin & Ring Assy. (Std.) (2-5/8")0
14 34532 Piston, Pin & Ring Assy. (.010 oversize)0
14 34533 Piston, Pin & Ring Assy. (.020 oversize)0
14A 33312B Piston & Pin Assy. (Std.) (2-5/8")0
14A 33313B Piston & Pin Assy. (.010 oversize)0
14A 33314B Piston & Pin Assy. (.020 oversize)0
15 33315 Ring Set, Piston (Std.) (2-5/8")0
15 33316 Ring Set, Piston (.010 oversize)0
15 33317 Ring Set, Piston (.020 oversize)0
16 27888 Ring, Piston pin retaining0
17 31295C Rod Assy., Connecting0
18 650662B Bolt, Connecting rod0
18A 30682 Bolt, Connecting rod0
18A 32077 Bolt, Connecting rod0
19 26073 Washer, Connecting rod bolt0
20 28264 Nut0
21 34034 Lifter, Valve0
22 33157 Camshaft (Compression Release)0
23 30684 Gasket, Mounting flange0
24 31471C Flange, Mounting0
25 31355 Screen, Oil filter0
26 29117 Screw0
30 29673 Gasket, Filler plug0
31 27625 Plug, Oil filler0
32 31462 Bushing, Crankshaft0
34 27897 Seal, Oil0
34A 28926 Seal, Oil (Camshaft)0
35 650548 Screw, Hex washer hd., 8-32 x 5/160
36 31335 Clamp, Governor lever0
37 27642 Plug, Drain0
38 31356 Pump Assy., Oil0
39 30564 Screw0
39 650488 Screw0
41 28954 Cover, Oil filler hole0
42 28749 Screw, Phil. Rd. hd., w/neoprene washer,0
43 28747 Gasket, Oil filler tube0
47 28938B Gasket, Cylinder head0
48 30938A Head, Cylinder0
49 28833 Gasket, Oil drain0
50 32704 Clip, Fuel line0
50A 31560 Clip, Fuel line0
www.mymowerparts.com
V50-60164G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 3 of 8
Ref # Part Number Qty Description
50A 32704 Clip, Fuel line0
51A 26073 Washer, Connecting rod bolt0
51A 650690 Washer, Belleville0
51B 650691 Washer, Flat0
51 650694A Screw, Hex flange hd., 5/16-18 x 20
51 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20
52 33636 Plug, Spark (Champion J-8 or equivalent)0
52 34251 Resistor Spark Plug0
53 27896 Gasket, Breather cover0
54 28423 Body, Breather0
55 28424 Element, Breather0
56 28425 Cover, Valve chamber0
57 27627 Tube, Breather0
58 650128 Screw0
59 650378 Screw0
60 27915 Gasket, Intake pipe0
61 31512 Pipe, Intake0
65 26756 Gasket, Carburetor0
66 27276 Cover, Spark plug0
67 32629A Housing, Blower (5.56 Dia. starter mtg. bolt0
69 6201 Screw0
69 6202 Screw0
70 8274 Lockwasher0
71 29752 Nut0
74 30936 Flange, Air cleaner0
76 27656 Washer, Flat0
76 650168 Washer, Flat0
77 30767 Spacer, Air cleaner0
78 650152 Screw0
79 610973 Terminal Assy.0
80 31342 Spring, Compression0
81 650549 Screw0
82 32181A Control Assy., Speed0
83 30200 Screw0
84 27272 Gasket, Air cleaner0
85 31691 Bracket, Air cleaner0
86 28820 Screw0
87 730127 Cleaner Assy., Air (Poly)0
88 30727 Element, Air cleaner0
89 31715 Body, Air cleaner0
95 29536 Baffle, Blower housing0
96 650561 Screw0
98 30884 Key, Flywheel0
99 31778 Spring, Coil0
100 30939A Cover, Cylinder head0
101 650489 Screw0
101 650516 Screw0
102 32582 Link, Governor spring0
103 31361 Spring, Governor0
104 30669 Rod, Governor0
105 31357 Lever, Governor0
106 31823 Link, Throttle0
107 28277 Washer, Flat0
109 31707A Spacer Assy., Governor0
110 30668 Shaft, Mechanical governor0
111 30591 Gear Assy., Governor0
112 29193 Ring, Retaining0
113 30588A Spool, Governor0
www.mymowerparts.com
