V50-60159G
Parts Manuals
8 pgs80.62 Kb0

Tecumseh V50-60159G Parts Manuals

Download
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

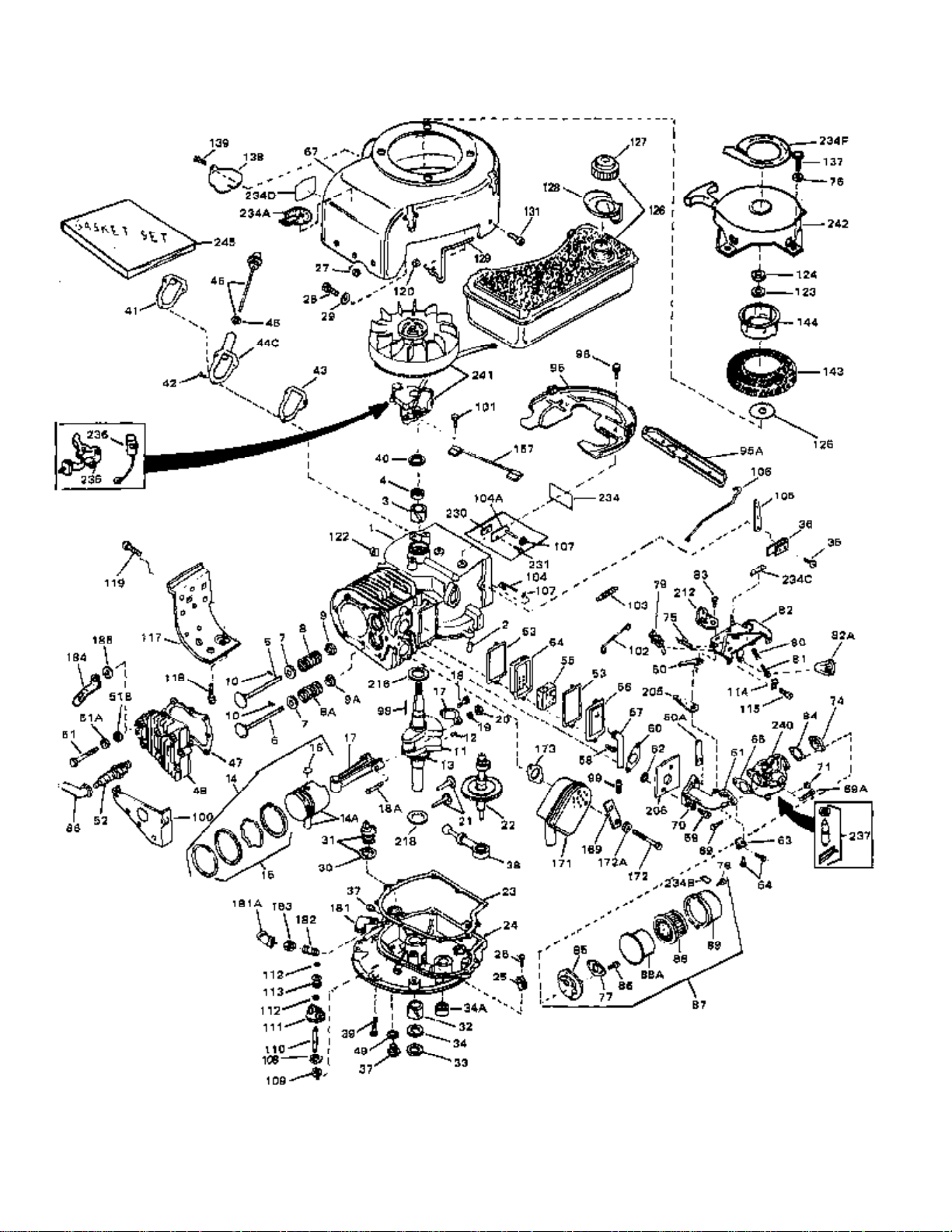

Engine Parts List #1
Page 1 of 8
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 8
Ref # Part Number Qty Description
1 31536B Cylinder Assy. (2-5/8" Bore)0 2 27652 Pin, Dowel0 3 31461 Bushing, Crankshaft0 4 27876B Seal, Oil0 5 27878A Valve, Intake (Standard)0 5 27880A Valve, Intake (1/32" oversize)0 6 31469A Valve, Exhaust (Standard) (Long Life)0 6 31470A Valve, Exhaust (1/32" oversize) (Long Life)0 7 27882 Cap, Upper valve spring0
8 27881 Spring, Valve0
9 32581 Cap, Lower valve spring0 10 20810 Pin, Valve spring retaining0 11 29477A Crankshaft Assy.0 12 29783 Pin, Crankshaft gear0 13 27884 Gear, Crankshaft0 14 34531 Piston, Pin & Ring Assy. (Std.) (2-5/8")0 14 34532 Piston, Pin & Ring Assy. (.010 oversize)0 14 34533 Piston, Pin & Ring Assy. (.020 oversize)0
14A 33312B Piston & Pin Assy. (Std.) (2-5/8")0 14A 33313B Piston & Pin Assy. (.010 oversize)0 14A 33314B Piston & Pin Assy. (.020 oversize)0
15 33315 Ring Set, Piston (Std.) (2-5/8")0 15 33316 Ring Set, Piston (.010 oversize)0 15 33317 Ring Set, Piston (.020 oversize)0 16 27888 Ring, Piston pin retaining0 17 31295C Rod Assy., Connecting0
18A 30682 Bolt, Connecting rod0 18A 32077 Bolt, Connecting rod0
18 650662B Bolt, Connecting rod0 19 26073 Washer, Connecting rod bolt0 20 28264 Nut0 21 34034 Lifter, Valve0 22 33163 Camshaft (Compression Release) (Extended)0 23 30684 Gasket, Mounting flange0 24 31549 Flange, Mounting0 25 31355 Screen, Oil filter0 26 29117 Screw0 30 29673 Gasket, Filler plug0 31 27625 Plug, Oil filler0 32 31462 Bushing, Crankshaft0
34A 28926 Seal, Oil (Camshaft)0
34 27897 Seal, Oil0 35 650548 Screw, Hex washer hd., 8-32 x 5/160 36 31335 Clamp, Governor lever0 37 27642 Plug, Drain0 38 31356 Pump Assy., Oil0 39 30564 Screw0 39 650488 Screw0 41 28954 Cover, Oil filler hole0 42 28749 Screw, Phil. Rd. hd., w/neoprene washer,0 43 28747 Gasket, Oil filler tube0
44C 29759 Tube, Oil filler (Metal)0
45 29760 Dipstick, Oil0 46 29673 Gasket, Filler plug0 47 28938B Gasket, Cylinder head0 48 30938A Head, Cylinder0
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 3 of 8
Ref # Part Number Qty Description
49 28833 Gasket, Oil drain0
50A 31560 Clip, Fuel line0 50A 32704 Clip, Fuel line0
50 32704 Clip, Fuel line0
51B 650691 Washer, Flat0 51A 26073 Washer, Connecting rod bolt0 51A 650690 Washer, Belleville0
51 650694A Screw, Hex flange hd., 5/16-18 x 20 51 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20 52 33636 Plug, Spark (Champion J-8 or equivalent)0 52 34251 Resistor Spark Plug0 53 27896 Gasket, Breather cover0 54 28423 Body, Breather0 55 28424 Element, Breather0 56 28425 Cover, Valve chamber0 57 27627 Tube, Breather0 58 650128 Screw0 59 650378 Screw0 60 27915 Gasket, Intake pipe0 61 31512 Pipe, Intake0 65 26756 Gasket, Carburetor0 67 32629A Housing, Blower (5.56 Dia. starter mtg. bolt0 69 6201 Screw0 69 6202 Screw0 70 8274 Lockwasher0 71 29752 Nut0 74 30936 Flange, Air cleaner0 76 27656 Washer, Flat0 76 650168 Washer, Flat0 77 30767 Spacer, Air cleaner0 78 650152 Screw0 79 610973 Terminal Assy.0 80 31342 Spring, Compression0 81 650549 Screw0 82 32181A Control Assy., Speed0 83 30200 Screw0 84 27272 Gasket, Air cleaner0 85 31691 Bracket, Air cleaner0 86 28820 Screw0 87 730127 Cleaner Assy., Air (Poly)0
88A 31700 Element, Air cleaner0
89 31715 Body, Air cleaner0 95 29536 Baffle, Blower housing0 96 650561 Screw0 98 30884 Key, Flywheel0 99 31778 Spring, Coil0
100 30939A Cover, Cylinder head0 101 650489 Screw0 101 650516 Screw0 102 32582 Link, Governor spring0 103 31361 Spring, Governor0 104 30669 Rod, Governor0 105 31357 Lever, Governor0 106 31823 Link, Throttle0 107 28277 Washer, Flat0 109 31707A Spacer Assy., Governor0 110 30668 Shaft, Mechanical governor0 111 30591 Gear Assy., Governor0
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
112 29193 Ring, Retaining0 113 30588A Spool, Governor0 114 27793 Clip, Conduit0 115 28942 Screw0 117 30622 Extension, Blower housing0 118 650128 Screw0 119 30063 Screw0 119 30688 Screw, Hex hd. Sems, 1/4-20 x 1/20 120 650557 Nut0 122 27275 Clip, Hi-tension wire0 122 33685 Clip, Hi-tension wire0 123 650815 Washer, Belleville0 124 8116 Nut0 126 32584 Tank Assy., Fuel (White Poly) (2 qt.)0 127 33032 Cap, Fuel filler (Red Plastic) (Spurt0 127 34210 Cap, Fuel filler (Red Plastic) (Spurt0 127 410144B Cap, Fuel filler (White Plastic) (Std.)0 131 29747A Screw0 137 29716 Screw0 137 650601 Screw, Fil. hd., 1/4-28 x 20 143 590417 Screen, Starter cup0 144 32125 Cup, Starter0 157 28468 Wire, Ground (Female fitting both ends)0 169 31588 Plate, Muffler locking0 171 31574 Muffler0 172 30196 Screw0 172 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20 172 650689 Screw0 172 650695A Screw, Hex flange hd., 5/16-18 x 2-1/40 172 650696 Screw, Hex hd., 5/16-18 x 2-3/40 172 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20
172A 8274 Lockwasher0
173 27930 Gasket, Exhaust0 181 29573 Elbow, Oil drain (90ø)0 184 30747 Clip, Shorting0 185 16645 Lockwasher0 206 31873 Baffle, Air0
234 34346 Decal, Instruction0 234D 31490 Decal, Oil0 234D 32130 Decal, Long Life0 234A 31478 Decal, H.P. (4 H.P.)0 234A 31517 Decal, H.P. (5 H.P.)0 234A 32173 Decal, H.P. (6 H.P.)0 234A 34316 Decal, Name0
235 30547A Contact Assy., Breaker0
236 30548B Condenser0
237 631021 Inlet Needle, Seat & Clip Assy.0
240 631444 Carburetor0
241 610689A Magneto, Tecumseh0
242 590420 Starter, Rewind0
245 33234A Gasket Set0
Page 4 of 8
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

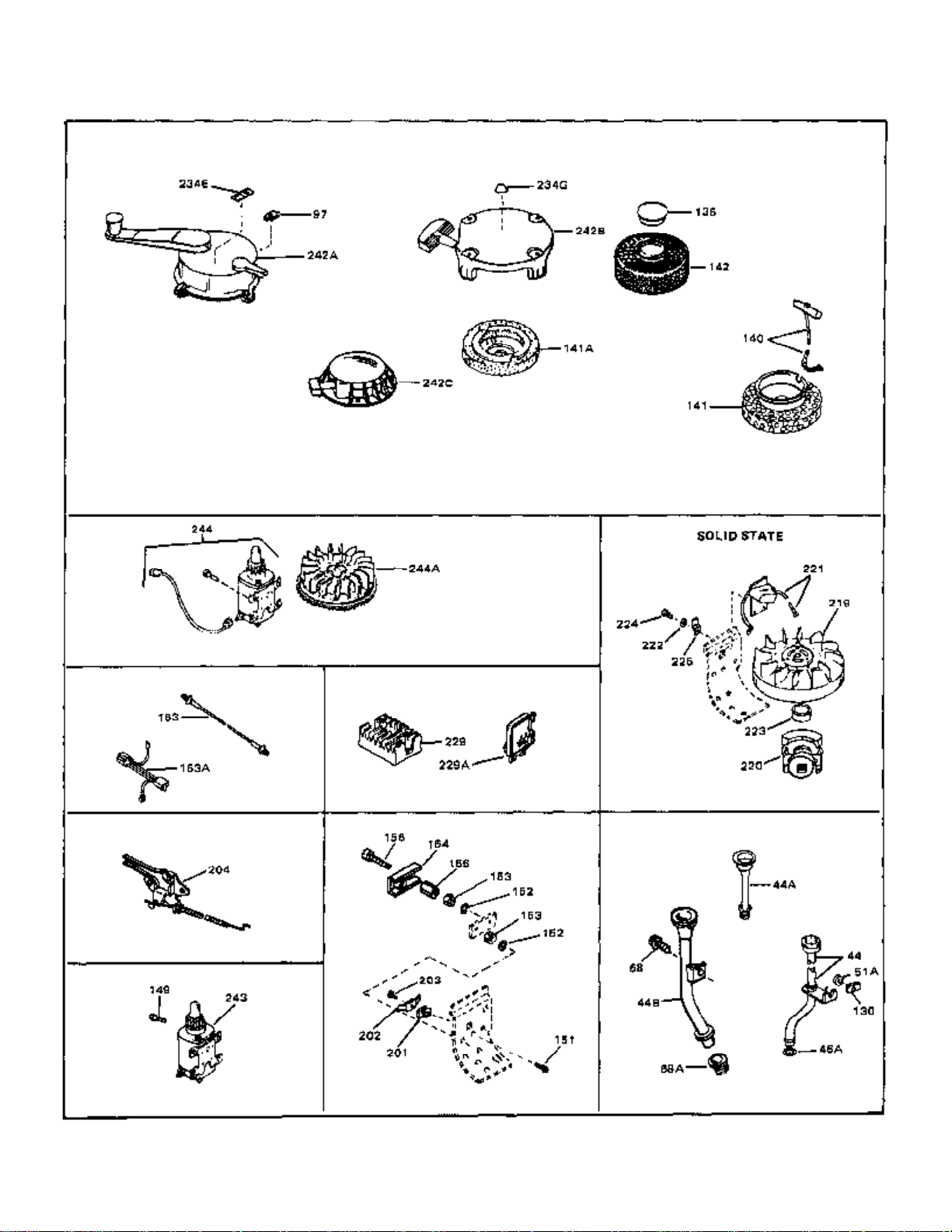

Engine Parts List #2
Page 5 of 8
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Ref # Part Number Qty Description
51A 26073 Washer, Connecting rod bolt0 51A 650690 Washer, Belleville0
130 28511 Plate, Securing0
140 590343 Rope & Handle Assy., Starter0
141 28301 Pulley, Starter0
149 30063 Screw0
149 30688 Screw, Hex hd. Sems, 1/4-20 x 1/20
151 28726 Screw, Phil. rd. hd., 5-40 x 9/160
152 28727 Lockwasher0
153 28728 Nut0
154 30064 Cover, Rectifier panel0
155 30065 Nut, Long 5-400
156 30066 Screw0 163A 33018 Harness, Adapter0
201 28545 Grommet, Plastic0
202 33356 Terminal, Ground0
203 650643 Screw0
204 24522 Control, Throttle0
234G 30595 Decal, Ezee-start0
244 33518A Starter Motor Kit (110-120 Volt)0 244A 30811A Flywheel0
Page 6 of 8
97 29749 Clip, Retaining0
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

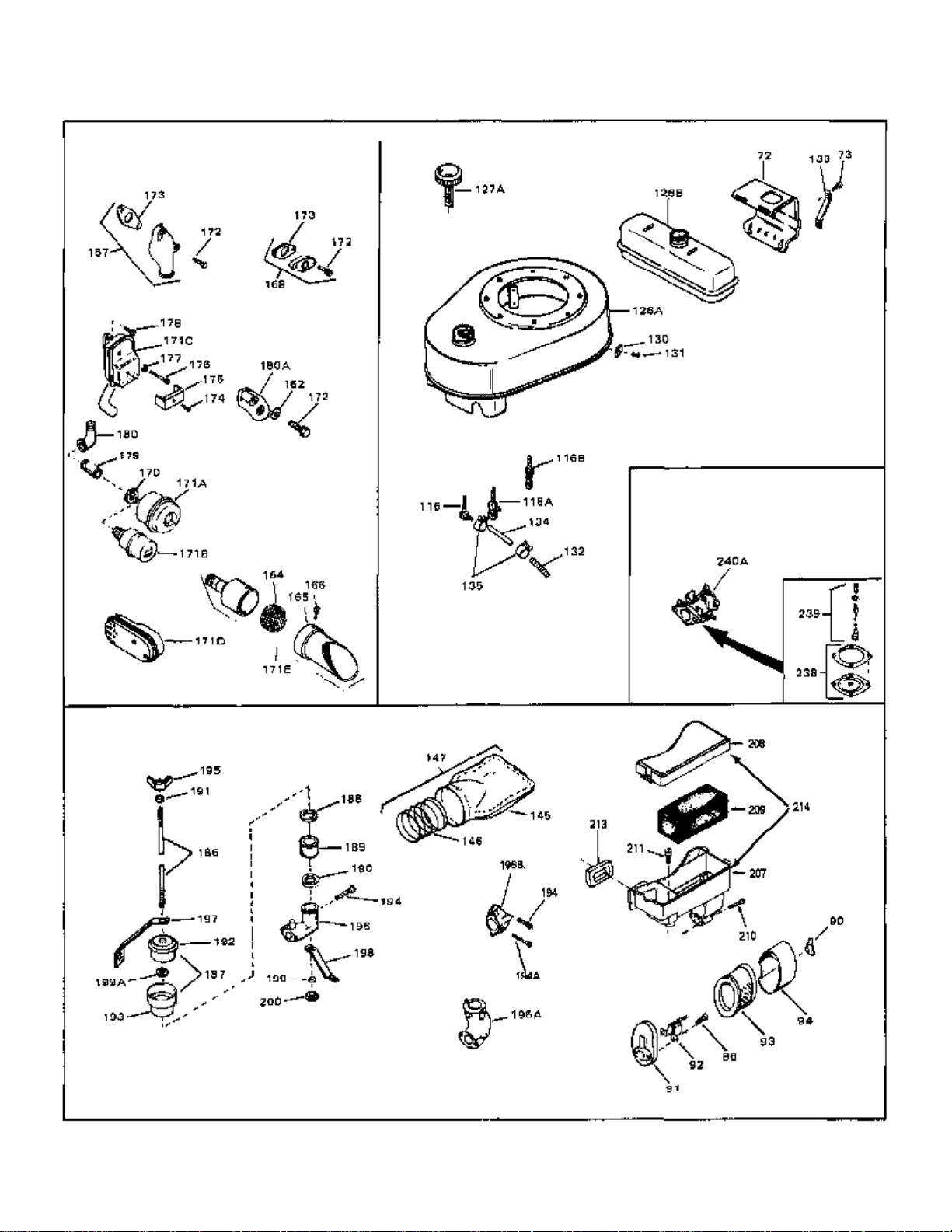

Engine Parts List #3
Page 7 of 8
www.mymowerparts.com
V50-60159G
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #3
Ref # Part Number Qty Description
116B 28837 Strainer & Fitting0
116 28584 Strainer & Elbow0 116A 29683 Strainer & Shut-off0
130 28511 Plate, Securing0
131 29747A Screw0
132 28819 Spring, Fuel line0
133 31613 Brace, Fuel tank0
134 29774 Line, Fuel (Braided 8.25")0
134 30705 Line, Fuel (Braided 16")0
134 30962 Line, Fuel (Braided 32")0
134 30965 Line, Fuel (Braided 48")0
135 26460 Clamp, Fuel line0
145 31668 Bag, Pre-cleaner0
146 31667 Spring, Pre-cleaner bag0
147 730512 Kit, Pre-cleaner0
162 8274 Lockwasher0
164 33323 Screen, Muffler0
165 33700 Cover & Tube, Muffler0
166 650578 Screw0
167 31288 Muffler Adapter Kit0
168 730130 Muffler Adapter Kit0
170 28443 Nut, Conduit (1/8" thick)0
170 32862 Nut, Conduit (1/4" thick)0 171E 391026 Muffler0
172 30196 Screw0
172 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
172 650689 Screw0
172 650695A Screw, Hex flange hd., 5/16-18 x 2-1/40
172 650696 Screw, Hex hd., 5/16-18 x 2-3/40
172 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20
173 27930 Gasket, Exhaust0
179 30244 Nipple, Exhaust pipe (2-1/2")0
179 32332 Nipple, Exhaust pipe (2")0
179 32454 Nipple, Exhaust pipe (1-3/8")0
180 29574 Elbow, Exhaust (90ø)0
180 30209 Elbow, Exhaust (45ø)0
Page 8 of 8
72 31572 Strap, Fuel tank0 73 650556 Screw0 73 792028 Screw, Hex hd. Sems, 5/16-18 x 7/80 86 28820 Screw0
www.mymowerparts.com
