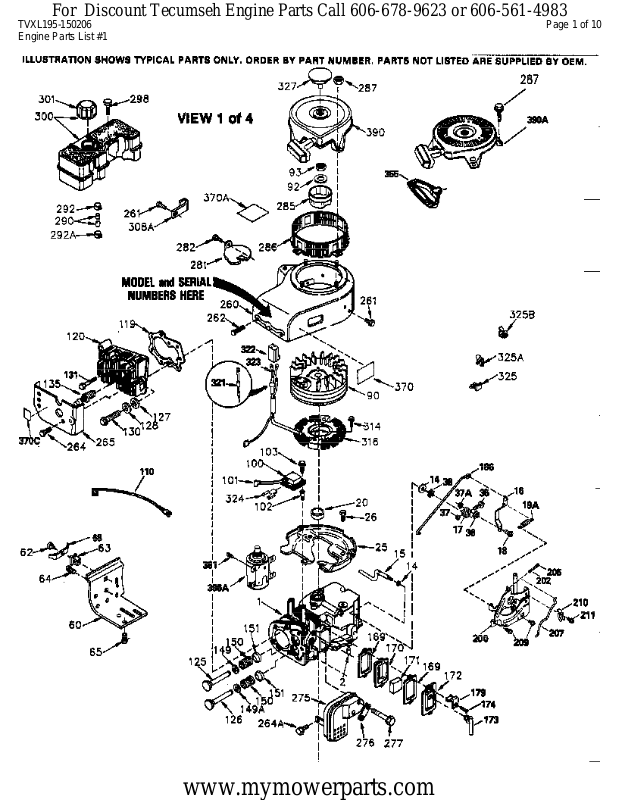

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 2 of 10
Engine Parts List #1
Ref # Part Number Qty Description
1 35383A Cylinder (Incl. 2 & 20) (3-1/8" Bore)
2 27652 Dowel Pin
14 28277 Washer
15 35082 Governor Rod
16 32651 Governor Lever
17 31335 Governor Lever Clamp
18 650548 Screw, 8-32 x 5/16"
20 35319 Oil Seal
25 35326 Blower Housing Baffle
26 650561 Screw, 1/4-20 x 5/8"
60 33273A Blower Housing Extension
64 30063 Screw, Torx T-30, 1/4-20 x 1/2"
65 650128 Screw, 10-24 x 1/2"
90 611090 Flywheel
92 650880 Lock Washer
93 650881 Flywheel Nut, 5/8-18
100 35135 Solid State Ignition
101 610118 Spark Plug Cover (use as required)
102 650872 Solid State Mounting Stud
103 650814 Screw, Torx T-15, 10-24 x 1"
110 35182 Ground Wire
119 34041A * Cylinder Head Gasket
120 34030A Cylinder Head
125 27878A Exhaust Valve (Std.) (Incl. 151)
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)
126 34035 Intake Valve (Std.) (Incl. 151)
126 34036 Intake Valve (1/32" OS) (Incl. 151)
127 650691 Washer (Do not use with 6021A screw)
128 650690 Belleville Washer
130 650694A Screw, 5/16-18 x 2"
131 6021A Screw, 5/16-18 x 1-1/2" (Do not use w /650691)
135 33636 Resistor Spark Plug (RJ17LM)
149 27882 Valve Spring Cap (Exhaust)
149A 35862 Valve Spring Cap (Intake)
150 27881 Valve Spring
151 32581 Valve Spring Keeper
169 27896A * Valve Cover Gasket
170 28423 Breather Body
171 28424 Breather Element
172 28425 Valve Cover
173 35350 Breather Tube
174 650128 Screw, 10-24 x 1/2"
186 33151 Governor Link
200 33948A Control Bracket (Incl. 202, 205 & 206 )
209 30200 Screw, 10-24 x 9/16"
238 650834 Screw, 10-32 x 1-17/32"
245A 35404 Air Cleaner Filter
260 33635C Blower Housing (For electric starter) NOTE: Replacement
hardware may differ when servicing starter assy. or blower
housing. Refer to Service Bulletin 508.
261 650788 Screw, 5/16-18 x 3/4"
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"
264 650802 Screw, 1/4-20 x 5/8"
264A 650738 Screw, 1/4-20 x 5/8"
265 33272B Cylinder Head Cover
275 33280A Muffler
276 31588 Locking Plate
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 3 of 10
Engine Parts List #1
Ref # Part Number Qty Description
277 650729 Screw, 5/16-18 x 3-3/16"
281 33013 Starter Bubble Cover
282 650760 Screw, 8-32 x 3/8"
285 35287A Starter Cup
286 35446 Starter Screen
287 29752 Nut & Lock Washer, 1/4-28
290 30705 Fuel Line (braided 16") (40cm)
292 26460 Fuel Line Clamp
298 28763 Screw, 10-32 x 35/64"
300 33583B Fuel Tank (Incl. 292, 298 & 301)
301 35355 Fuel Cap NOTE: This tank was built with different size fuel
inlet openings. Tanks with the l-l/2" I.D. opening use fuel cap
33032. Tanks with the 1-3/4" I.D. opening use fuel cap
35355.
325 29443 Wire Clip
327 35392 Starter Plug
370A 34686 Name Decal
370C 35274 Instruction Decal
370 34346 Instruction Decal
390 590633 Rewind Starter NOTE: Replacement hardware may differ
when servicing starter assy. or blower housing. Refer to
Service Bulletin 508. (Refer to Division 5, Section C, page 30
for breakdown or Fiche 10B, Grid G-1)
398 590685 Rewind Starter & Cup Ass'y. (This assembly replaces
590633 starter. This assembly consists of a 590671 rewind
starter and a 35965A starter cup.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 4 of 10
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 5 of 10
Engine Parts List #2
Ref # Part Number Qty Description
30 35380A Crankshaft
40 34552 Piston, Pin & Ring Set (Std.) (3-1/8" )
40 34553 Piston, Pin & Ring Set (.010" OS)
40 34554 Piston, Pin & Ring Set (.020" OS)
41 34329A Piston & Pin Ass'y. (Std.) (Incl. 43)
41 34330A Piston & Pin Ass'y. (.010" OS) (Incl. 43)
41 34331A Piston & Pin Ass'y. (.020" OS) (Incl. 43)
42 34332 Ring Set (Std.)
42 34333 Ring Set (.010" OS)
42 34334 Ring Set (.020" OS)
43 27888 Piston Pin Retaining Ring
45 35373A Connecting Rod (Incl. 46 & 47)
46 650908 Connecting Rod Bolt
47 650882 Connecting Rod Bolt
48 34034 Valve Lifter
50 35381 Camshaft (MCR)
52 31356 Oil Pump
69 35262 * Mounting Flange Gasket
70 35382A Mounting Flange (Incl. 72, 75, 80 & 8 1)
72 31927 Oil Drain Plug
75 35319 Oil Seal
80 30668 Governor Shaft
81 30590A Washer
82 35378 Governor Gear (Incl. 81)
83 30588A Governor Spool
84 29193 Retaining Ring
86 650833 Screw, 1/4-20 x 1-3/16"
88 31707A Spacer (Incl. 81)
89 32589 Flywheel Key
123 33261 Intake pipe Brace
124 650738 Screw, 1/4-20 x 5/8"
178 29752 Nut & Lock Washer, 1/4-28
182 30088A Screw, 1/4-28 x 1"
184 33263 * Carburetor To Intake Pipe Gasket
185 34926 Intake Pipe
223 650378 Screw, Torx T-30, 5/16-18 x 1-1/8"
224 27915A * Intake Pipe Gasket
238 650834 Screw, 10-32 x 1-17/32"
240 35538B Air Cleaner Body (Incl. 239)
245A 35404 Air Cleaner Filter
245 35403 Air Cleaner Filter (Incl. 251)
250 35405 Air Cleaner Cover
251 650886 Wing Nut, 1/4-20
251A 650825 Nut & Lock Washer, 1/4-20
252 650887 Screw, 1/4-20 x 1"
290 30705 Fuel Line (braided 16") (40cm)
292 26460 Fuel Line Clamp
305 35574 Oil Tube
307 35499 "O" Ring
308 35437 Fill Tube Clip
310 35576 Dipstick
379 631021 Inlet Needle, Seat & Clip Ass'y.
380 632237 Carburetor (Incl. 184) (Refer to Division 5, Section A, page
A3-4 for breakdown or Fiche 10B, Grid E-3)
398 590685 Rewind Starter & Cup Ass'y. (This assembly replaces
590633 starter. This assembly consists of a 590671 rewind
starter and a 35965A starter cup.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 6 of 10
Engine Parts List #2
Ref # Part Number Qty Description
400 33279G * Gasket Set (Incl. items marked *)
420 730225 SAE 30 4-Cycle Engine Oil (Quart)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 7 of 10
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 8 of 10
Engine Parts List #3
Ref # Part Number Qty Description
64 30063 Screw, Torx T-30, 1/4-20 x 1/2"
238 650834 Screw, 10-32 x 1-17/32"
245A 35404 Air Cleaner Filter
274 35865 Exhaust Gasket (use as required)
277 650729 Screw, 5/16-18 x 3-3/16"
398 590685 Rewind Starter & Cup Ass'y. (This assembly replaces
590633 starter. This assembly consists of a 590671 rewind
starter and a 35965A starter cup.)
415 730130 Exh.Adapter Kit(Incl.274 & 277)(As Re q.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 9 of 10
Engine Parts List #4
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVXL195-150206 Page 10 of 10
Engine Parts List #4
Ref # Part Number Qty Description
16 32651 Governor Lever
19 34043 Extension Spring
92 650880 Lock Washer
93 650881 Flywheel Nut, 5/8-18
103 650814 Screw, Torx T-15, 10-24 x 1"
186 33151 Governor Link
200 33948A Control Bracket (Incl. 202, 205 & 206 )
206 610973 Terminal
209 30200 Screw, 10-24 x 9/16"
215 32410 Control Knob
238 650834 Screw, 10-32 x 1-17/32"
245A 35404 Air Cleaner Filter
260 33635C Blower Housing (For electric starter) NOTE: Replacement
hardware may differ when servicing starter assy. or blower
housing. Refer to Service Bulletin 508.
261 650788 Screw, 5/16-18 x 3/4"
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"
275C 35824 Muffler (quiet) (optional)
277 650729 Screw, 5/16-18 x 3-3/16"
286 35446 Starter Screen
287 29752 Nut & Lock Washer, 1/4-28
287A Pop Rivet (can be purchased locally)
327 35392 Starter Plug
370B 35703 Speed Control Decal
390 590633 Rewind Starter NOTE: Replacement hardware may differ
when servicing starter assy. or blower housing. Refer to
Service Bulletin 508. (Refer to Division 5, Section C, page 30
for breakdown or Fiche 10B, Grid G-1)
398 590685 Rewind Starter & Cup Ass'y. (This assembly replaces
590633 starter. This assembly consists of a 590671 rewind
starter and a 35965A starter cup.)
408 35570 Screen Seal (Optional)
409 35569 Spacer (Optional)
410 730573 Opt.Screen Kit (Incl.370D,408,409,411 ,413)
411 35568 Debris Screen (Optional)
413 650907 Screw, 5/16-18 x 1-5/8" (Optional)
416 34479A Spark Arrestor Kit
425 730572 Starter Muff Kit (Incl.370,426,427)(O pt.)
426 34687 Starter Air Cleaner (Optional)
427 34869 Starter Air Cleaner Bracket (Optional )
