For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

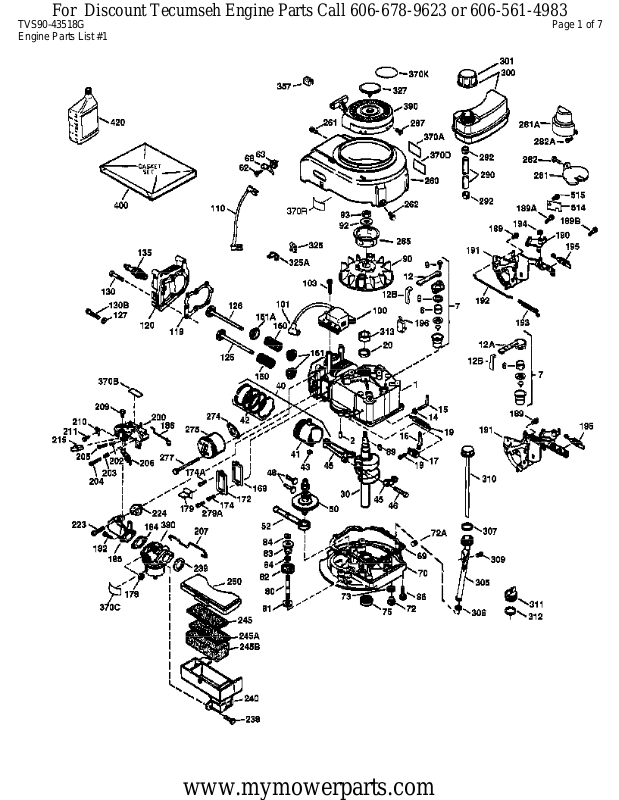

TVS90-43518G Page 1 of 7

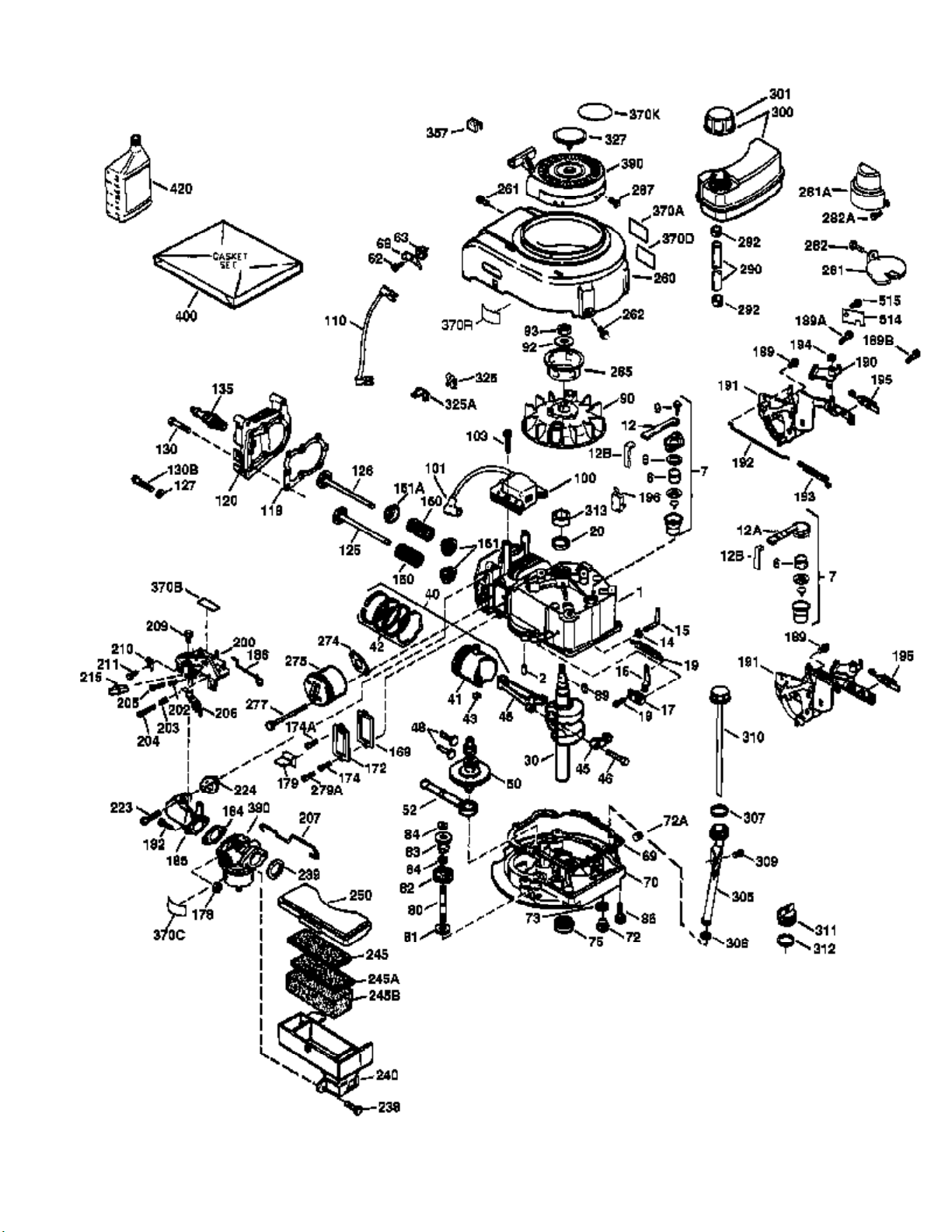

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 34975 Cylinder (Incl. 2,8,9 & 20)(2-1/2" Bo re)
2 26727 Dowel Pin2
6 33734 Breather Element1
7 34214A Breather Ass'y. (Incl. 6,8,9 & 12)1
8 33735 * Breather Gasket1
9 30200 Screw, 10-24 x 9/16"2
12 33886 Breather Tube1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 31383A Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 x 5/16"1
19 31386 Extension Spring1
20 32600 Oil Seal1
30 34463 Crankshaft1
40 34514 Piston, Pin & Ring Set (Std.)1
40 34515 Piston, Pin & Ring Set (.010 OS)1
40 34516 Piston, Pin & Ring Set (.020 OS)1
41 32538B Piston & Pin Ass'y. (Std.)(Incl. 43)1
41 32548B Piston & Pin Ass'y. (.010 OS)(Incl. 4 3)1
41 32549B Piston & Pin Ass'y. (.020 OS)(Incl. 4 3)1
42 28986 Ring Set (Std.)1
42 28987 Ring Set (.010 OS)1
42 28988 Ring Set (.020 OS)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 33148A Camshaft (BCR)1
52 29914 Oil Pump Ass'y.1
69 35261 * Mounting Flange Gasket1
70 35651B Mounting Flange (Incl. 72,75 & 80)1
72A 9556 Oil Drain Plug1
72 30572 Oil Drain Plug1
75 26208 Oil Seal1
80 30574 Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650488 Screw, 1/4-20 x 1-1/4"6
89 610961 Flywheel Key1
90 611123 Flywheel1
92 650815 Lock Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
103 650814 Screw, Torx T-15, 10-24 x 1"2
110 34231 Ground Wire1
119 29953C * Cylinder Head Gasket1
120 34335 Cylinder Head1
125 29313C Exhaust Valve (Std.)(Incl. 151)1
125 29315C Exhaust Valve (1/32" OS)(Incl. 151)1
126 29314B Intake Valve (Std.)(Incl. 151)1
126 29315C Intake Valve (1/32" OS)(Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
151 31673 Valve Spring Cap2
169 27234A * Valve Cover Gasket1
172 32755 Valve Cover1
174 650128 Screw, 10-24 x 1/2"2
178 29752 Nut & Lockwasher 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 31384A Intake Pipe (Incl. 224)1
186 34337 Governor Link1
200 33152A Control Bracket (Incl. 206)1
206 610973 Terminal1
207 34336 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
215 32410 Control Knob1
223 650451 Screw, 1/4-20 x 1"2
224 34690A * Intake Pipe Gasket1
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 34858 Air Cleaner Body1
245 34340 Air Cleaner Filter1
250 34341A Air Cleaner Cover1
260 35757 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 15/32"2
275 35708 Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
285 35000 Starter Cup1
287 650884 Screw, 8-32 x 1/2"2
290 30705 Fuel Line1
292 26460 Fuel Line Clamp2
300 32671 Fuel Tank (Incl. 292 & 301)1
301 33032 Fuel Cap1
305 35577 Oil Fill Tube1
306 34265 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
310 35578 Dipstick1
313 34080 Spacer1
327 35932 Starter Plug1
370A 34346 Instruction Decal1
370B 35344 Instruction Decal1
380 632046A Carburetor (Incl. 184)1
390 590635 Rewind Starter1
400 36206 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
1
26756 (1), 27234A (1), 29953C (1), 33735 (1), 34265 (1),
34338 (1), 34690A (1), 35261 (1)
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 4 of 7
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
245 34340 Air Cleaner Filter1
250 34341A Air Cleaner Cover1
260 35757 Blower Housing1
287 650884 Screw, 8-32 x 1/2"2
298 650665 Screw, 1/4-15 x 7/8"1
300 32671 Fuel Tank (Incl. 292 & 301)1
301 33032 Fuel Cap1
341 35016 Fuel Tank Bracket1
342 650735 Screw, 10-24 x 3/8"1
370 550223 Name Decal1
390 590635 Rewind Starter1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 6 of 7

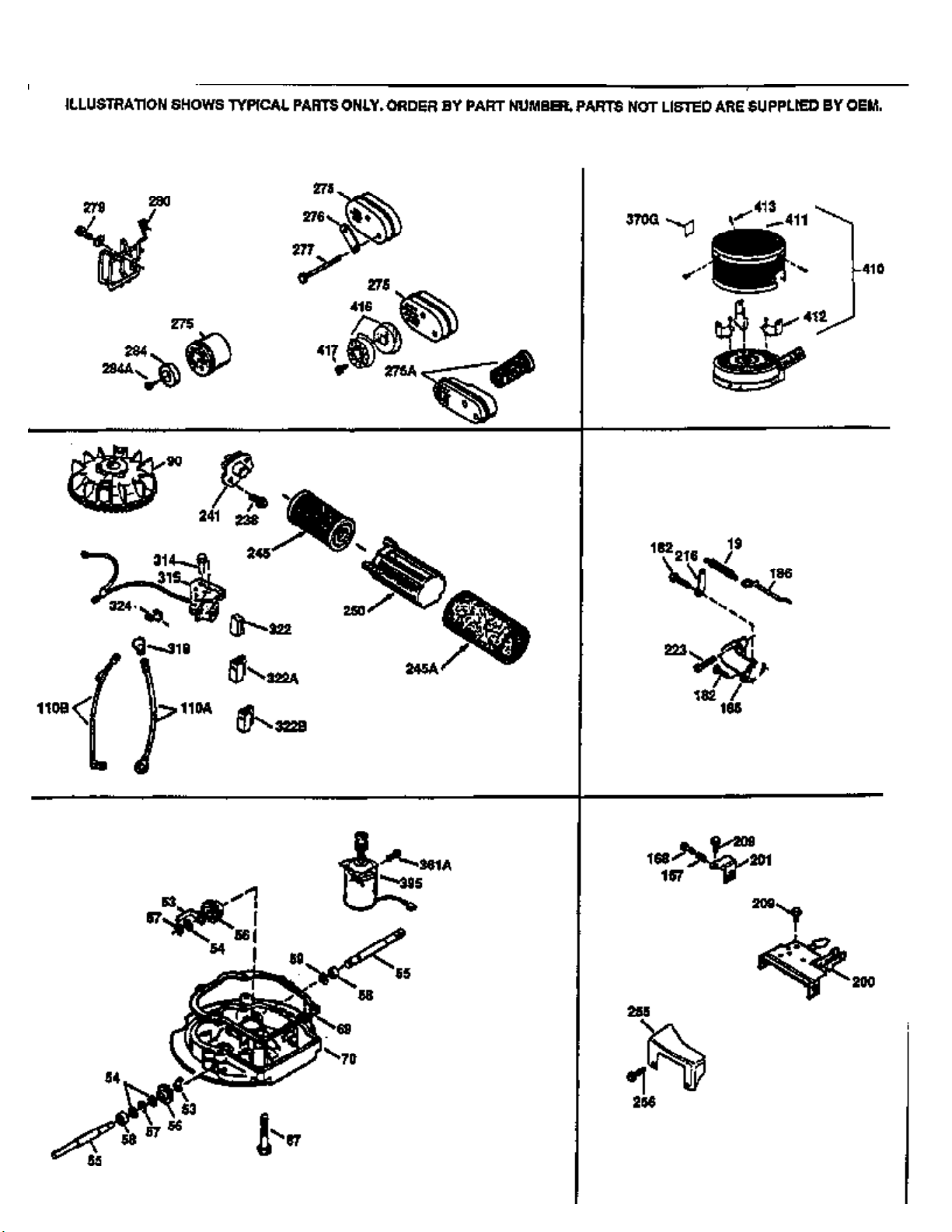

Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43518G Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
19 31386 Extension Spring1
69 35261 * Mounting Flange Gasket1
70 35651B Mounting Flange (Incl. 72,75 & 80)1
90 611123 Flywheel1
167 32924 Speed Adjusting Spring1
168 650688 Screw, 10-32 x 1"1
182 6201 Screw, 1/4-28 x 7/8"2
185 31384A Intake Pipe (Incl. 224)1
186 34337 Governor Link1
200 33152A Control Bracket (Incl. 206)1
201 33150 Override Control Bracket1
209 30200 Screw, 10-24 x 9/16"2
223 650451 Screw, 1/4-20 x 1"2
238 650806 Screw, 10-32 x 5/8"2
245 34340 Air Cleaner Filter1
250 34341A Air Cleaner Cover1
275 35708 Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
www.mymowerparts.com
