TVS90-43375G Page 1 of 7

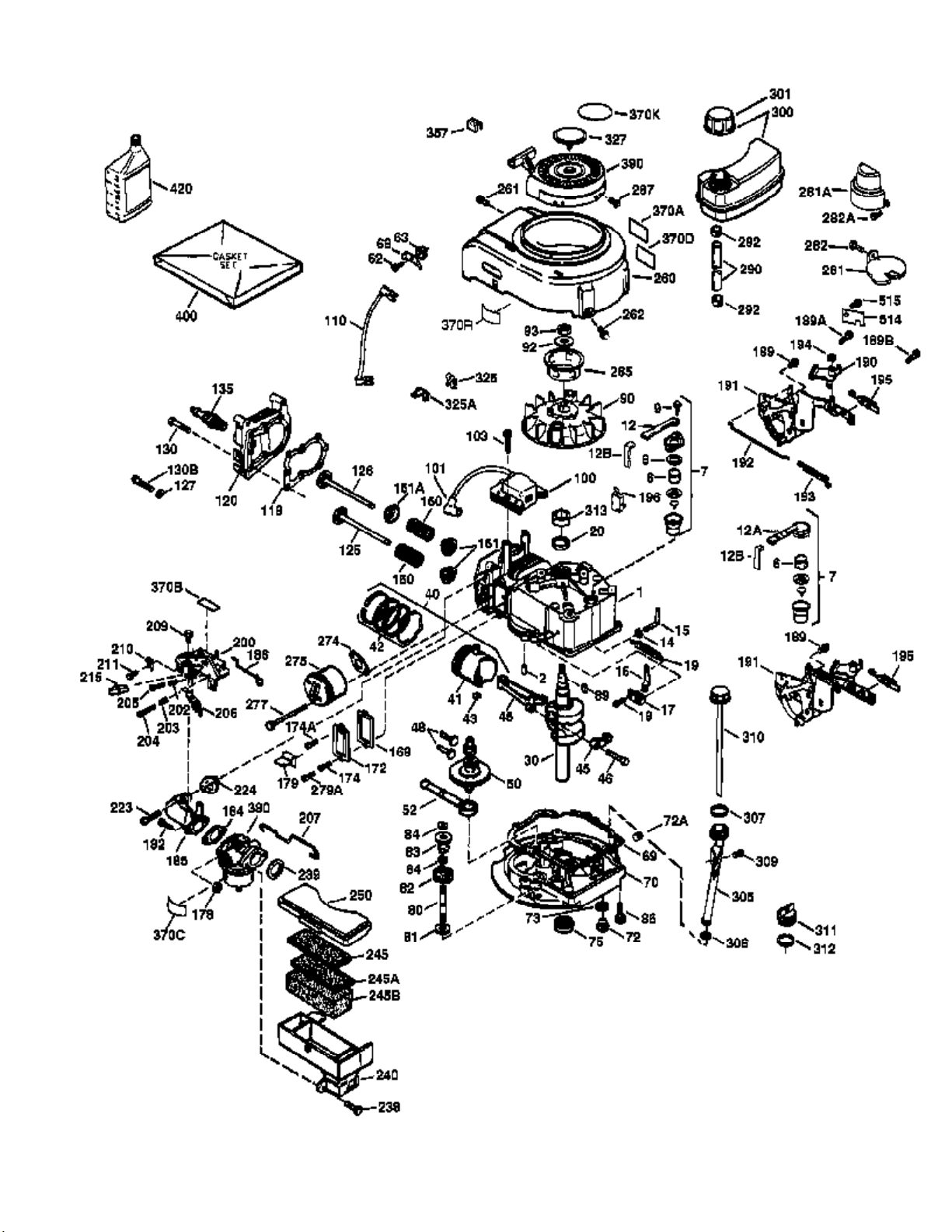

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 34975 Cylinder (Incl. 2,8,9 & 20)(2-1/2" Bo re)
2 26727 Dowel Pin2
6 33734 Breather Element1
7 34214A Breather Ass'y. (Incl. 6,8,9 & 12)1
8 33735 * Breather Gasket1
9 30200 Screw, 10-24 x 9/16"2
12 33886 Breather Tube1
12B 34695 Breather Tube Elbow1
14 28277 Washer1
15 31513 Governor Rod1
16 31383A Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 x 5/16"1
19 31361 Extension Spring1
20 32600 Oil Seal1
30 34450 Crankshaft1
40 34514 Piston, Pin & Ring Set (Std.)1
40 34515 Piston, Pin & Ring Set (.010 OS)1
40 34516 Piston, Pin & Ring Set (.020 OS)1
41 32538B Piston & Pin Ass'y. (Std.)(Incl. 43)1
41 32548B Piston & Pin Ass'y. (.010 OS)(Incl. 4 3)1
41 32549B Piston & Pin Ass'y. (.020 OS)(Incl. 4 3)1
42 28986 Ring Set (Std.)1
42 28987 Ring Set (.010 OS)1
42 28988 Ring Set (.020 OS)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 33148A Camshaft (BCR)1
52 29914 Oil Pump Ass'y.1
69 35261 * Mounting Flange Gasket1
70 35609 Mounting Flange (Incl.58,72,75,80 & 3 11)1
72 30572 Oil Drain Plug1
75 26208 Oil Seal1
80 30574 Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650488 Screw, 1/4-20 x 1-1/4"5
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Lock Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
103 650814 Screw, Torx T-15, 10-24 x 1"2
110 34961 Ground Wire1
119 29953C * Cylinder Head Gasket1
120 34335 Cylinder Head1
125 29313C Exhaust Valve (Std.)(Incl. 151)1
125 29315C Exhaust Valve (1/32" OS)(Incl. 151)1
126 29314B Intake Valve (Std.)(Incl. 151)1
126 29315C Intake Valve (1/32" OS)(Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
151 31673 Valve Spring Cap2
169 27234A * Valve Cover Gasket1
172 32755 Valve Cover1
174 650128 Screw, 10-24 x 1/2"2
178 29752 Nut & Lockwasher 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 31384A Intake Pipe (Incl. 224)1
186 32653 Governor Link1
189A 650837 Screw, 10-32 x 1/4"1
189 650839 Screw, 1/4-20 x 3/8"2
190 35831 Brake Lever1
191 35015B S.E. Brake Bracket1
192 34966 Brake Control Link1
193 34965 Brake Spring1
194 32309 Retaining Ring2
195 610973 Terminal1
207 34336 Throttle Link1
223 650451 Screw, 1/4-20 x 1"2
224 34690A * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
260 35478 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 15/32"2
275 27181B Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
285 35000 Starter Cup1
287 650884 Screw, 8-32 x 1/2"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
311 27625 Oil Fill Plug (Incl. 312)1
312 29673 Oil Fill Plug Gasket1
313 34080 Spacer1
327 35932 Starter Plug1
354 35025 Staple1
357 34985 Starter Rope Retainer1
380 632046A Carburetor (Incl. 184)1
390 590621 Rewind Starter1
400 36206 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
1
26756 (1), 27234A (1), 29953C (1), 33735 (1), 34265 (1),
34338 (1), 34690A (1), 35261 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 4 of 7
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
189A 650837 Screw, 10-32 x 1/4"1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
260 35478 Blower Housing1
287 650884 Screw, 8-32 x 1/2"2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
354 35025 Staple1
370 34993 Instruction Decal1
390 590621 Rewind Starter1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 6 of 7

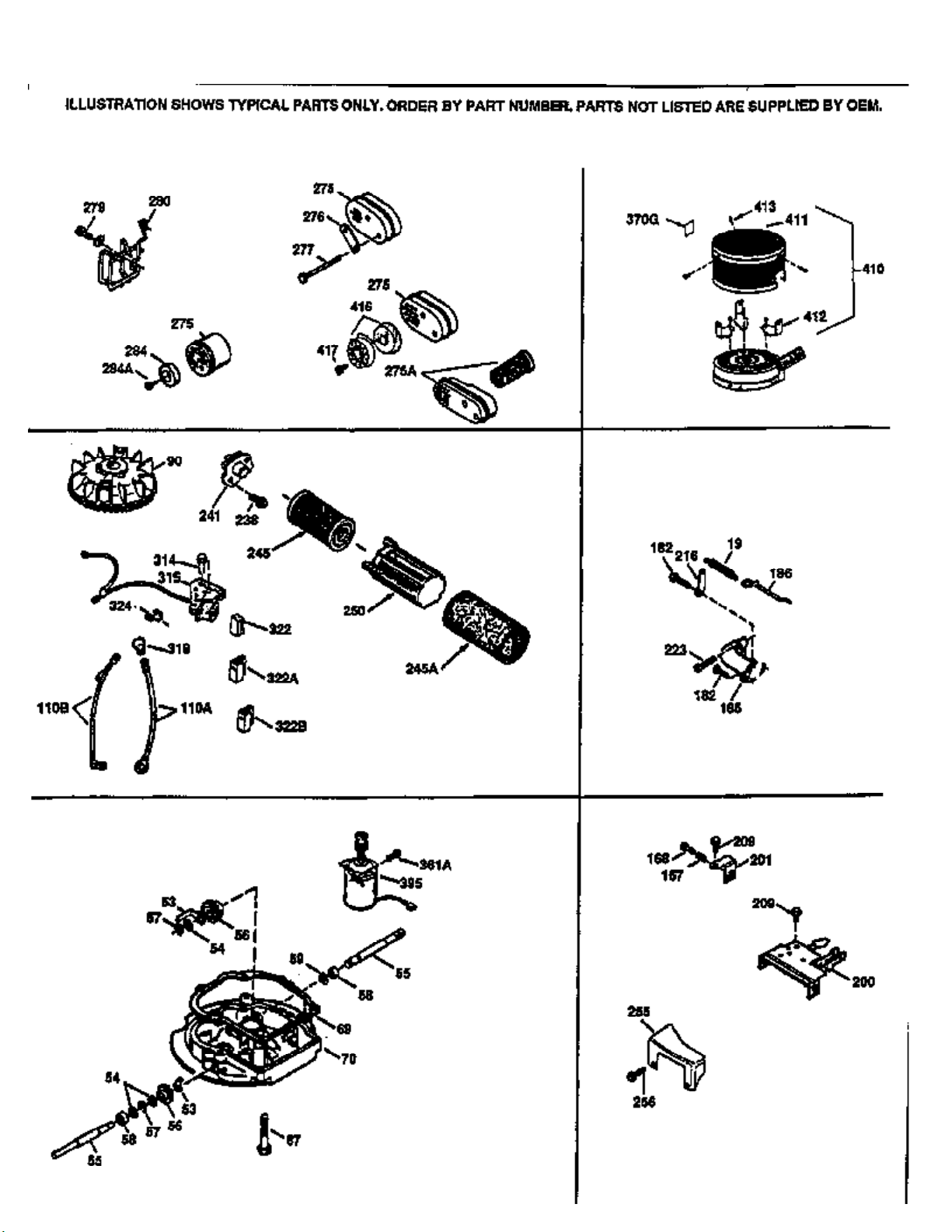

Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS90-43375G Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
19 31361 Extension Spring1
53 31745 Tang Washer1
54 31747 Washer1
55 33774 P.T.O. Shaft1
56 33401 Right Hand Worm Gear1
57 31749 Retaining Ring1
58 31744 Oil Seal1
59 31787 Washer1
69 35261 * Mounting Flange Gasket1
70 35609 Mounting Flange (Incl.58,72,75,80 & 3 11)1
87 650492 Screw, 1/4-20 x 2-1/4"1
90 611112 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 31384A Intake Pipe (Incl. 224)1
186 32653 Governor Link1
216 33086 R.P.M. Adjusting Lever1
223 650451 Screw, 1/4-20 x 1"2
238 650932 Screw, 10-32 x 49/64"2
241 35797 Air Cleaner Collar1
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
275 27181B Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
354 35025 Staple1
