TVS115-56032B Page 1 of 8
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 2 of 8
Engine Parts List #1
Ref # Part Number Qty Description
1 36478 Cylinder (Incl. 2 & 20)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 34214A Breather Ass'y. (Incl. 6,8,9,12,12B)1
8 33735 * Breather Gasket1
9 30200 Screw, 10-24 x 9/16"2
12 33886 Breather Tube1
12B 34695 Breather Tube Elbow1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 31383A Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 x 5/16"1
19 31361 Extension Spring1
20 32600 Oil Seal1
30 35799A Crankshaft1
40 36073 Piston, Pin & Ring Set (Std.)1
40 36074 Piston, Pin & Ring Set (.010" OS)1
40 36075 Piston, Pin & Ring Set (.020" OS)1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 36072 Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 36076 Ring Set (Std.)1
42 36077 Ring Set (.010" OS)1
42 36078 Ring Set (.020" OS)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 35992 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 35261 * Mounting Flange Gasket1
70 34311D Mounting Flange (Incl. 72 thru 83)1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y.(Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
103 650814 Screw, Torx T-15, 10-24 x 1"2
110 34961 Ground Wire1
119 36477 * Cylinder Head Gasket1
120 36476 Cylinder Head1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS) (Incl. 151)1
126 29314B Intake Valve (Std.) (Incl. 151)1
126 29315C Intake Valve (1/32" OS) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 35991 Valve Spring2
151 31673 Valve Spring Cap2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 3 of 8
Engine Parts List #1
Ref # Part Number Qty Description
169 27234A * Valve Cover Gasket1
172 32755 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 31384A Intake Pipe (Incl. 224)1
186 34358 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"2
190 35831 Brake Lever1
191 35040B S.E. Brake Bracket (Incl. 195)1
192 34966 Brake Control Link1
193 34965 Brake Spring1
194 32309 Retaining Ring1
195 610973 Terminal1
200 35727 Control Bracket (Incl. 202 thru 205)1
202 33802 Compression Spring1
203 31342 Compression Spring1
204 650549 Screw, 5-40 x 7/16"1
205 650777 Screw, 6-32 x 21/32"1
207 34336 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
215 32410 Control Knob1
223 650451 Screw, 1/4-20 x 1"2
224 34690A * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
260 35478 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 27181B Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
285 35000 Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
305 35577 Oil Fill Tube1
306 34265 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
310 35578 Dipstick1
313 34080 Spacer1
327 35392 Starter Plug1
354 35025 Staple1
357 34985 Starter Rope Retainer1
370A 36260 Primer Decal1
370 36261 Instruction Decal1
370B 35167 Instruction Decal1
380 632078A Carburetor (Incl. 184)1
390 590694 Rewind Starter (NOTE: This engine could have been built
1
with 590686 starter. Refer to the design of the air intake
louvers for part identification. Individual starter parts do not
interchange.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 4 of 8
Engine Parts List #1
Ref # Part Number Qty Description
400 36481 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s:
1
26756 (1), 27234A (1), 33735 (1), 34265 (1), 34338 (1),
34690A (1), 35261 (1), 36477 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 5 of 8
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 6 of 8

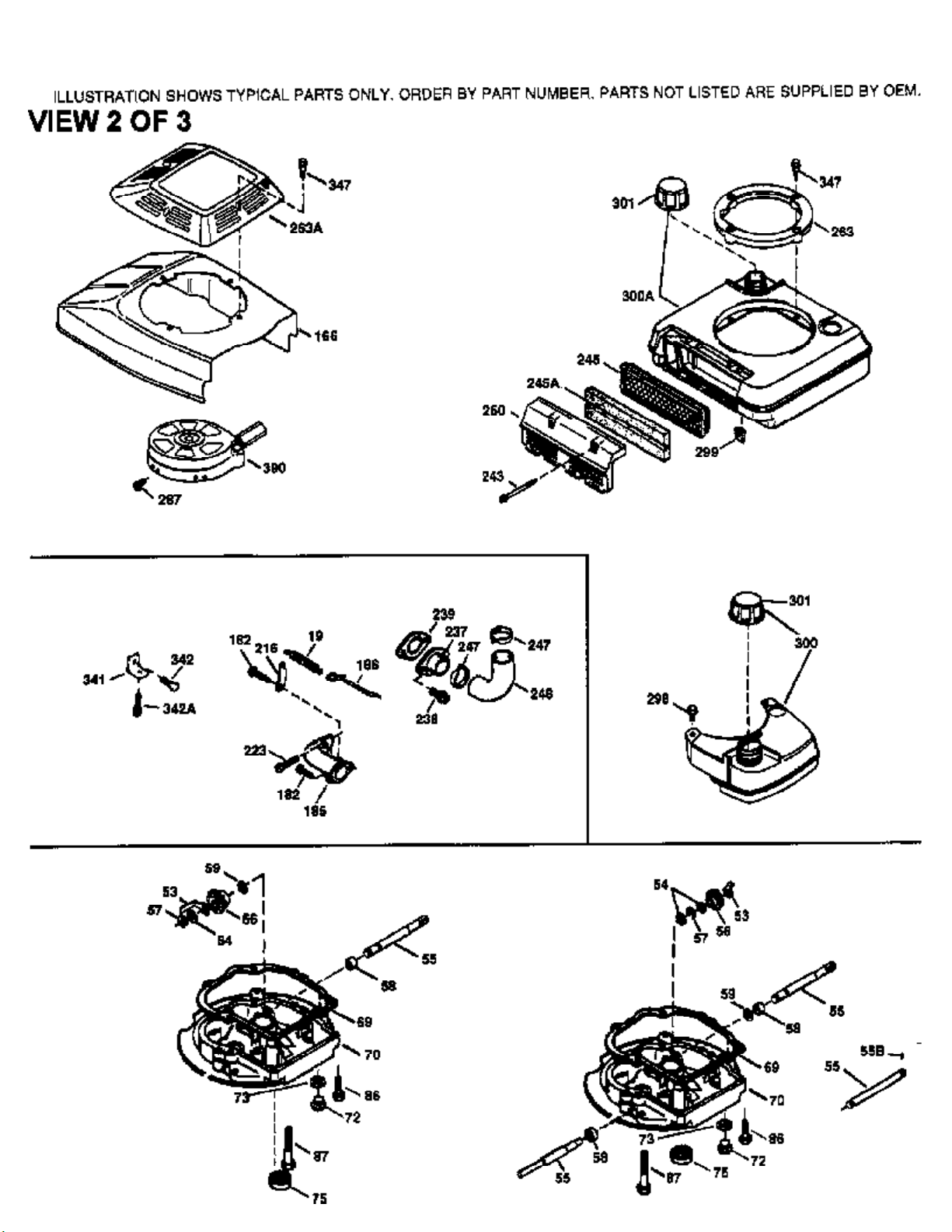

Engine Parts List #2
Ref # Part Number Qty Description
19 31361 Extension Spring1
69 35261 * Mounting Flange Gasket1
70 34311D Mounting Flange (Incl. 72 thru 83)1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
182 6201 Screw, 1/4-28 x 7/8"2
185 31384A Intake Pipe (Incl. 224)1
186 34358 Governor Link1
223 650451 Screw, 1/4-20 x 1"2
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
287 650926 Screw, 8-32 x 21/64"2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
354 35025 Staple1
390 590694 Rewind Starter (NOTE: This engine could have been built
1
with 590686 starter. Refer to the design of the air intake
louvers for part identification. Individual starter parts do not
interchange.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 7 of 8
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS115-56032B Page 8 of 8

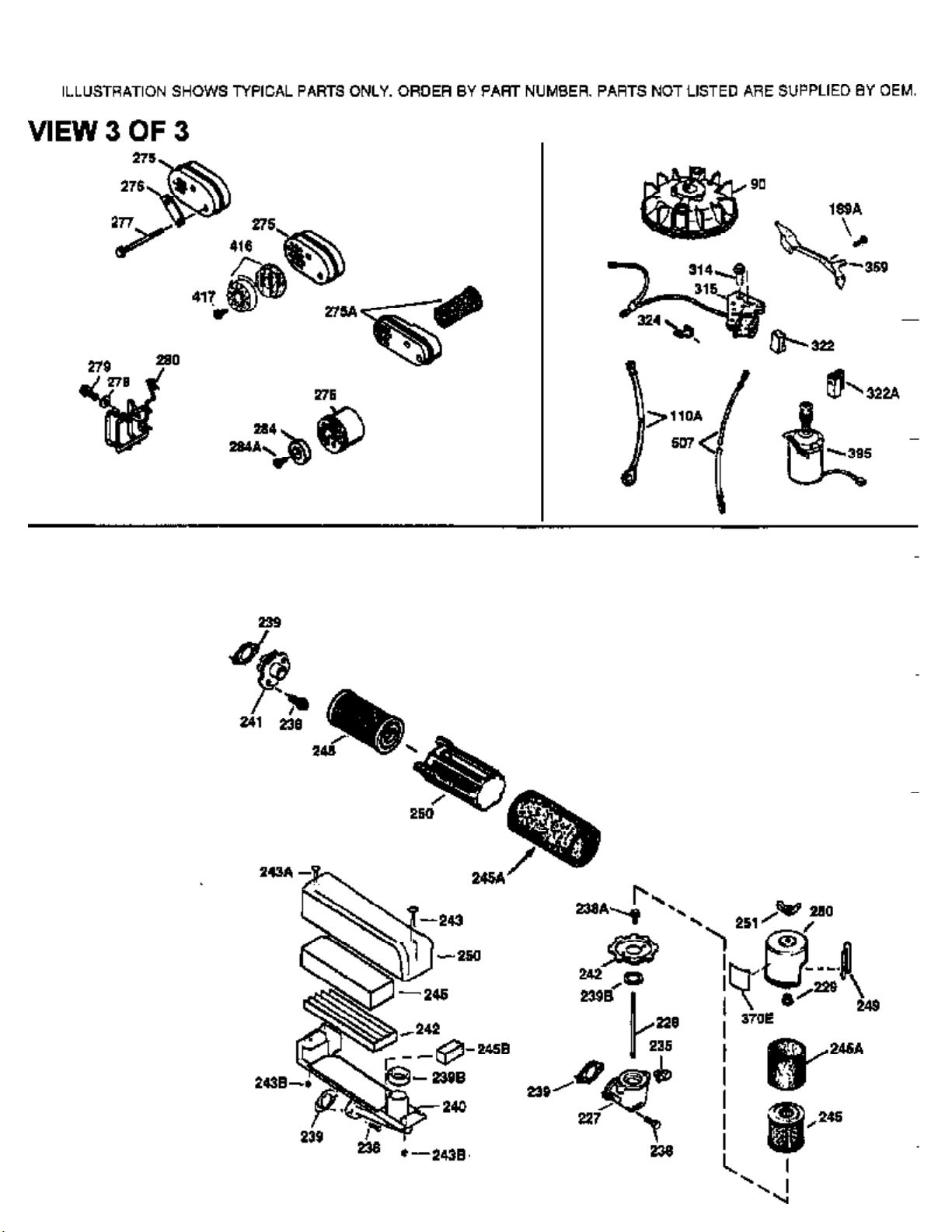

Engine Parts List #3
Ref # Part Number Qty Description
90 611112 Flywheel1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 35797 Air Cleaner Collar1
245 35066 Air Cleaner Filter1
250 35065 Air Cleaner Cover1
275 27181B Muffler (Incl. 277)1
277 650795 Screw, 1/4-20 x 2-1/4"2
354 35025 Staple1
