TVS105-53175H Page 1 of 7
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS105-53175H Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 35010 Cylinder (Incl. 2 & 20) (2-5/8" Bore)
2 26727 Pin, Dowel
6 33734 Element, Breather
7 34214A Breather Assy. (Incl. 6, 8, 9, 12 & 1 2A)
8 33735 * Gasket, Breather
9 30200 Screw, 10-24 x 9/16"
12A 34695 Elbow, Breather tube
12 33886 Tube, Breather
14 28277 Washer, Flat
15 30589 Rod, Governor (Incl. 14)
16 31383A Lever, Governor
17 31335 Clamp, Governor lever
18 650548 Screw, 8-32 x 5/16"
19 31361 Spring, Extension
20 32600 Seal, Oil
30 35860 Crankshaft
40 35544 Piston, Pin & Ring Set (Std.) (2-5/8" Bore)
40 35545 Piston, Pin & Ring Set (.010" OS)
40 35546 Piston, Pin & Ring Set (.020" OS)
41 35541 Piston & Pin Ass'y. (Incl. 43)(Std.)( 2-5/8")
41 35542 Piston & Pin Ass'y. (Incl. 43) (.010" OS)
41 35543 Piston & Pin Ass'y. (Incl. 43) (.020" OS)
42 35547 Ring Set (Std.) (2-5/8" Bore)
42 35548 Ring Set (.010" OS)
42 35549 Ring Set (.020" OS)
43 20381 Ring, Piston pin retaining
45 32875 Rod Assy., Connecting (Incl. 46)
46 32610A Bolt, Connecting rod
48 27241 Lifter, Valve
50 33148A Camshaft
52 29914 Oil Pump Assy.
69 35261 * Gasket, Mounting flange
70 34311C Flange Ass'y. (Incl. 72, 72A, 73, 75 & 80)
72 30572 Plug, Oil drain (Incl. 73)
73 28833 * Drain Plug Gasket (Not req. W/plastic plug)
75 27897 Seal, Oil
80 30574 Shaft, Governor
81 30590A Washer, Flat
82 30591 Gear Assy., Governor (Incl. 81)
83 30588A Spool, Governor
84 29193 Ring, Retaining
86 650488 Screw, 1/4-20 x 1-1/4"
89 611004 Flywheel Key
90 611112 Flywheel
92 650815 Washer, Belleville
93 650816 Nut, Flywheel
100 34443A Solid State Ignition
101 610118 Cover, Spark plug
103 650814 Screw, Torx T-15, 10-24 x 1"
110 34961 Ground Wire
119 33015A * Gasket, Head
120 34342 Head, Cylinder
125 29314B Intake Valve (Std.) (Incl. 151) (Conventional Ports)
125 29315C Intake Valve (1/32" OS) (Incl. 151) (Conventional Ports)
126 29313C Exhaust Valve (Std.) (Incl. 151) (Conventional Ports)
126 29315C Exhaust Valve (1/32" OS) (Incl. 151) (Conventional Ports)
130 6021A Screw, 5/16-18 x 1-1/2"
135 35395 Resistor Spark Plug (RJ19LM)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS105-53175H Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
150 31672 Spring, Valve
151 31673 Cap, Lower valve spring
169 27234A Gasket, Valve spring box cover
172 32755 Cover, Valve spring box
174 650128 Screw, 10-24 x 1/2"
178 29752 Nut & Lockwasher, 1/4-28
182 6201 Screw, 1/4-28 x 7/8"
184 26756 * Gasket, Carburetor
185 31384A Pipe, Intake (Incl. 224)
186 32653 Link, Governor spring
189 650839 Screw, 1/4-20 x 3/8"
190 35831 Lever, Brake
191 35040B Bracket Assy., S.E. Brake (Incl. 195)
192 34966 Link, Control
193 34965 Spring, Extension
194 32309 Ring, Retaining
195 610973 Terminal Assy.
207 34336 Link, Throttle
223 650451 Screw, 1/4-20 x 1"
224 34690A * Gasket, Intake pipe
238 650932 Screw, 10-32 x 49/64"
239 34338 * Gasket, Air cleaner
245 35066 Filter, Air cleaner
246D 35435 Filter, Pre-Air (Optional)
250A 35065 Cover Assy., Air cleaner
260 35478 Housing, Blower
261 30200 Screw, 10-24 x 9/16"
262 650831 Screw, 1/4-20 x 15/32"
275 27181B Muffler Kit (Incl. 274 & 277)
277 650795 Screw, 1/4-20 x 2-1/4" (Use as requir ed)
285 35000 Hub, Starter
287 650884 Screw, 8-32 x 1/2"
290 34357 Fuel Line (Epichlorohydrin 6-3/4") (1 7 cm)
290 29774 Fuel Line(Braided 8-1/4")(21 cm)(Use as req.)
290 30705 Fuel Line (Braided 16") (40 cm) (Use as req.)
290 30962 Fuel Line (Braided 32") (81 cm) (Use as req.)
292 26460 Clamp, Fuel line
300 35586 Fuel Tank (Incl. 292 & 301A)
305 35577 Tube, Oil fill
306 34265 Gasket, Oil fill tube
307 35499 "O" Ring
309 650562 Screw, 10-32 x 1/2"
310 35578 Dipstick
313 34080 Spacer, Flywheel key
327 35392 Plug, Starter
354 35025 Staple (Not used on all models)
357 34985 Rope Stop & Staple Assy. (Incl. 354)
370G 34387 Decal, Instruction (Optional)
379 631021 Inlet Needle, Seat & Clip Ass'y.
380 632078A Carburetor (Incl. 184) (Refer to Division 5, Section A, page
A2-10 or Fiche 8A, Grid E-13 for breakdown)
390 590621 Rewind Starter (Refer to Division 5, Section C, page 34 or
Fiche 8A, Grid G-5 for breakdown)
400 33238D * Gasket Set (Incl. items marked *)
420 730225 SAE 30, 4-Cycle Engine Oil (Quart)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

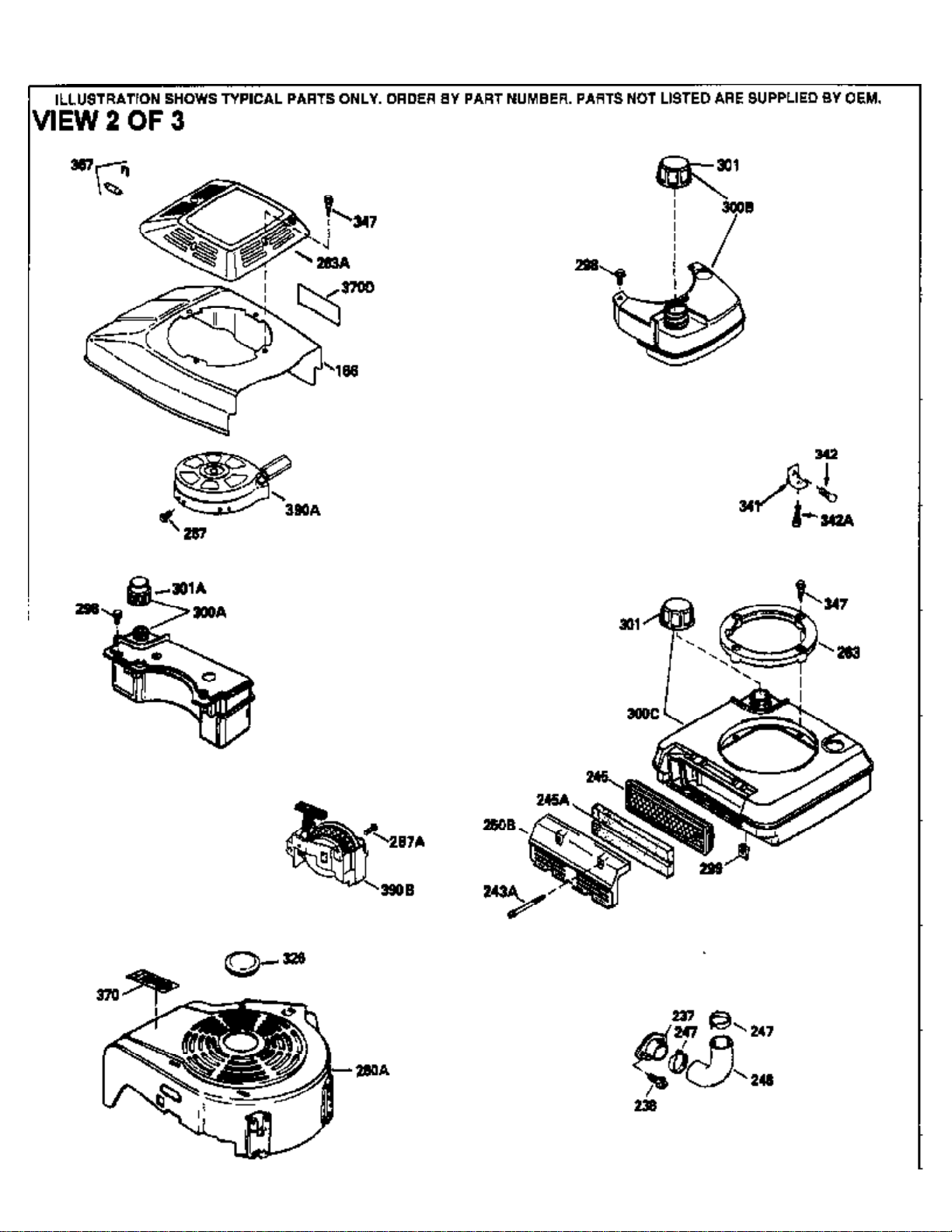

TVS105-53175H Page 4 of 7
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS105-53175H Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
12A 34695 Elbow, Breather tube
92 650815 Washer, Belleville
191 35040B Bracket Assy., S.E. Brake (Incl. 195)
238 650932 Screw, 10-32 x 49/64"
245 35066 Filter, Air cleaner
246D 35435 Filter, Pre-Air (Optional)
250A 35065 Cover Assy., Air cleaner
287 650884 Screw, 8-32 x 1/2"
301A 35355 Fuel Cap (Use as required)
354 35025 Staple (Not used on all models)
357 34985 Rope Stop & Staple Assy. (Incl. 354)
370G 34387 Decal, Instruction (Optional)
390 590621 Rewind Starter (Refer to Division 5, Section C, page 34 or
Fiche 8A, Grid G-5 for breakdown)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS105-53175H Page 6 of 7
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS105-53175H Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
12A 34695 Elbow, Breather tube
19 31361 Spring, Extension
69 35261 * Gasket, Mounting flange
92 650815 Washer, Belleville
182 6201 Screw, 1/4-28 x 7/8"
185 31384A Pipe, Intake (Incl. 224)
186 32653 Link, Governor spring
191 35040B Bracket Assy., S.E. Brake (Incl. 195)
216 33086 Lever, Speed adjusting
223 650451 Screw, 1/4-20 x 1"
238 650932 Screw, 10-32 x 49/64"
241 35797 Collar, Air cleaner
245 35066 Filter, Air cleaner
246D 35435 Filter, Pre-Air (Optional)
250A 35065 Cover Assy., Air cleaner
277 650795 Screw, 1/4-20 x 2-1/4" (Use as requir ed)
277A 30063 Screw, Torx T-30, 1/4-20 x 1/2" (Use as req.)
354 35025 Staple (Not used on all models)
357 34985 Rope Stop & Staple Assy. (Incl. 354)
370G 34387 Decal, Instruction (Optional)
410 730574 Opt.Debris Screen Kit (Incl.370G,411, 412,413)
411 35596 Debris Screen (Optional)
412 35597 Debris Screen Bracket (Optional)
413 650910 Screw, 8-32 x 1/4 (Optional)
415 730162 Muffler Adapter Kit(In.274,277A)(Use as req.)
