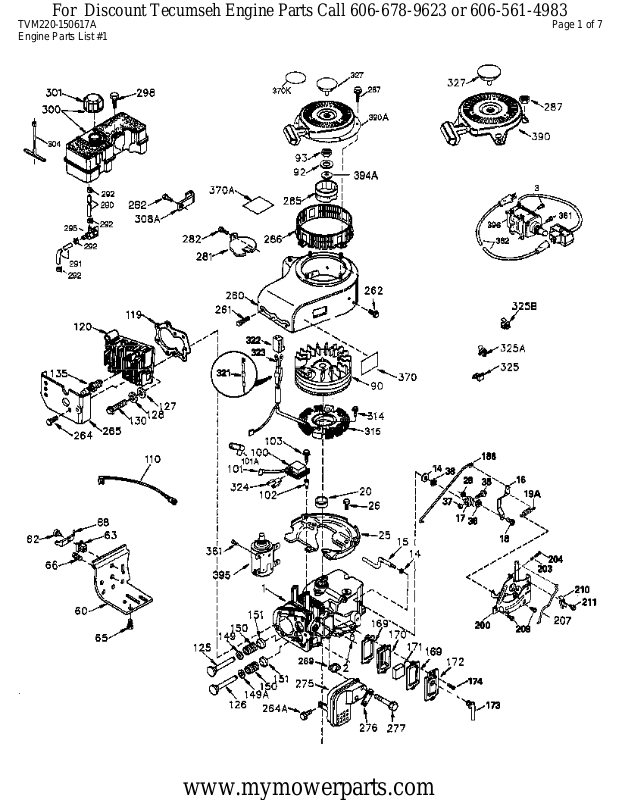

TVM220-150617A Page 1 of 7
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 35421 Cylinder (Incl. 2 & 20)1
2 27652 Dowel Pin2
14 28277 Washer2
15 35082 Governor Rod1
16 36494 Governor Lever1
17 29916 Governor Lever Clamp1
18 651028 Screw, T-15, 8-32 x 3/8"1
19A 34043 Extension Spring1
20 35319 Oil Seal1
25 35424 Blower Housing Baffle (Incl. 325)1
26 650561 Screw, 1/4-20 x 19/32"2
28 30322 Lock Nut, 8-321
35 29826 Screw, 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut, 10-321
38 29642 Retaining Ring1
60 33273A Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
66 650990 Screw, T-30, 1/4-20 x 15/32"1
90 611091 Flywheel (w/ring gear)1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
100 35135A Solid State Ignition (Incl. 101)1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, T-15, 10-24 x 15/16"2
110 35182 Ground Wire1
119 36451 * Cylinder Head Gasket1
120 36449 Cylinder Head1
125 27878A Exhaust Valve (Std.) (Incl. 151)1
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)1
126 34035 Intake Valve (Std.) (Incl. 151)1
126 34036 Intake Valve (1/32" OS) (Incl. 151)1
127 650691 Washer9
128 650690 Belleville Washer9
130 650694A Screw, 5/16-18 x 2"9
135 33636 Resistor Spark Plug (RJ17LM)1
149 27882 Valve Spring Cap1
149A 35862 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Valve Cover Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173 35350 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
186 33860 Governor Link1
200 33948A Control Bracket (Incl. 203,204 & 206)1
203 31342 Compression Spring1
204 651029 Screw, T-10, 5-40 x 7/16"1
207 33151 Governor Spring Link1
209 30200 Screw, 10-24 x 9/16"2
260 33635C Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, T-40, 5/16-24 x 21/32"2
264A 650802 Screw, 1/4-20 x 5/8"1
265 33272D Cylinder Head Cover1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
275 40003 Muffler1
276 31588 Locking Plate1
277 650729 Screw, 5/16-18 x 3-3/16"2
281 33013 Starter Bubble Cover1
282 650760 Screw, 8-32 x 3/8"1
285 35985B Starter Cup1
287 29752 Nut & Lock Washer, 1/4-284
290 30705 Fuel Line1
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 33/64"2
300 33583B Fuel Tank (Incl. 292, 298 & 301)1
301 36246 Fuel Cap1
325 29443 Wire Clip1
327 35392 Starter Plug1
370B 36507 Speed Control Decal1
370 36261 Identification Decal1
390 590746 Rewind Starter (NOTE: This engine could hav e been built
1
with 590704 starter.)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 4 of 7
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
30 35422A Crankshaft1
31 35327 Counterbalance Gear1
40 35776A Piston, Pin & Ring Set (Std.)(Incl. 4 1,42 & 43)1
40 35777A Piston, Pin & Ring Set (.010" OS)(Inc l. 41,42 & 43)1
40 35778A Piston, Pin & Ring Set (.020" OS)(Inc l. 41,42 & 43)1
41 35773A Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 35774A Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 35775A Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 35779 Ring Set (Std.)1
42 35780 Ring Set (.010" OS)1
42 35781 Ring Set (.020" OS)1
43 35772 Piston Pin Retaining Ring2
45 36895 Connecting Rod Ass'y. (Incl. 47)1
47 651033 Connecting Rod Bolt2
48 34034 Valve Lifter2
50 35381 Camshaft (MCR)1
51 35315A Counterbalance Weight1
52 31356 Oil Pump Ass'y.1
69 35317 * Mounting Flange Gasket1
70 35711A Mounting Flange (Incl. 72,75,80 & 81)1
72 31927 Oil Drain Plug1
75 35319 Oil Seal1
80 35783 Governor Shaft1
81 30590A Washer2
82 35378 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650833 Screw, 1/4-20 x 1-3/16"8
88 31707A Spacer (Incl. 81)1
89 32589 Flywheel Key1
123 33261 Intake Pipe Bracket1
124 651031 Screw, 1/4-20 x 9/16"3
171 28424 Breather Element1
178 29752 Nut & Lock Washer, 1/4-282
182 30088A Screw, 1/4-28 x 1"2
184 33263 * Carburetor To Intake Pipe Gasket1
185 34926 Intake Pipe1
223 650378 Screw, T-30, 5/16-18 x 1-3/32"2
224 27915A * Intake Pipe Gasket1
234 650825 Nut & Lock Washer, 1/4-202
238 650834 Screw, 10-32 x 1-17/32"2
239 33629 * Air Cleaner Gasket1
240 35538B Air Cleaner Body (Incl. 239)1
245 35403 Air Cleaner Filter (Incl. 234)1
245 35404 Air Cleaner Filter1
250 35961 Air Cleaner Cover1
251 650886 Wing Nut, 1/4-202
292 26460 Fuel Line Clamp2
305 35574 Oil Fill Tube1
307 35499 "O" Ring1
308 35437 Fill Tube Clip1
310 35576 Dipstick1
370B 36507 Speed Control Decal1
380 640126 Carburetor (Incl. 184)1
400 36450C Gasket Set (Include items marked PK i n notes)1
420 730225A SAE 30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 6 of 7
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM220-150617A Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
60 33273A Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
171 28424 Breather Element1
206 610973 Terminal1
209 30200 Screw, 10-24 x 9/16"2
215 32410 Control Knob1
260 33635C Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, T-40, 5/16-24 x 21/32"2
327 35392 Starter Plug1
370B 36507 Speed Control Decal1
370G 35274 Oil Instruction Decal1
390 590746 Rewind Starter (NOTE: This engine could hav e been built
1
with 590704 starter.)
