TVM195-150270F Page 1 of 7
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 35745 Cylinder (Incl. 2 & 20)1
2 27652 Dowel Pin2
14 28277 Washer2
15 35082 Governor Rod1
16 36494 Governor Lever1
17 29916 Governor Lever Clamp1
18 651028 Screw Torx T-15, 8-32 x 3/8"1
19A 36495 Extension Spring1
20 35319 Oil Seal1
25 36460 Blower Housing Baffle1
26 650561 Screw, 1/4-20 x 5/8"2
28 30322 Nut & Lockwasher 8-321
35 29826 Screw 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut 10-321
38 29642 Retaining Ring1
60 33273A Blower Housing Extension1
62 650760 Screw 8-32 x 3/8"1
63 28545 Grommet1
65 650128 Screw 10-24 x 1/2"1
66 650990 Screw 5/16-18 x 15/32"1
68 33356 Ground Terminal1
90 611093 Flywheel (w/ring gear)1
92 650880 Flywheel Washer1
93 650881 Flywheel Nut1
100 35135 Solid State Ignition1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 35349 Ground Wire1
119 36448 * Cylinder Head Gasket1
120 36449 Cylinder Head1
125 27878A Exhaust Valve (Std.) (Incl. 151)1
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)1
126 34035 Intake Valve (Std.) (Incl. 151)1
126 34036 Intake Valve (1/32" OS) (Incl. 151)1
127 650691 Washer9
128 650690 Belleville Washer9
130 650694A Screw, 5/16-18 x 2"9
135 33636 Resistor Spark Plug (RJ-17LM)1
149A 35862 Valve Spring Cap1
149 27882 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Valve Cover Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173 35350 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
186 33860 Governor Link1
200 35956 Control Bracket Assy (Incl. 203 & 204 )1
203 36482 Compression Spring1
204 650777 Screw 6-32 x 21/32"1
207 35989 Choke Link1
209 650902 Screw 10-32 x 7/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
260 36266 Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
264 650802 Screw 1/4-20 x 5/8"1
265 33272C Cylinder Head (Black)1
275 34185B Muffler1
276 31588 Locking Plate1
277 650729 Screw 5/16-18 x 3-3/16"2
286 35962 Cup & Screen1
290 30705 Fuel Line1
292 26460 Fuel Line Clamp2
298 28763 Screw 10-32 x 35/64"2
300 33583B Fuel Tank (Incl. 292, 298 & 301)1
301 36246 Fuel Cap1
314 650873 Screw, 1/4-20 x 3/4"2
315 611113 Alternator Coil (3 Amp)(Incl. 321,322 & 323)1
321 611161 Diode1
322 610921 Connector Body1
323 610922 Terminal1
324 33177 Terminal1
325A 27275 Wire Clip1
325 34246 Wire Clip1
361 650990 Screw 5/16-18 x 15/32"4
370A 35274 Oil Instruction Decal1
370 36261 Instruction Decal1
394A 650948 Flat Washer1
395 36680 Electric Starter Motor (12 Volt)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 4 of 7

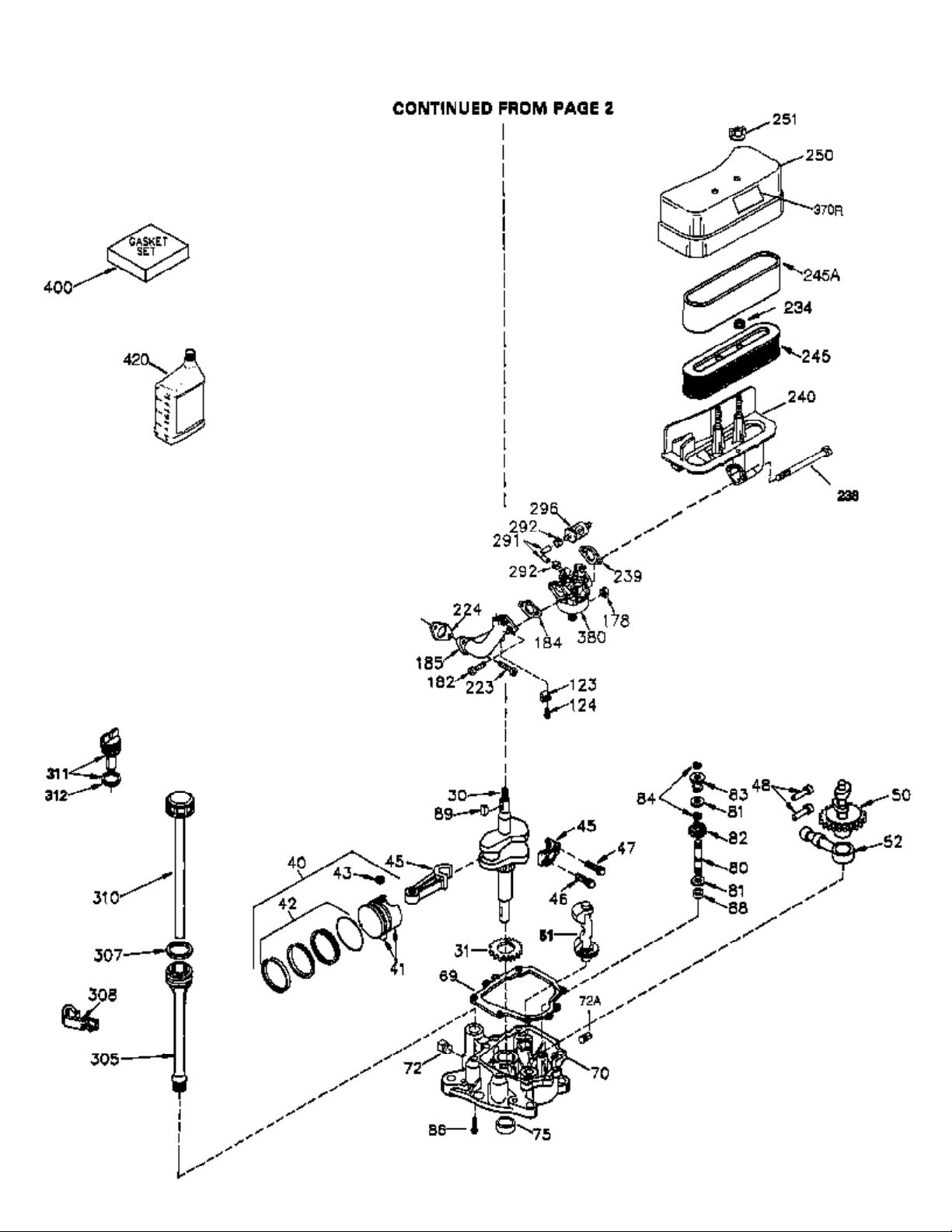

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
30 35802A Crankshaft1
31 35327 Counterbalance Gear1
40 34552 Piston, Pin & Ring Set (Std.)1
40 34553 Piston, Pin & Ring Set (.010" OS)1
40 34554 Piston, Pin & Ring Set (.020" OS)1
41 34329A Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 34330A Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 34331A Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 34332 Ring Set (Std.)1
42 34333 Ring Set (.010" OS)1
42 34334 Ring Set (.020" OS)1
43 27888 Piston Pin Retaining Ring2
45 36897 Connecting Rod Ass'y. (Incl. 47)1
47 651033 Connecting Rod Bolt2
48 34034 Valve Lifter2
50 35381 Camshaft (MCR)1
51 35747A Counterbalance Weight1
52 31356 Oil Pump Ass'y.1
69 35317 * Mounting Flange Gasket1
70 35711A Mounting Flange (Incl. 72, 75 & 80)1
72 31927 Oil Drain Plug1
75 35319 Oil Seal1
80 35783 Governor Shaft1
81 30590A Washer2
82 35378 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650833 Screw, 1/4-20 x 1-3/16"7
88 31707A Spacer (Incl. 81)1
89 32589 Flywheel Key1
123 33261 Intake Pipe Bracket1
124 651031 Screw 1/4-20 x 9/16"3
178 29752 Nut & Lock Washer, 1/4-282
182 30088A Screw, 1/4-28 x 1"2
184 33263 * Carburetor To Intake Pipe Gasket1
185 34926 Intake Pipe1
223 650378 Screw Torx T-30, 5/16-18 x 1-1/8"2
224 27915A * Intake Pipe Gasket1
234 650825 Nut & Lock Washer, 1/4-202
238 650834 Screw, 10-32 x 1-17/32"2
239 33629 * Air Cleaner Gasket1
240 35538B Air Cleaner Body (Incl. 239)1
245 35403 Air Cleaner Filter (Incl. 234)1
245A 35404 Air Cleaner Filter1
250 35961 Air Cleaner Cover1
251 650886 Wing Nut 1/4-20 22
292 26460 Fuel Line Clamp2
305 35574 Oil Fill Tube1
307 35499 "O" Ring1
308 35437 Fill Tube Clip1
310 35576 Oil Dipstick1
380 632677 Carburetor (Incl. 184)1
400 36450B * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
1
27272A (1), 27896A (2), 27915A (1), 29673 (1), 33263 (1),
33629 (1), 34698A (1), 35262A (1), 35317 (1), 36448 (1)
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 6 of 7

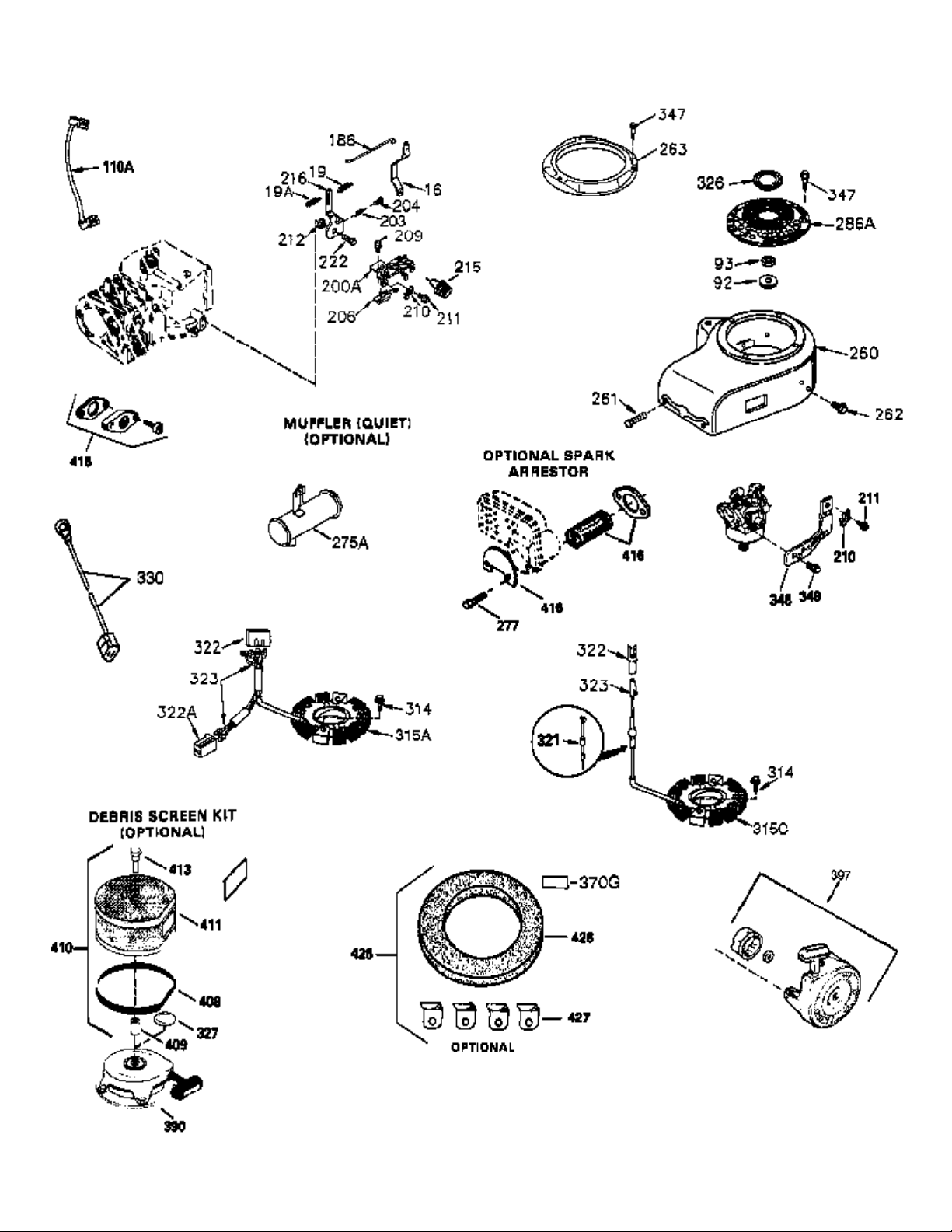

Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150270F Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
16 36494 Governor Lever1
19A 36495 Extension Spring1
92 650880 Flywheel Washer1
93 650881 Flywheel Nut1
186 33860 Governor Link1
203 36482 Compression Spring1
204 650777 Screw 6-32 x 21/32"1
209 650902 Screw 10-32 x 7/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
260 36266 Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
263 35963 Trim Ring1
277 650729 Screw 5/16-18 x 3-3/16"2
314 650873 Screw, 1/4-20 x 3/4"2
321 611161 Diode1
322 610921 Connector Body1
323 610922 Terminal1
326 36210 Starter Plug1
347 650949 Screw 10-32 x 9/163
