TVM195-150227E Page 1 of 7
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 35745 Cylinder (Incl. 2 & 20)1
2 27652 Dowel Pin2
14 28277 Washer2
15 35082 Governor Rod1
16 32651 Governor Lever1
17 29916 Governor Lever Clamp1
18 650548 Screw, 8-32 x 5/16"1
19A 35203 Control Spring1
19A 34043 Extension Spring1
20 35319 Oil Seal1
25 36460 Blower Housing Baffle1
26 650561 Screw, 1/4-20 x 5/8"2
28 30322 Lock Nut, 8-321
35 29826 Screw, 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut, 10-321
38 29642 Retaining Ring1
60 33273A Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
66 650990 Screw, Torx T-30, 1/4-20 x 15/32"1
90 611093 Flywheel1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
100 35135 Solid State Ignition1
101 610118 Spark Plug Cover1
102 650872 Solid State Mounting Stud2
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 35195A Ground Wire1
119 36448 * Cylinder Head Gasket1
120 36449 Cylinder Head1
125 27878A Exhaust Valve (Std.) (Incl. 151)1
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)1
126 34035 Intake Valve (Std.) (Incl. 151)1
126 34036 Intake Valve (1/32" OS) (Incl. 151)1
127 650691 Washer9
128 650690 Belleville Washer9
130 650694A Screw, 5/16-18 x 2"9
135 33636 Resistor Spark Plug (RJ17LM)1
149A 35862 Valve Spring Cap1
149 27882 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Valve Cover Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173 35350 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
186 33860 Governor Link1
200 35201 Control Bracket1
203 36482 Compressions Spring1
204 650777 Screw, 6-32 x 21/32"1
209 30200 Screw, 10-24 x 9/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
260 34094B Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
264A 650738 Screw, 1/4-20 x 5/8"1
265 33272B Cylinder Head Cover1
281 33013 Starter Bubble Cover1
282 650760 Screw, 8-32 x 3/8"1
285 35985B Starter Cup1
287 29752 Nut & Lockwasher, 1/4-284
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
314 650873 Screw, 1/4-20 x 3/4"2
315 611113 Alternator Coil (3 Amp)(Incl. 321,322 & 323)1
321 611161 Diode1
322 610921 Connector Body1
323 610922 Terminal1
324 33177 Terminal1
325A 27275 Wire Clip1
325 29443 Wire Clip1
370K 35392 Starter Decal1
370A 35274 Oil Instruction Decal1
370 36261 Lubrication Decal1
390 590704 Rewind Starter (Note: This engine could have been built with
1
590671 starter. Refer to the design of the rope pulley
strength ribs for part identification. Individual starter parts do
not interchange. Refer to service bulletin number 518).
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 4 of 7

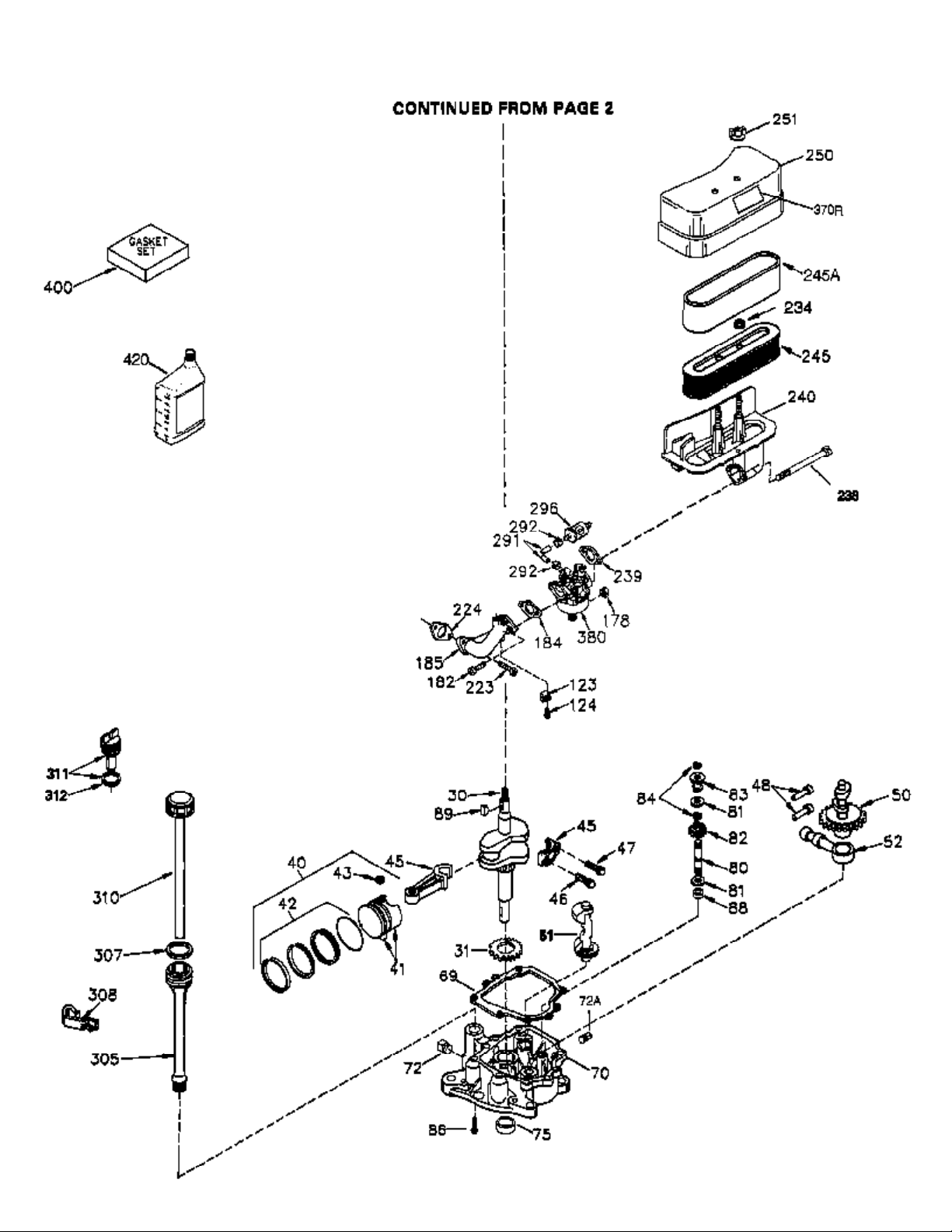

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
30 35746B Crankshaft1
31 35327 Counterbalance Gear1
40 34552 Piston, Pin & Ring Set (Std.)1
40 34553 Piston, Pin & Ring Set (.010" OS)1
40 34554 Piston, Pin & Ring Set (.020" OS)1
41 34329A Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 34330A Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 34331A Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 34332 Ring Set (Std.)1
42 34333 Ring Set (.010" OS)1
42 34334 Ring Set (.020" OS)1
43 27888 Piston Pin Retaining Ring2
45 35373A Connecting Rod Ass'y. (Incl. 46 & 47)1
46 650908 Connecting Rod Bolt1
47 650882 Connecting Rod Bolt1
48 34034 Valve Lifter2
50 35381 Camshaft (MCR)1
51 35747A Counterbalance Weight1
52 31356 Oil Pump Ass'y.1
69 35317 * Mounting Flange Gasket1
70 35711A Mounting Flange (Incl. 72,75,80 & 81)1
72 31927 Oil Drain Plug1
75 35319 Oil Seal1
80 35783 Governor Shaft1
81 30590A Washer2
82 35378 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650833 Screw, 1/4-20 x 1-3/16"8
88 31707A Spacer (Incl. 81)1
89 32589 Flywheel Key1
123 33261 Intake Pipe Brace1
124 650738 Screw, 1/4-20 x 5/8"3
178 29752 Nut & Lock Washer, 1/4-282
182 30088A Screw, 1/4-28 x 1"2
184 33263 * Carburetor To Intake Pipe Gasket1
185 34926 Intake Pipe1
223 650378 Screw, Torx T-30, 5/16-18 x 1-1/8"2
224 27915A * Intake Pipe Gasket1
234 650825 Nut & Lock Washer, 1/4-202
238 650834 Screw, 10-32 x 1-17/32"2
239 33629 * Air Cleaner Gasket1
240 35538B Air Cleaner Body (Incl. 239)1
245 35403 Air Cleaner Filter (Incl. 251A)1
245 35404 Air Cleaner Filter1
250 35961 Air Cleaner Cover1
251 650886 Wing Nut, 1/4-202
292 26460 Fuel Line Clamp2
311 34245 Oil Fill Plug1
312 29673 Oil Fill Plug Gasket1
380 632238 Carburetor (Incl. 184)1
400 36450 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
1
27272A (1), 27896A (2), 27915A (1), 29673 (1), 33263 (1),
33629 (1), 34698A (1), 35262 (1), 36448 (1)
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 6 of 7
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM195-150227E Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
16 32651 Governor Lever1
19A 35203 Control Spring1
19A 34043 Extension Spring1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
186 33860 Governor Link1
203 36482 Compressions Spring1
204 650777 Screw, 6-32 x 21/32"1
206 610973 Terminal1
209 30200 Screw, 10-24 x 9/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
212 35550 Bushing1
216 35202A R.P.M. Adj. Lever (Incl. 19A, 121, 22 2 & 239)1
222 30312 Screw, 10-32 x 1/2"1
260 34094B Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
314 650873 Screw, 1/4-20 x 3/4"2
321 611161 Diode1
322 610921 Connector Body1
323 610922 Terminal1
390 590704 Rewind Starter (Note: This engine could have been built with
1
590671 starter. Refer to the design of the rope pulley
strength ribs for part identification. Individual starter parts do
not interchange. Refer to service bulletin number 518).
