TVM140-70418P Page 1 of 6

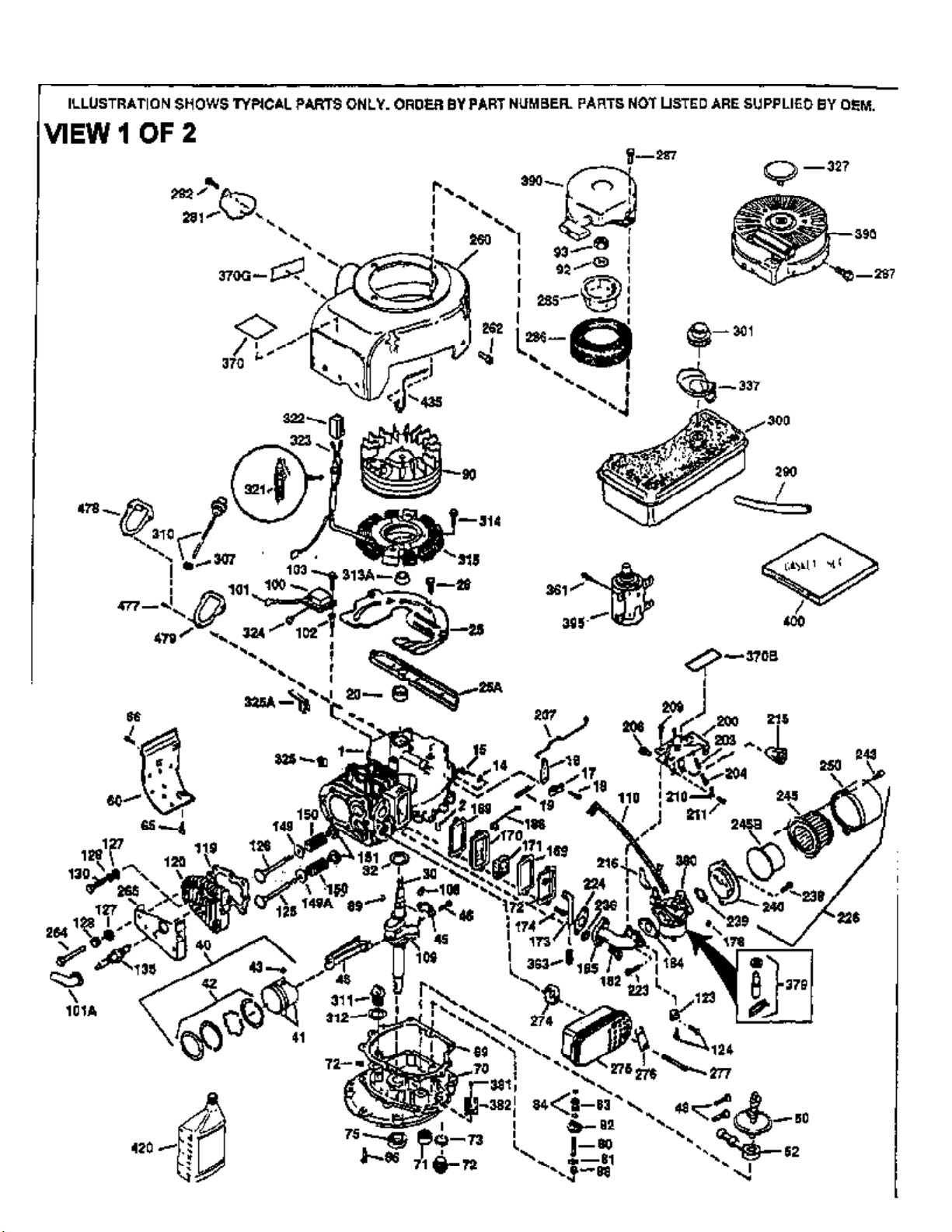

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70418P Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 34913A Cylinder (Incl. 2 & 20)1
2 27652 Dowel Pin2
14 28277 Washer1
15 30669 Governor Rod (Incl. 14)1
16 31357 Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 10-32 x 5/16"1
19 31361 Extension Spring1
20 32630 Oil Seal1
25 29536 Blower Housing Baffle1
26 650561 Screw, 1/4-20 x 5/8"2
30 35565 Crankshaft1
40 34531 Piston, Pin & Ring Set (Std.)1
40 34532 Piston, Pin & Ring Set (.010" OS)1
40 34533 Piston, Pin & Ring Set (.020" OS)1
41 33312B Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 33313B Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 33314B Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 34854 Ring Set (Std.)1
42 34855 Ring Set (.010" OS)1
42 34856 Ring Set (.020" OS)1
43 27888 Piston Pin Retaining Ring2
45 31380C Connecting Rod Ass'y. (Incl. 46)1
46 650662C Connecting Rod Bolt (2 Each)1
48 34034 Valve Lifter2
50 32114 Camshaft (MCR)1
52 31356 Oil Pump Ass'y.1
60 30622A Blower Housing Extension1
64 30063 Screw, Torx T-30, 1/4-20 x 1/2"1
65 650128 Screw, 10-24 x 1/2"2
69 30684 * Mounting Flange Gasket1
70 31471D Mounting Flange (Incl. 72, 75 & 80)1
72 27642 Oil Drain Plug1
75 27897 Oil Seal1
80 30668 Governor Shaft1
81 30590A Washer2
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring2
86 650488 Screw, 1/4-20 x 1-4/4"7
88 31707A Spacer (Incl. 81)1
89 32589 Flywheel Key1
90 611084 Flywheel1
92 650815 Lock Washer1
93 8116 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
102 650872 Solid State Mounting Stud2
103 650814 Screw, Torx T-15, 10-24 x 1"2
110 36230 Ground Wire1
119 36445 * Cylinder Head Gasket1
120 36446 Cylinder Head1
125 27878A Exhaust Valve (Std.) (Incl. 149A)1
125 27880A Exhaust Valve (1/32" OS) (Incl. 149A)1
126 32783 Intake Valve (Std.) (Incl. 149A)1
126 34036 Intake Valve (1/32" OS) (Incl. 149A)1
127 650691 Washer5
128 650690 Belleville Washer5
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70418P Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
129 650697A Screw, 5/16-18 x 2-1/2"5
135 33636 Resistor Spark Plug (RJ17LM)1
149 27882 Valve Spring Cap2
149A 35862 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Breather Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173 35350 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
178 650517 Screw, 1/4-20 x 27/32"2
182 650378 Screw, 5/16-18 x 1-1/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 32632 Intake Pipe1
186 32582 Governor Link1
200 32181A Control Bracket (Incl. 203 & 204)1
203 31342 Compression Spring1
204 650549 Screw, 6-32 x 1-1/8"1
206 610973 Terminal1
207 31823 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
224 27915A * Intake Pipe Gasket1
238 28820 Screw, 10-32 x 1/2"2
239 27272A * Air Cleaner Gasket1
240 31691 Air Cleaner Body (Incl. 239)1
243 650152 Screw, 8-32 x 3/8"2
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
260 35884 Blower Housing1
261 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
265 30939A Cylinder Head Cover1
274 35865 * Muffler Gasket1
275 35396 Muffler1
276 31588 Locking Plate1
277 650696 Screw, 5/16-18 x 2-3/4"2
285 35287A Starter Cup1
287 650926 Screw, 8-32 x 21/64"4
290 30962 Fuel Line (24.00")1
307 35499 "O" Ring1
310 34165 Dipstick (Incl. 307)1
325 29443 Wire Clip1
327 35392 Starter Plug1
370A 36261 Instruction Decal1
370B 550223 Logo Decal1
370 34686 Name Decal1
380 632535 Carburetor (Incl. 184)1
390 590694 Rewind Starter (Note: This engine could have been built with
1
590666A starter. Refer to the design of the air intake louvers
for part identification. individual starter parts do not
interchange.)
400 36447 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
1
27272A (1), 27896A (2), 27915A (1), 29673 (1), 33263 (1),
33629 (1), 34698A (1), 35262 (1), 36448 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70418P Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70418P Page 5 of 6
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70418P Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
64 30063 Screw, Torx T-30, 1/4-20 x 1/2"1
103 650814 Screw, Torx T-15, 10-24 x 1"2
129 650697A Screw, 5/16-18 x 2-1/2"5
238 28820 Screw, 10-32 x 1/2"2
240 31691 Air Cleaner Body (Incl. 239)1
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
261 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
274 35865 * Muffler Gasket1
275 35396 Muffler1
277 650696 Screw, 5/16-18 x 2-3/4"2
290 30962 Fuel Line (24.00")1
292 26460 Fuel Line Clamp1
305 35574 Oil Fill Tube1
307 35499 "O" Ring1
370A 36261 Instruction Decal1
380 632535 Carburetor (Incl. 184)1
