TVM140-70380K Page 1 of 6

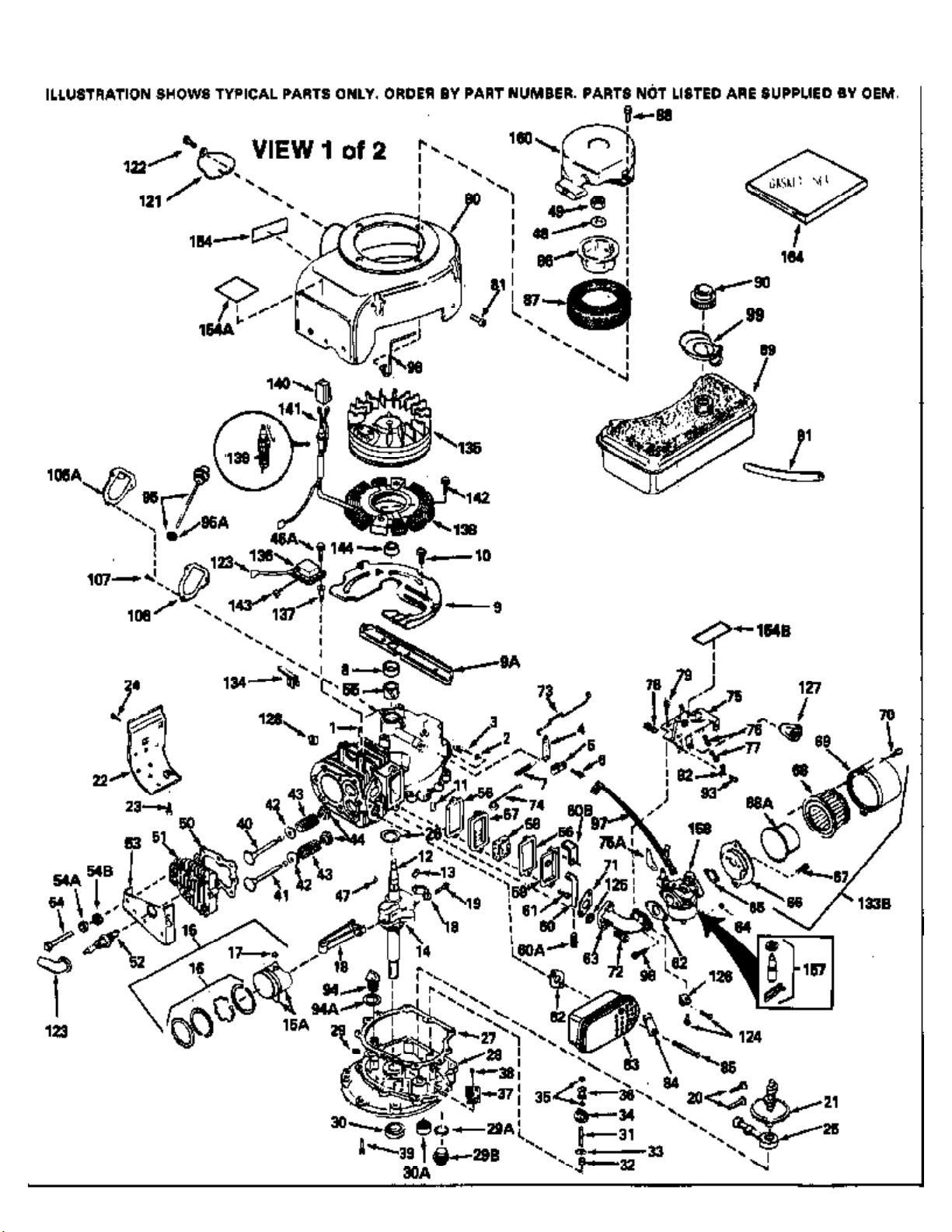

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70380K Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 34913A Cylinder (Incl. 8, 11, 94 & 94A) (2-5 /8" )
2 28277 Washer, Flat
3 30669 Rod, Governor
4 31357 Lever, Governor
5 31335 Clamp, Governor lever
6 650548 Screw, 8-32 x 5/16"
7 31361 Spring, Governor
8 32630 Seal, Oil
9 29536 Baffle, Blower housing (Use as requir ed)
9 35256A Blo.Hsg.Baffle (W/E.S.knock-out)(As r eq.)
10 650561 Screw, 1/4-20 x 5/8"
11 27652 Pin, Dowel
12 34878 Crankshaft (Incl. 13 & 14)
13 29783 Pin, Crankshaft gear
14 27884 Gear, Crankshaft
15A 33312B Piston & Pin Ass'y. (Incl.17)(2-5/8") (Std.)
15A 33313B Piston & Pin Ass'y. (Incl. 17) (.010" OS)
15A 33314B Piston & Pin Ass'y. (Incl. 17) (.020" OS)
15 34531 Piston, Pin & Ring Set (2-5/8") (Std. )
15 34532 Piston, Pin & Ring Set (.010" OS)
15 34533 Piston, Pin & Ring Set (.020" OS)
16 34854 Ring Set (2-5/8") (Std.)
16 34855 Ring Set (.010" OS)
16 34856 Ring Set (.020" OS)
17 27888 Ring, Piston pin retaining
18 31380C Rod Assy., Connecting (Incl. 19)
19 650662C Bolt, Connecting rod (Incl. 2 pieces)
20 34034 Lifter, Valve
21 32114 Camshaft (MCR)
22 30622A Extension, Blower housing
23 650128 Screw, 10-24 x 1/2"
24 30688 Screw, 1/4-20 x 1/2"
25 31356 Pump Assy., Oil
27 30684 * Gasket, Cylinder cover
28 31471C Flange Ass'y. (Incl. 29,30,31,33,182 & 183)
29 27642 Plug, Pipe (sq.hd, 1/4-28)
30 27897 Seal, Oil
31 30668 Shaft, Mech. Governor
32 31707A Governor Spacer Assy. (Incl. 33)
33 30590A Washer, Flat (2 required)
34 30591 Gear Assy., Governor
35 29193 Ring, Retaining
36 30588A Spool, Governor
37 31355 Screen, Oil filter (Use as required)
38 29117 Screw, 8-32 x 5/16" (Use as required)
39 650488 Screw, 1/4-20 x 1-1/4"
40 32783 Intake Valve (Std.) (Incl. 44)
40 32784 Intake Valve (1/32" OS) (Incl. 44)
41 27878A Exhaust Valve (Std.) (Incl. 44)
41 27880A Exhaust Valve (1/32" OS) (Incl. 44)
42 27882 Cap, Upper valve spring
43 27881 Spring, Valve
44 32581 Cap, Lower valve spring
47 32589 Key, Flywheel
48 650815 Washer, Belleville
49 8116 Nut, Washer, 1/2-20
50 28938B * Gasket, Head
51 30938A Head, Cylinder (Incl. 54)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70380K Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
52 33636 Resistor Spark Plug (RJ-8)
52 34251 Resistor Spark Plug (RJ-17LM)
53 30939A Cover Assy., Cylinder head
54B 650691 Washer, Flat (Use as required)
54 650694A Screw, 5/16-18 x 2" (Use as required)
54 650697A Screw, 5/16-18 x 2-1/2" (Use as requi red)
54A 26073 Washer, Flat (Use as required)
54A 650690 Washer, Belleville (Use as required)
56 27896 * Gasket, Breather cover
57 28423 Body, Breather
58 28424 Element, Breather
59 28425 Cover, Valve spring box
60 27627 Tube, Breather
61 650128 Screw, 10-24 x 1/2"
62 26756 * Gasket, Carburetor
63 32632 Pipe, Intake
65 27272 * Gasket, Air cleaner
66 31691 Bracket, Air cleaner
67 28820 Screw, 10-32 x 1/2"
68 30727 Element, Air cleaner
69 31715 Body, Air cleaner
70 650152 Screw, 8-32 x 3/8"
71 27915 * Gasket, Intake to cylinder
72 650378 Screw, 5/16-18 x 1-1/8"
73 31823 Link, Throttle
74 32582 Link, Governor spring
75 32181A Control Assy., Speed (Incl. 76, 77 & 78)
76 31342 Spring, Compression
77 650549 Screw, 5-40 x 7/16"
78 610973 Terminal Ass'y. (Use as required)
79 30200 Screw, 10-24 x 9/16"
80 32629B Blower Housing (Incl. 121 & 122)(Elec . Str.)
81 29747B Screw, 5/16-24 x 21/32"
82 27930 * Gasket, Exhaust
83 28269 Muffler
84 31588 Plate, Muffler locking
85 30196 Screw, 5/16-18 x 3/4" (Use as require d)
85 650696 Screw, 5/16-18 x 2-3/4" (Use as requi red)
85 650697A Screw, 5/16-18 x 2-1/2" (Use as requi red)
86 32125 Cup, Starter
87 35009 Screen, Starter
88 29716 Screw, 1/4-28 x 7/16"
89 32926 Fuel Tank (Incl. 90)
90 33032 Fuel Cap (Use as required)
90 34210 Fuel Cap (Use as required)
91 29774 Fuel Line (8-1/4") (Use as required)
91 30962 Fuel Line (32") (Use as required)
92 27793 Clip, Conduit
93 28942 Screw, 10-32 x 3/8"
95A 33590 "O" Ring
95 34249 Dipstick (Incl. 95A)
96 6201 Screw, 1/4-28 x 7/8" (Use as required )
96 650372 Screw, 1/4-20 x 13/16" (Use as requir ed)
97 30831 Ground Wire
98 33549 Clamp, Tank hold down
99 33548 Deflector, Fuel
115 33323 Screen, Muffler (Use as required)
123 27276 Cover, Spark plug (Use as required)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70380K Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
123 610118 Cover, Spark plug (Use as required)
133B 730127 A/C Assy. (Incl.65,66,67,68A,69,70,13 4)
154 34346 Decal, Instruction
157 631021 Inlet Needle, Seat & Clip Assy.
158 632233 Carburetor (Incl. 62) (Refer to Division 5, Section A, page 182
for breakdown)
160 590420 Rewind Starter (Refer to Division 5, Section C, page 25 for
breakdown)
164 33234A * Gasket Set (Incl. items marked *)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70380K Page 5 of 6
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVM140-70380K Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
45 33876 Gasket, Stator
46 650489 Screw, 1/4-20 x 5/8"
54A 26073 Washer, Flat (Use as required)
54A 650690 Washer, Belleville (Use as required)
81 29747B Screw, 5/16-24 x 21/32"
82 27930 * Gasket, Exhaust
83C 391026 Muffler (Incl. 115, 116 & 117) (This spark arrestor mufflercan
be used on any model)
85 30196 Screw, 5/16-18 x 3/4" (Use as require d)
85 650696 Screw, 5/16-18 x 2-3/4" (Use as requi red)
85 650697A Screw, 5/16-18 x 2-1/2" (Use as requi red)
91 29774 Fuel Line (8-1/4") (Use as required)
91 30962 Fuel Line (32") (Use as required)
100 26460 Clamp, Fuel line (Use as required)
103B 34248 Tube, Oil fill
104 34247 Bushing, Fill tube
105 650562 Screw, 10-32 x 1/2"
115 33323 Screen, Muffler (Use as required)
116 33700 Cover & tube, Muffler (Use as require d)
117 650578 Screw, 8-18 x 3/8" (Use as required)
118 28545 Grommet, Plastic
119 650643 Screw, 8-18 x 3/8"
120 33356 Terminal, Ground
133A 31288 Muffler Adapter Kit (Incl.82 & 85)(As req.)
133 730130 Muffler Adap. Kit (Incl.82 & 85)(As r eq.)
155 30547A Contact Assy., Breaker
156 30548B Condenser
159 611038 Magneto NOTE: The complete magneto is not available as
an assembly. The magneto number is shown for reference
purposes only. Order component parts individually as shown
in parts list. (Refer to Division 5, Section B, page 39 for
breakdown)
162 33329D Starter Motor Kit (110-120 volt) (Refer to service number
stamped on end cap of motor, or on decal, for identification.
For breakdown see Division 5, Section D, Page 16.)
163 611042 Flywheel (Ring gear flywheel requiredon engines using
110-120 volt starter motor kits listed above) (Use on Std.
point ignitions)
163 611085 Flywheel (Ring gear flywheel requiredon engines using
110-120 volt starter motor kits listed above) (Use on solid
state ignitions)
