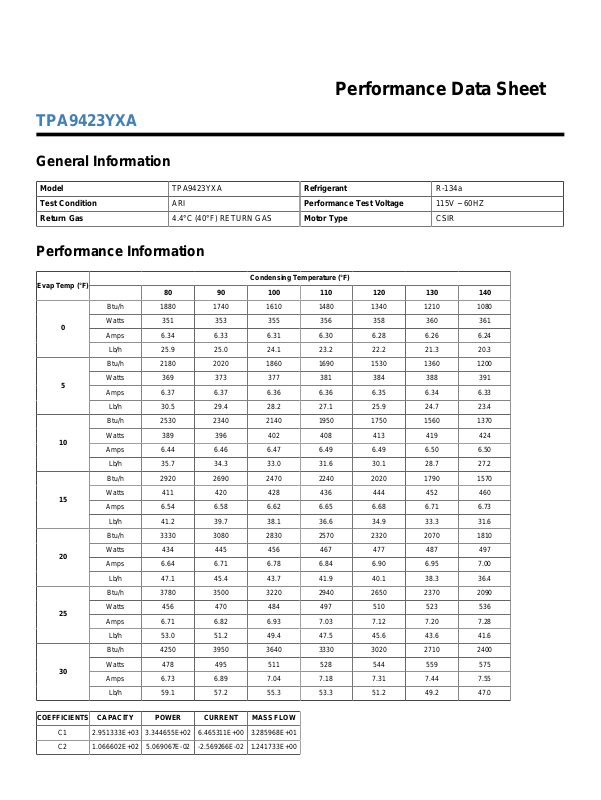

Performance Data Sheet
TPA9423YXA
General Information
Model TPA9423YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1880 1740 1610 1480 1340 1210 1080
Watts 351 353 355 356 358 360 361
Amps 6.34 6.33 6.31 6.30 6.28 6.26 6.24
Lb/h 25.9 25.0 24.1 23.2 22.2 21.3 20.3
Btu/h 2180 2020 1860 1690 1530 1360 1200
Watts 369 373 377 381 384 388 391
Amps 6.37 6.37 6.36 6.36 6.35 6.34 6.33
Lb/h 30.5 29.4 28.2 27.1 25.9 24.7 23.4
Btu/h 2530 2340 2140 1950 1750 1560 1370
Watts 389 396 402 408 413 419 424
Amps 6.44 6.46 6.47 6.49 6.49 6.50 6.50
Lb/h 35.7 34.3 33.0 31.6 30.1 28.7 27.2
Btu/h 2920 2690 2470 2240 2020 1790 1570
Watts 411 420 428 436 444 452 460
Amps 6.54 6.58 6.62 6.65 6.68 6.71 6.73
Lb/h 41.2 39.7 38.1 36.6 34.9 33.3 31.6
Btu/h 3330 3080 2830 2570 2320 2070 1810
Watts 434 445 456 467 477 487 497
Amps 6.64 6.71 6.78 6.84 6.90 6.95 7.00
Lb/h 47.1 45.4 43.7 41.9 40.1 38.3 36.4
Btu/h 3780 3500 3220 2940 2650 2370 2090
Watts 456 470 484 497 510 523 536
Amps 6.71 6.82 6.93 7.03 7.12 7.20 7.28
Lb/h 53.0 51.2 49.4 47.5 45.6 43.6 41.6
Btu/h 4250 3950 3640 3330 3020 2710 2400
Watts 478 495 511 528 544 559 575
Amps 6.73 6.89 7.04 7.18 7.31 7.44 7.55
Lb/h 59.1 57.2 55.3 53.3 51.2 49.2 47.0
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.951333E+03 3.344655E+02 6.465311E+00 3.285968E+01
C2 1.066602E+02 5.069067E-02 -2.569266E-02 1.241733E+00
Page 2
C3 -1.343201E+01 1.892521E-01 -1.778865E-03 -9.003489E-02
C4 7.035233E-01 2.709448E-02 4.185150E-04 7.502205E-03
C5 -5.979031E-01 4.459365E-02 4.038542E-04 -4.127888E-03
C6 -1.266425E-03 4.203478E-04 6.016257E-06 7.144901E-05
C7 -3.745492E-03 -9.175105E-04 -3.182008E-05 -1.589601E-04
C8 1.584518E-03 3.573052E-04 1.261407E-05 6.415129E-05
C9 -1.693882E-04 -3.400881E-05 -1.233432E-06 -6.432012E-06
C10 1.261081E-05 -2.963648E-06 -3.296887E-08 -4.850300E-07
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
TPA9423YXA
General Information
Model TPA9423YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 3440 3200 2950 2710 2470 2220 1980
Watts 432 443 454 465 476 486 497
Amps 6.62 6.67 6.73 6.78 6.83 6.88 6.92
Lb/h 45.6 43.9 42.2 40.5 38.9 37.3 35.7
Btu/h 3930 3650 3370 3090 2810 2540 2260
Watts 457 470 484 497 510 524 537
Amps 6.72 6.80 6.88 6.96 7.04 7.12 7.19
Lb/h 51.8 50.0 48.1 46.3 44.5 42.6 40.8
Btu/h 4450 4140 3820 3510 3200 2880 2570
Watts 483 498 513 528 544 559 575
Amps 6.84 6.94 7.04 7.14 7.25 7.35 7.45
Lb/h 58.6 56.7 54.8 52.8 50.8 48.8 46.8
Btu/h 5000 4660 4310 3960 3620 3270 2920
Watts 510 526 542 559 577 595 612
Amps 6.98 7.09 7.21 7.33 7.45 7.58 7.71
Lb/h 66.1 64.1 62.1 60.0 57.9 55.7 53.5
Btu/h 5580 5210 4830 4450 4070 3680 3300
Watts 538 555 573 591 610 630 649
Amps 7.14 7.26 7.39 7.53 7.67 7.81 7.96
Lb/h 74.0 72.0 69.9 67.8 65.6 63.3 61.0
Btu/h 6200 5790 5380 4970 4550 4140 3720
Watts 569 586 605 624 644 665 686
Amps 7.33 7.46 7.60 7.74 7.90 8.06 8.23
Lb/h 82.4 80.4 78.3 76.2 73.9 71.6 69.2
Btu/h 6850 6400 5960 5510 5070 4620 4170
Watts 602 620 639 659 680 702 724
Amps 7.57 7.69 7.83 7.99 8.15 8.32 8.50
Lb/h 91.1 89.2 87.2 85.0 82.8 80.4 78.0
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.690364E+03 3.042970E+02 6.513117E+00 3.653609E+01
C2 1.213842E+02 1.799536E+00 -2.063668E-02 8.503581E-01
Page 4
C3 -1.066333E+01 3.659812E-01 -2.817258E-03 -1.156479E-01
C4 6.772087E-01 8.319198E-03 2.220232E-04 1.297836E-02
C5 -6.843797E-01 3.700366E-02 4.109459E-04 -2.496539E-03
C6 6.127898E-04 -3.259616E-04 -2.993790E-06 4.824876E-05
C7 -1.034158E-03 7.782169E-04 8.653186E-06 -8.464616E-05
C8 9.085791E-04 -7.098754E-04 -7.923019E-06 7.594706E-05
C9 -2.478495E-04 2.011451E-04 2.253011E-06 -2.116620E-05
C10 1.593458E-05 -1.488368E-05 -1.724557E-07 1.428871E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
