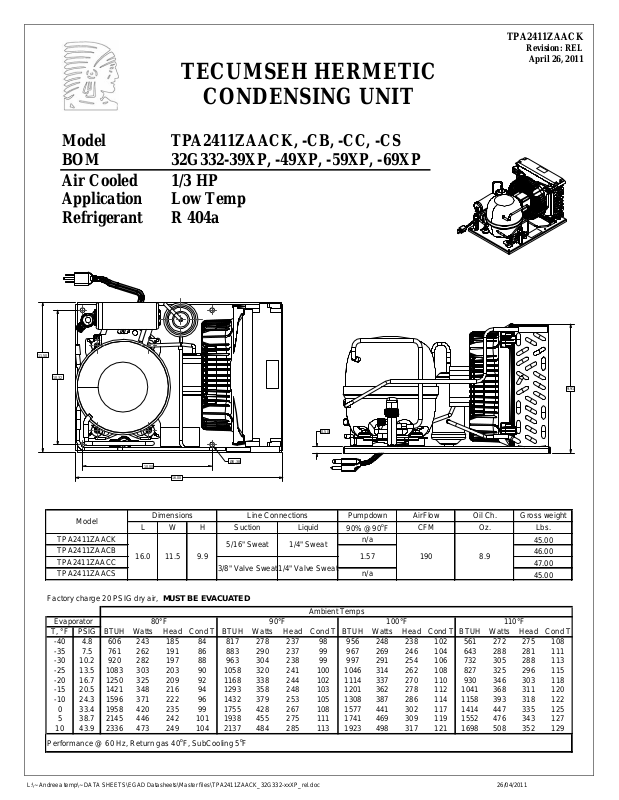

Tecumseh TPA2411ZAACB, TPA2411ZAACC, TPA2411ZAACK, TPA2411ZAACS Performance Data Sheet

TPA2411ZAACK

Revision: REL

April 26, 2011

TECUMSEH HERMETIC

CONDENSING UNIT

Model TPA2411ZAACK, -CB, -CC, -CS BOM 32G332-39XP, -49XP, -59XP, -69XP

Air Cooled 1/3 HP Application Low Temp Refrigerant R 404a

11.50

10.32

0.50

10.00

16.00

Ø0.38

Model

TPA2411ZAACK TPA2411ZAACB TPA2411ZAACC TPA2411ZAACS

Factory charge 20 PSIG dry air,

Evaporato

T, °F PSIG BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T

-40 4.8 606 243 185 84 817 278 237 98 956 248 238 102 561 272 275 108

-35 7.5 761 262 191 86 883 290 237 99 967 269 246 104 643 288 281 111

-30 10.2 920 282 197 88 963 304 238 99 997 291 254 106 732 305 288 113

-25 13.5 1083 303 203 90 1058 320 241 100 1046 314 262 108 827 325 296 115

-20 16.7 1250 325 209 92 1168 338 244 102 1114 337 270 110 930 346 303 118

-15 20.5 1421 348 216 94 1293 358 248 103 1201 362 278 112 1041 368 311 120

-10 24.3 1596 371 222 96 1432 379 253 105 1308 387 286 114 1158 393 318 122 0 33.4 1958 420 235 99 1755 428 267 108 1577 441 302 117 1414 447 335 125 5 38.7 2145 446 242 101 1938 455 275 111 1741 469 309 119 1552 476 343 127

10 43.9 2336 473 249 104 2137 484 285 113 1923 498 317 121 1698 508 352 129

Performance @ 60 Hz, Return gas 40

Dimensions

LWH

16.0 11.5 9.9

MUST BE EVACUATED

80°F 90°F 100°F 110°F

F, SubCooling 5oF

Line Connections

Suction Liquid

5/16" Sweat 1/4" Sweat

3/8" Valve Sweat

1/4" Valve Sweat

Pumpdown

90% @90

Ambient Temps

n/a

1.57 n/a

AirFlow

CFM

190

Oil Ch.

Oz.

8.9

Gross weight

9.91

Lbs.

45.00

46.00

47.00

45.00

TPA2411ZAACK

Rev.: REL April 26, 2011

Parts/Specifications

Unit BOM 32G332-39XP Unit MODEL TPA2411ZAACK

Refrigerant R-404A Power Cord 85106-10 Refrigeration RANGE -40°F to 10°F Design Pressure Low 181 Unit drawing DGU DGU1896-G605 Design Pressure High 450 Electrical Diagram DETP4 Volts - HZ - Ph 115V ~ 60HZ Voltage Range 103.5 - 126.5 Min. Circuit Ampacity 6.09 Max. Fuse Size 15

Compressor MODEL TPA2411ZAA Compressor BOM TP229AR-300-A2KO Compressor LR Compressor RLA 4.62 OverLoad 14953181 Liquid Receiver 51085-1 Relay 82420 Liquid Valve 56605 Run Capacitor Suction Valve 56604 Run Capacitor Rating Start Capacitor 85PS110C92 Start Capacitor Rating 270-324 MFD, 110 V

Fan Motor 810-141E Liquid Valve 56605 Fan Motor RLA 0.32 Suction Valve 56604 Fan Blade 515-021P

Condense Shroud 108-G001 Fan Guard 116-001P

Unit BOM 32G332-49XP Unit MODEL TPA2411ZAACB

Liquid Receiver 51085-1

Unit BOM 32G332-59XP Unit MODEL TPA2411ZAACC

Unit BOM 32G332-69XP Unit MODEL TPA2411ZAACS

506-G331
