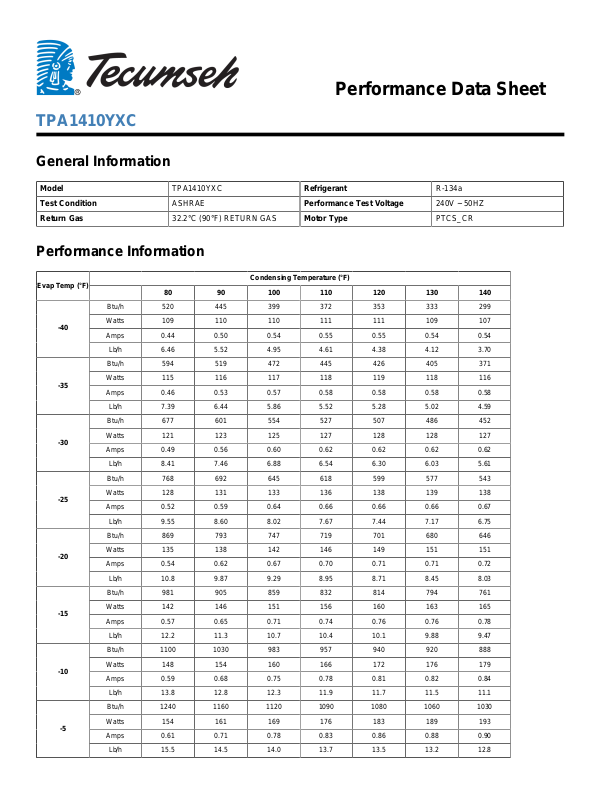

Tecumseh TPA1410YXC Performance Data Sheet

Performance Data Sheet

TPA1410YXC

General Information

Model TPA1410YXC Refrigerant R-134a
Test Condition ASHRAE Performance Test Voltage 240V ~ 50HZ
Return Gas 32.2°C (90°F) RETURN GAS Motor Type PTCS_CR

Performance Information

Evap Temp (°F)

-40

-35

-30

-25

-20

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 520 445 399 372 353 333 299
Watts 109 110 110 111 111 109 107
Amps 0.44 0.50 0.54 0.55 0.55 0.54 0.54

Lb/h 6.46 5.52 4.95 4.61 4.38 4.12 3.70

Btu/h 594 519 472 445 426 405 371
Watts 115 116 117 118 119 118 116
Amps 0.46 0.53 0.57 0.58 0.58 0.58 0.58

Lb/h 7.39 6.44 5.86 5.52 5.28 5.02 4.59

Btu/h 677 601 554 527 507 486 452
Watts 121 123 125 127 128 128 127
Amps 0.49 0.56 0.60 0.62 0.62 0.62 0.62

Lb/h 8.41 7.46 6.88 6.54 6.30 6.03 5.61

Btu/h 768 692 645 618 599 577 543
Watts 128 131 133 136 138 139 138
Amps 0.52 0.59 0.64 0.66 0.66 0.66 0.67

Lb/h 9.55 8.60 8.02 7.67 7.44 7.17 6.75

Btu/h 869 793 747 719 701 680 646
Watts 135 138 142 146 149 151 151
Amps 0.54 0.62 0.67 0.70 0.71 0.71 0.72

Lb/h 10.8 9.87 9.29 8.95 8.71 8.45 8.03

Btu/h 981 905 859 832 814 794 761
Watts 142 146 151 156 160 163 165
Amps 0.57 0.65 0.71 0.74 0.76 0.76 0.78

Lb/h 12.2 11.3 10.7 10.4 10.1 9.88 9.47

Btu/h 1100 1030 983 957 940 920 888
Watts 148 154 160 166 172 176 179
Amps 0.59 0.68 0.75 0.78 0.81 0.82 0.84

Lb/h 13.8 12.8 12.3 11.9 11.7 11.5 11.1

Btu/h 1240 1160 1120 1090 1080 1060 1030
Watts 154 161 169 176 183 189 193
Amps 0.61 0.71 0.78 0.83 0.86 0.88 0.90

Lb/h 15.5 14.5 14.0 13.7 13.5 13.2 12.8

Btu/h 1390 1310 1270 1250 1230 1210 1180

0

5

10

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.305225E+03 1.620298E+02 -2.585282E+00 5.383045E+01
C2 2.923753E+01 -1.421357E+00 -1.624458E-02 3.706393E-01
C3 -7.510623E+01 -1.366109E+00 7.624132E-02 -9.391033E-01
C4 2.365780E-01 -4.226606E-02 -2.336272E-04 3.161897E-03
C5 1.735045E-02 2.792468E-02 2.731022E-04 2.388384E-04
C6 6.233211E-01 2.280400E-02 -5.695932E-04 7.795290E-03
C7 1.057996E-03 -3.040283E-04 -8.295433E-07 1.511678E-05
C8 4.614997E-04 2.752860E-04 1.949966E-06 5.643056E-06
C9 4.117162E-05 1.938978E-05 -4.288785E-07 3.798120E-07

C10 -1.757967E-03 -7.651981E-05 1.473521E-06 -2.198944E-05

Watts 160 168 177 186 194 202 208
Amps 0.62 0.74 0.82 0.87 0.91 0.94 0.97

Lb/h 17.3 16.4 15.9 15.6 15.4 15.2 14.8

Btu/h 1550 1480 1430 1410 1400 1380 1350
Watts 164 174 184 195 205 214 222
Amps 0.64 0.76 0.85 0.91 0.96 1.00 1.04

Lb/h 19.4 18.5 18.0 17.7 17.5 17.3 17.0

Btu/h 1720 1650 1610 1590 1580 1570 1540
Watts 167 178 191 203 215 226 236
Amps 0.64 0.78 0.88 0.95 1.01 1.06 1.11

Lb/h 21.6 20.8 20.3 20.0 19.8 19.7 19.3

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
