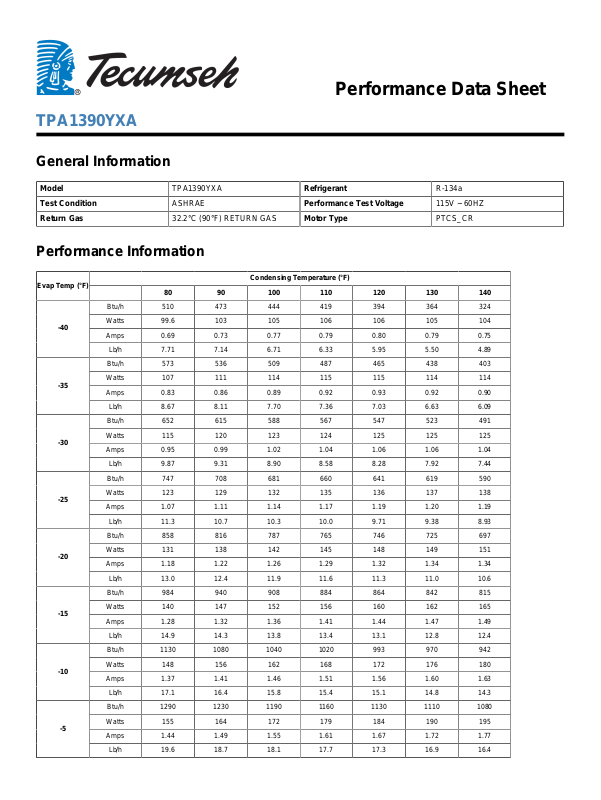

Tecumseh TPA1390YXA Performance Data Sheet

Performance Data Sheet

TPA1390YXA

General Information

Model TPA1390YXA Refrigerant R-134a Test Condition ASHRAE Performance Test Voltage 115V ~ 60HZ Return Gas 32.2°C (90°F) RETURN GAS Motor Type PTCS_CR

Performance Information

Evap Temp (°F)

-40

-35

-30

-25

-20

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 510 473 444 419 394 364 324 Watts 99.6 103 105 106 106 105 104 Amps 0.69 0.73 0.77 0.79 0.80 0.79 0.75

Lb/h 7.71 7.14 6.71 6.33 5.95 5.50 4.89

Btu/h 573 536 509 487 465 438 403 Watts 107 111 114 115 115 114 114 Amps 0.83 0.86 0.89 0.92 0.93 0.92 0.90

Lb/h 8.67 8.11 7.70 7.36 7.03 6.63 6.09

Btu/h 652 615 588 567 547 523 491 Watts 115 120 123 124 125 125 125 Amps 0.95 0.99 1.02 1.04 1.06 1.06 1.04

Lb/h 9.87 9.31 8.90 8.58 8.28 7.92 7.44

Btu/h 747 708 681 660 641 619 590 Watts 123 129 132 135 136 137 138 Amps 1.07 1.11 1.14 1.17 1.19 1.20 1.19

Lb/h 11.3 10.7 10.3 10.0 9.71 9.38 8.93

Btu/h 858 816 787 765 746 725 697 Watts 131 138 142 145 148 149 151 Amps 1.18 1.22 1.26 1.29 1.32 1.34 1.34

Lb/h 13.0 12.4 11.9 11.6 11.3 11.0 10.6

Btu/h 984 940 908 884 864 842 815 Watts 140 147 152 156 160 162 165 Amps 1.28 1.32 1.36 1.41 1.44 1.47 1.49

Lb/h 14.9 14.3 13.8 13.4 13.1 12.8 12.4

Btu/h 1130 1080 1040 1020 993 970 942 Watts 148 156 162 168 172 176 180 Amps 1.37 1.41 1.46 1.51 1.56 1.60 1.63

Lb/h 17.1 16.4 15.8 15.4 15.1 14.8 14.3

Btu/h 1290 1230 1190 1160 1130 1110 1080 Watts 155 164 172 179 184 190 195 Amps 1.44 1.49 1.55 1.61 1.67 1.72 1.77

Lb/h 19.6 18.7 18.1 17.7 17.3 16.9 16.4

Btu/h 1460 1400 1350 1320 1290 1260 1230

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 3.060886E+03 -3.753105E+01 1.765379E+00 4.662014E+01 C2 5.378960E+01 -8.156923E-01 8.211514E-03 8.294469E-01 C3 -3.793673E+01 4.273520E+00 -1.619200E-02 -5.765316E-01 C4 4.952792E-01 -3.873467E-02 -6.295933E-04 7.813022E-03 C5 -2.769090E-01 2.418124E-02 -1.393156E-04 -4.231859E-03 C6 2.866767E-01 -2.817074E-02 2.099230E-04 4.353172E-03 C7 1.247467E-04 -2.356734E-04 -2.497684E-06 4.016939E-06 C8 -2.098196E-03 2.817215E-04 3.186609E-06 -3.227872E-05 C9 7.857153E-04 2.574754E-05 1.866234E-06 1.192507E-05

C10 -7.807801E-04 7.358414E-05 -6.247992E-07 -1.185203E-05

Watts 162 173 182 190 197 204 211 Amps 1.49 1.55 1.62 1.69 1.77 1.84 1.90

Lb/h 22.3 21.4 20.6 20.1 19.6 19.2 18.7

Btu/h 1650 1580 1530 1490 1450 1420 1380 Watts 168 180 191 200 209 217 226 Amps 1.53 1.60 1.68 1.76 1.85 1.94 2.02

Lb/h 25.3 24.2 23.4 22.7 22.2 21.7 21.1

Btu/h 1860 1780 1720 1670 1630 1590 1550 Watts 173 187 199 210 221 231 241 Amps 1.54 1.62 1.72 1.82 1.92 2.03 2.13

Lb/h 28.5 27.3 26.4 25.6 25.0 24.4 23.7

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
