TNT100-10100F Page 1 of 6

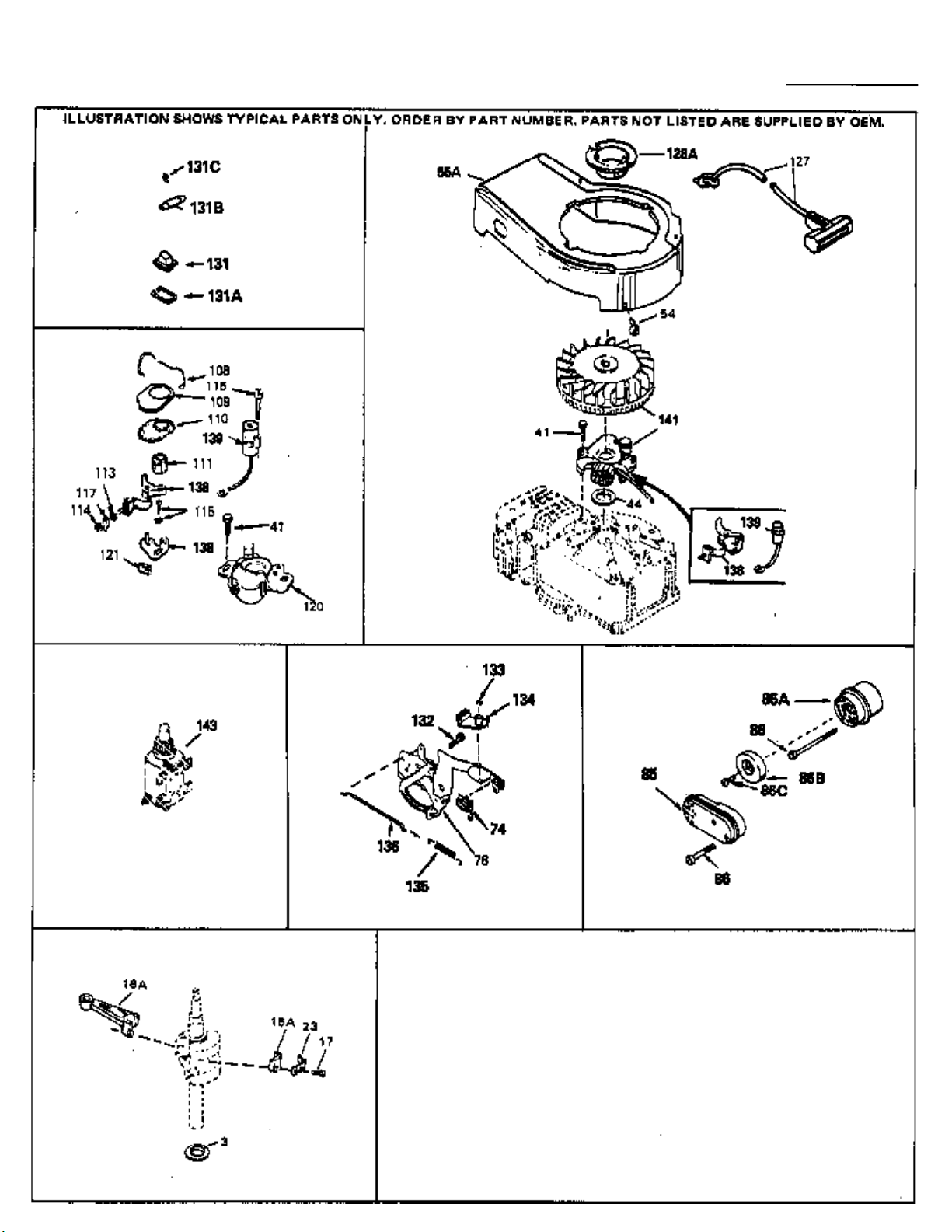

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TNT100-10100F Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 34429A Cylinder (Incl. 2 & 4) (2-5/8" Bore)
2 26727 Pin, Dowel
4 32600 Seal, Oil
5 30589 Rod, Governor (Incl. 6)
6 28277 Washer, Flat
7 32651 Lever, Governor
8 31335 Clamp, Governor lever (Clamp is positioned towardsspark
plug end on 1977-78 and latermodels. It is positioned
opposite spark plugend on earlier models.)
9 650548 Screw, 8-32 x 5/16"
10 34440 Crankshaft
11 29783 Pin, Crankshaft (Not used on late pro duction)
12 27613 Gear, Crankshaft (Not serviceable on late production)
13 35544 Piston, Pin & Ring Set (Std.) (2-5/8" Bore)
13 35545 Piston, Pin & Ring Set (.010" OS)
13 35546 Piston, Pin & Ring Set (.020" OS)
13A 35541 Piston & Pin Ass'y. (Incl. 14) (Std.) (2-5/8")
13A 35542 Piston & Pin Ass'y. (Incl. 14) (.010" OS)
13A 35543 Piston & Pin Ass'y. (Incl. 14) (.020" OS)
14 20381 Ring, Piston pin retaining
15 35547 Ring Set (Std.) (2-5/8" Bore)
15 35548 Ring Set (.010" OS)
15 35549 Ring Set (.020" OS)
16 30963B Rod Assy., Connecting (Incl. 17)
17 32610A Bolt, Connecting rod
20 27241 Lifter, Valve
21 33553 Camshaft (MCR)
22 29914 Pump Assy., Oil
24 35261 * Gasket, Mounting flange
25 34831 Flange Ass'y. (Incl. 26, 27, 28 & 30)
26 28833 * Drain Plug Gasket (Not req. w/plastic plug)
27 27244 Plug, Oil drain
28 26208 Seal, Oil
30 30574 Shaft, Mechanical governor
31 30590A Washer, Flat
32 30591 Gear Assy., Governor (Incl. 31)
33 30588A Spool, Governor
34 29193 Ring, Retaining
35 650488 Screw, 1/4-20 x 1-1/4"
36 29314B Intake Valve (Std.) (Incl. 40)
36 29315C Intake Valve (1/32" OS) (Incl. 40)
37 29313C Exhaust Valve (Std.) (Incl. 40)
37 29315C Exhaust Valve (1/32" OS) (Incl. 40)
38 31671 Cap, Upper valve spring
38A 35390 Seal Assy., Intake Valve
39 31672 Spring, Valve (Exhaust)
40 31673 Cap, Lower valve spring
42 610118 Cover, Spark plug (Use as required)
45 611004 Key, Flywheel
46 34214A Breather Ass'y. (Incl. 47 thru 51)
47 33735 * Gasket, Breather
48 33734 Element, Breather
49 30200 Screw, 10-24 x 9/16"
50 33886 Tube, Breather
51 33887 Clip, Breather tube
52 34231 Ground Wire
53 30200 Screw, 10-24 x 9/16"
