Tecumseh THK4430YGS User Manual

Model: THK4430YGS

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-134a
Voltage/Frequency: 220V ~ 50Hz
Version: N/A

Product Specifications

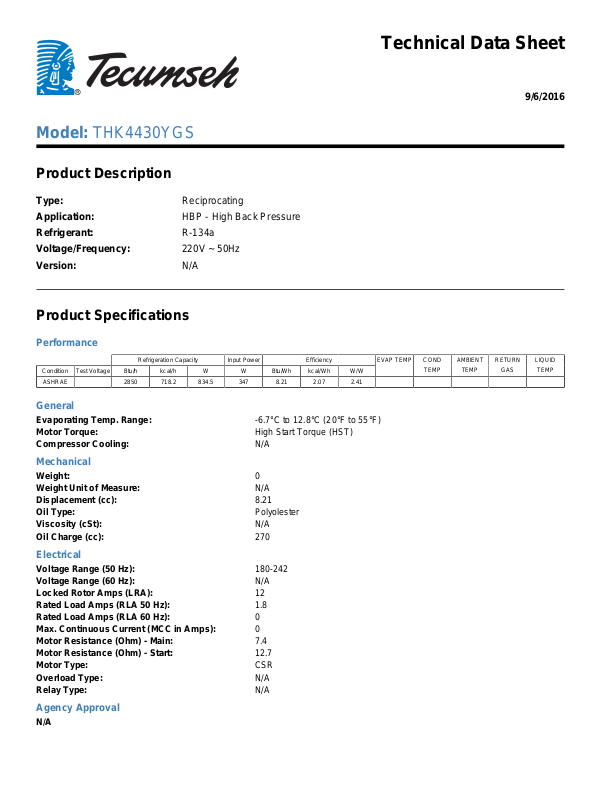

Technical Data Sheet

9/6/2016

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 2850 718.2 834.5 347 8.21 2.07 2.41

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: N/A

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 8.21
Oil Type: Polyolester
Viscosity (cSt): N/A
Oil Charge (cc): 270

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 12
Rated Load Amps (RLA 50 Hz): 1.8
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 7.4
Motor Resistance (Ohm) - Start: 12.7
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

N/A
