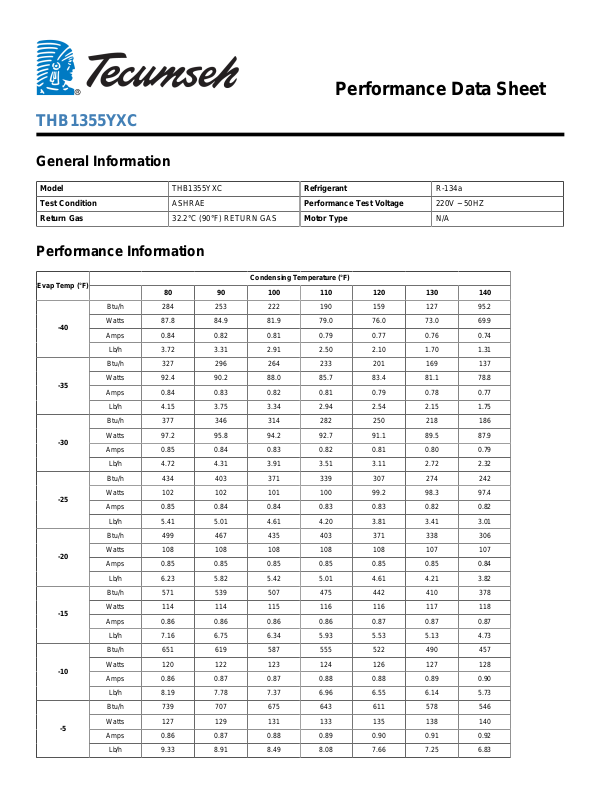

Tecumseh THB1355YXC Performance Data Sheet
Performance Data Sheet
THB1355YXC
General Information
Model THB1355YXC Refrigerant R-134a
Test Condition ASHRAE Performance Test Voltage 220V ~ 50HZ
Return Gas 32.2°C (90°F) RETURN GAS Motor Type N/A
Performance Information
Evap Temp (°F)
-40
-35
-30
-25
-20
-15
-10
-5
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 284 253 222 190 159 127 95.2
Watts 87.8 84.9 81.9 79.0 76.0 73.0 69.9
Amps 0.84 0.82 0.81 0.79 0.77 0.76 0.74
Lb/h 3.72 3.31 2.91 2.50 2.10 1.70 1.31
Btu/h 327 296 264 233 201 169 137
Watts 92.4 90.2 88.0 85.7 83.4 81.1 78.8
Amps 0.84 0.83 0.82 0.81 0.79 0.78 0.77
Lb/h 4.15 3.75 3.34 2.94 2.54 2.15 1.75
Btu/h 377 346 314 282 250 218 186
Watts 97.2 95.8 94.2 92.7 91.1 89.5 87.9
Amps 0.85 0.84 0.83 0.82 0.81 0.80 0.79
Lb/h 4.72 4.31 3.91 3.51 3.11 2.72 2.32
Btu/h 434 403 371 339 307 274 242
Watts 102 102 101 100 99.2 98.3 97.4
Amps 0.85 0.84 0.84 0.83 0.83 0.82 0.82
Lb/h 5.41 5.01 4.61 4.20 3.81 3.41 3.01
Btu/h 499 467 435 403 371 338 306
Watts 108 108 108 108 108 107 107
Amps 0.85 0.85 0.85 0.85 0.85 0.85 0.84
Lb/h 6.23 5.82 5.42 5.01 4.61 4.21 3.82
Btu/h 571 539 507 475 442 410 378
Watts 114 114 115 116 116 117 118
Amps 0.86 0.86 0.86 0.86 0.87 0.87 0.87
Lb/h 7.16 6.75 6.34 5.93 5.53 5.13 4.73
Btu/h 651 619 587 555 522 490 457
Watts 120 122 123 124 126 127 128
Amps 0.86 0.87 0.87 0.88 0.88 0.89 0.90
Lb/h 8.19 7.78 7.37 6.96 6.55 6.14 5.73
Btu/h 739 707 675 643 611 578 546
Watts 127 129 131 133 135 138 140
Amps 0.86 0.87 0.88 0.89 0.90 0.91 0.92
Lb/h 9.33 8.91 8.49 8.08 7.66 7.25 6.83
Btu/h 836 804 772 740 708 676 643
0
5
10
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.088238E+03 1.105329E+02 7.515246E-01 1.400421E+01
C2 2.004715E+01 3.074497E-01 -5.270305E-03 2.676440E-01
C3 -3.164492E+00 2.948422E-01 1.446555E-03 -4.305555E-02
C4 1.717155E-01 1.045845E-02 1.282662E-05 1.952746E-03
C5 2.890402E-03 1.524354E-02 7.881230E-05 -1.521012E-04
C6 3.527871E-04 7.496761E-05 3.028246E-07 -1.577685E-06
C7 4.254692E-04 6.310293E-05 3.614826E-07 -9.160371E-06
C8 8.754935E-05 1.418072E-05 1.194717E-07 -2.749283E-06
C9 -3.594272E-06 -3.574924E-07 4.099955E-09 -5.677314E-08
C10 -3.221967E-06 -6.671537E-07 -3.060054E-09 2.735315E-08
Watts 134 137 140 143 146 149 151
Amps 0.87 0.88 0.90 0.91 0.92 0.94 0.95
Lb/h 10.6 10.1 9.71 9.29 8.86 8.44 8.02
Btu/h 941 910 878 846 814 782 750
Watts 142 146 150 153 157 160 164
Amps 0.87 0.89 0.91 0.93 0.95 0.96 0.98
Lb/h 11.9 11.4 11.0 10.6 10.1 9.71 9.28
Btu/h 1060 1030 994 962 930 898 866
Watts 151 155 160 164 168 173 177
Amps 0.88 0.90 0.93 0.95 0.97 0.99 1.01
Lb/h 13.3 12.8 12.4 11.9 11.5 11.1 10.6
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
