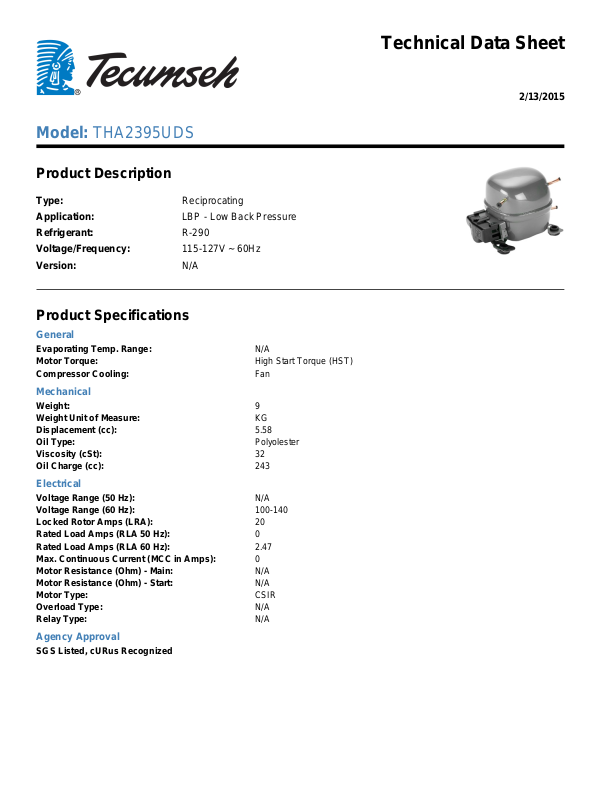

Tecumseh THA2395UDS Technical Data Sheet

Model: THA2395UDS

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-290
Voltage/Frequency: 115-127V ~ 60Hz
Version: N/A

Product Specifications

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Technical Data Sheet

2/13/2015

Mechanical

Weight: 9
Weight Unit of Measure: KG
Displacement (cc): 5.58
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 243

Electrical

Voltage Range (50 Hz): N/A
Voltage Range (60 Hz): 100-140
Locked Rotor Amps (LRA): 20
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 2.47
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

Agency Approval

SGS Listed, cURus Recognized
