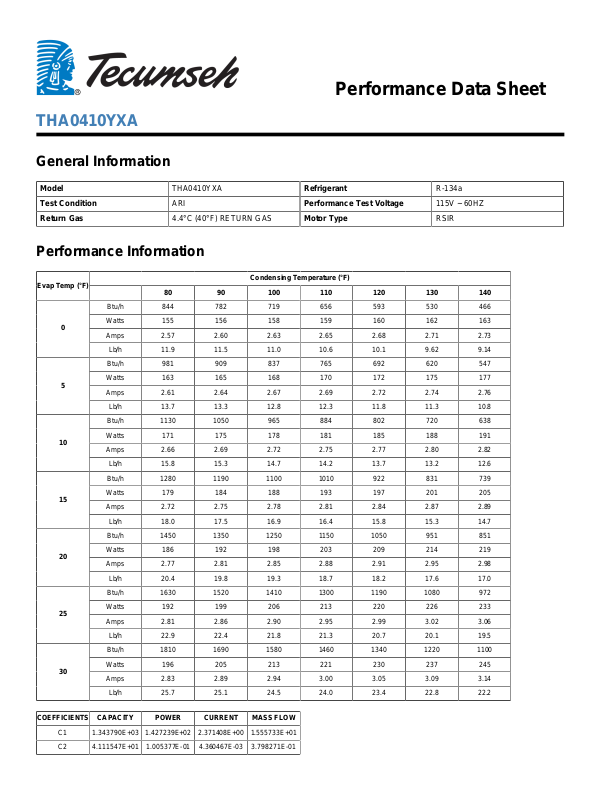

Performance Data Sheet
THA0410YXA
General Information
Model THA0410YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type RSIR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 844 782 719 656 593 530 466
Watts 155 156 158 159 160 162 163
Amps 2.57 2.60 2.63 2.65 2.68 2.71 2.73
Lb/h 11.9 11.5 11.0 10.6 10.1 9.62 9.14
Btu/h 981 909 837 765 692 620 547
Watts 163 165 168 170 172 175 177
Amps 2.61 2.64 2.67 2.69 2.72 2.74 2.76
Lb/h 13.7 13.3 12.8 12.3 11.8 11.3 10.8
Btu/h 1130 1050 965 884 802 720 638
Watts 171 175 178 181 185 188 191
Amps 2.66 2.69 2.72 2.75 2.77 2.80 2.82
Lb/h 15.8 15.3 14.7 14.2 13.7 13.2 12.6
Btu/h 1280 1190 1100 1010 922 831 739
Watts 179 184 188 193 197 201 205
Amps 2.72 2.75 2.78 2.81 2.84 2.87 2.89
Lb/h 18.0 17.5 16.9 16.4 15.8 15.3 14.7
Btu/h 1450 1350 1250 1150 1050 951 851
Watts 186 192 198 203 209 214 219
Amps 2.77 2.81 2.85 2.88 2.91 2.95 2.98
Lb/h 20.4 19.8 19.3 18.7 18.2 17.6 17.0
Btu/h 1630 1520 1410 1300 1190 1080 972
Watts 192 199 206 213 220 226 233
Amps 2.81 2.86 2.90 2.95 2.99 3.02 3.06
Lb/h 22.9 22.4 21.8 21.3 20.7 20.1 19.5
Btu/h 1810 1690 1580 1460 1340 1220 1100
Watts 196 205 213 221 230 237 245
Amps 2.83 2.89 2.94 3.00 3.05 3.09 3.14
Lb/h 25.7 25.1 24.5 24.0 23.4 22.8 22.2
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.343790E+03 1.427239E+02 2.371408E+00 1.555733E+01
C2 4.111547E+01 1.005377E-01 4.360467E-03 3.798271E-01
C3 -6.263684E+00 1.422294E-01 2.452645E-03 -4.588503E-02
C4 1.993274E-01 -9.457049E-03 6.232260E-05 3.899331E-03
C5 -1.845231E-01 2.093776E-02 5.468256E-05 -4.381904E-04
C6 6.504536E-04 1.624566E-04 1.478955E-06 1.848856E-05
C7 -3.314152E-04 -4.953757E-04 -1.014796E-05 -2.213131E-05
C8 1.302337E-04 1.958302E-04 4.122495E-06 8.896103E-06
C9 -1.364891E-05 -1.989191E-05 -4.342891E-07 -9.346848E-07
C10 -4.916810E-06 -9.709945E-07 -4.198823E-09 -1.305562E-07
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
THA0410YXA
General Information
Model THA0410YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type RSIR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1490 1400 1310 1210 1110 1010 913
Watts 185 190 196 202 207 213 218
Amps 2.76 2.80 2.83 2.86 2.89 2.92 2.95
Lb/h 19.7 19.2 18.7 18.2 17.7 17.1 16.5
Btu/h 1690 1590 1480 1370 1270 1160 1050
Watts 191 198 205 211 218 225 231
Amps 2.80 2.84 2.88 2.92 2.96 3.00 3.04
Lb/h 22.3 21.7 21.2 20.7 20.1 19.6 19.0
Btu/h 1910 1790 1670 1550 1430 1310 1190
Watts 198 206 213 221 229 237 244
Amps 2.84 2.89 2.94 2.99 3.03 3.08 3.13
Lb/h 25.1 24.5 23.9 23.4 22.8 22.2 21.6
Btu/h 2140 2000 1870 1730 1600 1460 1330
Watts 205 214 223 231 240 249 258
Amps 2.88 2.94 3.00 3.05 3.11 3.17 3.22
Lb/h 28.2 27.5 26.9 26.3 25.6 25.0 24.4
Btu/h 2390 2230 2080 1930 1780 1630 1480
Watts 213 223 232 242 252 262 272
Amps 2.93 3.00 3.06 3.13 3.19 3.25 3.32
Lb/h 31.5 30.8 30.1 29.4 28.7 28.1 27.4
Btu/h 2650 2480 2310 2140 1970 1810 1650
Watts 221 232 242 253 264 275 286
Amps 2.99 3.06 3.13 3.20 3.27 3.34 3.42
Lb/h 35.2 34.3 33.6 32.8 32.1 31.3 30.6
Btu/h 2940 2740 2550 2370 2180 2000 1830
Watts 230 242 253 265 276 288 300
Amps 3.05 3.12 3.20 3.28 3.36 3.44 3.52
Lb/h 39.1 38.2 37.3 36.5 35.7 34.8 34.1
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.100564E+03 1.496036E+02 2.641209E+00 1.399390E+01
C2 5.199372E+01 -6.915038E-01 -8.537610E-03 3.826209E-01
C3 -3.692610E+00 1.641186E-01 1.386838E-04 -2.892750E-02
C4 2.507294E-01 7.969772E-03 7.643494E-05 4.772908E-03
C5 -2.830803E-01 2.029839E-02 1.563461E-04 -9.859570E-04
C6 -4.386727E-04 1.643244E-05 8.032028E-08 4.174073E-06
C7 3.080462E-03 8.381612E-05 5.042438E-07 2.610288E-05
C8 -2.890600E-03 -8.360488E-05 -5.075835E-07 -2.505238E-05
C9 8.581588E-04 2.624873E-05 1.606534E-07 7.599238E-06
C10 -7.606771E-05 -2.681808E-06 -1.635574E-08 -7.513739E-07
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
