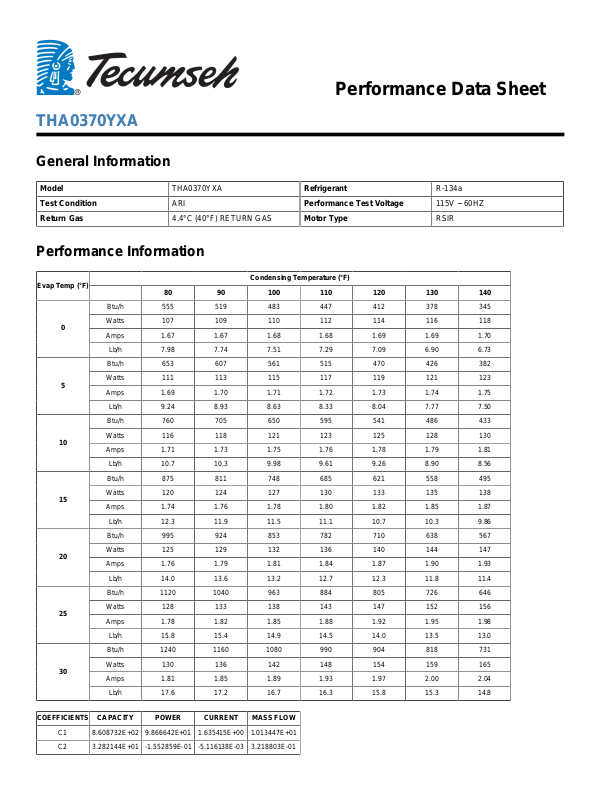

Performance Data Sheet
THA0370YXA
General Information
Model THA0370YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type RSIR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 555 519 483 447 412 378 345
Watts 107 109 110 112 114 116 118
Amps 1.67 1.67 1.68 1.68 1.69 1.69 1.70
Lb/h 7.98 7.74 7.51 7.29 7.09 6.90 6.73
Btu/h 653 607 561 515 470 426 382
Watts 111 113 115 117 119 121 123
Amps 1.69 1.70 1.71 1.72 1.73 1.74 1.75
Lb/h 9.24 8.93 8.63 8.33 8.04 7.77 7.50
Btu/h 760 705 650 595 541 486 433
Watts 116 118 121 123 125 128 130
Amps 1.71 1.73 1.75 1.76 1.78 1.79 1.81
Lb/h 10.7 10.3 9.98 9.61 9.26 8.90 8.56
Btu/h 875 811 748 685 621 558 495
Watts 120 124 127 130 133 135 138
Amps 1.74 1.76 1.78 1.80 1.82 1.85 1.87
Lb/h 12.3 11.9 11.5 11.1 10.7 10.3 9.86
Btu/h 995 924 853 782 710 638 567
Watts 125 129 132 136 140 144 147
Amps 1.76 1.79 1.81 1.84 1.87 1.90 1.93
Lb/h 14.0 13.6 13.2 12.7 12.3 11.8 11.4
Btu/h 1120 1040 963 884 805 726 646
Watts 128 133 138 143 147 152 156
Amps 1.78 1.82 1.85 1.88 1.92 1.95 1.98
Lb/h 15.8 15.4 14.9 14.5 14.0 13.5 13.0
Btu/h 1240 1160 1080 990 904 818 731
Watts 130 136 142 148 154 159 165
Amps 1.81 1.85 1.89 1.93 1.97 2.00 2.04
Lb/h 17.6 17.2 16.7 16.3 15.8 15.3 14.8
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 8.608732E+02 9.866642E+01 1.635415E+00 1.013447E+01
C2 3.282144E+01 -1.552859E-01 -5.116138E-03 3.218803E-01
C3 -3.877493E+00 9.247249E-02 4.346573E-04 -2.833811E-02
C4 1.213769E-01 -4.979406E-03 1.246311E-05 2.433806E-03
C5 -1.626531E-01 1.470895E-02 1.166626E-04 -7.779295E-04
C6 -2.125462E-04 5.201250E-05 -2.606312E-07 1.752320E-06
C7 -2.763439E-03 -6.930459E-04 -4.303097E-08 -6.180751E-05
C8 1.403595E-03 3.460152E-04 4.089333E-08 3.084224E-05
C9 -2.162551E-04 -5.220278E-05 -9.613775E-09 -4.654699E-06
C10 1.151100E-05 1.883072E-06 2.706158E-09 1.917581E-07
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
THA0370YXA
General Information
Model THA0370YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type RSIR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1030 964 895 827 760 693 627
Watts 125 129 132 136 139 143 147
Amps 1.77 1.80 1.82 1.85 1.87 1.90 1.92
Lb/h 13.8 13.3 12.9 12.5 12.1 11.7 11.3
Btu/h 1170 1090 1010 934 857 782 708
Watts 127 131 136 141 146 151 155
Amps 1.78 1.82 1.85 1.88 1.92 1.95 1.98
Lb/h 15.4 15.0 14.5 14.1 13.7 13.2 12.8
Btu/h 1310 1230 1140 1050 963 878 795
Watts 128 134 140 146 152 158 164
Amps 1.80 1.84 1.88 1.92 1.96 2.00 2.04
Lb/h 17.3 16.8 16.3 15.9 15.4 15.0 14.6
Btu/h 1470 1370 1270 1170 1080 983 890
Watts 130 137 144 151 158 165 172
Amps 1.81 1.86 1.91 1.95 2.00 2.05 2.10
Lb/h 19.4 18.8 18.3 17.8 17.3 16.9 16.4
Btu/h 1640 1530 1420 1310 1200 1100 994
Watts 131 139 148 156 164 173 181
Amps 1.82 1.88 1.93 1.99 2.05 2.11 2.16
Lb/h 21.6 21.1 20.5 20.0 19.5 19.0 18.5
Btu/h 1820 1700 1580 1460 1340 1220 1110
Watts 132 142 151 161 170 180 189
Amps 1.83 1.90 1.96 2.03 2.09 2.16 2.22
Lb/h 24.2 23.6 22.9 22.4 21.8 21.3 20.8
Btu/h 2020 1880 1750 1620 1490 1360 1230
Watts 134 144 155 166 176 187 198
Amps 1.85 1.92 1.99 2.07 2.14 2.21 2.29
Lb/h 27.0 26.3 25.6 25.0 24.4 23.8 23.3
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 8.530887E+02 1.267428E+02 1.795117E+00 1.214273E+01
C2 3.407932E+01 -1.491915E+00 -1.166310E-02 1.968659E-01
C3 -3.436143E+00 -1.153904E-01 -6.250552E-04 -4.044097E-02
C4 1.727615E-01 -1.747278E-03 2.337995E-05 3.518939E-03
C5 -1.817508E-01 2.372279E-02 1.576859E-04 -2.605938E-04
C6 -1.765116E-03 -3.220503E-06 3.269653E-07 -1.920985E-05
C7 1.513989E-03 1.800893E-05 -2.459140E-07 2.113231E-05
C8 -1.079091E-03 -1.265544E-05 1.744261E-07 -1.505890E-05
C9 2.121319E-04 2.412164E-06 -3.409343E-08 2.952656E-06
C10 4.784788E-06 -7.226065E-08 -1.124955E-09 2.497379E-08
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
