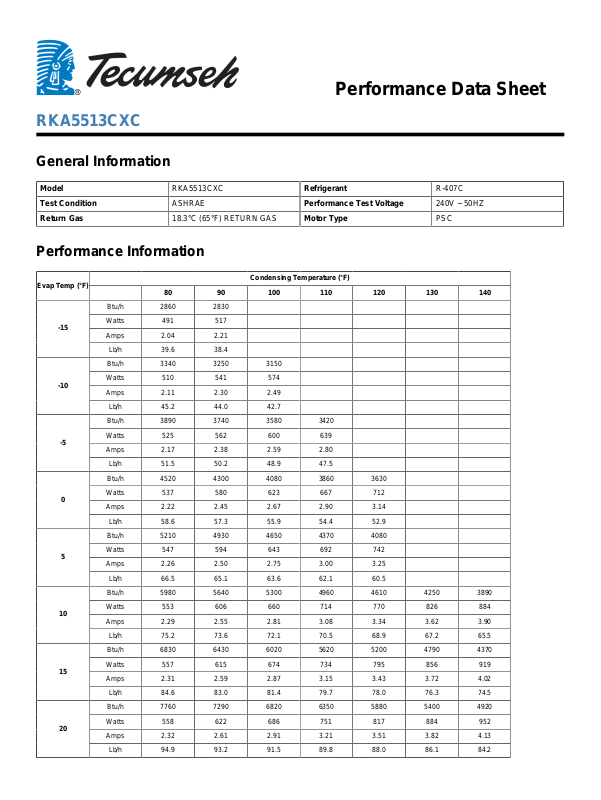

Tecumseh RKA5513CXC Performance Data Sheet

Performance Data Sheet

RKA5513CXC

General Information

Model RKA5513CXC Refrigerant R-407C Test Condition ASHRAE Performance Test Voltage 240V ~ 50HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 2860 2830 Watts 491 517 Amps 2.04 2.21

Lb/h 39.6 38.4

Btu/h 3340 3250 3150 Watts 510 541 574 Amps 2.11 2.30 2.49

Lb/h 45.2 44.0 42.7

Btu/h 3890 3740 3580 3420 Watts 525 562 600 639 Amps 2.17 2.38 2.59 2.80

Lb/h 51.5 50.2 48.9 47.5

Btu/h 4520 4300 4080 3860 3630 Watts 537 580 623 667 712 Amps 2.22 2.45 2.67 2.90 3.14

Lb/h 58.6 57.3 55.9 54.4 52.9

Btu/h 5210 4930 4650 4370 4080 Watts 547 594 643 692 742 Amps 2.26 2.50 2.75 3.00 3.25

Lb/h 66.5 65.1 63.6 62.1 60.5

Btu/h 5980 5640 5300 4960 4610 4250 3890 Watts 553 606 660 714 770 826 884 Amps 2.29 2.55 2.81 3.08 3.34 3.62 3.90

Lb/h 75.2 73.6 72.1 70.5 68.9 67.2 65.5

Btu/h 6830 6430 6020 5620 5200 4790 4370 Watts 557 615 674 734 795 856 919 Amps 2.31 2.59 2.87 3.15 3.43 3.72 4.02

Lb/h 84.6 83.0 81.4 79.7 78.0 76.3 74.5

Btu/h 7760 7290 6820 6350 5880 5400 4920 Watts 558 622 686 751 817 884 952 Amps 2.32 2.61 2.91 3.21 3.51 3.82 4.13

Lb/h 94.9 93.2 91.5 89.8 88.0 86.1 84.2

Btu/h 8770 8230 7700 7160 6630 6080 5540

Watts 557 625 695 765 836 908 981 Amps 2.32 2.63 2.94 3.26 3.58 3.90 4.23

Lb/h 106 104 102 101 98.7 96.8 94.8

Btu/h 9850 9250 8650 8050 7450 6850 6240 Watts 553 627 701 777 853 930 1010 Amps 2.31 2.64 2.97 3.30 3.64 3.98 4.33

Lb/h 118 116 114 112 110 108 106

Btu/h 11000 10400 9690 9020 8360 7690 7010 Watts 546 626 705 786 867 950 1030 Amps 2.30 2.64 2.99 3.34 3.69 4.05 4.41

Lb/h 131 129 127 125 123 121 118

Btu/h 12300 11500 10800 10100 9340 8600 7870 Watts 537 622 707 793 880 967 1060 Amps 2.28 2.64 3.00 3.37 3.74 4.11 4.49

Lb/h 145 143 140 138 136 134 131

Btu/h 13600 12800 12000 11200 10400 9600 8800 Watts 526 616 707 798 890 982 1080 Amps 2.25 2.62 3.00 3.39 3.77 4.16 4.56

Lb/h 159 157 155 152 150 148 145

Btu/h 15000 14200 13300 12400 11600 10700 9810 Watts 513 608 704 800 897 995 1090 Amps 2.21 2.61 3.00 3.40 3.80 4.21 4.62

Lb/h 175 173 170 168 165 163 160

Btu/h 16500 15600 14700 13700 12800 11800 10900 Watts 498 599 700 801 903 1010 1110 Amps 2.17 2.58 2.99 3.41 3.83 4.25 4.68

Lb/h 192 189 186 184 181 178 176

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 6.197321E+03 2.106635E+02 4.871872E-01 6.897010E+01 C2 2.329225E+02 -6.558249E+00 -2.000545E-02 1.635322E+00 C3 -2.121179E+01 4.107164E+00 2.179025E-02 -1.318158E-01 C4 1.591095E+00 -5.924817E-02 -2.093534E-04 1.702308E-02 C5 -1.288235E+00 1.119761E-01 3.724867E-04 -2.073421E-03 C6 9.912630E-03 -2.016600E-03 -8.159645E-06 1.221001E-04 C7 1.663924E-03 1.269123E-04 7.399918E-07 2.169500E-05 C8 -1.401412E-03 -5.042183E-06 -1.692937E-07 -1.768833E-05 C9 3.349631E-04 -3.432129E-05 -1.185902E-07 4.057898E-06

C10 -9.472437E-05 2.165806E-05 8.843841E-08 -1.147202E-06

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
