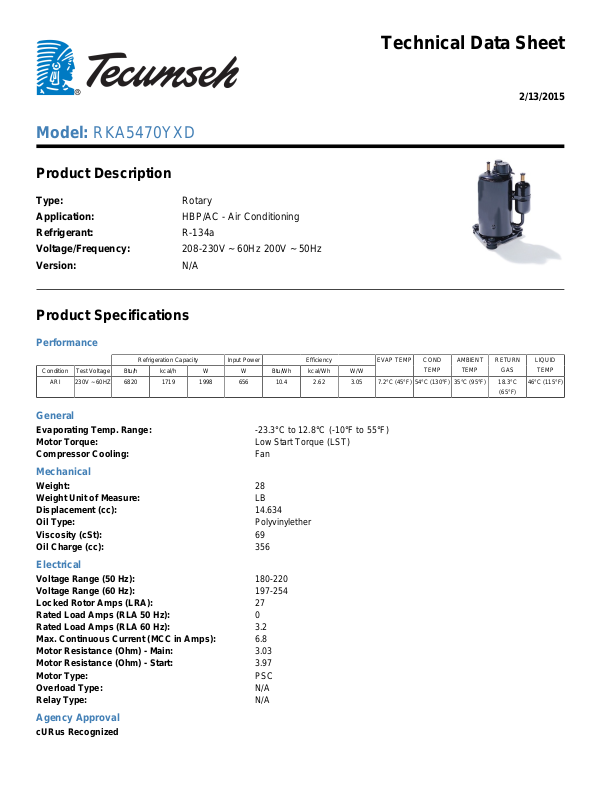

Tecumseh RKA5470YXD Technical Data Sheet

Model: RKA5470YXD

Product Description

Type: Rotary
Application: HBP/AC - Air Conditioning
Refrigerant: R-134a
Voltage/Frequency: 208-230V ~ 60Hz 200V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 230V ~ 60HZ 6820 1719 1998 656 10.4 2.62 3.05 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 18.3°C

EVAP TEMP COND

TEMP

AMBIENT

TEMP

General

Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 28
Weight Unit of Measure: LB
Displacement (cc): 14.634
Oil Type: Polyvinylether
Viscosity (cSt): 69
Oil Charge (cc): 356

Electrical

Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 197-254
Locked Rotor Amps (LRA): 27
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 3.2
Max. Continuous Current (MCC in Amps): 6.8
Motor Resistance (Ohm) - Main: 3.03
Motor Resistance (Ohm) - Start: 3.97
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

RETURN

GAS

(65°F)

LIQUID

TEMP

46°C (115°F)

Agency Approval

cURus Recognized
