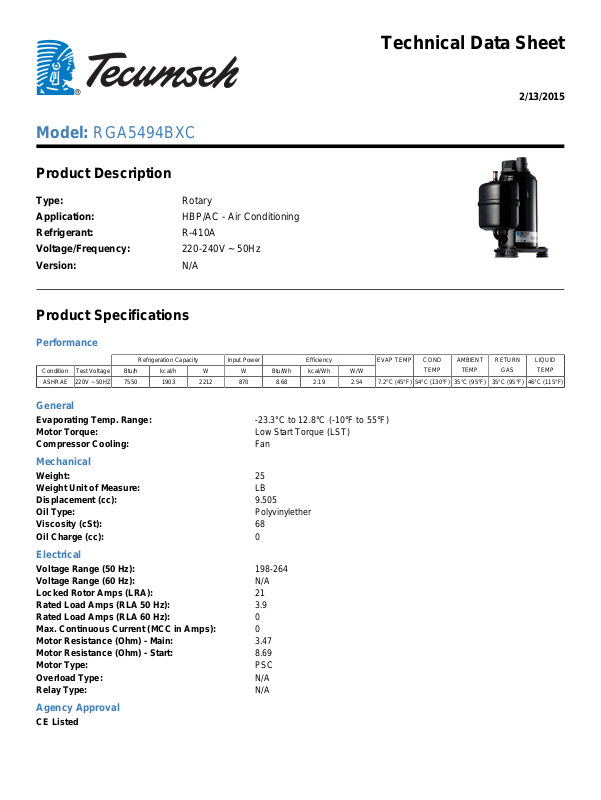

Tecumseh RGA5494BXC Technical Data Sheet

Model: RGA5494BXC

Product Description

Type: Rotary
Application: HBP/AC - Air Conditioning
Refrigerant: R-410A
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V ~ 50HZ 7550 1903 2212 870 8.68 2.19 2.54 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 25
Weight Unit of Measure: LB
Displacement (cc): 9.505
Oil Type: Polyvinylether
Viscosity (cSt): 68
Oil Charge (cc): 0

Electrical

Voltage Range (50 Hz): 198-264
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 21
Rated Load Amps (RLA 50 Hz): 3.9
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 3.47
Motor Resistance (Ohm) - Start: 8.69
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

Agency Approval

CE Listed
