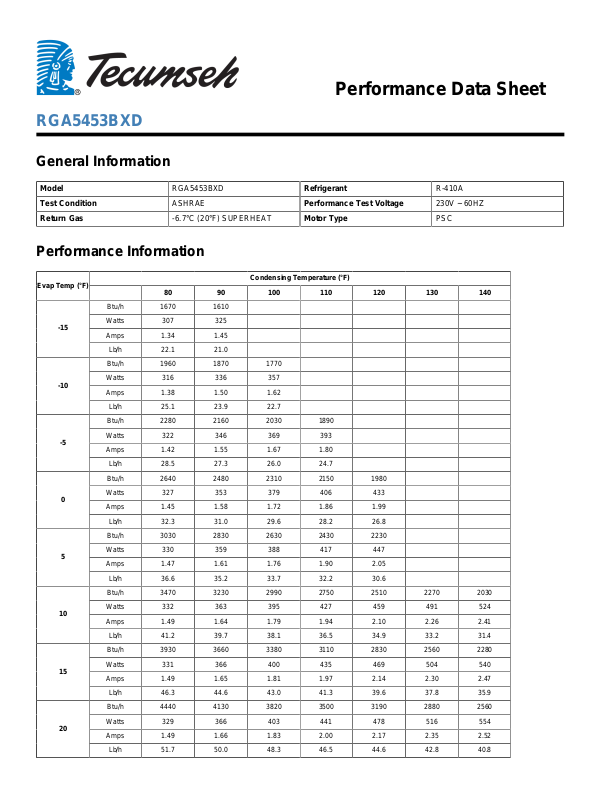

Tecumseh RGA5453BXD Performance Data Sheet
Performance Data Sheet
RGA5453BXD
General Information
Model RGA5453BXD Refrigerant R-410A
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas -6.7°C (20°F) SUPERHEAT Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1670 1610
Watts 307 325
Amps 1.34 1.45
Lb/h 22.1 21.0
Btu/h 1960 1870 1770
Watts 316 336 357
Amps 1.38 1.50 1.62
Lb/h 25.1 23.9 22.7
Btu/h 2280 2160 2030 1890
Watts 322 346 369 393
Amps 1.42 1.55 1.67 1.80
Lb/h 28.5 27.3 26.0 24.7
Btu/h 2640 2480 2310 2150 1980
Watts 327 353 379 406 433
Amps 1.45 1.58 1.72 1.86 1.99
Lb/h 32.3 31.0 29.6 28.2 26.8
Btu/h 3030 2830 2630 2430 2230
Watts 330 359 388 417 447
Amps 1.47 1.61 1.76 1.90 2.05
Lb/h 36.6 35.2 33.7 32.2 30.6
Btu/h 3470 3230 2990 2750 2510 2270 2030
Watts 332 363 395 427 459 491 524
Amps 1.49 1.64 1.79 1.94 2.10 2.26 2.41
Lb/h 41.2 39.7 38.1 36.5 34.9 33.2 31.4
Btu/h 3930 3660 3380 3110 2830 2560 2280
Watts 331 366 400 435 469 504 540
Amps 1.49 1.65 1.81 1.97 2.14 2.30 2.47
Lb/h 46.3 44.6 43.0 41.3 39.6 37.8 35.9
Btu/h 4440 4130 3820 3500 3190 2880 2560
Watts 329 366 403 441 478 516 554
Amps 1.49 1.66 1.83 2.00 2.17 2.35 2.52
Lb/h 51.7 50.0 48.3 46.5 44.6 42.8 40.8
Btu/h 4980 4630 4280 3930 3580 3230 2880
25
30
35
40
45
50
55
Watts 325 365 405 445 485 526 567
Amps 1.48 1.66 1.84 2.02 2.20 2.38 2.56
Lb/h 57.6 55.8 53.9 52.0 50.1 48.1 46.1
Btu/h 5570 5180 4790 4400 4020 3630 3240
Watts 320 362 405 448 491 534 577
Amps 1.46 1.65 1.84 2.03 2.21 2.41 2.60
Lb/h 63.9 62.0 60.0 58.0 56.0 53.9 51.8
Btu/h 6190 5760 5340 4910 4490 4060 3630
Watts 312 357 403 448 494 540 586
Amps 1.44 1.64 1.83 2.03 2.23 2.43 2.63
Lb/h 70.7 68.6 66.5 64.4 62.3 60.1 57.9
Btu/h 6850 6390 5920 5460 4990 4530 4070
Watts 303 351 399 447 496 545 594
Amps 1.41 1.62 1.82 2.02 2.23 2.44 2.65
Lb/h 77.8 75.6 73.5 71.2 69.0 66.7 64.4
Btu/h 7560 7050 6550 6050 5540 5040 4540
Watts 292 343 394 445 496 548 599
Amps 1.38 1.59 1.80 2.01 2.23 2.44 2.66
Lb/h 85.4 83.1 80.8 78.5 76.1 73.7 71.3
Btu/h 8310 7760 7220 6680 6130 5590 5050
Watts 279 333 387 441 495 549 603
Amps 1.33 1.55 1.78 2.00 2.22 2.44 2.67
Lb/h 93.4 91.0 88.6 86.1 83.6 81.1 78.6
Btu/h 9100 8510 7930 7350 6760 6180 5600
Watts 265 321 378 435 491 548 606
Amps 1.29 1.51 1.74 1.97 2.21 2.44 2.67
Lb/h 102 99.3 96.8 94.2 91.6 89.0 86.3
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 3.932943E+03 1.232746E+02 3.986891E-01 4.236779E+01
C2 1.341150E+02 -3.642815E+00 -9.336079E-03 9.735870E-01
C3 -1.617472E+01 2.558622E+00 1.319014E-02 -1.267608E-01
C4 7.813980E-01 -3.714952E-02 -1.559586E-04 8.639771E-03
C5 -7.526854E-01 5.665043E-02 1.832076E-04 -2.312385E-03
C6 2.945132E-03 -6.046766E-04 -3.300443E-06 1.084163E-04
C7 9.402116E-04 6.005950E-06 2.609881E-07 3.989119E-06
C8 -8.185572E-04 1.742771E-05 -5.447656E-08 -6.558826E-06
C9 1.938268E-04 -1.217940E-05 -4.573796E-08 2.705443E-06
C10 -3.256260E-05 6.317307E-06 3.484470E-08 -1.130955E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
