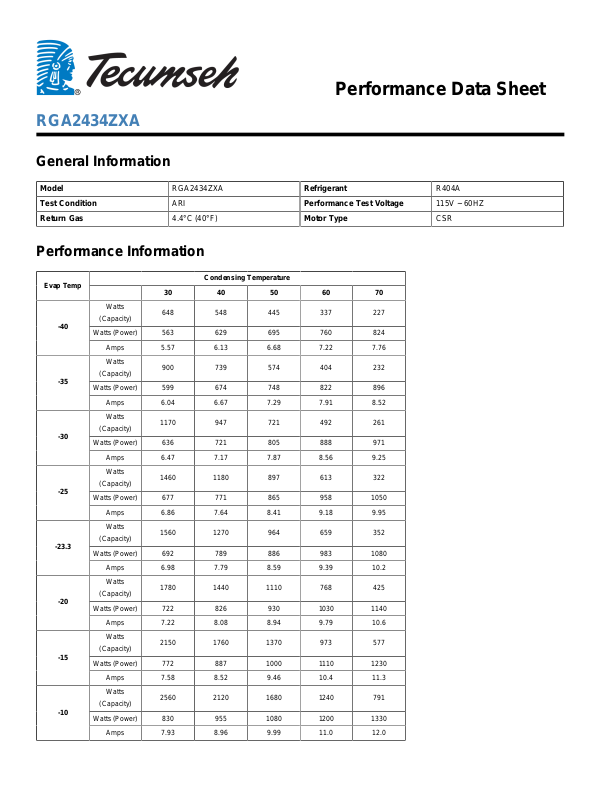

Performance Data Sheet

RGA2434ZXA

General Information

Model RGA2434ZXA Refrigerant R404A
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) Motor Type CSR

Performance Information

Evap Temp

-40

-35

-30

-25

-23.3

-20

-15

-10

Condensing Temperature

30 40 50 60 70

Watts

(Capacity)

Watts (Power) 563 629 695 760 824

Amps 5.57 6.13 6.68 7.22 7.76
Watts

(Capacity)

Watts (Power) 599 674 748 822 896

Amps 6.04 6.67 7.29 7.91 8.52
Watts

(Capacity)

Watts (Power) 636 721 805 888 971

Amps 6.47 7.17 7.87 8.56 9.25
Watts

(Capacity)

Watts (Power) 677 771 865 958 1050

Amps 6.86 7.64 8.41 9.18 9.95
Watts

(Capacity)

Watts (Power) 692 789 886 983 1080

Amps 6.98 7.79 8.59 9.39 10.2
Watts

(Capacity)

Watts (Power) 722 826 930 1030 1140

Amps 7.22 8.08 8.94 9.79 10.6
Watts

(Capacity)

Watts (Power) 772 887 1000 1110 1230

Amps 7.58 8.52 9.46 10.4 11.3
Watts

(Capacity)

Watts (Power) 830 955 1080 1200 1330

Amps 7.93 8.96 9.99 11.0 12.0

648 548 445 337 227

900 739 574 404 232

1170 947 721 492 261

1460 1180 897 613 322

1560 1270 964 659 352

1780 1440 1110 768 425

2150 1760 1370 973 577

2560 2120 1680 1240 791
