RAD-3249-P91 Page 1 of 2
Peerless
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983

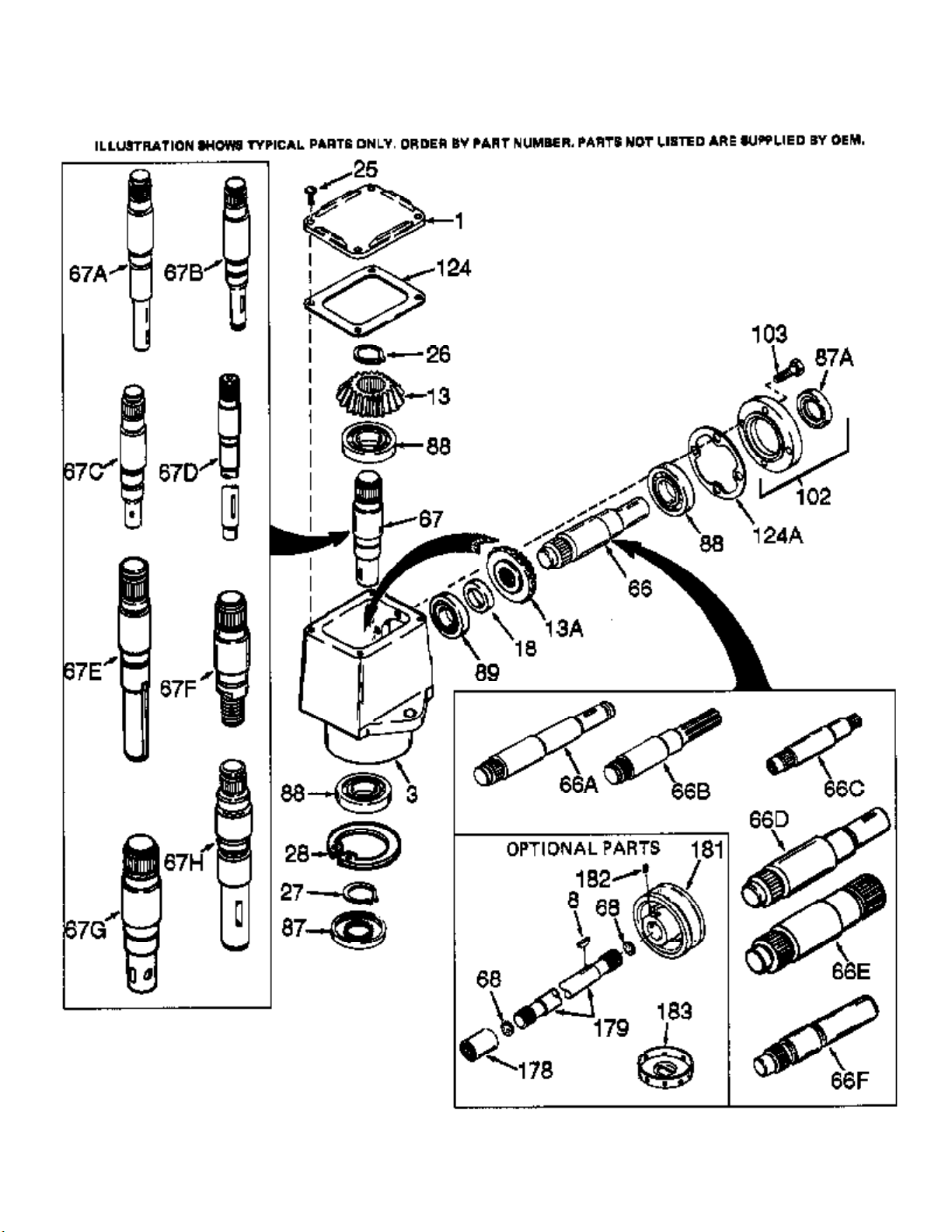

Ref # Part Number Qty Description
1 772035 Left Hand Cover
3 770026A Right Angle Drive Housing
8 792057 Key (With lug extensions)
8 792047 Woodruff Key #9
13 778046 Miter Gear (22 teeth)(7/8" ID)
13A 778046 Miter Gear (22 teeth)(7/8" ID)
25 792025 Screw, 10-24 x 1/2"
26 788018 Snap Ring
27 788019 Snap Ring
66B 776176 Input Shaft (5-19/32" long)
67B 776177 Output Shaft (4-41/64" long)
68 788039 Felt Disc
87 788029 Oil Seal
87A 788031 Oil Seal
88 780034 Ball Bearing
89 780024 Ball Bearing
102 786029 Retainer Cap & Seal (Incl. 87A & 103)
103 792026 Screw, 1/4-20 x 7/8"
124A 788030B Cap Gasket
124 788028 Cover Gasket
177A XXXXX (Not included with head assembly.)
177 XXXXX THE FOLLOWING ARE OPTIONAL PARTS:
178 786028 Coupling (1-1/2" long)
178 786031 Coupling (1-5/16" long)
179 XXXXX Input Connector Shaft
181 786030 Sheave (3-1/4" Dia.)
181 786059 Sheave (4" Dia.)
182 792027 Set Screw, 5/16-24 x 1/4
183 786044 Shield
RAD-3249-P91 Page 2 of 2
