Tecumseh OHV110, OV358, OV358EA, OVH135 Operator's Manual

Engine Operator’s Manual

Operator’s Manual

OV358EA

Four-Cycle Engine • Vertical Crankshaft • Air-Cooled

Table of Contents

IMPORTANT NOTICE! Safety Definitions.........................................ii

I. General Safety Precautions............................................................. 1

II. How to Get Service.......................................................................... 3

III. Oil and Fuel Specifications............................................................... 4

IV. Before Starting Your Engine............................................................. 4

V. Starting Your Engine ........................................................................ 6

VI. Stopping Your Engine and Short-Term Storage............................. 10

VII. Maintenance .................................................................................. 10

VIII. Transporting Your Engine............................................................... 13

IX. Storing Your Engine ....................................................................... 13

X. Preventing Forest, Brush and Grass Fires..................................... 15

XI. Maintenance Intervals............................................ ........... ............. 16

California & US EPA Emission Control Warranty Statement.......... 20

Emission Control System Warranty............................................... 21

XII. Warranty Information......................................................................22

Visit our web site at www.TecumsehPower.com

Register Your TecumsehPower Engine Maintenance Tips On-Line Store Locate your nearest TecumsehPower Servicing Dealer

LOG ON!

181-1132-14

(English) 7/01/08

IMPORTANT NOTICE!

Safety Definitions

Statements in this manual preceded by the following words and graphics are of special significance:

!

WARNING

Or

WARNING

WARNING indicates a potentially hazardous situation which if NOT avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if NOT avoided, may result in minor or moderate injury.

CAUTION

Indicates a potential situation which, if NOT avoided, could result in equipment or property damage.

NOTE

Refers to important information and is placed in italic type.

It is recommended that you take special notice of all items discussed on the next two pages and wear the appropriate safety equipment.

Before operating this engine it is your responsibility to read this Operator’s Manual. Follow these basic rules for your personal safety:

• Keep this manual handy at all times for future reference.

• Read it carefully and familiarize yourself with operating, maintenance, components and safety instructions.

Notice Regarding Emissions

NOTE Engines which are certified to comply with California and U.S. EPA emission regulations for SORE (Small Off Road Equipment), are certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM) Engine Modification and (TWC) Three-way Catalyst (if so equipped).

TecumsehPower Contact Information

For engine adjustments, repairs or warranty service NOT covered in this manual, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower .co m or call TecumsehPower Company at 1-800-558-5402 for additional information.

The trade marks T ECUMSE H® and the DES IGN (Nat ive Ame rican Head l ogo) are registered trademarks of Tecumseh Products Company and are used by TecumsehPower Company under license from Tecumseh Products Company. TecumsehPower Company is no longer owned by Tecumseh Products Company nor is it associated or affiliated in any way with Tecumseh Products Company .

Page ii Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

TecumsehPo wer Company

I. General Safety Precautions

!

WARNING

Read equipment manufacturer’s manual and this material thoroughly before using this engine. Failure to do so can result in serious injury or death. Consult your local Authorized TecumsehPower Servicing Dealer, call 1-800-558-5402, or go to www.TecumsehPower.com for additional information.

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you DO NOT see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly-ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

To prevent serious injury or death from carbon monoxide:

• NEVER run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

• NEVER run engine in poorly-ventilated or partially enclosed areas such as barns, garages, basements, carports, under dwellings, or in pits.

• NEVER run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

• NEVER store engine with fuel in fuel tank inside a building with potential sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

• NEVER remove fuel fill cap or add fuel when engine is running.

• NEVER start or operate the engine with the fuel fill cap removed.

• Allow engine to cool before refueling.

• NEVER fill fuel tank indoors. Fill fuel tank outdoors in a well-ventilated area.

• DO NOT smoke while refueling tank.

• Use only an approved red GASOLINE container to store and dispense fuel. TecumsehPower Company recommends purchasing gasoline in containers with a capacity of 2.5 gallons or less. Small containers are easier to handle and help eliminate spillage during refueling.

• DO NOT pour fuel from engine or siphon fuel by mouth. T o empty the fuel t ank, see "I. Draining Fuel" instructions on page 14.

C. Adult Supervision of Operation, Refueling

and Maintenance

The manufacturer of the equipment may provide information about who is allowed to use this engine (see equipment manufacturer’s manual). NOT everyone who is allowed to use this engine is capable of safely and responsibly operating, maintaining and/or fueling it. TecumsehPower Company recommends the following:

• An adult should fuel this engine. NEVER allow children to refuel this engine. See "C. Filling Fuel Tank" instructions on page 5.

• An adult should perform maintenance on this engine. See "VII. Maintenance" instructions on page 10. Only allow children to perform maintenance if an adult has determined they are experienced and capable of such operation.

• An adult should start the engine. See "G. Avoid Accidental Starts" instructions on page 2. Only allow children to start the engine if an adult has determined they are experienced and capable of such operation.

• To avoid unsupervised operation of the engine, especially by children, NEVER leave it unattended when it is running. Remove ignition key, if equipped.

D. Stay Away from Rotating Parts

NEVER operate the engine with an unguarded engine shaft or flywheel. See Figure 1 on page 2.

The equipment manufacturer may attach a sprocket and chain or pulley and belt to the engine shaft. If these parts are NOT properly guarded, or if you are NOT sure whether they are properly guarded, DO NOT use your engine; contact the equipment manufacturer. Hands, feet, hair, jewelry, clothing, etc.,can become entangled in rotating parts, leading to serious injury or death. To avoid serious injury or death, be sure the flywheel guard is in place. See Figure 1 on page 2.

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 1

E. DO NOT Modify Engine

To avoid serious injury or death, DO NOT modify en gine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

!

WARNING

Use of this engine on fun-carts, go-kar ts, or mini-bikes can result in serious injury or death. TecumsehPower Company manufactures the Power Sport line of engines for use in such applications. Consult your local Authorized TecumsehPower Servicing Dealer, call 1-800-558-5402, or visit www.TecumsehPower.com for additional information.

F. Avoid Burns and Fire from Hot Surfaces

The muffler and other engine parts become extremely hot during operation and remain hot after the engine has stopped.

• To avoid severe burns on contact, STAY AWAY from hot areas of engine. DO NOT operate the engine without the muffler guard in place, if equipped.

• To reduce the risk of fire keep all materials that can burn, including grass and leaves, away from muffler and rest of engine. DO NOT operate, idle or park engine powered equipment in long dry grass or other dry ground cover.

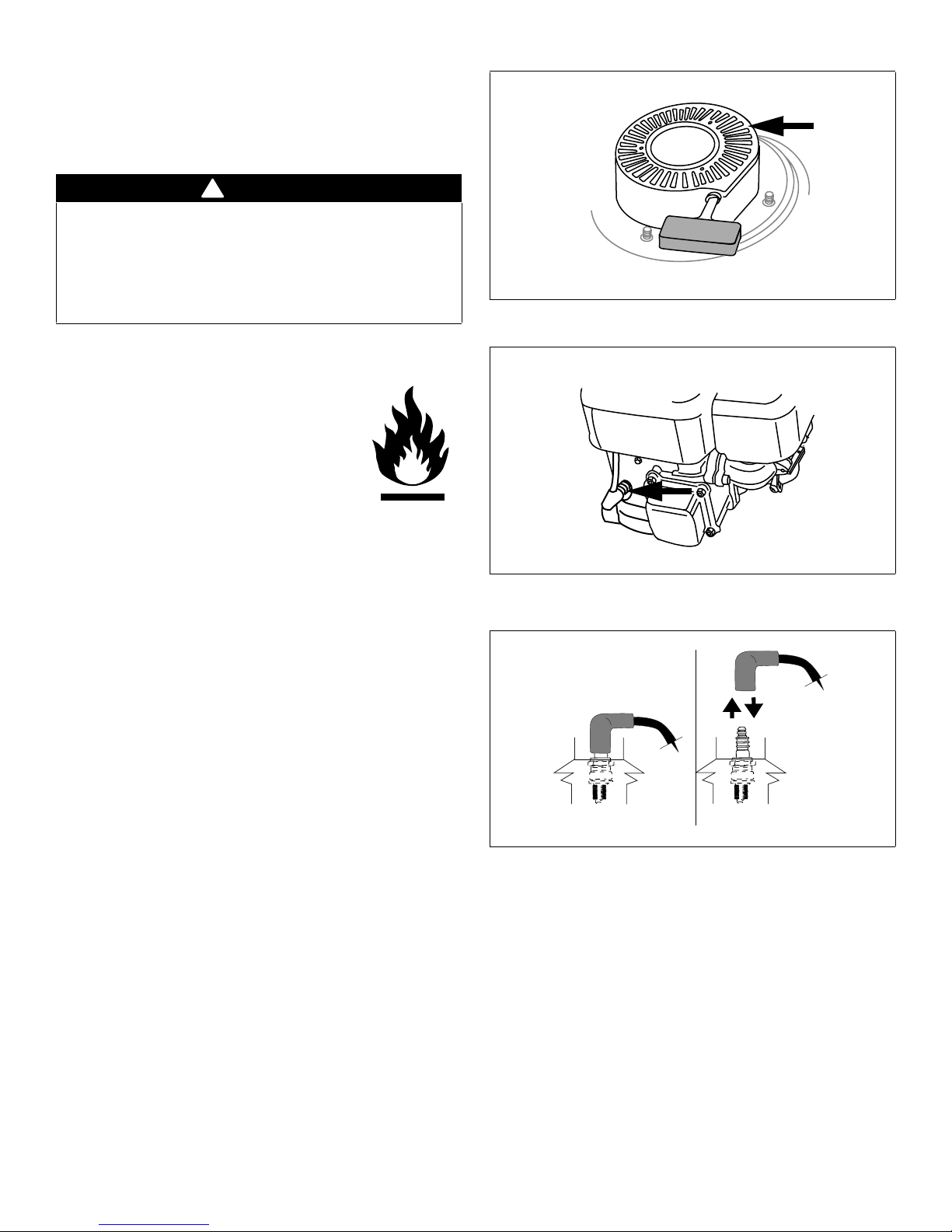

Figure 1. Typical Flywheel Guard Location

Figure 2. Typical Spark Plug Connection

G. Avoid Accidental Starts

To prevent accidental starting when working on equipment always:

• Carefully disconnect spark plug wire and keep it away from spark plug. See Figures 2 and 3.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Carefully attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

• Remove ignition key, if provided.

H. Use Hearing Protection

Engine noise may cause hearing damage. Always wear hearing protection when operating an engine.

Figure 3. Disconnecting/Connecting Spar k Plug

Page 2 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

II. How to Get Service

For engine adjustments, repairs or warranty service NOT covered in this manual, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower.com or call TecumsehPower Company at 1-800-558-5402 for additional information.

Visit our web site at www.TecumsehPower.com

Register Your TecumsehPower Engine Maintenance Tips On-Line Store Locate your nearest TecumsehPower Servicing Dealer

LOG ON!

A. Engine Identification Decal

A sample engine identification decal is located in the next column and indicates the engine’s model number, specification and date of manufacture (DOM). See Figure 4.

NOTES

Please look at the decal on your engine. Fill in the engine information in the spaces provided for

future reference.

The engine identification decal also includes engine life specifications for the emissions-related useful life period of your engine. This period relates to the emission compliance life as certified by EPA and/or CARB.

• OV models are designated as “C” 250 hours, “B” 500 hours and “A” 1000 hours.

TECUMSEHPOWER COMPANY

THIS ENGINE MEETS 1995-2005 CALIF & US EPA PHI APPLICABLE EMISSION REGULATIONS FOR SI SORE ENGINES

LV195EA

361540D

4TPXS.1951BB 195

ENGINE MODEL:

SPEC: DOM:

Figure 4. Engine Identificati on D ec a l

2083

EM

04015AA0001

B. Technician’s Handbook

If you have a general understanding of internal combustion engines and wish to repair and service your engine and/or engine emission control systems yourself, a Technician’s Handbook is available from your Authorized TecumsehPower Servicing Dealer. See Figure 5. This handbook covers repairs and adjustments not covered within this Operator’s Manual, and it is intended for individuals who have had adequate training, experience and who practice proper tool usage. Service procedures should be clearly understood and practiced when servicing TecumsehPower engines.

• Order as part #695244A or #740043 for OV mode ls.

TecumsehPower Company manufactures and is responsible only for the engine used on this power equipment. If repair or service is needed for anything other than the engine, contact the service source recommended by the equipment manufacturer.

Figure 5. Technician’s Handbook

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 3

III. Oil and Fuel Specifications

32 F

O

A. Oil

To operate engine you need to use a clean, high quality, detergent oil. For recommended engine oil, see Table 1. In addition, you need to be sure the oil sump contains the correct amount of oil to operate properly.

NOTES The oil sump capacity (including oil filter) is 39 ounces or 2 1/2 U.S. Pints (1.15 liters).

The oil sump capacity (without oil filter) is 32 ounces or 2 U.S. Pints (.94 liters).

Be sure original container is marked A.P.I. Service “SL/SJ”. Using multigrade oil above 32°F (0°C) will increase oil

consumption. SAE 10W40 is NOT recommended. Special-formulated oils are available at your Authorize d

TecumsehPower Servicing Dealer.

B. Fuel

Use unleaded regular, unleaded premium or reformulated automotive fuel only. You may use gasoline containing the components identified in Table 2.

• DO NOT use leaded fuel.

• Fuel must be fresh and clean. NEVER use fuel left over from last season or stored for long periods.

• NEVER mix oil with fuel.

• DO NOT use fuel containing Methanol (Wood Alcohol).

CAUTION

TecumsehPower engines. Alternative fuels with high alcohol content can cause hard starting, poor engine performance, and may cause internal engine damage.

Damage and/or performance problems that occur fro m use of fuels other than those listed in the Operator’s Manuals will not be considered warranty.

The use of alternative fuels such as E85 or E20 are NOT recommended for use in

NOTE

Table 1. Recommended Oil

TecumsehPower Recommended Oil Usage

Straight Grade

TecumsehPower Part No.

730225A or SAE 30W

Multi Grade

TecumsehPower Part No.

730226A or SAE 5W30 or SAE 10W

TecumsehPower

Synthetic Part No.

-30 C

730263 or SAE 0W30

O

0F

-20 F

O

-20 C

-10 C

O

20 F

O

32 FO32 F

0C

O

10 C

O

20 C

O

80 F

O

30 C

60 F

O

40 F

Table 2. Recommended Fuel

Fuel Component Percentage

Ethanol 10% Grain Alcohol (“Gasohol”) 10% MTBE (Methyl Tertiary Butyl Ether) 15% ETBE (Ethyl Tertiary Butyl Ether) 15%

FULL

Fill Between “FULL” and “ADD” Marks

OK

ADD

100 F

O

40 C

O

IV. Before Starting Your Engine

A. Checking Oil Level

To avoid engine damage, it is important to:

• Check oil level before each use and every 5 operating hours when engine is warm. Check oil level more frequently during engine break-in.

• Keep oil level between “FULL” and “ADD” marks on dipstick. See Figure 6.

• Be sure oil fill cap/plug is tightened securely.

Page 4 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

Figure 6. Engine Oil Level

NOTES DO NOT overfill oil filler. Doing so may result in oil carry-over to the air cleaner and equipment and cause malfunction or damage.

DO NOT allow oil level to fall below the “ADD” mark on dipstick. Doing so may result in equipment malfunction or damage.

Contact your Authorized TecumsehPower Servicing Dealer for Tecu ms eh Po we r Oil.

B. Filling Oil Sump

1. Be sure engine is upright and level.

2. Unscrew oil fill cap from oil filler tube and wipe dipstick clean. See Figure 7.

3. Screw oil fill cap back into oil filler tube. Tighten securely.

4. Unscrew and remove oil fill cap from oil filler tube. Note oil level. If oil reading on dipstick is below “ADD” mark, slowly add oil to reach “FULL” level. See Figure 6 on on page 4. Afterward, continue reading instructions below.

5. Screw oil fill cap back into oil filler tube. Tighten securely.

6. Wipe away any spilled oil.

C. Filling Fuel Tank

WARNING

!

WARNING

engine. Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

1. Stop engine and allow it to cool before refueling.

2. Be sure engine is outdoors and in a well-ventilated area.

3. Clean area around fuel fill cap and remove fuel fill cap.

An adult should fuel this engine. NEVER allow children to refuel this

45

1

2

3

1. Spark Plug

2. Spark Plug Cap

3. Spark Plug Wire

4. Oil Fill Plug and Dipstick

5. Air Intake Screen

6. Air Filter

7. Oil Filter (Optional)

8. Carburetor

6

78

NOTE For recommended fuel, see Table 2 and “III. Oil and Fuel Specifications” instructions on page 4. Afterward, continue reading instructions below.

4. Using an approved red GASOLINE container, add fuel

slowly, being careful to avoid spilling. DO NOT overfill fuel tank. Leave space in the tank to allow fuel to expand without overflowing.

5. Replace fuel fill cap securely and wipe up spilled fuel

before starting engine. If fuel is spilled DO NOT start engine. Move machine away from area of spillage. Avoid creating any source of ignition until fuel vapors are gone.

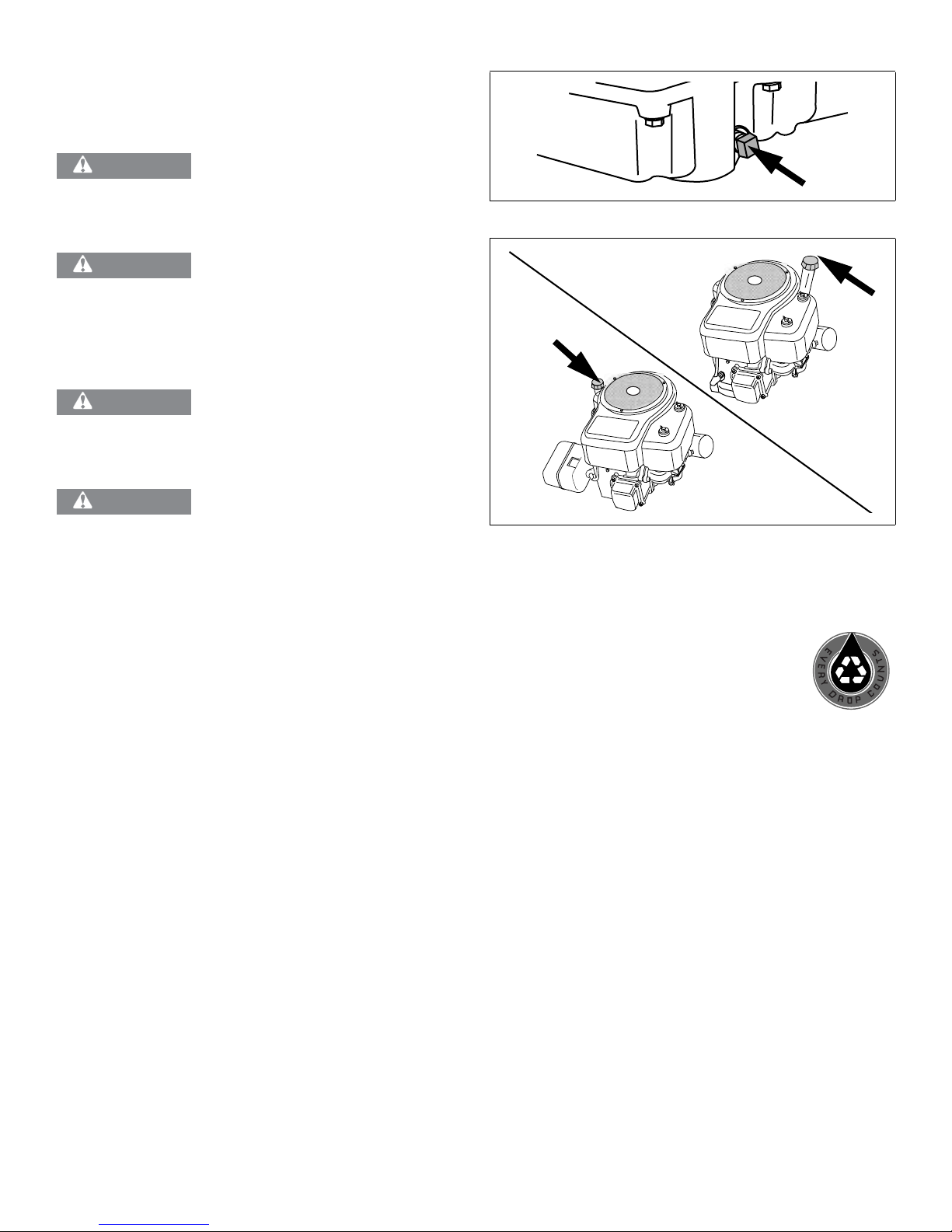

Figure 7. Engine with Oil Fill Dipstick

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 5

V. Starting Your Engine

WARNING

!

WARNING

allow children to start engine if an adult has determined they are experienced and capable of such operation.

WARNING

!

WARNING

manual, contact your Authorized TecumsehPower Servicing Dealer. To avoid serious burn injuries or da mage to your engine, DO NOT attempt to start or troubleshoot this engine in any other way. For example:

• DO NOT use starting fluid.

• DO NOT spray flammable vapors into carburetor or onto air cleaner.

• DO NOT put flammable liquids into carburetor or onto air cleaner.

• DO NOT operate engine or pull on starter rope with spark plug removed. Fuel can spray from spark plug hole and ignite.

This section contains starting instructions for several different types of engines. In order to locate the instructio ns that apply to your engine, first determine what type of starter you have. If you have an electric starter, see "A. Engines with Electric Starters" instructions. If you have a manual recoil starter, see "B. Engines with Recoil Starters" instructions on page 8.

To avoid serious injury or death, an adult should start this engine. Only

If you are unable to start this engine after following instructions in this

A. Engines with Electric Starters

Only one of the following two sections will apply to your engine. See Table 3.

Table 3. Engines with Electric Starters

If your engine has: Go to:

Combined Speed and Choke Control

Independent Speed and Choke Controls

I. Combined Speed and Choke Control

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

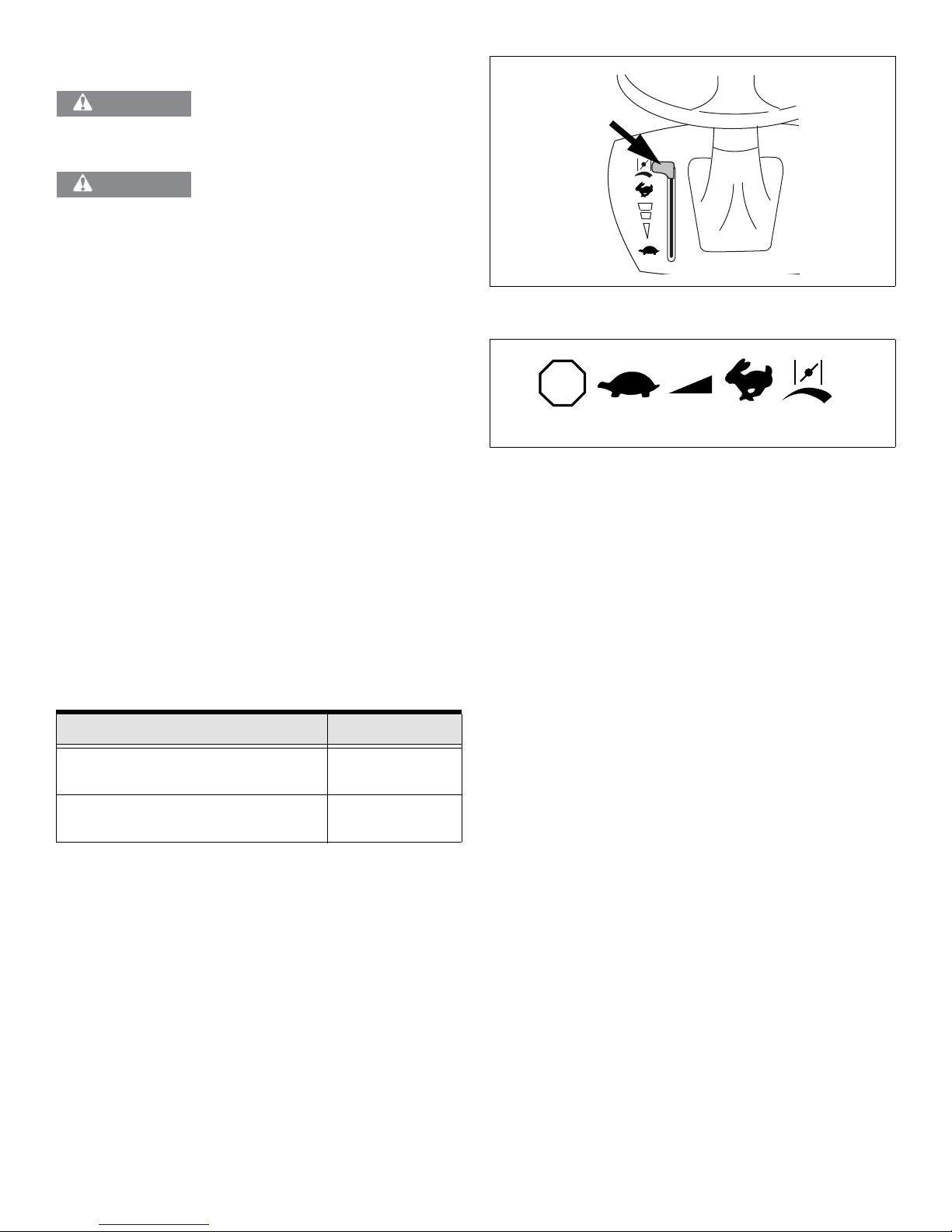

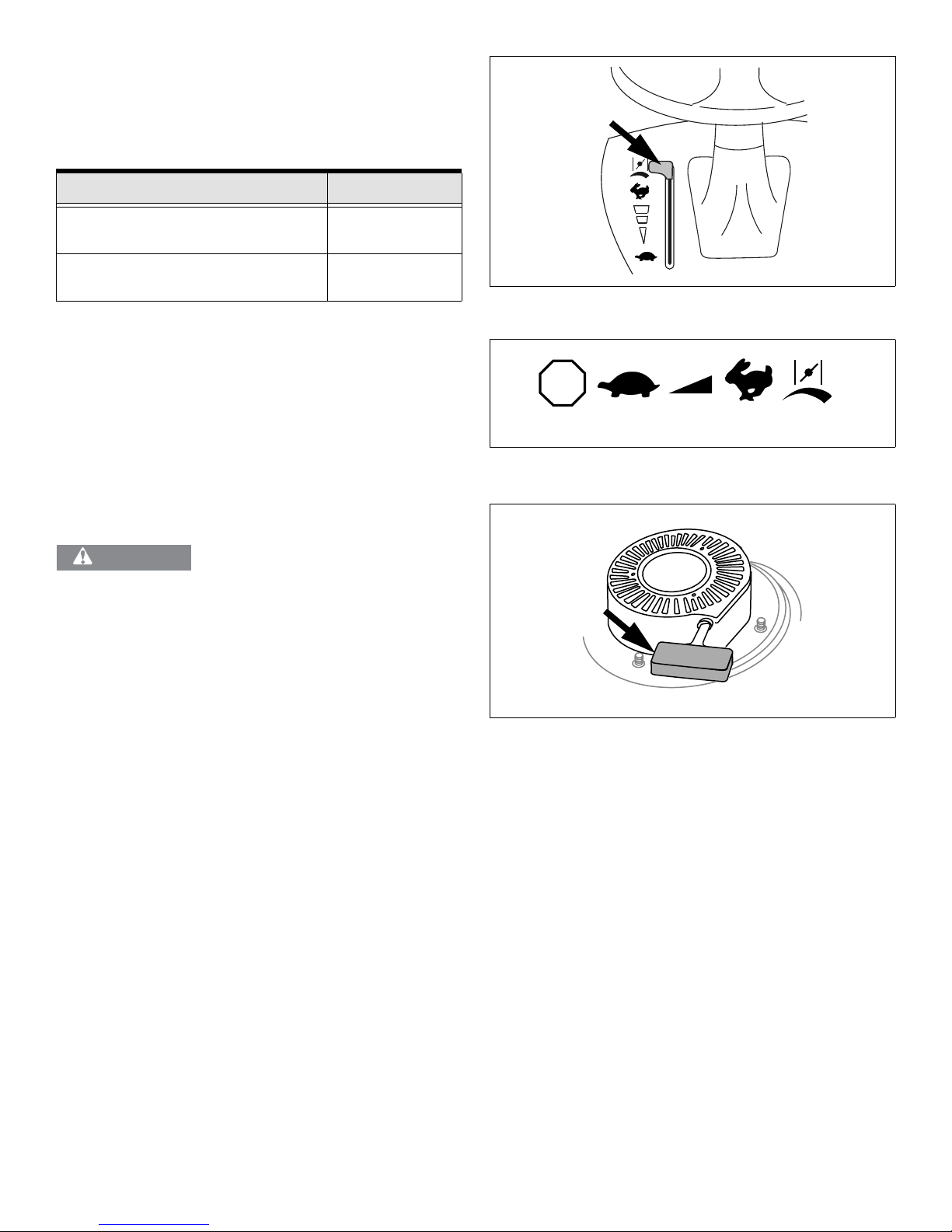

2. Move combined control to “CHOKE” or “START” position (see equipment manufacturer’s instructions). See Figures 8 and 9.

NOTE If restarting a warm engine after a short shutdown, move combined control to “FAST” position instead of “CHOKE” or “START” position. See Figures 8 and 9.

3. Push starter button or turn ignition switch key (see

equipment manufacturer’s instructions) to start engine.

Section A.I

Section A.II

Figure 8. Combined Speed and Choke Control

STOP

STOP SLOW RUN FAST CHOKE

Figure 9. Typical Engine Symbols

NOTES DO NOT operate an electric starter for more than 5 seconds each attempt

If engine fails to start after 3 attempts repeat steps 2 thru 3.

4. When engine starts:

a. Release starter button or ignition switch key. b. Next, move combined control to “FAST” position. c. Finally, move combined control to desired speed in

“RUN” range.

NOTES If engine starts, but falters when combined contr ol is moved to “FAST” position:

a. Momentarily move combined control back to

“CHOKE” position. b. Next, move combined control to “FAST” position. c. Finally, move combined control to desired speed in

“RUN” range.

If engine dies after combined control is moved to “FAST” position, repeat steps 2 thru 4 to restart engine.

5. If engine fires but does NOT continue to run, move combined control to “FAST” position and then start engine.

6. If engine fails to start after 3 attempts with combined control in “FAST” position, move combined control to “CHOKE” position and push button or turn key to start engine again.

7. If engine does NOT start after following steps 1 thru 6, contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

Page 6 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

II. Independent Speed and Choke Controls

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

2. Move independent speed control to “FAST” position and set independent choke control to “FULL CHOKE” position (see equipment manufacturer’s instructions). See Figures 9 thru 11.

NOTES Generator and Water Pump applications may have the choke lever mounted on the engine. See Figure 12.

If restarting a warm engine after a short shutdown, move independent speed control to “FAST” position and move independent choke control to “NO CHOKE” position.

3. Push starter button or turn ignition switch key (see

equipment manufacturer’s instructions) to start engine.

NOTES DO NOT operate an electric starter for more than 5 seconds each attempt.

If engine fails to start after 3 attempts repeat steps 2 thru 3.

4. When engine starts:

a. Release starter button or ignition switch key. b. Next, move independent choke control to “1/2

CHOKE” position until engine runs smoothly.

c. Next, move independent choke control to “NO

CHOKE” position.

5. Finally, move independent speed control to desired

speed in “RUN” range.

Choke Control

Speed Control

Figure 10. Independent Speed and Choke Controls

12 3

1. “NO CHOKE” Position

2. “1/2 CHOKE” Position

3. “FULL CHOKE” Position

Figure 11. Choke Control Positions

NOTES If engine starts, but falters when indepe ndent choke control is moved to “NO CHOKE” position:

a. Momentarily move independent choke control back

to “FULL CHOKE” position.

b. Next, move independent choke control to

“1/2 CHOKE” position until engine runs smoothly.

c. Finally, move independent choke control to “NO

CHOKE” position.

If engine dies after independent choke control is moved to “NO CHOKE” position, repeat steps 2 thru 5 to restart engine.

6. If engine fires but does NOT continue to run, move

independent choke control to “NO CHOKE” position and start engine.

7. If engine fails to start after 3 attempts in the “NO

CHOKE” position, move independent choke control to “FULL CHOKE” position and start engine.

8. If engine does NOT start after following steps 1 thru 7,

contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way

12 3

1. “NO CHOKE” Position

2. “1/2 CHOKE” Position

3. “FULL CHOKE” Position

Figure 12. Engine Mounted Choke Lever

.

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 7

B. Engines with Recoil Starters

If you have an electric starter, see "A. Engines with Electric Starters" instructions on page 6. Only one of the following

two sections will apply to your engine. See Table 4.

Table 4. Engines with Recoil Starters

If your engine has: Go to:

Combined

Section B.I

Speed and Choke Control Independent

Section B.II

Speed and Choke Controls

I. Combined Speed and Choke Control

1. T o avoid carbon monoxid e poisoning, be sure e ngine is

outdoors in a well-ventilated area.

2. Move combined control to “CHOKE” or “START”

position, if present (see equipment manufacturer’s instructions). See Figures 13 and 14.

NOTE If restarting a warm engine after a short shutdown, move combined control to “FAST” position instead of “CHOKE” or “START” position. See Figures 13 and 14.

WARNING

!

WARNING

engine causing serious injury. To avoid this risk, carefully follow these instructions:

3. Grasp starter cord hand l e. Se e Fig ur e 15.

a. Pull rope out slowly until you feel drag. b. Without allowing the rope to retract, continue

pulling rope with one rapid full arm stroke.

c. Return rope slowly to original position.

Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

If engine fails to start after 3 pulls repeat steps 2 thru 3.

4. When engine starts:

a. Move combined control to “FAST” position. b. Next, move combined control to desired speed in

“RUN” range.

If engine starts, but falters when combined control is moved to “FAST” position:

When pulling starter rope, the rope can unexpectedly jerk back toward

NOTES

Figure 13. Combined Speed and Choke Control

STOP

STOP SLOW RUN FAST CHOKE

Figure 14. Ty pical Engine Symbols

Figure 15. Recoil Starter

5. If engine fires but does NOT continue to run, move combined control to “FAST” position and pull the starter rope.

6. If engine fails to start after 3 attempts with combined control in the “FAST” position, move combined control to “FULL CHOKE” position and pull the starter rope again.

7. If engine does NOT start after following steps 1 thru 6, contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

a. Momentarily move combined control back to

“CHOKE” position. b. Next, move combined control to “FAST” position. c. Finally, move combined control to desired speed in

“RUN” range.

If engine dies after combined control is moved to “FAST” position, repeat steps 2 thru 4 to restart engine.

Page 8 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

II. Independent Speed and Choke Controls

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

2. Move independent speed control to “FAST” position and set independent choke control to “FULL CHOKE” position (see equipment manufacturer’s instructions). See Figures 14, 16, and 17.

NOTES Generator and Water Pump applications may have the independent choke lever mounted on the engine. See Figure 18.

Choke Control

Speed Control

If restarting a warm engine after a short shutdown, move independent speed control to “FAST” position and move independent choke control to “NO CHOKE” position.

WARNING

!

WARNING

When pulling starter rope, the rope

can unexpectedly jerk back toward engine causing serious injury. To avoid this risk, carefully follow these instructions:

3. Grasp starter cord hand l e. Se e Fig ur e 15.

a. Pull rope out slowly until you feel drag. b. Without allowing the rope to retract, continue

pulling rope with one rapid full arm stroke.

c. Return rope slowly to original position.

NOTES Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

If engine fails to start after 3 pulls repeat steps 2 thru 3.

4. When engine starts:

a. Move independent choke control to “1/2 CHOKE”

position until engine runs smoothly.

b. Next, move independent choke control to

“NO CHOKE” position.

5. Move independent speed control to desired speed in

“RUN” range.

NOTES If engine starts but falters when independent choke control is moved to “NO CHOKE” position:

a. Momentarily move independent choke control back

to “FULL CHOKE” position.

b. Next, move independent choke control to

“1/2 CHOKE” position until engine runs smoothly.

c. Finally, move independent choke control to

“NO CHOKE” position.

If engine dies after independent choke control is moved to “NO CHOKE” position repeat steps 2 thru 5 to restart engine.

6. If engine fires but does NOT continue to run, move

independent choke control to “NO CHOKE” position and pull starter rope again.

7. If engine fails to start after 3 attempts in the “NO

CHOKE” position, move independent choke control to “FULL CHOKE” position and pull starter rope again.

Figure 16. Independent Speed and Choke Controls

12 3

1. “NO CHOKE” Position

2. “1/2 CHOKE” Position

3. “FULL CHOKE” Position

Figure 17. Choke Control Positions

12 3

1. “NO CHOKE” Position

2. “1/2 CHOKE” Position

3. “FULL CHOKE” Position

Figure 18. Engine Mounted Choke Lever

8. If engine does NOT start after following steps 1 thru 7, contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 9

VI. Stopping Your Engine and

Short-Term Storage

Stop engine according to equipment manufacturer’s instructions.

WARNING

!

WARNING

leave it unattended when it is running. Always turn off the engine after use and remove ignition key, if provided. Failure to do so may lead to serious injury or death.

WARNING

!

WARNING

potential sources of ignition such as hot water or space heaters, clothes dryers, electric motors, etc. Doing so may lead to an explosion resulting in death or serious injury.

To avoid unsupervised operation of an engine, especially by children, NEVER

NEVER store engine with fuel in the fuel tank inside a building with

VII. Maintenance

Figure 19. Oil Drain Plug Location

WARNING

!

WARNING

this engine. Only allow children to perform maintenance if an adult has determined they are experienced and capable of such operation.

WARNING

!

WARNING

• Carefully disconnect spark plug wire and keep it away from spark plug.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Carefully attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

• Remove ignition key, if provided.

To avoid serious injury or death, an adult should perform maintenance on

To prevent accidental starting whe n working on equipment, always:

A. Checking and Changing Oil

To avoid engine damage, it is important to:

• Check oil level before each use and every 5 operating hours when engine is warm. See "A. Checking Oil Level" instructions on page 4. Afterward, continue reading instructions below.

• Change oil after first 2 operating hours and ever y 50 operating hours thereafter; more of ten if operated in extremely dusty or dirty conditions. Engine should still be warm but NOT hot from recent use.

1. Be sure you find the correct drain plug location, if present (see equipment manufacturer’s instructions). See Figure 19.

2. Carefully disconnect spark plug wire and keep it away from spark plug. See "G. Avoid Accidental Starts" instructions on page 2. Afterward, continue reading instructions below.

3. Be sure the fuel fill cap is on and is tightened securely.

4. Clean area around oil drain plug.

Figure 20. Oil Filler Locations

5. Place approved recyclable oil container under oil drain plug (see equipment manufacturer’s instructions).

NOTE Used oil must be disposed of at a proper collection center.

6. Remove oil drain plug and drain oil into

an approved container. See Figure 19.

7. Install oil drain plug and tighten securely.

8. Fill with recommended oil. See "III. Oil and Fuel

Specifications" instructions and Table 1 on page 4. See Figure 20. Afterward, continue reading instructions below.

9. Wipe away any spilled oil.

10. Carefully disconnect spark plug wire from grounding

post, if provided.

11. Connect spark plug wire to spark plug before attempt-

ing to start engine.

NOTES The oil filter if so equipped, should be changed every 100 operating hours or at least once a year.

The filter should be changed more often if the eng ine is operated in extremely dusty or dirty conditions.

Changing the oil filter requires that additional oil be added to fill the filter.

Contact your Authorized TecumsehPower Servicing Dealer for a genuine replacement Oil Filter.

Page 10 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

B. Removing Debris from Engine

Before each use, remove the air cleaner cover. Remove grass clippings, dirt and debris from the following areas:

• Levers and Linkage

• Cooling Fins

• Air Intake Screen

• Air Inlet

• Guards

Removing debris will insure adequate cooling, correct engine speed and reduce the risk of fire. See Figure 21.

NOTES Before removing air cleaner cover, see "III. Filter Removal/ Installation" instructions on page 12. Special care should be taken to prevent damage when removing air cle aner cover. See Figure 21. Afterward, continue reading instructions below.

DO NOT bend levers and linkage with fingers. See Figure 22.

1. Remove air cleaner cover and filters. See Figure 21

2. Remove debris from air inlet, air cleaner cover and air

intake screen.

3. Inspect filter(s) for discoloration or dirt accumulation. If

either is present, see "I. Servicing Foam Pre-Filter" and/or "II. Servicing Paper Filters" instructions on page

12. Afterward, continue reading instructions below.

4. Replace air cleaner cover and filters.

5

4

3

21

1. Cooling Fins

2. Levers and Linkage

3. Air Inlet

4. Air Cleaner Cover

5. Air Intake Screen

Figure 21. Debris Locations

C. Spark Plug

Check spark plug yearly or every 100 operating hour s.

1. Clean area around spark plug.

2. Remove and inspect spark plug.

3. Replace spark plug if porcelain is cracked or if

electrodes are:

•Pitted

• Burned

• Fouled with Deposits

4. Check electrode gap with wire feeler gauge and set

gap to—.030 in. (0.76 mm) if necessary. See Figure 23.

5. Install spark plug and tighten securely.

NOTE A resistor spark plug must be used for replacement. Co ntact your Authorized TecumsehPower Servicing Dealer for a genuine replacement Resistor Spark Plug.

Figure 22. Linkage and Lever Bending

23

1

1. .030 in. (0.76 mm) Gap

2. Electrodes

3. Porcelain

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 11

Figure 23. Spark Plug

D. Cleaning/Replacing Air Cleaner

WARNING

Your engine has an air cleaner which helps prevent premature engine wear and failure. NEVER run engine without complete air cleaner installed on engine. Your air cleaner periodically needs to be cleaned or replaced.

6

NOTES ALWAYS inspect filter(s) for discoloration or dirt accumulation. If either is present, see "I. Servicing Foam Pre-Filter" and/or "II. Servicing Paper Filters" instructions.

Contact your Authorized TecumsehPower Servicing Dealer for a genuine replacement Air Cleaner.

I. Servicing Foam Pre-Filter

Clean foam pre-filter every 3 months or every 25 operating hours. Clean daily if used in extremely dusty conditions. After removing the pre-filter, follow these cleaning instructions below:

1. Wash in warm water and detergent solution then press

(DO NOT twist) until all dirt is removed.

2. Rinse thoroughly until water is clear.

3. Wrap in a clean cloth and press (DO NOT twist) until

completely dry.

NOTE

DO NOT oil foam pre-filter.

4. Replace foam pre-filter onto paper filter.

II. Servicing Paper Filters

Paper filters cannot be cleaned and must be replaced once a year or every 100 operating hours; more often if used in extremely dusty conditions. Replacement filters are available at an Authorized TecumsehPower Servicing Dealer.

NOTE

DO NOT put oil on or clean a paper filter.

III. Filter Removal/Installation

1. Remove wing nuts from air cleaner cover. See Figure 24.

2. Remove air cleaner cover while lifting upward then

outward.

3. Remove fasteners.

4. Remove and inspect filter(s) for discoloration or dirt

accumulation. If either is present, see "I. Servicing Foam Pre-Filter" and/or "II. Servicing Paper Filters" instructions.

5. Clean inside of cover and body thoroughly.

6. Install paper filter (see equipment manufacturer’s

instructions).

7. Install fasteners.

8. Install foam pre-filter (see equipment manufacturer’s

instructions).

9. Install cover by pushing down onto body securely.

10. Install wing s nuts and tighten securely.

5

4

3

2

1

1. Body

2. Paper Filter

3. Fasteners

4. Foam Pre-Filter

5. Air Cleaner Cover

6. Wing Nuts

Figure 24. Air Cleaner Components

E. Carburetor

If you think your carburetor needs adjusting, see your nearest Authorized TecumsehPower Servicing Dealer. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). For operation at higher elevations, contact an Authorized TecumsehPower Servicing Dealer.

F. Engine Speed

!

WARNING

Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

Running the engine faster than the speed set at the factory can be dangerous and will

To avoid serious injury or death, DO NOT modify engine in any way.

VOID THE ENGINE WARRANTY.

G. Adjustments

DO NOT make any engine adjustments. Factory settings are satisfactory for most conditions. If adjustments are needed, contact your Authorized TecumsehPower Servicing Dealer.

Page 12 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

VIII. Transporting Your Engine

WARNING

IX. Storing Your Engine

WARNING

!

WARNING

space if there is any gasoline in the tank. Fuel vapor or spilled fuel may ignite leading to serious injury or death.

If there is fuel in the fuel tank, close the fuel shut-off valve, if equipped, and transport the engine upright in an open vehicle, such as an open trailer or open bed of a pickup truck.

If you DO NOT have an open vehicle and have to transport the engine upright in a closed vehicle, follow these steps for emptying the fuel tank before transporting:

1. Empty fuel tank by using a commercially available

suction device designed for use with gasoline.

WARNING

!

WARNING

fuel by mouth.

2. Drain fuel into an approved red GASOLINE container,

being careful to avoid spilling.

3. Run the engine until remaining fuel is consumed.

WARNING

!

WARNING

engine in enclosed areas to avoid death or serious injury.

NEVER transport this engine inside another vehicle or in any enclosed

To avoid serious injury or death, DO NOT pour fuel from engine or siphon

NEVER leave the engine unattended when it is running and NEVER run

A. Short-Term/Seasonal Storage

I. Clean Engine

Before servicing the engine remove the air cleaner cover and/or blower housing. Remove grass clippings, dirt and debris from the following areas:

• Cooling Fins

• Air Intake Screen

• Levers

• Linkage

•Guards

• Carburetor

•Head

Removing debris will insure adequate cooling, correct engine speed and reduce the risk of fire.

II. Fuel Storage

!

WARNING

potential sources of ignition such as hot water or space heaters, clothes dryers, electric motors, etc. Doing so may lead to an explosion resulting in death or serious injury.

NEVER store engine with fuel in the fuel tank inside a building with

NOTES If engine fuel stored in the gas tank and/or an approved gas container is to be unused without gasoline stabilizer for more than 15-30 days, prepare it for short-term/seasonal storage. See "IV. Fuel Treatment" instructions on page 14. Afterward, continue reading instructions below.

If engine fuel is to be stored for more than one season, without gasoline stabilizer, it will gradually deteriorate. Also, if it is stored in the engine’s gas tank without gasoline stabilizer it is likely that your carburetor will have gum deposits, a clogged fuel system and WILL VOID YOUR WARRANTY. Prepare the fuel for extended storage. See "B. Extended Storage" instructions on page 14.

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 13

III. Fuel System

WARNING

To avoid stale gas and carburetor problems, treat the fuel system in the following method below:

B. Extended Storage

I. Draining Fuel

NOTES TecumsehPower Company recommends using ULTRA-FRESH™ Gasoline Stabilizer as an acceptable method of minimizing formation of fuel gum deposits during storage. This product is available from your Authorized TecumsehPower Servicing Dealer.

Always follow mix ratio found on stabilizer container. Failure to do so may result in equipment damage.

It is NOT necessary to drain stabilized gas from carburetor.

IV. Fuel Treatment

1. Add fuel stabilizer according to manufacturer’s

instructions.

2. Run engine at least 10 minutes after adding stabilizer

to allow it to reach carburetor.

WARNING

!

WARNING

potential sources of ignition such as hot water or space heaters, clothes dryers, electric motors, etc. Doing so may lead to an explosion resulting in death or serious injury.

Instead of using a fuel preservative/stabilizer, you can empty the fuel tank as described under "I. Draining Fuel" instructions.

NEVER store engine with fuel in the fuel tank inside a building with

NOTE

NOTES Clean debris from engine before draining fuel from carburetor. See "I. Clean Engine" instructions on page 13. Afterward, continue reading instructions below.

If you have prepared your fuel for short-term storage it is NOT necessary to drain fuel that contains stabilizer from your carburetor. See "A. Short-Term/Seasonal Storage" instructions on page 13. Afterward, continue reading instructions below.

!

WARNING

siphon fuel by mouth.

1. To prevent serious injury from fuel fires, empty fuel tank

by running engine until it stops from lack of fuel. DO NOT attempt to pour fuel from engine.

2. Run the engine while waiting until the remaining fuel is

consumed.

!

WARNING

engine in enclosed areas to avoid death or serious injury.

3. Begin servicing th e cylinder bore. See "II. Oil Cylinder

Bore" instructions on page 15.

If you operate the engine during all four seasons, it is NOT necessary to lubricate the cylinder bore.

To avoid severe injury or death, DO NOT pour fuel from engine or

NEVER leave the engine unattended when it is running and NEVER run

NOTE

Page 14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

II. Oil Cylinder Bore

CAUTION

prevent serious injury from fuel fires, follow these instructions:

1. Carefully disconnect spark plug wire and keep it away from spark plug. See Figures 25 and 26.

• Keep the disconnected spark plug wire

• Carefully attach the spark plug wire to the

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

• Remove ignition key, if provided.

2. Remove spark plug.

3. Squirt 1oz. (30 ml) of clean engine oil into spark plug hole.

4. Cover spark plug hole with rag to prevent fuel from spraying from spark plug hole when starter rope is pulled.

For engines equipped with recoil starters pro ceed to S tep 5. For engines equipped with electric starters proceed to Step 6.

5. Grasp starter cord han d le: a. Pu ll starter cord hand l e ou t slow ly usin g a full ar m

stroke.

b. Repeat once. (This will distribute oil throughout the

cylinder to prevent corrosion during storage.)

6. Remove rag covering spark plug hole.

7. Install spark plug.

8. Carefully disconnect spark plug wire from grounding post, if provided.

9. Connect spark plug wire to spark plug before attempting to start engine.

When lubricating cylinder bore, fuel may spray from spark plug hole. To

securely away from metal par ts where arcing could occur.

grounding post, if provided.

NOTES

III. Oil

Change oil if NOT changed within the last 3 months. See "A. Checking and Changing Oil" instructions on page 10.

Figure 25. Typical Spark Plug Connection

Figure 26. Disconnecting/Connecting Spark Plug

X. Preventing Forest, Brush and

Grass Fires

Local, state and federal laws may require use of a spark arrester to prevent fires. For example, it is a violation of California Public Resources Code (section 4442) to use or operate engine on any forest-covered, brush-covered or unimproved grass-covered land unless engine is equipped with a spark arrester. Spark arrester must be maintained in effective working order by owner and/or operator.

To determine if your engine has a spark arre ster, locate the muffler on your engine. For example, the muffler discharge will have a spark arrester cover that reads “Screen Type 36085”.

If your engine does NOT have a spark arrester, you may purchase one from your Authorized TecumsehPower Servicing Dealer. In some cases the muffler may need to be replaced to allow the spark arrester to be installed.

IV. Battery

See equipment manufacturer’s instructions for proper battery storage, if machine is equipped with a battery.

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 15

XI. Maintenance Intervals

Maintenance is one of the most important thing s tha t you can do to extend the life of your TecumsehPower engine. If you are unable to perform maintenance intervals yourself, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower.com or call TecumsehPower Company at 1-800-558-5402 for additional information.

ALWAYS promptly follow maintenance intervals listed in this manual. See Table 5.

Table 5. Maintenance Intervals

Procedure Time

Change Oil

Check Oil Level

Clean Cooling Fins

After First 2 Hours

When Engine is Warm

Every 5 Hours

Before Each Use

Every 5 Hours

Before Each Use

or

Clean Foam Pre-Filter

Change Oil

Replace Paper and Oil Filter

Check Spark Plug

Replace Spark Plug

Scheduled Maintenance After First 2 Hours When Engine is Warm

1. Change Oil

Date_______________Owner/Dealer

Every 25 Hours

or

3 Months

Every 50 Hours

or

3 Months

Every 100 Hours

or

Seasonally

Every 100 Hours

or

Seasonally

Every 200 Hours

or

Seasonally

Page 16 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

Every 5 Hours or Before Each Use

1. Check Oil Level

2. Clean Cooling Fins

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Every 25 Hours or 3 Months

1. Clean Foam Pre-Filter

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 17

Every 50 Hours or 3 Months

1. Change Oil

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Every 100 Hours or Seasonally

1. Replace Paper Filter

2. Replace Oil Filter

3. Check Spark Plug

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Every 200 Hours or Seasonally

1. Replace Spark Plug

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Page 18 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

NOTES

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 19

CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT

The U. S. Environmental Protection Agency (“EPA”), the California Air Resources Board (“CARB”) and TecumsehPower Company are pleased to explain the Federal and California Emission Control Systems Warranty on your new small off-road engine. In California, new 1995 and later small off-road engines must be designed, built and equipped to meet the State’s stringent anti-smog standards. In other states, new 1997 and later model year engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-road engines. TecumsehPower Company will warrant the emission control system on your small off-road engine for the periods of time listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor, air cleaner assembly, ignition system, exhaust system, crankcase breather assembly and, the evaporative control system. Also included may be the compression release system and other emission-related assemblies.

Where a warrantable condition exists, TecumsehPower Company will repair your small off-road engine at no cost to you for diagnosis, parts and labor.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE

Emission control systems on 1995 and later model year California small off-road engines are warranted for two years as hereinafter noted. In other states, 1997 and later model year engines are also warranted for two years. If, during such warranty period, any emission-related part on your engine is defective in materials or workmanship, the part will be repaired or replaced by TecumsehPower Company.

(any TecumsehPower Registered Service Dealer, TecumsehPower Authorized Service Distributor or TecumsehPower Central Warehouse Distributor) as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either an Authorized TecumsehPower Servicing Dealer and/or TecumsehPower Company, c/o Service Manager, 900 North Street, Grafton, WI 53024-1499. Telephone 1-262377-2700 [or in USA/Canada call 1-800-558-5402].

IMPORTANT NOTE

This warranty statement explains your rights and obligations under the Emission Control System Warranty (“ECS Warranty”) which is provided to you by TecumsehPower Company pursuant to California law. TecumsehPower Company also provides to original purchasers of new TecumsehPower engines the TecumsehPower Company Limited Warranties for New TecumsehPower Engines and Electronic Ignition Modules. The TecumsehPower Company Limited Warranties for New TecumsehPower Engines and Electronic Ignition Modules (“TecumsehPower Company Warranty”) are located on the back cover of the Operator’s Manual, enclosed with all new TecumsehPower engines. The ECS Warranty applies only to the emission control system of your new engine. To the extent that there is any conflict in terms between the ECS Warranty and the TecumsehPower Company Warranty, the ECS Warranty shall apply except in any circumstances in which the TecumsehPower Company Warranty may provide a longer warranty period. Both the ECS Warranty and the TecumsehPower Company Warranty describe important rights and obligations with respect to your new engine.

OWNER’S WARRANTY RESPONSIBILITIES

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operator’s Manual, but TecumsehPower Company will not deny warranty solely due to the lack of receipts or for your failure to provide written evidence of the performance of all scheduled maintenance.

As the small off-road engine owner , you should, however, be aware that TecumsehPower Company may deny you warranty coverage if your small off-road engine or a part thereof has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road engine to a TecumsehPower Authorized Service Outlet

The Emission Regulations may be different for your country. The Emissions Control Warranty Sta tement is only applicable to engines with an emissions compliance statement and decal that references “Emissions Regulations”.

Page 20 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-1132-14

Warranty service can only be performed by a TecumsehPower Authorized Servicing Dealer. At the time of requesting warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for making service calls and/or for transporting the products to and from the place where the inspection and/or warranty work is performed. The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of any engine or any part(s) thereof submitted for inspection and/or warranty work.

If you have any questions regarding your warranty rights and responsibilities, you should contact TecumsehPower Company at 1-262-377-2700 or in USA/Canada call 1-800-558-5402.

Revised February 2008

IMPORTANT!

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (“ECS Warranty”) for 1995 and later model year California small off-road engines (for other states, 1997 and later model year engines):

A. APPLICABILITY: This warranty shall apply to 1995 an d later

model year California small off-road engines (for other state s, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.

B. GENERAL EMISSIONS WARRANTY COVERAGE:

TecumsehPower Company warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its small off-road engines is:

1. Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and

2. Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, will cause a warranted emissions-related part to fail to be identical in all material respects to the part as described in the engine manufacturer’s application for certification.

C. THE ECS WARRANTY ONLY PERTAINS TO EMISSION-

RELATED PARTS ON YOUR ENGINE AS FOLLOWS:

1. Any warranted, emissions-related parts which are not scheduled for replacement as required maintenance in the Operator’s Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by TecumsehPower Company according to Subsection 4 below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

2. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Operator’s Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

3. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Operator’s Manual, shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by TecumsehPower Company according to Subsection 4 below. Any such emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.

4. Repair or replacement of any warranted, emissionsrelated part under this ECS Warranty shall be performed at no charge to the owner at a TecumsehPower Authorized Service Outlet.

5. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a TecumsehPower Authorized Service Outlet.

6. TecumsehPower Company shall be liable for damages to other original engine components or approved modifications proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.

7. Throughout the ECS Warranty Period, TecumsehPower Company shall maintain a supply of warranted emissionrelated parts sufficient to meet the expected demand for such emission-related parts.

8. Any Tecumseh Power Company authorized and approved emission-related replacement part may be used in the performance of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce TecumsehPower Company ECS Warranty obligations.

9. Unapproved add-on or modified parts may not be used to modify or repair a TecumsehPower engine. Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. TecumsehPower Company shall not be liable hereunder for failures of any warranted parts of a TecumsehPower engine caused by the use of such an unapproved add-on or modified part.

EMISSION-RELA TED PARTS INCLUDE THE FOLLOWING:

1. Carburetor Assembly including internal components: a) Carburetor gaskets b) Intake pipe

2. Air Cleaner Assembly including components: a) Air filter element

3. Ignition System inclu ding components: a) Spark plug b) Ignition module c) Flywheel assembly

4. Exhaust System incl uding components: a) Catalytic muffler (if so equipped) b) Muffler gasket (if so equipped) c) Exhaust manifold (if so equipped)

5. Crankcase Breather Assembly including components a) Breather connection tube

6. Evaporative Control System including components: a) Fuel line(s) b) Fuel filter c) Canister (if so equipped) d) Fuel tank (if so equipped) e) Fuel fill cap (if so equipped)

Revised January, 2004

Revised February 2008

The Emission Regulations may be different for your country. The Emissions Control Warranty Statem ent is only applicable to engines with an emissions compliance statement and decal that references “Emissions Regulations”.

181-1132-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 21

IMPORTANT!

XII. Warranty Information

LIMITED WARRANTY FOR NEW TECUMSEHPOWER ENGINES

AND ELECTRONIC IGNITION MODULES

For the time period shown below from the date of purchase and subject to the exce ptions and limi t ations described her ein, TecumsehPower Company will, at its option as the exclusive remedy, either repair or replace for the original purchaser, free of charge, any part of any new TecumsehPower engine which is found, upon examination by any Authorized TecumsehPower Servicing Outlet or by TecumsehPower’s Service Division, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP. This Limited Warranty DOES NOT COVER (i) any TecumsehPower engine or part(s) thereof used to power any vehicle in competitive racing and/or used on any commercial or rental track, or (ii) defects or damage caused by alterations or modifications of new TecumsehPower engines or parts or by normal wear, accidents, improper maintenance, improper use or abuse of the product, or failure to follow the instructions contained in an Instruction Manual for the operation of the new TecumsehPower engine or part. The cost of normal maintenance or replacement of service items which are not def ective shall be paid for by the original purchaser. At the time warranty service is requested, evidence must be presented of the date of purchase by the original purchaser. Any charge for making service calls and/or for transporting any engine or part(s) thereof to and from the place where the inspection and/or warranty work is performed is payable solely by the purchaser. The purchaser is responsible for any damage or loss incurred in connection with the transportation of any engine or part(s) thereof submitted for inspection and/or warranty work. WARRANTY SERVICE CAN ONLY BE PERFORMED BY A TECUMSEHPOWER AUTHORIZED SERVICE OUTLET. Warranty service can be arranged by contacting a TecumsehPower Authorized Service Outlet (any TecumsehPower Registered Service Dealer, TecumsehPower Authorized Service Distributor, or TecumsehPower Central Warehouse Distributor) or by contacting TecumsehPower Company c/o Service Manager, 900 North Street, Grafton, Wisconsin USA 53024-1499.

“CONSUMER USE”

Warranty Within Outside Within Outside

(6)

Tecumseh OHV110, OV358, OV358EA, OVH135 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
