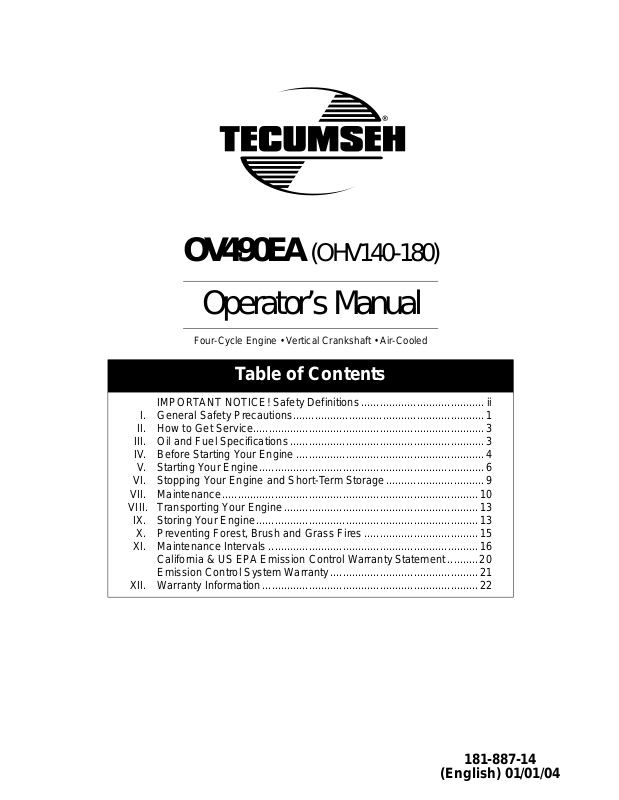

OV490EA (OHV140-180)

Operator’s Manual

Four-Cycle Engine • Vertical Crankshaft • Air-Cooled

Table of Contents

IMPORTANT NOTICE! Safety Definitions........................................ii

I. General Safety Precautions..............................................................1

II. How to Get Service...........................................................................3

III. Oil and Fuel Specifications...............................................................3

IV. Before Starting Your Engine .............................................................4

V. Starting Your Engine.........................................................................6

VI. Stopping Your Engine and Short-Term Storage................................9

VII. Maintenance...................................................................................10

VIII. Transporting Your Engine...............................................................13

IX. Storing Your Engine........................................................................13

X. Preventing Forest, Brush and Grass Fires.....................................15

XI. Maintenance Intervals ....................................................................16

California & US EPA Emission Control Warranty Statement..........20

Emission Control System Warranty................................................21

XII. Warranty Information......................................................................22

181-887-14

(English) 01/01/04

IMPORTANT NOTICE! Safety Definitions

Statements in this manual preceded by the following words and graphics are of special significance:

WARNING

WARNING indicates a potentially hazardous situation which if not avoided, could result in death or serious injury.

NOTE

Refers to important information and is placed in italic type.

It is recommended that you take special notice of all items discussed on the next two pages and wear the appropriate safety equipment.

Before operating this engine it is your responsibility to read this Operator’s Manual. Follow these basic rules for your personal safety:

• Keep this manual handy at all times for future reference.

• Read it carefully and familiarize yourself with operating, maintenance, components and safety instructions.

Notice Regarding Emissions

NOTE Engines which are certified to comply with California and U.S. EPA emission regulations for SORE (Small Off Road Equipment), are certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM) Engine Modification and (TWC) Three-way Catalyst (if so equipped).

Tecumseh Contact Information

For engine adjustments, repairs or warranty service not covered in this manual, contact your nearest Authorized Tecumseh Servicing Dealer. Find them on our website at www.TecumsehPower.com or call Tecumseh Power Company at 1-800-558-5402.

Tecumseh Power Company

Page ii Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

I. General Safety Precautions

• NEVER start or operate the engine with the fuel fill cap removed.

WARNING

Read equipment manufacturer’s manual and this material thoroughly before using this engine. Failure to do so can result in serious injury or death. Call Tecumseh Power Company at 1-800-558-5402 or visit www.TecumsehPower.com if you have any questions.

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly-ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

To prevent serious injury or death from carbon monoxide:

• NEVER run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

• NEVER run engine in poorly-ventilated or partially enclosed areas such as barns, garages, basements, carports, under dwellings, or in pits.

• NEVER run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

• NEVER store engine with fuel in fuel tank inside a building with potential sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

• NEVER remove fuel cap or add fuel when engine is running.

• Allow engine to cool before refueling.

• NEVER fill fuel tank indoors. Fill fuel tank outdoors in a well-ventilated area.

• DO NOT smoke while refueling tank.

• Use only an approved red GASOLINE container to store and dispense fuel. Tecumseh recommends purchasing gasoline in containers with a cap acity of

2.5 gallons or less. Small containers are easier to handle and help eliminate spillage during refueling.

• DO NOT pour fuel from engine or siphon fuel by mouth. T o empt y the fuel tank see "I. Draining Fuel" instructions on page 14.

C. Adult Supervision of Operation, Refueling

and Maintenance

The manufacturer of the application may provide information about who is allowed to use this engine (see equipment manufacturer’s manual). Not everyone who is allowed to use this engine is capable of safely and responsibly operating, maintaining and/or fueling it. Tecumseh recommends the following:

• An adult should fuel this engine. NEVER allow children to refuel this engine. See "C. Filling Fuel Tank" instructions on page 5.

• An adult should perform maintenance on this engine. See "VII. Maintenance" instructions on page 10. Only allow children to perform maintenance if an adult has determined they are experienced and capable of such operation.

• An adult should start the engine. See "G. Avoid Accidental Starts" instructions on page 2. On ly allow children to start the engine if an adult has determined they are experienced and capable of such operation.

• To avoid unsupervised operation of the engine, especially by children, NEVER leave it unattended when it is running.

D. Stay Away from Rotating Parts

NEVER operate the engine with an unguarded engine shaft.

The equipment manufacturer may attach a sprocket and chain or pulley and belt to the engine shaft. If these parts are not properly guarded, or if you are not sure whether they are properly guarded, DO NOT use your engine; contact the equipment manufacturer. Hands, feet, hair, jewelry, clothing, etc. can become entangled in rotating parts, leading to serious injury or death. To avoid serious injury or death , be sure the flywheel guard is in place. See Figure 1.

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 1

E. Do Not Modify Engine

To avoid serious injury or death, DO NOT modify en gine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

WARNING

Use of this engine on fun-carts, go-karts, or mini-bikes can result in serious injury or death. Tecumseh manufactures the Power Sport line of engines for use in such applications. Consult your local Authorized Tecumseh Servicing Dealer, call 1-800-558-5402, or go to www.TecumsehPower.com for additional information.

F. Avoid Burns and Fire from Hot Surfaces

The muffler and other engine parts become extremely hot during operation and remain hot after the engine has stopped.

• To avoid severe burns on contact, NEVER operate the engine without the muffler guard in place, and a void hot areas of the engine.

• To reduce the risk of fire keep all materials that can burn, including grass and leaves, away from muffler and rest of engine. DO NOT operate, idle or park the engine application in long dry grass or other dry ground cover.

Figure 1. Typical Flywheel Guard Location

Figure 2. Disconnecting/Connecting Spar k Plug

G. Avoid Accidental Starts

To prevent accidental starting when working on equipment always:

• Disconnect spark plug wire and keep it away from spark plug. See Figure 2.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Attach the spark plug wire to the grounding post, if provided. See Figure 3.

• Disconnect battery at negative terminal first, if engine is equipped with an electric starter.

• Turn off all engine switches.

• Remove ignition key, if provided.

H. Use Hearing Protection

Engine noise may cause hearing damage. Always wear hearing protection when operating an engine.

Figure 3. Typical Spark Plug Connection

Page 2 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

II. How to Get Service

32 F

A. Engine Identification Decal

A sample engine identification decal (See Figure 4.) indicates the engine’s model number, specification of engine and the date of manufacture (D.O.M.). Please look at the decal on your engine and fill in this information in the spaces provided for future reference.

The engine identification decal also includes engine life specifications for the emissions-related useful life period of your engine. This period relates to the emission compliance life as certified by EPA and/or CARB. To find the life period specification for your engine, please look on your engine’s decal and find the letter enclosed by quotation marks between the words MODERATE and LIFE PERIOD. Match one of the following letters with the letter printed on your decal. For example, OV (OHV ) models are desig na te d as “C” 250 hours, “B” 500 hours, and “A” 1000 hours.

B. Tecumseh Technician’s Handbooks

If you have a general understanding of internal combustion engines and wish to repair and service your engine and/or engine emission control systems yourself, a Technician’s Handbook is available from your Authorized Tecumseh Servicing Dealer. See Figure 5. This handbook covers repairs and adjustments not covered within this Operator’s Manual, and it is intended for individuals who have had adequate training, experience and who practice proper tool usage. Service procedures should be clearly understood and practiced when servicing Tecumseh Engines. Order as part no. 695244A for OV (OHV) models.

Tecumseh manufactures and is responsible only for the engine used on this power equipment. If repair or service is needed for anything other than the engine, contact the service source recommended by the equipment manufacturer.

III. Oil and Fuel Specifications

A. Oil

To operate engine you need to use a clean, high quality, detergent oil. For recommended engine oil, See Table 1.

NOTES

Be sure original container is marked A.P.I. Service “SL/SJ”. Using multigrade oil above 32°F (0°C) will increase oil

consumption. SAE10W40 is not recommended. The oil sump capacity (including oil filter) is 62 ounces or 3 -

7/8 U.S. Pints (1.83 liters). The oil sump capacity (without oil filter) is 55 ounces or

3-7/16 U.S. Pints (1.62 liters).

2083

TECUMSEH POWER COMPANY

THIS ENGINE MEETS 1995-2005 CALIF & US EPA PHI APPLICABLE EMISSION REGULATIONS FOR SI SORE ENGINES

LV195EA

361540D

4TPXS.1951BB 195

04015AA0001

ENGINE MODEL:

SPEC: D.O.M.:

Figure 4. Engine Identification Label

TECHNICIAN'S HANDBOOK

4 -CYCLE OVERHEAD VALVE ENGINES

Figure 5. Technician Handbook

Table 1. Recommended Engine Oil

Tecumseh Recommended Oil Usage

Straight Grade

Tecumseh Part No.

730225A or SAE30W

Multi Grade

Tecumseh Part No.

730226A or SAE5W30 or SAE10W

Synthetic

Tecumseh Part No.

-30 C

730263 or SAE0W30

-20 C

-20 F

-10 C

20 F

32 FO32 F

10 C

60 F

20 C

80 F

100 F

30 C

40 F

Tecum s eh spe cia l-f or m ula te d oils are availa bl e at yo ur Authorized Tecumseh Servicing Dealer.

40 C

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 3

B. Fuel

Use unleaded regular, unleaded premium or reformulated automotive fuel only. You may use gasoline containing the following components identified in Table 2.

• DO NOT use leaded fuel.

• Fuel must be fresh and clean. NEVER use fuel left over from last season or stored for long periods.

• NEVER mix oil with fuel.

• DO NOT use fuel containing Methanol (Wood Alcohol).

IV. Before Starting Your Engine

Table 2. Recommended Fuel

Fuel Component Percentage

Ethanol 10% Grain Alcohol (“Gasohol”) 10% MTBE (Methyl Tertiary Butyl Ether) 15% ETBE (Ethyl Tertiary Butyl Ether) 15%

A. Checking Oil Level

To avoid engine damage, it is important to:

• Check oil level before each use and every 5 operating hours when engine is warm. Check oil level more frequently during engine break-in.

• Keep oil level between “FULL” and “ADD” marks on dipstick. See Figure 6.

• Insure oil fill cap/plug is tightened securely.

NOTES Do not overfill oil filler. Doing so may result in oil carry-over to the air cleaner and equipment malfunction or damage.

Do not allow oil level to fall below the “ADD” mark on dipstick. Doing so may result in equipment malfunction or damage.

Contact your Authorized Tecumseh Servicing Dealer for Tecumseh Oil.

FULL

Fill between “FULL” and “ADD” Marks

ADD

Figure 6. Engine Oil Level

Page 4 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

B. Filling Oil Sump

1. Be sure engine is upright and level.

2. Unscrew oil fill cap from oil filler tube and wipe dipstick

clean. See Figure 7.

3. Screw oil fill cap back into oil filler tube. Tighten

securely.

4. Unscrew and remove oil fill cap from oil filler tube. Note

oil level. If oil reading on dipstick is below “ADD” mark, slowly add oil to reach “FULL” level. See Figure 6.

5. Screw oil fill cap back into oil filler tube. Tighten

securely.

6. Wipe away any spilled oil.

C. Filling Fuel Tank

WARNING

engine. Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

1. Stop engine and allow it to cool before refueling.

2. Be sure engine is outdoors and in a well-ventilated

area.

3. Clean area around fuel fill cap and remove fuel fill cap.

4. Using an approved red GASOLINE container, add fuel

slowly, being careful to avoid spilling. DO NOT overfill fuel tank. Leave space in the tank to allow fuel to expand without overflowing.

5. Replace fuel fill cap securely and wipe up spilled fuel

before starting engine. If fuel is spilled DO NOT start engine. Move machine away from area of spillage. Avoid creating any source of ignition until fuel vapors are gone.

An adult should fuel this engine. NEVER allow children to refuel this

1. Spark Plug

2. Spark Plug Cap

3. Spark Plug Wire

4. Air Intake Screen

5. Oil Fill Plug and Dipstick

6. Oil Filter (Optional)

7. Carburetor

Figure 7. Engine with Oil Fill Dipstick

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 5

V. Starting Your Engine

WARNING

an adult has determined they are experienced and capable of such operation.

WARNING

manual, contact your Authorized Tecumseh Servicing Dealer. To avoid serious burn injuries or damage to your engine, DO NOT attempt to start or troubleshoot this engine in any other way. For example:

• DO NOT use starting fluid.

• DO NOT spray flammable vapors into carburetor or onto air cleaner.

• DO NOT put flammable liquids into carburetor or onto air cleaner.

• DO NOT operate engine or pull on starter rope with spark plug removed. Fuel can spray from spark plug hole and ignite.

This section contains starting instructions for electric and manual start engines. In order to locate the instructions that apply to your engine, first determine what type of starter you have. If you have an electric starter see “A. Engines with Electric Starters” instructions. If you have a manual recoil starter see "B. Engines with Recoil Starters" instructions on page 8.

An adult should start the engine. Only allow children to start engine if

If you are unable to start this engine after following instructions in this

A. Engines with Electric Starters

Only one of the following two sections will apply to your engine. See Table 3.

Table 3. Engine Sections with Electric Starters

If your engine has: Go to:

Combined Speed and Choke Controls Section A.I Independent Speed and Choke

Controls

I. Combined Speed and Choke Control

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

2. Move combine control to “CHOKE” or “STAR T” position (see equipment manufacturer’s instructions). See Figures 8 and 9.

NOTE If restarting a warm engine after a short shutdown, move combined control to “F AST” instead of “CHOKE” or “ST ART” position. See Figures 8 and 9.

3. Push starter button or turn ignition switch key (see

equipment manufacturer’s instructions) to start engine.

Section A.II

Figure 8. Combined Speed and Choke Control

STOP

STOP SLOW RUN FAST CHOKE

Figure 9. Typical Engine Symbols

NOTES

If engine fails to start after 3 attempts repeat steps 2 thru 3. DO NOT operate an electric starter for more than 5 seconds

each attempt.

4. When engine starts: a. Release starter button or ignition switch key. b. Next, move combined control to “FAST”. c. Finally, move combined control to desired speed in

“RUN” range.

NOTES If engine starts, but falters when combined contr ol is moved to “FAST” position:

a. Momentarily move combined control back to

“CHOKE” position. b. Next, move combined control to “FAST” position. c. Finally, move combined control to desired speed in

“RUN” range.

If engine dies after combined control is moved to “FAST” position, repeat steps 2 thru 4 to restart engine.

5. If engine fires but does not continue to run, move combined control lever to “FAST” position and then start engine.

6. If engine fails to start after 3 attempts with combined control in “FAST” position, move control to “CHOKE” position and push button or turn key to start engine again.

7. If engine does not start after following steps 1 thru 6, contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

Page 6 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

II. Independent Speed and Choke Controls

1. To avoid carbon monoxide poisoning, make sure engine is outdoors in a well-ventilated area.

2. Move engine speed control to “FAST” position and set choke control to “FULL” position (see equipment manufacturer’s instructions). See Figures 9, 10, 11 and 12.

Choke Control

NOTES Generator and Water Pump applications may have the choke lever mounted on the engine. See Figure 12.

If restarting a warm engine after a short shutdown, move Speed Control to “FAST” position and move Choke Control to “NO CHOKE” position.

3. Push starter button or turn ignition switch key (see

equipment manufacturer’s instructions) to start engine.

NOTES DO NOT operate an electric starter for more than 5 seconds each attempt.

If engine fails to start after 3 attempts repeat steps 2 thru 3.

4. When engine starts:

a. Release starter button or ignition switch key. b. Next, move choke control to “1/2 CHOKE” position

until engine runs smoothly.

c. Next, move choke control to “NO CHOKE” position.

5. Finally, move engine speed co ntro l to desir ed speed in

“RUN” range.

NOTES If engine starts, but falters when choke is moved to “NO CHOKE” position:

a. Momentarily move choke control back to “FULL

CHOKE” position.

b. Next, move choke control to “1/2 CHOKE” position

until engine runs smoothly.

c. Finally, move choke control to “NO CHOKE”

position.

If engine dies after control is moved to “NO CHOKE” position, repeat steps 2 thru 5 to restart engine.

6. If engine fires but does not continue to run, move

choke control lever to “NO CHOKE” position and start engine.

7. If engine fails to start after 3 attempts in the “NO

CHOKE” position, move choke control to “FULL CHOKE” position and start engine.

8. If engine does not start after following steps 1 thru 7,

contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way

Speed Control

Figure 10. Independent Speed and Choke Controls

12 3

1. No Choke

2. 1/ 2 Ch ok e

3. Full Choke

Figure 11. Choke Control Positions

12 3

1. No Choke

2. 1/ 2 Ch ok e

3. Full Choke

Figure 12. Engine Mounted Choke Lever

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 7

B. Engines with Recoil Starters

If you have an electric starter see "A. Engines with Electric Starters" instructions on page 6. Only one of the following two sections will apply to your engine. See Table 4.

Table 4. Engine Sections with Recoil Starters

If your engine has: Go to:

Combined Speed and Choke Controls Section B.I Independent Speed and Choke Controls Section B.II

I. Combined Speed and Choke Control

1. T o avoid carbon monoxid e poisoning, be sure e ngine is

outdoors in a well-ventilated area.

2. Move combined control to “CHOKE” or “START” posi-

tion, if present (see equipment manufacturer’s instructions). See Figures 13 and 14.

NOTE If restarting a warm engine after a short shutdown, move combined Control to “FAST” instead of “CHOKE” or “START” position. See Figures 13 and 14.

WARNING

engine causing serious injury. To avoid this risk, carefully follow these instructions:

3. Grasp starter cord hand l e. Se e Fig ur e 15.

a. Pull rope out slowly until you feel drag. b. Without allowing the rope to retract, continue

pulling rope with one rapid full arm stroke.

c. Return rope slowly to original position.

Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

If engine fails after 3 pulls repeat steps 2 thru 3.

4. When engine starts:

d. Move combined control to “FAST” position. e. Next, move combined control to desired speed in

“RUN” range. See Figure 13. See Figure 14.

If engine starts, but falters when combined control is moved to “FAST” position:

a. Momentarily move combined control back to

“CHOKE” position.

When pulling starter rope, the rope can unexpectedly jerk back toward

NOTES

Figure 13. Combined Speed and Choke Control

STOP

STOP SLOW RUN FAST CHOKE

Figure 14. Ty pical Engine Symbols

Figure 15. Recoil Starter

b. Next, move combined control to “FAST” position. c. Finally, move combined control to desired speed in

“RUN” range.

If engine dies after combined control is moved to “FAST” position, repeat steps 2 thru 4 to restart engine.

If engine fires but does not continue to run, move combined control lever to “FAST” position and pull the starter rope.

5. If engine fails to start after 3 attempts with combined control in the “FAST” position, move combined control to “FULL CHOKE” position and pull the starter rope again.

6. If engine does not start after following steps 1 thru 5, contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

Page 8 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

II. Independent Speed and Choke Controls

1. To avoid carbon monoxide poisoning, make sure engine is outdoors in a well-ventilated area.

2. Move engine speed control to “FAST” position and set choke control to “FULL CHOKE” position (see equipment manufacturer’s instructions). See Figures 14, 16, 17 and 18.

NOTES Generator and Water Pump applications may have the choke lever mounted on the engine. See Figure 18.

If restarting a warm engine after a short shutdown, move Speed Control to “FAST” position and move Choke Control to “NO CHOKE” position.

WARNING

engine causing serious injury. To avoid this risk, carefully follow these instructions:

3. Grasp starter cord hand l e. Se e Fig ur e 15.

a. Pull rope out slowly until you feel drag. b. Without allowing the rope to retract, continue

pulling rope with one rapid full arm stroke.

c. Return rope slowly to original position.

Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

If engine fails after 3 pulls repeat steps 2 thru 3.

4. When engine starts:

a. Move choke control to “1/2 CHOKE” position until

engine runs smoothly.

b. Next, move control to “NO CHOKE” position.

5. Move speed control to desired speed in “RUN” range.

If engine starts but falters when choke is moved to “NO CHOKE” position:

a. Momentarily move choke control back to “FULL

CHOKE” position.

b. Next, move control to “1/2 CHOKE” position until

engine runs smoothly.

c. Finally, move control to “NO CHOKE “position.

If engine dies after choke control is moved to “NO CHOKE” position repeat steps 2 thru 5 to restart engine.

6. If engine fires but does not continue to run, move

choke control to “NO CHOKE” position and pull starter rope again.

7. If engine fails to start after 3 attempts in the “NO

CHOKE” position, move choke control to “FULL CHOKE” position and pull starter rope again.

8. If engine does not start after following steps 1 thru 7,

contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in

any other way.

When pulling starter rope, the rope can unexpectedly jerk back toward

NOTE

NOTES

Choke Control

Speed Control

Figure 16. Independent Speed and Choke Controls

12 3

1. No Choke

2. 1/ 2 Ch ok e

3. Full Choke

Figure 17. Choke Control Positions

12 3

1. No Choke

2. 1/2 Choke

3. Full Choke

Figure 18. Engine Mounted Choke Lever

VI. Stopping Your Engine and

Short-Term Storage

Stop engine according to equipment manufacturer’s instructions.

WARNING

NEVER leave it unattended when it is running. Always turn off the engine after us e and remove ig nition key, if provided.

WARNING

potential sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

To avoid unsupervised operation of an engine, especially by children,

Never store the engine with fuel in the fuel tank inside a building with

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 9

VII. Maintenance

WARNING

perform maintenance if an adult has determined they are experienced and capable of such operation.

WARNING

• Disconnect spark plug wire and keep it away from spark plug. See "G. Avoid Accidental Starts" instructions on page 2.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with an electric starter.

• Turn off all engine switches.

• Remove ignition key, if provided.

An adult should perform maintenance on this engine. Only allow children to

To prevent accidental starting whe n working on equipment, always:

A. Checking and Changing Oil

To avoid engine damage, it is important to:

Figure 19. Oil Drain Plug Location

• Check oil level before each use and every 5 operating hours when engine is warm. See "A. Checking Oil Level" instructions on page 4.

• Change oil after first 2 operating hours and ever y 50 operating hours thereafter; more of ten if operated in extremely dusty or dirty conditions. Engine should still be warm but not hot from recent use.

1. Be sure you find the correct drain plug location, if present. (See equipment manufacturer’s instructions). See Figure 19.

2. Disconnect spark plug wire and keep it away from spark plug. See "G. Avoid Accidental Starts" instructions on page 2.

3. Be sure the gas cap is on and is tightened securely.

4. Clean area around oil drain plug. See Figure 19.

5. Place approved recyclable oil container under oil drain plug. (See equipment manufacturer’s instructions).

NOTE Used oil must be disposed of at a proper collection center.

6. Remove oil drain plug and drain oil into

an approved container. See Figure 19.

7. Install oil drain plug and tighten secu re ly.

8. Fill with recommended oil. See "III. Oil and Fuel Speci-

fications" instructions on page 3. See "Table 1. Recommended Engine Oil" instructions on page 3. See Figure

20.

9. Wipe away any spilled oil.

Figure 20. Oil Filler Locations

10. Carefully disconnect spark plug wire from grounding post, if provided.

11. Carefully re-connect spark plug wire to spark plug.

NOTES The oil filter if so equipped, should be changed every 100 operating hours or at least once a year.

The filter should be changed more often if the eng ine is operated in extremely dust or dirty conditions.

Changing the oil filter requires that additional oil be added to fill the filter.

Contact your Authorized Tecumseh Servicing Dealer for a Tecumseh Oil Filter.

Page 10 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

B. Removing Debris from Engine

Before each use, remove grass clippings, dirt and debris from the following areas:

• Levers and Linkage

• Cooling Fins

• Air Intake Screen

• Air Inlet

• Guards

Removing debris will insure adequate cooling, correct engine speed and reduce the risk of fire. See Figure 21.

NOTE Before removing air cleaner cover see "III. Filter Removal/ Installation" instructions on page 12. Special care should be taken to prevent damage when removing air cle aner cover. See Figure 21.

DO NOT bend levers and linkage with fingers. See Figure 22.

1. Remove air cleaner cover and filters. See Figure 21.

2. Remove debris from air inlet, air cleaner cover and air

intake screen.

3. Inspect filter(s) for discoloration or dirt accumulation. If

either is present, see "I. Servicing Foam Pre-Filter" instructions on page 12 or see "II. Servicing Paper Filters" instructions on page 12.

4. Replace air cleaner cover and filters.

1. Cooling Fins

2. Levers and Linkage

3. Air Inlet

4. Air Cleaner Cover

5. Air Intake Screen

Figure 21. Debris Locations

C. Spark Plug

Check spark plug yearly or every 100 operating hour s.

1. Clean area around spark plug.

2. Remove and inspect spark plug.

3. Replace spark plug if porcelain is cracked or if elec-

trodes are:

•Pitted

• Burned

• Fouled with deposits

4. Check electrode gap with wire feeler gauge and set

gap to .030 (0.76mm) if necessary. See Figure 23.

5. Install spark plug and tighten securely.

NOTE

A resistor spark plug must be used for replacement. Co ntact your Authorized Tecumseh Servicing Dealer for a Tecumseh Resistor Spark Plug.

Figure 22. Linkage and Lever Bending

1. .030 (0.76mm) Gap

2. Electrodes

3. Porcelain

Figure 23. Spark Plug

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 11

D. Cleaning/Replacing Air Cleaner

Your engine has an air cleaner which helps prevent premature engine wear and failure. NEVER run engine without complete air cleaner installed on engine. Your air cleaner periodically needs to be cleaned or replaced.

NOTE Contact your Authorized Tecumseh Servicing Dealer for a Tecumseh Air Cleaner.

I. Servicing Foam Pre-Filter

Clean foam pre-filter every 3 months or every 25 operating hours. Clean daily if used in extremely dusty conditions. After removing the pre-filter, follow these cleaning instructions below:

1. Wash in warm water and detergent solution then press

(DO NOT twist) until all dirt is removed.

2. Rinse thoroughly until water is clear.

3. Wrap in a clean cloth and press (DO NOT twist) until

completely dry.

NOTE DO NOT oil foam pre-filter.

4. Replace foam pre-filter onto paper filter.

II. Servicing Paper Filters

Paper filters cannot be cleaned and must be replaced once a year or every 100 operating hours; more often if used in extremely dusty conditions. Replacement filters are available at an Authorized Tecumseh Servicing Dealer.

1. Body

2. Paper Filter

3. Fasteners

4. Foam Pre-Filter

5. Air Cleaner Cover

6. Wing Nuts

NOTE DO NOT put oil on or clean a paper filter.

III. Filter Removal/Installation

1. Remove wing nuts from air cleaner cover. See Figure 24.

2. Remove air cleaner cover while lifting upward then

outward.

3. Remove fasteners.

4. Remove and inspect filter(s) for discoloration or dirt

accumulation. If either is present, see "I. Servicing Foam Pre-Filter" instructions or "II. Servicing Paper Filters" instructions.

5. Clean inside of cover and body thoroughly.

6. Install paper filter (see equipment manufacturer’s

instructions).

7. Install fasteners.

8. Install foam pre-filter (see equipment manufacturer’s

instructions).

9. Install cover by pushing down onto body securely.

10. Install wings nuts and tighten securely.

Figure 24. Air Cleaner Components

E. Carburetor

If you think your carburetor needs adjusting, see your nearest Authorized Tecumseh Servicing Dealer. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). For operation at higher elevations, contact your Authorized Tecumseh Servicing Dealer.

F. Engine Speed

WARNING

Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

Running the engine faster than the speed set at the factory can be dangerous and will VOID THE ENGINE WARRANTY.

To avoid serious injury or death, DO NOT modify engine in any way.

G. Adjustments

DO NOT make any engine adjustments. Factory settings are satisfactory for most conditions. If adjustments are needed, contact your Authorized Tecumseh Servicing Dealer.

Page 12 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

VIII. Transporting Your Engine

IX. Storing Your Engine

WARNING

space if there is any gasoline in the tank. Fuel vapor or spilled fuel may ignite.

WARNING

and transport the engine upright in an open vehicle, such as an open trailer or open bed of a pickup truck.

If you do not have an open vehicle and have to transport the engine upright in a closed vehicle, follow these steps for emptying the fuel tank before transporting:

1. Empty fuel tank by using a commercially available

suction device designed for use with gasoline.

WARNING

2. Drain fuel into an approved red GASOLINE container,

being careful to avoid spilling.

3. Run the engine until remaining fuel is consumed.

WARNING

NEVER run engine in enclosed areas.

NEVER transport this engine inside another vehicle or in any enclosed

If there is fuel in the fuel tank, close the fuel shut off valve, if equipped,

DO NOT pour fuel from engine or siphon fuel by mouth.

NEVER leave the engine unattended when it is running and

A. Short Term/Seasonal S torage

I. Clean Engine

Before servicing the engine remove the blower housing. In addition, remove grass clippings, dirt and debris from the following areas:

• Cooling Fins

• Air Intake Screen

• Levers

• Linkage

•Guards

• Carburetor

•Head

Removing debris will facilitate adequate cooling, correct engine speed and reduce the risk of fire.

II. Fuel Storage

WARNING

sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc. Failure to do so may result in an explosion and result in death or serious injury.

NEVER store engine with fuel in fuel tank inside a building with potential

NOTES If engine fuel stored in the gas tank and/or an approved gas container is to be unused without gasoline stabilizer for more than 15-30 days, prepare it for short term/seasonal storage. see "IV. Fuel Treatment" instructions on page 14.

If engine fuel is to be stored for more than one season, without gasoline stabilizer, it will gradually deteriorate. Also, if it is stored in the engine’s gas tank without gasoline stabilizer it is likely that your carburetor will have gum deposits, a clogged fuel system and will void your warranty. Prepare the fuel for extended storage. See "B. Extended Storage" instructions on page 14.

If you operate the engine during all 4 seasons, it is not necessary to lubricate the cylinder bore.

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 13

III. Fuel System

To avoid stale gas and carburetor problems, treat the fuel system in the following method below:

NOTES Tecumseh recommends using ULTRA-FRESH™ or Fuel Saver Plus Gasoline Stabilizer plus Fuel System Cleaner as an acceptable method of minimizing formation of fuel gum deposits during storage. This product is available fr om your Authorized Tecumseh Servicing Dealer.

Always follow mix ratio found on stabilizer container. Failure to do so may result in equipment damage.

It is not necessary to drain stabilized gas from carburetor.

IV. Fuel Treatment

1. Add fuel stabilizer according to manufacturer’s

instructions.

2. Run engine at least 10 minutes after adding stabilizer

to allow it to reach carburetor.

WARNING

potential sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

Instead of using a fuel preservative/stabilizer, you can empty the fuel tank as described under "I. Draining Fuel” instructions. See "B. Extended Storage” instructions.

NEVER store the engine with fuel in the fuel tank inside a building with

NOTE

B. Extended Storage

I. Draining Fuel

NOTES Clean debris from engine before draining fuel from carburetor. See "I. Clean Engine" instructions on page 13.

If you have prepared your fuel for short term storage it is not necessary to drain fuel that contains stabilizer from your carburetor. See "A. Short Term/Seasonal Storage" instructions on page 13.

WARNING

siphon fuel by mouth.

1. To prevent serious injury from fuel fires, empty fuel tank

by running engine until it stops from lack of fuel. DO NOT attempt to pour fuel from engine.

2. Run the engine while waiting until the remaining fuel is

consumed.

WARNING

NEVER run engine in enclosed areas.

3. Begin servicing th e cylinder bore. See "II. Oil Cylinder

Bore" instructions on page 15.

To avoid severe injury or death, DO NOT pour fuel from engine or

NEVER leave the engine unattended when it is running and

Page 14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

II. Oil Cylinder Bore

WARNING

prevent serious injury from fuel fires, follow these instructions:

1. Disconnect spark plug wire and keep it away from spark plug. See Figure 25. and Figure 26.

• Keep the disconnected spark plug wire securely away from metal parts where arcing could occur.

• Attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with an electric starter.

• Turn off all engine switches.

• Remove ignition key, if provided.

2. Remove spark plug.

3. Squirt 1oz. (30ml) of clean engine oil into spark plug hole.

4. Cover spark plug hole with rag to prevent fuel from spraying from spark plug hole when starter rope is pulled.

For engines equipped with recoil starters pro ceed to S tep 5. For engines equipped with electric starters proceed to Step

5. Grasp starter cord handle and pull out slowly using a full arm stroke. Repeat once. (This will distribute oil throughout the cylinder to prevent corrosion during storage.)

6. Install spark plug.

7. Carefully disconnect spark plug wire from grounding post, if provided.

8. Connect spark plug wire before attempting to start engine.

When lubricating cylinder bore, fuel may spray from spark plug hole. To

NOTES

Figure 25. Disconnecting/Connecting Spark Plug

Figure 26. Typical Spark Plug Connection

X. Preventing Forest, Brush and Grass

Fires

Local, state and federal laws may require use of a spark arrester to prevent fires. For example, it is a violation of California Public Resources Code (section 4442) to use or operate engine on any forest-covered, brush-covered or unimproved grass-covered land unless engine is equipped with a spark arrester. Spark arrester must be maintained in effective working order by owner and/or operator.

See the equipment manufacturer’s instructions for obtaining the proper muffler and spark arrester for this engine.

III. Oil

Change oil if not changed within the last 3 months, see "A. Checking and Changing Oil" instructions on page 10.

IV. Battery

See equipment manufacturer’s instructions for proper battery storage, if present.

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 15

XI. Maintenance Intervals

Maintenance is one of the most important things that you can do to extend the life of your Tecumseh Engine. If you are unable to perform maintenance inter va ls you rse lf, contact your nearest Authorized Tecumseh Servicing Dealer. You may also call Tecumseh Power Company at 1-800-558-5402 or visit www.TecumsehPower.com to locate your dealer.

ALWAYS promptly follow maintenance intervals listed. See Table 5.

Table 5. Maintenance Intervals

Procedure Time

Change Oil

Check Oil Level

Clean Cooling Fins

Change Oil

Clean Foam Pre-Filter

Replace Paper and Oil Filter

Check Spark Plug

Replace Spark Plug

First Scheduled Maintenance After First 2 Hours When Engine is Warm

1. Change Oil

Date_______________Owner/Dealer

After first 2 hrs.

when engine is warm

5 hrs. or Before Each Use

50 hrs. or 3 mos.

25 hrs. or 3 mos.

100 hrs. or seasonally

200 hrs. or seasonally

Before Each Use Scheduled Maintenance Every 5 Hours or Before Each Use

1. Check Oil Level

2. Clean Cooling Fins

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Every 25 Hours or 3 Months Scheduled Maintenance

1. Clean Foam Pre-Filter

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Page 16 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

Every 50 Hours or 3 Months Scheduled Maintenance

1. Change Oil

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer

Every 100 Hours or Seasonally Scheduled Maintenance

1. Replace Paper Filter

2. Replace Oil Filter

3. Check Spark Plug

Date_______________Owner/Dealer

Every 200 Hours or Seasonally Scheduled Maintenance

1. Replace Spark Plug

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 17

Page 18 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

NOTES

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 19

CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT

The U. S. Environmental Protection Agency (“EPA”), the California Air Resources Board (“CARB”) and Tecumseh Power Company are pleased to explain the Federal and California Emission Control Systems Warranty on your new small off-road engine. In California, new 1995 and later small off-road engines must be designed, built and equipped to meet the State’s stringent anti-smog standards. In other states, new 1997 and later model year engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-road engines. Tecumseh Power Company will warrant the emission control system on your small off-road engine for the periods of time listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor, ignition system and exhaust system. Also included may be the compression release system and other emissionrelated assemblies.

Where a warrantable condition exists, Tecumseh Power Company will repair your small off-road engine at no cost to you for diagnosis, parts and labor.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE

Emission control systems on 1995 and later model year California small off-road engines are warranted for two years as herein after noted. In other states, 1997 and later model year engines are also warranted for two years. If, during such warranty period, any emission-related part on your engine is defective in materials or workmanship, the part will be repaired or replaced by Tecumseh Power Company

OWNER’S WARRANTY RESPONSIBILITIES

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operator’s Manual, but Tecumseh Power Company will not deny warranty solely due to the lack of receipts or for your failure to provide written evidence of the performance of all scheduled maintenance.

As the small off-road engine owner, you should, however, be aware that Tecumseh Power Company may deny you warranty coverage if your small off-road engine or a part thereof has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road engine to a Tecumseh Authorized Service Outlet (any Tecumseh Registered Service Dealer, Tecumseh Authorized Service Distributor or Tecumseh Central Warehouse Distributor) as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either an Authorized Tecumseh Servicing Dealer and/or Tecumseh Power Company, c/o Service Manager, 900 North Street, Grafton, WI 53024-1499. Telephone 1-262-377-2700 [or in USA/Canada call 1-800-558-5402].

IMPORTANT NOTE

This warranty statement explains your rights and obligations under the Emission Control System Warranty (“ECS Warranty”) which is provided to you by Tecumseh Power Company pursuant to California law. Tecumseh Power Company also provides to original purchasers of new Tecumseh Power Company engines. The Tecumseh Power Company Limited Warranties for New Tecumseh Engines and Electronic Ignition Modules (“Tecumseh Power Company Warranty”) are located on the back cover of the Operator’s Manual, enclosed with all new Tecumseh Power Company engines. The ECS Warranty applies only to the emission control system of your new engine. To the extent that there is any conflict in terms between the ECS Warranty and the Tecumseh Power Company Warranty, the ECS Warranty shall apply except in any circumstances in which the Tecumseh Power Company Warranty may provide a longer warranty period. Both the ECS Warranty and the Tecumseh Power Company Warranty describe important rights and obligations with respect to your new engine.

Warranty service can only be performed by a Tecumseh Power Company Authorized Servicing Dealer. At the time of requesting warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for making service calls and/or for transporting the products to and from the place where the inspection and/or warranty work is performed. The purchaser shall be re sp on si bl e fo r an y d a mag e or loss incurred in connection with the transportation of any engine or any part(s) thereof submitted for inspection and/or warranty work.

If you have any questions regarding your warranty rights and responsibilities, you should contact Tecumseh Power Company at 1-262-377-2700 or in USA/Canada call 1-800-558-5402.

Revised January, 2004

Page 20 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled 181-887-14

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (“ECS Warranty”) for 1995 and later model year California small off-road engines (for other states, 1997 and later model year engines):

A. APPLICABILITY: This warranty shall apply to 1995 and later

model year California small off-road engines (for other state s, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.

B. GENERAL EMISSIONS WARRANTY COVERAGE:

Tecumseh Power Company warrants to the original, end-use

purchaser of the new engine or equipment and to each subsequent purchaser that each of its small off-road engines is:

1. Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and

2. Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, will cause a warranted emissions-related part to fail to be identical in all material respects to the part as described in the engine manufacturer’s application for certification.

C. The ECS Warranty only pertains to emissions-related parts on

your engine, as follows:

1. Any warranted, emissions-related parts which are not scheduled for replacement as required maintenance in the Operator’s Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by Tecumseh Power Company according to Subsection 4 below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

2. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Operator’s Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

3. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Operator’s Manual, shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by Tecumseh Power Company according to Subsection 4 below. Any such emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.

4. Repair or replacement of any warranted, emissionsrelated part under this ECS Warranty shall be performed at no charge to the owner at a Tecumseh Authorized Service Outlet.

5. The owner shall not be charged for diagnostic l abor which leads to the determination that a part covered by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a Tecumseh Authorized Service Outlet.

6. Tecumseh Power Company shall be liable for damages to other original engine components or approved modifications proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.

7. Throughout the ECS Warran ty Period, Tecumseh Power Company shall maintain a supply of warranted emissionrelated parts sufficient to meet the expected demand for such emission-related parts.

8. Any Tecumseh Power Company auth orized and approved emission-related replacement part may be used in the performance of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce Tecumseh Power Company ECS Warranty obligations.

9. Unapproved add-on or modified parts may not be used to modify or repair a Tecumseh Power Company engine. Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. Tecumseh Power Company shall not be liable hereunde r for failures of any warranted parts of a Tecumseh Power Company engine caused by the use of such an unapproved add-on or modified part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING:

1. Carburetor Assembly and its Internal Components a) Fuel filter

b) Carburetor gaskets c) Intake pipe

2. Air Cleaner Assembly a) Air filter element

3. Ignition System, including: a) Spark plug

b) Ignition module c) Flywheel assembly

4. Catalytic Muffler (if so equipped) a) Muffler gasket (if so equipped)

b) Exhaust manifold (if so equipped)

5. Crankcase Breather Assembly and its Components a) Breather connection tube

Revised January, 2004

181-887-14 Four-Cycle Engine • Vertical Crankshaft • Air-Cooled Page 21

XII. Warranty Information

LIMITED WARRANTY FOR NEW TECUMSEH ENGINES

AND ELECTRONIC IGNITION MODULES

For the time period shown below from the date of purchase and su bject to the e xceptio ns and li mita tions descr ibed herei n, Tecumseh Power Company will, at its op tion as the exclusive remedy, either repair or replace for the original purchaser, free of charge, any part of any new Tecumseh engine which is found, upon examination by any Authorized Tecumseh Servicing Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP. This Limited Warranty DOES NOT COVER (i) any Tecumseh engine or part(s) thereof used to power any vehicle in competit ive racing and/or used on any commercial or ren tal track, or (ii) defects or damage caused by alterations or modifications of new Tecumseh engines or parts or by nor mal wear, accidents, improper maintenance, improper use or abuse of the product, or failure to follow the instructions co ntained in an Instruction Manual for the operation of the new Tecumseh engine or part. The cost of normal maintenance or replacement of service items which are not defective shall be paid for by the original purchaser. At the time warranty service is requested, evidence must be presented of the date of purchase by the original purchaser. Any charge for making service calls and/or for transporting any engine or part(s) thereof to and from the place where the inspection and/or warranty work is performed is payable solely by the purchaser. The purchaser is responsible f or any damage or loss incurred in connection with the transportation of any engine or part(s) thereof su bmitted for inspection and/or warranty work. WARRANTY SERVICE CAN ONLY BE PERFORMED BY A TECUMSEH AUTHORIZED SERVICE OUTLET. Warranty service can be arranged by contacting a Tecumseh Authorized Service Outlet (any Tecumseh Regist ered Service Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor) or by contacting Tecumseh c/o Service Manager, 900 North Street, Grafton, Wisconsin 53024-1499.

“CONSUMER USE”

Warranty Within Outside Within Outside Category U.S.A. and Canada U.S.A. and Canada U.S.A. and Canada U.S.A. and Canada

(A) 90 Day 90 Day (B) 1 Year 1 Year (C) 2 Years 1 Year (D) 2 Years 2 Years (E) 2 Years 2 Years 1 Year 1 Year (H) 2 ‘n 10 (K) 2 ‘n 10

(7)

(M)

(1) 2 years for Member States of the European Union. Consumers may have additional legal rights not affected by the terms of this warranty pursuant to EU Directi ve

1999/44/EC and the national legislation of certain Member States of the European Union. (2) 1 year for Australian/New Zealand for rotary mower engines. (3) 2 years on engine and 10 years (the first 5 years covering parts and labor only; the second 5 years covering parts only) on electronic ignition. (4) For purposes of this warranty policy, “consumer use” shall mean consumer’s personal, residential, household use by the original retail purch aser. (5) For purposes of this warranty policy, “commercial use” shall mean all other uses, including use for commercial, income producing, or rental purposes. (6) The engine warranty category of your engine ca n be determined by review of the engine model number on the “Import ant Engine Information” decal. One letter in the

engine model number will be surrounded by parenthesis (A), (B), (C), (D), (E), (H) (K) or (M) and that lett er is your engine warranty category designation. (7) Qualification for three (3) year consumer use warranty under engine warranty category (M) may be determined by notation of an (M) designation on the “Important

Engine Information” decal located on the engine housing or an addendum decal affixed adjacent th ereto. THIS EXPRESS WARRANTY IS SUPPLEMENTED BY THE TECUMSEH CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT, if any. THIS EXPRESS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh nor any of its affiliates makes any warranties, re presentations, or

promises, written or oral, as to the quality of the engine or any of its parts, other than as set forth herein. ANY IMPLIED WARRANTY OF MARKETABILITY,

MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT THAT EITHER MAY APPLY TO ANY TECUMSEH ENGINE OR PART(S) THEREOF, SHALL BE LIMITED IN DURATION TO THE PERIODS OF THE EXPRESS WARRANTIES SHOWN IN THE WARRANTY PERIOD CHART ABOVE AND TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. IN NO EVENT WILL TECUMSEH BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES, INCLUDING, BUT NOT LIMITED TO, ANY LOSS OF TIME, INCONVENIENCE, LOSS OF UNIT USE OR ANY COST OR EXPENSE OF SUBSTITUTE UNITS DURING PERIODS OF MALFUNCTION OR NON-USE. Some states do not allow

limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s) may not apply to you. This Limited Warranty gives you specific legal rights and you may also have other legal rights which vary from state-to-state.

Tecumseh neither assumes nor authorizes any other person, natural or corporate , to assume for Tecumseh any other obligations or liabilities in connection with or with respect to any Tecumseh product or parts. The seller or dealer of a Tecumseh Product or part has no authority, whatsoever, to make any representations or promises on behalf of Tecumseh or to modify the terms or limitations of Tecumseh’s warranty in any way.

(3) (3)

3 Years 3 Yea rs 1 Year 1 Year

(4)

2 ‘n 10 2 ‘n 10

(1) (1) (1)

(2)

(3) (3)

“COMMERCIAL USE”

No Warranty No Warranty

1 Year 1 Year 1 Year 1 Year 1 Year 1 Year

1 Year 1 Year

(3)

2 ‘n 10

(5)

1 Year

Revised January, 2004

WARNING

CALIFORNIA PROPOSITION 65

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Tecumseh Power Company • Grafton, Wisconsin 53024-1499 • USA

Telephone: 1-800-558-5402

Visit us at: www.TecumsehPower.com

Tecumseh OV490EA Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

181-887-14

(English) 01/01/04

Notice Regarding Emissions

I. General Safety Precautions

A. Avoid Carbon Monoxide Poisoning

B. Avoid Gasoline Fires

D. Stay Away from Rotating Parts

E. Do Not Modify Engine

F. Avoid Burns and Fire from Hot Surfaces

Figure 1. Typical Flywheel Guard Location

Figure 2. Disconnecting/Connecting Spar k Plug

G. Avoid Accidental Starts

H. Use Hearing Protection

Figure 3. Typical Spark Plug Connection

II. How to Get Service

A. Engine Identification Decal

B. Tecumseh Technician’s Handbooks

III. Oil and Fuel Specifications

A. Oil

Figure 4. Engine Identification Label

Figure 5. Technician Handbook

Table 1. Recommended Engine Oil

B. Fuel

IV. Before Starting Your Engine

Table 2. Recommended Fuel

A. Checking Oil Level

Figure 6. Engine Oil Level

B. Filling Oil Sump

1. Be sure engine is upright and level.

6. Wipe away any spilled oil.

C. Filling Fuel Tank

1. Stop engine and allow it to cool before refueling.

3. Clean area around fuel fill cap and remove fuel fill cap.

1. Spark Plug

2. Spark Plug Cap

3. Spark Plug Wire

4. Air Intake Screen

5. Oil Fill Plug and Dipstick

6. Oil Filter (Optional)

7. Carburetor

Figure 7. Engine with Oil Fill Dipstick

V. Starting Your Engine

A. Engines with Electric Starters

Table 3. Engine Sections with Electric Starters

I. Combined Speed and Choke Control

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

Figure 8. Combined Speed and Choke Control

Figure 9. Typical Engine Symbols

4. When engine starts: a. Release starter button or ignition switch key. b. Next, move combined control to “FAST”. c. Finally, move combined control to desired speed in

6. If engine fails to start after 3 attempts with combined control in “FAST” position, move control to “CHOKE” position and push button or turn key to start engine again.

7. If engine does not start after following steps 1 thru 6, contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

II. Independent Speed and Choke Controls

1. To avoid carbon monoxide poisoning, make sure engine is outdoors in a well-ventilated area.

4. When engine starts:

c. Next, move choke control to “NO CHOKE” position.

Figure 10. Independent Speed and Choke Controls

1. No Choke

2. 1/ 2 Ch ok e

3. Full Choke

Figure 11. Choke Control Positions

1. No Choke

2. 1/ 2 Ch ok e

3. Full Choke

Figure 12. Engine Mounted Choke Lever

B. Engines with Recoil Starters

Table 4. Engine Sections with Recoil Starters

I. Combined Speed and Choke Control

3. Grasp starter cord hand l e. Se e Fig ur e 15.

c. Return rope slowly to original position.

4. When engine starts:

Figure 13. Combined Speed and Choke Control

Figure 14. Ty pical Engine Symbols

Figure 15. Recoil Starter

5. If engine fails to start after 3 attempts with combined control in the “FAST” position, move combined control to “FULL CHOKE” position and pull the starter rope again.

6. If engine does not start after following steps 1 thru 5, contact your Authorized Tecumseh Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

II. Independent Speed and Choke Controls
