Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

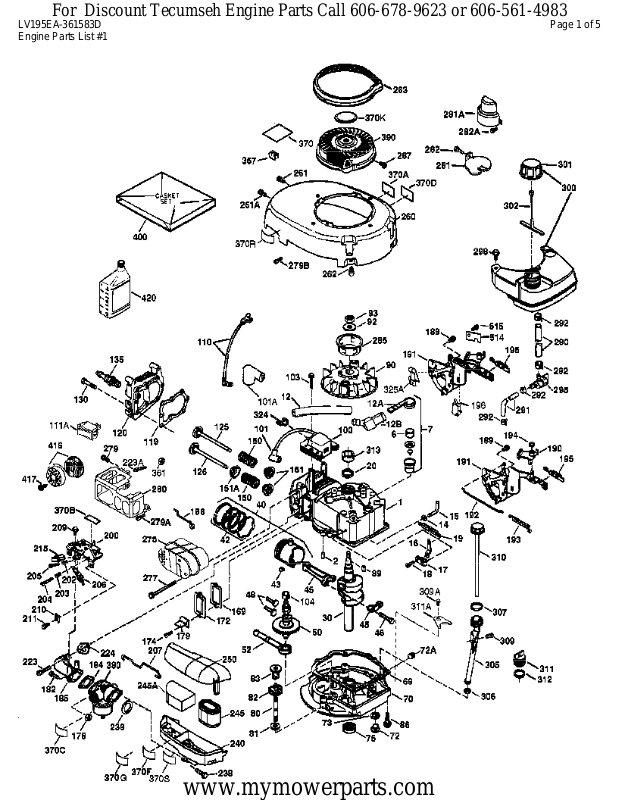

LV195EA-361583D Page 1 of 5
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LV195EA-361583D Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 37465 Cylinder (Incl. 2, 20 & 150)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12B 36694 Breather Tube Elbow1
12 37944 Breather Tube1
12A 36558 Breather Cover & Tube (Incl. 12B)1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, T-15, 8-32 x 19/64"1
19 37329 Extension Spring1
20 32600 Oil Seal1
30 37459 Crankshaft1
40 40044 Piston, Pin & Ring Set (Std.)1
40 40045 Piston, Pin & Ring Set ((.010" OS)1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40043 Piston & Pin As'y. (.010" OS)(Incl.43 )1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 37460 Camshaft Exhaust(MCR)(Incl. 104)1
52 29914 Oil Pump Ass'y.1
69 37797 * Mounting Flange Gasket1
70 37608 Mounting Flange (Incl. 72-83,306,309A & 311A)1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611298 Flywheel Key1
90 611213 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443C Solid State Ignition1
101A 611283 Spark Plug Shield1
101 610118 Spark Plug Cover1
103 651007 Screw, T-15, 10-24 x 15/16"2
104 37480 Cam Bushing1
110 37574 Wire Ass'y1
119 37796 * Cylinder Head Gasket1
120 37714 Cylinder Head1
125 37288 Exhaust Valve (Std.) (Incl. 151)1
125 36780 Exhaust Valve (1/32" OS) (Incl. 151)1
126 37289 Intake Valve (Std.)(Incl. 151 & 151A)1
130 6021A Screw, 5/16-18 x 1-7/16"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151A 40017 Intake Valve Seal1
151 31673 Valve Spring Cap2
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LV195EA-361583D Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
179 30593 Retainer Clip1
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 37466 Intake Pipe1
186 36255 Governor Link1
189 650356 Screw, T-30, 1/4-20 x 3/8"1
200 37134 Control Bracket1
206 610973 Terminal1
207 36200B Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
223A 651074 Intake Pipe Stud1
223 650451 Screw, 1/4-20 x 1"1
224 36786 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover1
260 37213A Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 37498 Muffler1
277 650988 Screw, 1/4-20 x 2-9/32"2
279 650737 Screw, 1/4-20 x 1/2"1
279A 650765 Screw, 10-32 x 1/2"1
279B 651075 Lock Nut, 10-241
280 37499 Heat Shield1
281 37211 Starter Bubble Cover1
282 650926 Screw, 8-32 x 21/64"1
285 35287C Starter Cup1
287 650926 Screw, 8-32 x 21/64"4
290 29774 Fuel Line1
292 26460 Fuel Line Clamp2
300 37947 Fuel Tank (Incl. 290, 292 & 301)1
301 37844 Fuel Cap Ass'y1
305 35647A Oil Fill Tube (Incl. 306)1
306 37610 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
309A 650783 Screw, 10-24 x 3/4"1
310 35648 Dipstick1
311A 37611 Hold Down Bracket1
313 34080 Spacer1
359 36773 Blower Housing Guard1
370C 37318 Primer Decal (3X)1
371D 37849 Caution Decal1
380 640315 Carburetor (Incl. 184)1
390 590766 Rewind Starter1
400 37814A * Gasket Set (Incl. items marked PK i n notes)1
416 37530 Spark Arrestor Muffler Kit (Optional)1
420 730225A SAE 30, 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LV195EA-361583D Page 4 of 5
Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LV195EA-361583D Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 37329 Extension Spring1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40043 Piston & Pin As'y. (.010" OS)(Incl.43 )1
69 37797 * Mounting Flange Gasket1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611213 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 37466 Intake Pipe1
186 36255 Governor Link1
223 650451 Screw, 1/4-20 x 1"1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 36919 Air Cleaner Collar1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover1
260 37213A Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
300 37947 Fuel Tank (Incl. 290, 292 & 301)1
301 37844 Fuel Cap Ass'y1
359 36773 Blower Housing Guard1
371D 37849 Caution Decal1
416 37530 Spark Arrestor Muffler Kit (Optional)1
www.mymowerparts.com
