LEV90-334016A Page 1 of 5
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV90-334016A Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 37791 Cylinder (Incl. 2 & 20)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12 36775 Breather Tube1
12B 36694 Breather Tube Elbow1
12A 36558 Breather Cover & Tube1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, T-15, 8-32 x 19/64"1
19 33578 Extension Spring1
20 32600 Oil Seal1
30 37804 Crankshaft1
40 40053 Piston, Pin & Ring Set (Std.)1
41 40051 Piston & Pin Ass'y. (Std.) (Incl. 43)1
42 40022 Ring Set (Std.)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 37575 Camshaft (NCR)(Incl. 104)1
52 29914 Oil Pump Ass'y.1
69 37609 * Mounting Flange Gasket1
70 37608 Mounting Flange (Incl. 72 thru 83,306 ,309A & 311A)1
72 37614 Oil Drain Plug1
72A 28534 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443C Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, T-15, 10-24 x 15/16"2
104 37480 Cam Bushing1
110 37047 Ground Wire1
119 37755 * Cylinder Head Gasket1
120 37807 Cylinder Head1
125 37806 Exhaust Valve (Std.) (Incl. 151)1
126 37805 Intake Valve (Std.) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151A 40016A Intake Valve Seal1
151 31673 Valve Spring Cap2
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV90-334016A Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
185 37794 Intake Pipe1
186 32653 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"2
191 36559A S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
207 34336A Throttle Link1
216 33086 R.P.M. Adjusting Lever1
223 650451 Screw, 1/4-20 x 1"2
224 37793 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
260 36980B Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 37498 Muffler1
277 650988 Screw, 1/4-20 x 2-5/16"2
279 28763 Screw, 10-32 x 39/64"2
280 37717 Heat Shield1
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 29774 Fuel Line1
292 26460 Fuel Line Clamp2
300 36916 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35647A Oil Fill Tube (Incl. 306)1
306 37610 "O" Ring1
307 35499 "O" Ring1
309A 650783 Screw, 10-24 x 3/4"1
309 650562 Screw, 10-32 x 1/2"1
310 35648 Dipstick1
311A 37611 Hold Down Bracket1
313 34080 Spacer1
370 37269 Name Decal1
370K 36695 Starter Decal1
370C 37318 Primer Decal (3X)1
380 640339 Carburetor (Incl. 184)1
390 590737 Rewind Starter (NOTE: This engine could hav e been built
1
with 590694 starter.)
400 37809 * Gasket Set (Incl. items marked PK i n notes)1
900 750884 Rep. Engine, order from 71-9991
900 750885 Rep. Short Block, order from 71-9991
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV90-334016A Page 4 of 5

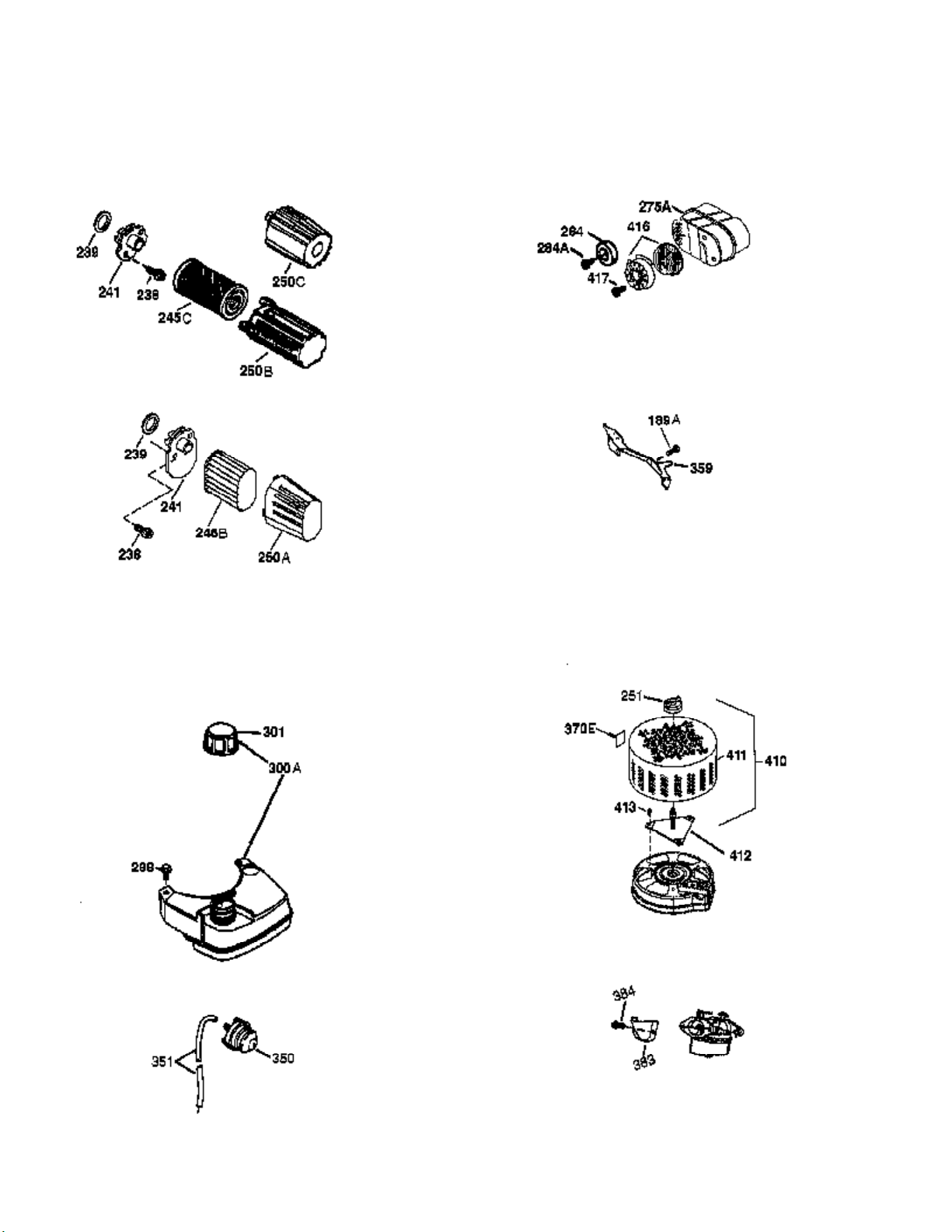

Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV90-334016A Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 35797 Air Cleaner Collar1
250B 35065 Air Cleaner Cover (Craftsman)1
275A 36838A Spark Arrestor Muffler (Optional) (Incl. 284,284A,416 & 417)1
284A 650821 Screw, 10-32 x 1/2" (Optional)1
284 36663 Muffler Deflector (Incl. 284A)(Option al)1
298 28763 Screw, 10-32 x 39/64"3
301 36246 Fuel Cap1
370 37269 Name Decal1
416 37530 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650821 Screw, 10-32 x 1/2" (Optional)1
900 750884 Rep. Engine, order from 71-9991
900 750885 Rep. Short Block, order from 71-9991
