LEV120-362040B Page 1 of 6

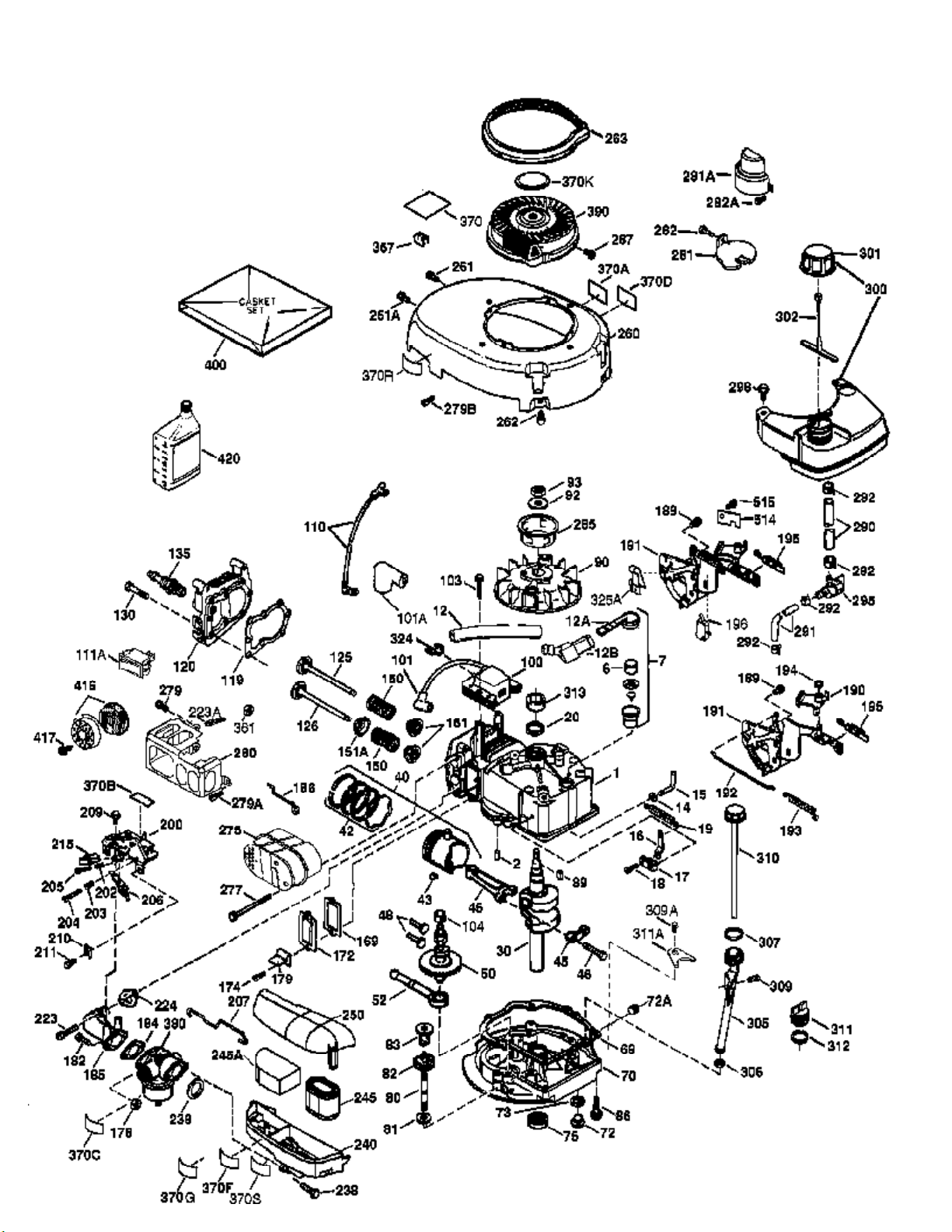

Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362040B Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 37674 Cylinder (Incl. 2,20 & 150)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube (Incl. 12B)1
12 37944 Breather Tube1
12B 36694 Breather Tube Elbow1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, T-15, 8-32 x 19/64"1
19 36281 Extension Spring1
20 32600 Oil Seal1
30 37507 Crankshaft1
40 40027 Piston, Pin & Ring Set (Std.)1
40 40044 Piston, Pin & Ring Set (.010" OS)1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40043 Piston & Pin Ass'y. (.010" OS)(Incl.4 3)1
42 40006 Ring Set (Std.)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 37460 Camshaft (Exhaust MCR)(Incl. 104)1
52 29914 Oil Pump Ass'y.1
69 37797 Mounting Flange Gasket1
70 37639 Mounting Flange (Incl. 72-83,306,309A & 311A)1
72A 28534 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611298 Flywheel Key1
90 611299 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443C Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, T-15, 10-24 x 15/16"2
104 37480 Cam Bushing1
110 37047 Ground Wire1
110 37574 Ground Wire1
119 37796 * Cylinder Head Gasket1
120 37714 Cylinder Head1
125 37288 Exhaust Valve (Std.) (Incl. 151)1
126 37289 Intake Valve (Std.)(Incl. 151 & 151A)1
130 6021A Screw, 5/16-18 x 1-7/16"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362040B Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
179 30593 Retainer Clip1
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 37466 Intake Pipe1
186 34337 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"2
191 36559A S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
200 35727 Control Bracket (Incl. 202 thru 206)1
202 36482 Compression Spring1
203 31342 Conpression Spring1
204 651029 Screw, T-10, 5-40 x 7/16"1
205 651019 Screw, T-10, 6-32 x 421/64"1
206 610973 Terminal1
207 34336A Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
215 32410 Control Knob1
223A 651074 Intake Pipe Mounting Stud1
223 650451 Screw, 1/4-20 x 1"1
224 36786 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
250 35986 Air Cleaner Cover1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"1
262 650831 Screw, 1/4-20 x 1/2"2
275 37498 Muffler1
277 650988 Screw, 1/4-20 x 2-9/32"2
279B 30200 Screw, 10-24 x 9/16"1
279 650737 Screw, 1/4-20 x 1/2"1
280 37499 Heat Shield1
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 29774 Fuel Line1
292 26460 Fuel Line Clamp2
300 37947 Fuel Tank (Incl. 292 & 301)1
301 37844 Fuel Cap1
305 35647 Oil Fill Tube (Incl. 306)1
306 37610 * "O"-Ring1
307 35499 "O"-Ring1
309A 650783 Screw, 10-24 x 3/4"1
309 650562 Screw, 10-32 x 1/2"1
310 35648 Dipstick1
311A 37611 Hold Down Bracket1
313 34080 Spacer1
324 33177 Terminal1
361 651075 Lock Nut1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
370C 37318 Primer Decal (3X)1
370B 35169 Control Decal (ISO)1
380 640303 Carburetor (Incl. 184)1
390 590737 Rewind Starter (NOTE: This engine could hav e been built
1
with 590694 starter.)
400 37814A * Gasket Set (Incl. items marked PK i n notes)1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362040B Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225A SAE 30 4-Cycle Engine Oil (Quart)1
514 36458A Brake Lock Out Device (Incl. 515) WARNING!Do not use the
515 650926 Screw, 8-32 x 21/64"1
1
brake lock out device on engines required to meet CPSC
safety standard for walkbehind power lawnmowers, Title 16,
Part 1205 of the code of Federal Regulations or you will be in
violation of the law.
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362040B Page 5 of 6

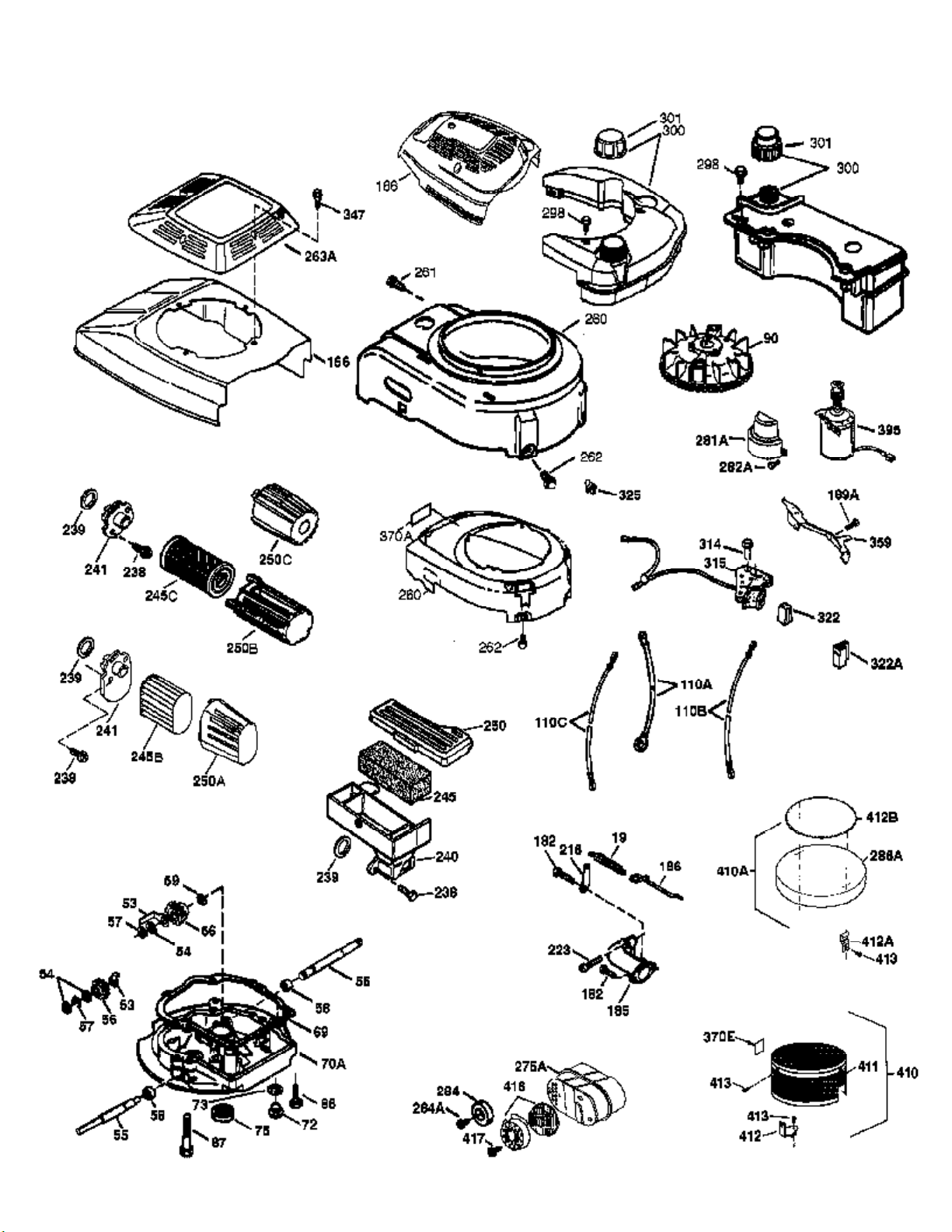

Engine Parts List #2
www.mymowerparts.com
Page 6
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362040B Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
19 36281 Extension Spring1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40043 Piston & Pin Ass'y. (.010" OS)(Incl.4 3)1
69 37797 Mounting Flange Gasket1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611299 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 37466 Intake Pipe1
186 34337 Governor Link1
223 650451 Screw, 1/4-20 x 1"1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 35797 Air Cleaner Collar1
245 35066 Air Cleaner Filter1
250 35986 Air Cleaner Cover1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"1
262 650831 Screw, 1/4-20 x 1/2"2
300 37947 Fuel Tank (Incl. 292 & 301)1
301 37844 Fuel Cap1
370A 36261 Lubrication Decal1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
