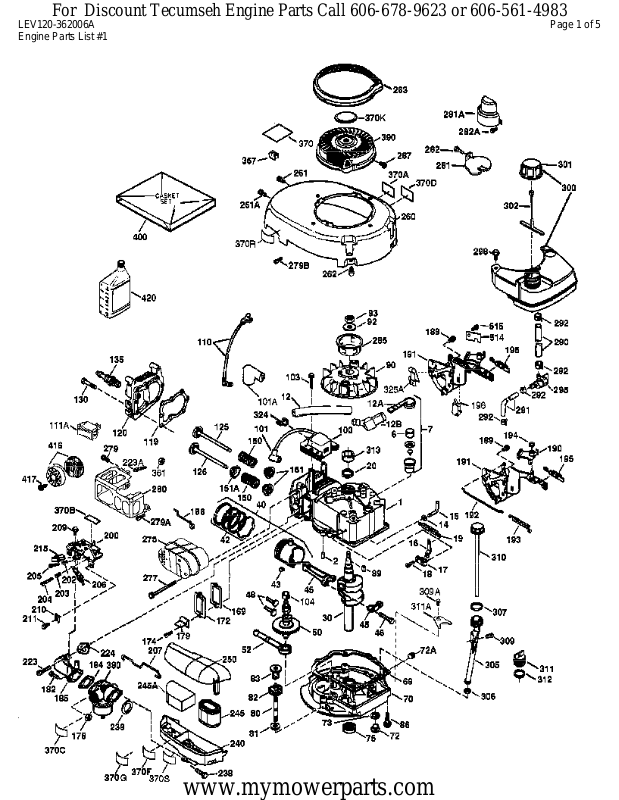

Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362006A Page 1 of 5
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362006A Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 37465 Cylinder (Incl. 2, 20 & 150)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube (Incl. 12B)1
12 36775 Breather Tube1
12B 36694 Breather Tube Elbow1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, T-15, 8-32 x 19/64"1
19 36281 Extension Spring1
20 32600 Oil Seal1
30 37692 Crankshaft1
40 40027 Piston, Pin & Ring Set (Std.)1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
42 40006 Ring Set (Std.)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 37460 Camshaft (Exhaust MCR)(Inc. 104)1
52 29914 Oil Pump Ass'y.1
69 37609 * Mounting Flange Gasket1
70 37608 Mounting Flange (Incl. 72-83,306,309A & 311A)1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 37787 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443C Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, T-15, 10-24 x 15/16"2
104 37480 Cam Bushing1
110 37047 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 37714 Cylinder Head1
125 37288 Exhaust Valve (Std.) (Incl. 151)1
125 36780 Exhaust Valve (1/32" OS) (Incl. 151)1
126 37289 Intake Valve (Std.)(Incl. 151 & 151A)1
130 6021A Screw, 5/16-18 x 1-7/16"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362006A Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
185 37466 Intake Pipe1
186 32653 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"2
191 36559A S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
196 35035 Power Restart Switch1
207 34336A Throttle Link1
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover1
260 37693A Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 37498 Muffler1
277 650988 Screw, 1/4-20 x 2-9/32"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 29774 Fuel Line (4.88")1
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 35/64"2
300 35586A Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap Ass'y1
305 35647 Oil Fill Tube1
306 37610 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
309A 650783 Screw, 10-24 x 3/4"1
310 35648 Dipstick1
311A 37611 Hold Down Bracket1
313 34080 Spacer1
325B 29443 Wire Clip1
325A 37152 Wire Clip1
361 650831 Screw, 1/4-20 x 1/2"2
370A 36261 Lubrication Decal2
370C 37695 Primer Decal (3X)1
370D 35977 Warning Decal1
380 640303 Carburetor (Incl. 184)1
390 590739 Rewind Starter (NOTE: This engine could hav e been built
1
with 590702 starter)
400 37613 * Gasket Set (Incl. items marked PK i n notes)1
416 37530 Spark Arrestor Kit (Optional)1
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362006A Page 4 of 5
Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-362006A Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 36281 Extension Spring1
41 40042 Piston & Pin Ass'y. (Std.) (Incl. 43)1
69 37609 * Mounting Flange Gasket1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 37787 Flywheel1
110A 36953 Wire Ass'y1
110B 36954 Wire Ass'y1
166 37813 Engine Shroud (Green)1
182 6201 Screw, 1/4-28 x 7/8"2
185 37466 Intake Pipe1
186 32653 Governor Link1
216 33086 R.P.M. Adjusting Lever1
223 650451 Screw, 1/4-20 x 1"2
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 36919 Air Cleaner Collar1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover1
260 37693A Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
298 28763 Screw, 10-32 x 35/64"2
300 35586A Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap Ass'y1
325 35249 Wire Clip1
325B 29443 Wire Clip1
347 650898A Screw, 10-32 x 27/32"4
370A 36261 Lubrication Decal2
395 35709 Electric Starter Motor (12 Volt)1
416 37530 Spark Arrestor Kit (Optional)1
www.mymowerparts.com
