Tecumseh LEV120-361041B Parts Manuals

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

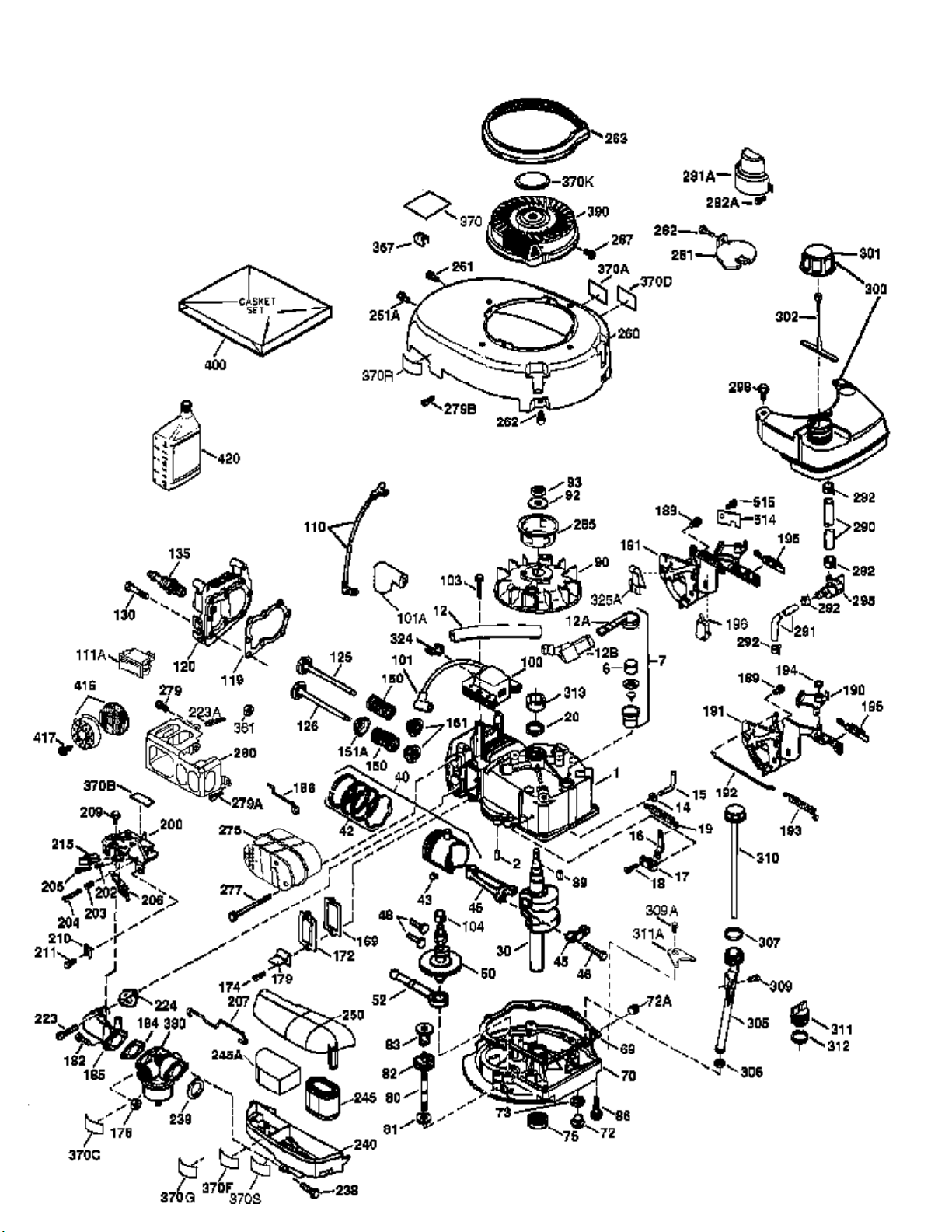

LEV120-361041B Page 1 of 5 Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361041B Page 2 of 5 Engine Parts List #1
Ref # Part Number Qty Description
1 37266 Cylinder (Incl. 2,20 & 150)1 2 26727 Dowel Pin2 6 33734 Breather Element1 7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube (Incl. 12B)1
12 36775 Breather Tube1
12B 36694 Breather Tube Elbow1
14 28277 Washer1 15 30589 Governor Rod (Incl. 14)1 16 34839A Governor Lever1 17 31335 Governor Lever Clamp1 18 651018 Screw, Torx T-15, 8-32 x 19/64"1 19 36281 Extension Spring1 20 32600 Oil Seal1 30 34570A Crankshaft1 40 40027 Piston, Pin & Ring Set (Std.)1 40 40028 Piston, Pin & Ring Set (.010" OS)1 41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1 41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1 42 40006 Ring Set (Std.)1 42 40007 Ring Set (.010" OS)1 43 20381 Piston Pin Retaining Ring2 45 36777 Connecting Rod Ass'y. (Incl. 46)1 46 32610A Connecting Rod Bolt2 48 27241 Valve Lifter2 50 36778 Camshaft (MCR)1 52 29914 Oil Pump Ass'y.1 69 35261 * Mounting Flange Gasket1 70 34311E Mounting Flange (Incl. 72 thru 83,306 )1 72 30572 Oil Drain Plug (Incl. 73)1 73 28833 Drain Plug Gasket1 75 27897 Oil Seal1 80 30574A Governor Shaft1 81 30590A Washer1 82 30591 Governor Gear Ass'y. (Incl. 81)1 83 30588A Governor Spool1 86 650488 Screw, 1/4-20 x 1-1/4"6 89 611004 Flywheel Key1 90 611112 Flywheel1 92 650815 Belleville Washer1
93 650816 Flywheel Nut1 100 34443B Solid State Ignition1 101 610118 Spark Plug Cover1 103 651007 Screw, Torx T-15, 10-24 x 15/16"2 110 37047 Ground Wire1 119 36787 * Cylinder Head Gasket1 120 36825 Cylinder Head1 125 37288 Exhaust Valve (Std.) (Incl. 151)1 126 37289 Intake Valve (Std.) (Incl. 151)1 130 6021A Screw, 5/16-18 x 1-1/2"8 135 35395 Resistor Spark Plug (RJ19LM)1 150 31672 Valve Spring2
151A 40017 Intake Valve Seal1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361041B Page 3 of 5 Engine Parts List #1
Ref # Part Number Qty Description
370A 36261 Lubrication Decal1 370R 37317 Warning Decal1 370C 37199 Primer Decal1
1
with 590702 starter).
400 36792B * Gasket Set (Incl. items marked PK i n notes). Incl. Part
1
#'s 26756 (1), 28833 (1), 34338 (1), 36783 (1), 36786 (1), 36787 (1), 36832 (1), 36996 (1), 37130 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

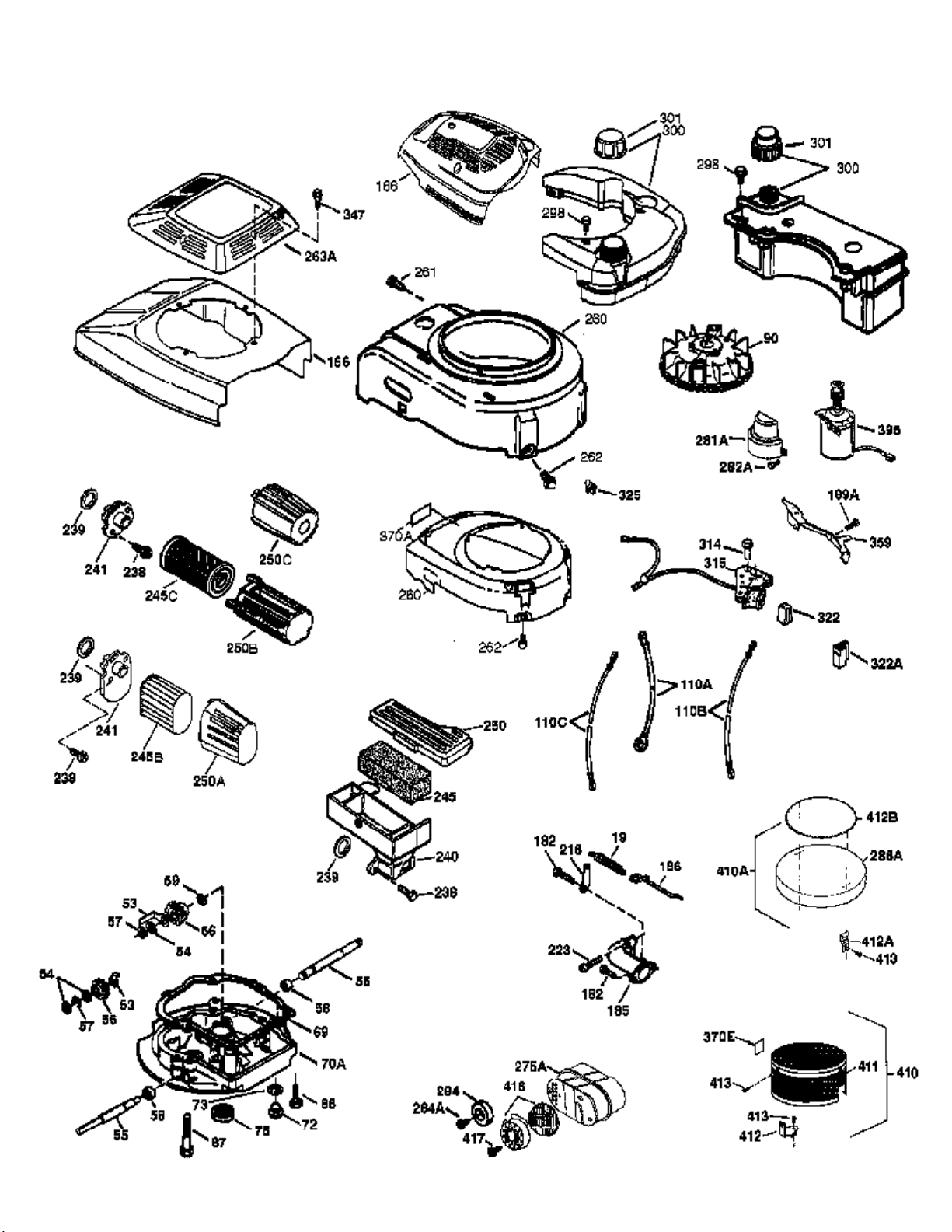

LEV120-361041B Page 4 of 5 Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361041B Page 5 of 5 Engine Parts List #2
Ref # Part Number Qty Description
19 36281 Extension Spring1
41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 35261 * Mounting Flange Gasket1
72 30572 Oil Drain Plug (Incl. 73)1
73 28833 Drain Plug Gasket1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611112 Flywheel1 182 6201 Screw, 1/4-28 x 7/8"2 185 36785 Intake Pipe1 186 32653 Governor Link1 216 33086 R.P.M. Adjusting Lever1 223 650451 Screw, 1/4-20 x 1"2 238 650932 Screw, 10-32 x 49/64"2 239 34338 * Air Cleaner Gasket1 241 36919 Air Cleaner Collar1 245 36905 Air Cleaner Filter1 250 36920 Air Cleaner Cover1 260 36980 Blower Housing1 261 30200 Screw, 10-24 x 9/16"2 262 650831 Screw, 1/4-20 x 1/2"2
263A 37184 Starter Grill1
370A 36261 Lubrication Decal1
