For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350112C Page 1 of 5
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350112C Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 36774 Cylinder (Incl. 2 & 20)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 36796 Extension Spring1
20 32600 Oil Seal1
30 36776 Crankshaft1
40 40004 Piston, Pin & Ring Set (Std.)1
40 40005 Piston, Pin & Ring Set (.010" OS)1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 36778 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 35261 * Mounting Flange Gasket1
70 36995 Mounting Flange (Incl. 72 thru 83)1
72 30572 Oil Drain Plug (Incl. 73)1
73 28833 Drain Plug Gasket1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611044 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 37047 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 36825 Cylinder Head1
125 36779 Exhaust Valve (Std.) (Incl. 151)1
126 36781 Intake Valve (Std.) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 35991 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350112C Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
185 36785 Intake Pipe1
186 36255 Governor Link1
189 650831 Screw, 1/4-20 x 1/2"2
191 36559 S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
196 35035 Power Restart Switch1
200 35999A Control Bracket (Incl. 206)1
206 610973 Terminal1
207 36200 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 37219 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 36790 Muffler1
277 650988 Screw, 1/4-20 x 2-5/16"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 35/64"2
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35577 Oil Fill Tube1
306 36996 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
310 35578 Dipstick1
313 34080 Spacer1
370C 37199 Primer Decal1
370D 35977 Caution Decal1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal2
380 640029 Carburetor (Incl. 184)1
390 590737 Rewind Starter (NOTE: This engine could hav e been built
1
with 590694 starter).
400 36792B * Gasket Set (Incl. items marked PK i n notes). Incl. Part
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
1
#'s 26756 (1), 28833 (1), 34338 (1), 36783 (1), 36786 (1),
36787 (1), 36832 (1), 36996 (1), 37130 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350112C Page 4 of 5

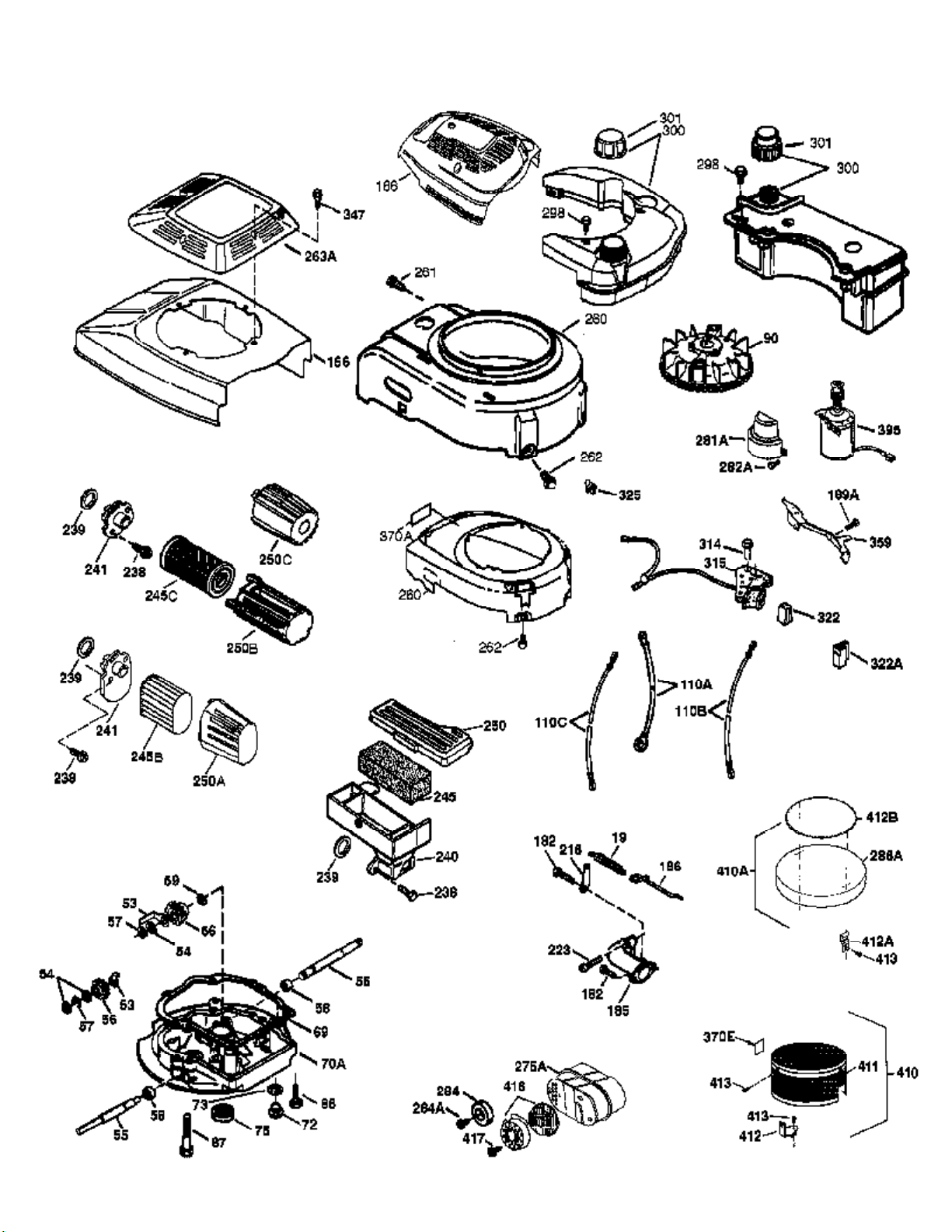

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350112C Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 36796 Extension Spring1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 35261 * Mounting Flange Gasket1
72 30572 Oil Drain Plug (Incl. 73)1
73 28833 Drain Plug Gasket1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611044 Flywheel1
110B 36954 D.C. Starter Wire1
110A 36953 Ground Wire1
182 6201 Screw, 1/4-28 x 7/8"2
185 36785 Intake Pipe1
186 36255 Governor Link1
223 650451 Screw, 1/4-20 x 1"2
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 37219 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
263A 36758 Starter Grill1
298 28763 Screw, 10-32 x 35/64"2
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
314 650767 Screw, 8-32 x 27/64"2
315 36952 Alternator Coil1
322A 610885 Connector Body1
322 35013 Connector Body1
325 35249 Spring Clip1
370A 36261 Lubrication Decal2
395 35709 Electric Starter Motor (12 Volt)1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
