LEV115-350099D Page 1 of 5

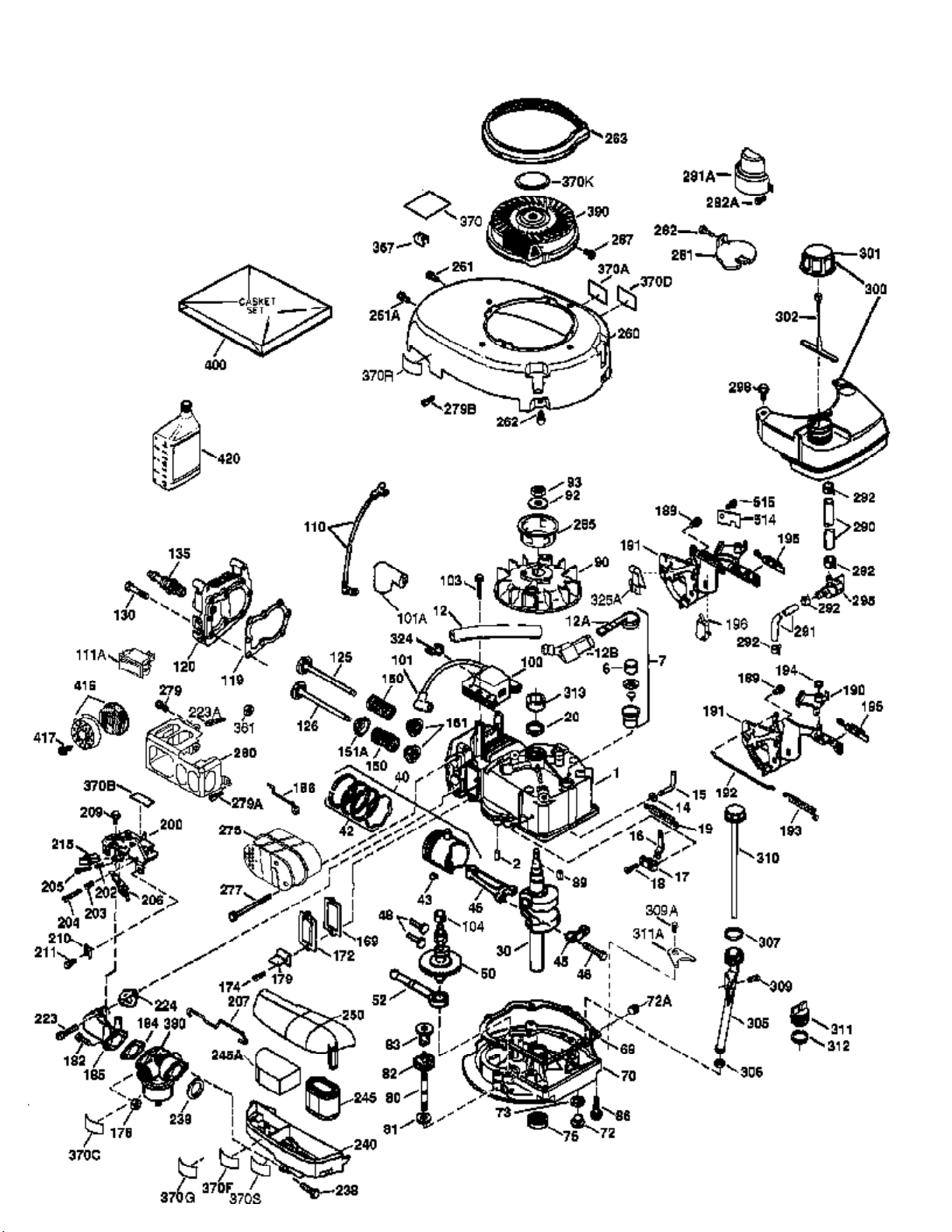

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350099D Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 37266 Cylinder (Incl. 2,20 & 150)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 36281 Extension Spring1
20 32600 Oil Seal1
30 37207 Crankshaft1
40 40004 Piston, Pin & Ring Set (Std.)1
40 40005 Piston, Pin & Ring Set (.010" OS)1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 36778 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 35261 * Mounting Flange Gasket1
70 34311E Mounting Flange (Incl. 72 thru 83,306 )1
72 36083 Oil Drain Plug1
72A 28534 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 36230 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 36788 Cylinder Head1
125 37288 Exhaust Valve (Std.) (Incl. 151)1
126 37289 Intake Valve (Std.) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
179 30593 Retainer Clip1
182 6201 Screw, 1/4-28 x 7/8"2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350099D Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
184 26756 * Carburetor To Intake Pipe Gasket1
185 36785 Intake Pipe1
186 34337 Governor Link1
200 33131A Control Bracket (Incl. 202 thru 206)1
202 36482 Compression Spring1
203 31342 Compression Spring1
204 651029 Screw, Torx T-10, 5-40 x 7/16"1
205 651019 Screw, Torx T-10, 6-32 x 41/64"1
206 610973 Terminal1
207 34336 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 37189 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 36790 Muffler1
277 650988 Screw, 1/4-20 x 2-5/16"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 35/64"3
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35577 Oil Fill Tube1
306 36996 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
310 35578 Dipstick1
313 34080 Spacer1
370C 37199 Primer Decal1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
380 640029 Carburetor (Incl. 184)1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
1
with 590738 starter).
400 36792B * Gasket Set (Incl. items marked PK i n notes). Incl. Part
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650821 Screw, 10-32 x 1/2" (Optional)1
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
1
#'s 26756 (1), 28833 (1), 34338 (1), 36783 (1), 36786 (1),
36787 (1), 36832 (1), 36996 (1), 37130 (1).
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350099D Page 4 of 5
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350099D Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 36281 Extension Spring1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 35261 * Mounting Flange Gasket1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611112 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 36785 Intake Pipe1
186 34337 Governor Link1
223 650451 Screw, 1/4-20 x 1"2
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 37189 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
284 34422 Muffler Deflector1
284A 650760 Screw, 8-32 x 3/8"1
298 28763 Screw, 10-32 x 35/64"3
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
370A 36261 Lubrication Decal1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650821 Screw, 10-32 x 1/2" (Optional)1
