LEV115-350022B Page 1 of 5

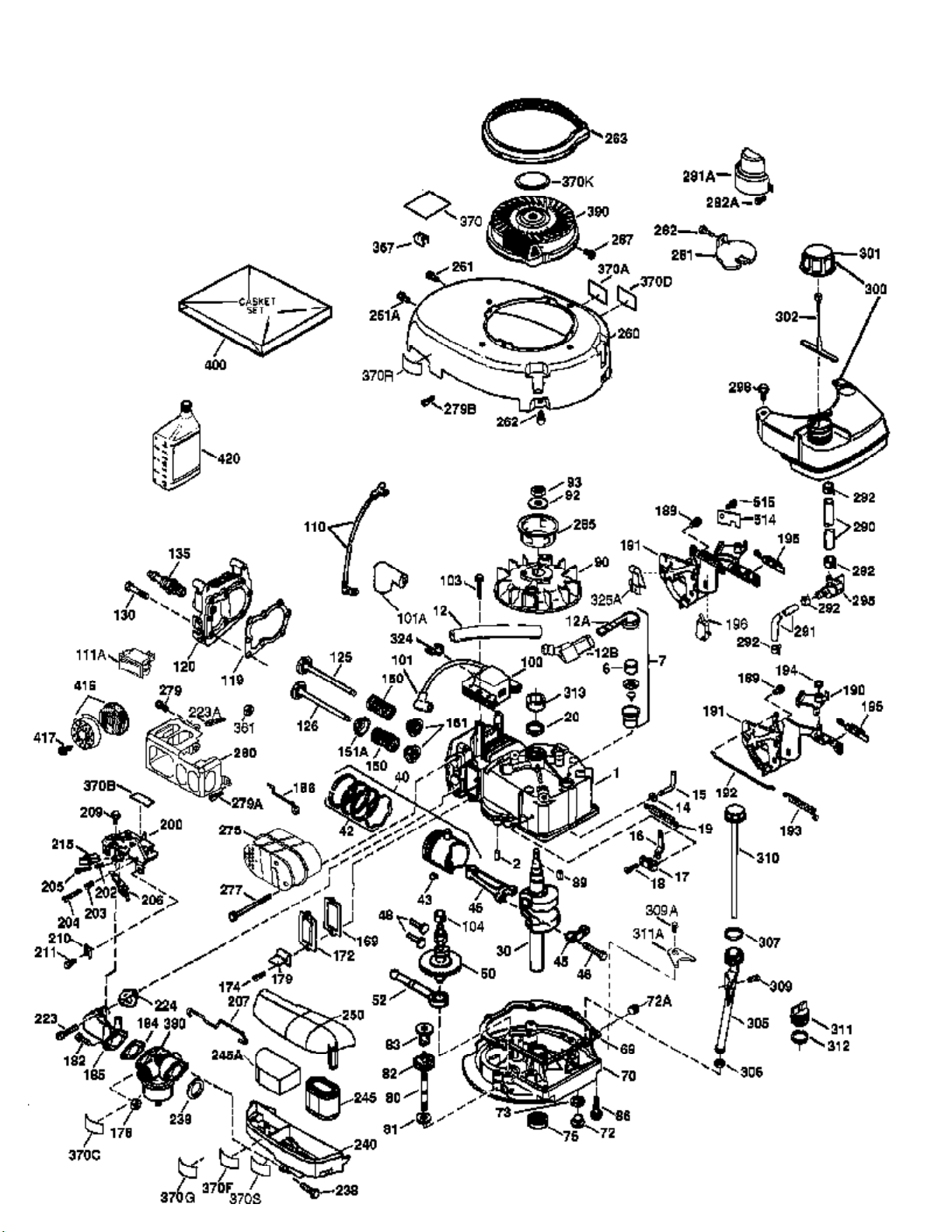

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350022B Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 36774 Cylinder (Incl. 2 & 20)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube (Incl. 12B)1
12 36775 Breather Tube1
12B 36694 Breather Tube Elbow1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 36281 Extension Spring1
20 32600 Oil Seal1
30 36836 Crankshaft1
40 40004 Piston, Pin & Ring Set (Std.)1
40 40005 Piston, Pin & Ring Set (.010" OS)1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 36778 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 35261 Mounting Flange Gasket1
70 32612C Mounting Flange (Incl. 72 thru 83)1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 34961 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 36825 Cylinder Head1
125 36779 Exhaust Valve (Std.) (Incl. 151)1
125 36780 Exhaust Valve (1/32" OS) (Incl. 151)1
126 36781 Intake Valve (Std.) (Incl. 151)1
126 36782 Intake Valve (1/32" OS) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 35991 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350022B Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 36785 Intake Pipe1
186 32653 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"2
191 36559 S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
207 34336 Throttle Link1
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 35066 Air Cleaner Filter1
250 35986 Air Cleaner Cover1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 36790 Muffler1
277 650988 Screw, 1/4-20 x 2-5/16"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
311 27625 Oil Fill Plug1
313 34080 Spacer1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
380 640026 Carburetor (Incl. 184)1
390 590694 Rewind Starter (NOTE: This engine could hav e been built
1
with 590737 starter).
400 36792 * Gasket Set (Incl. items marked PK i n notes). Incl. Part
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
1
#'s 26756 (1), 28833 (1), 36832 (1), 34338 (1), 35261 (1),
36783 (1), 36786 (1), 36787 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350022B Page 4 of 5

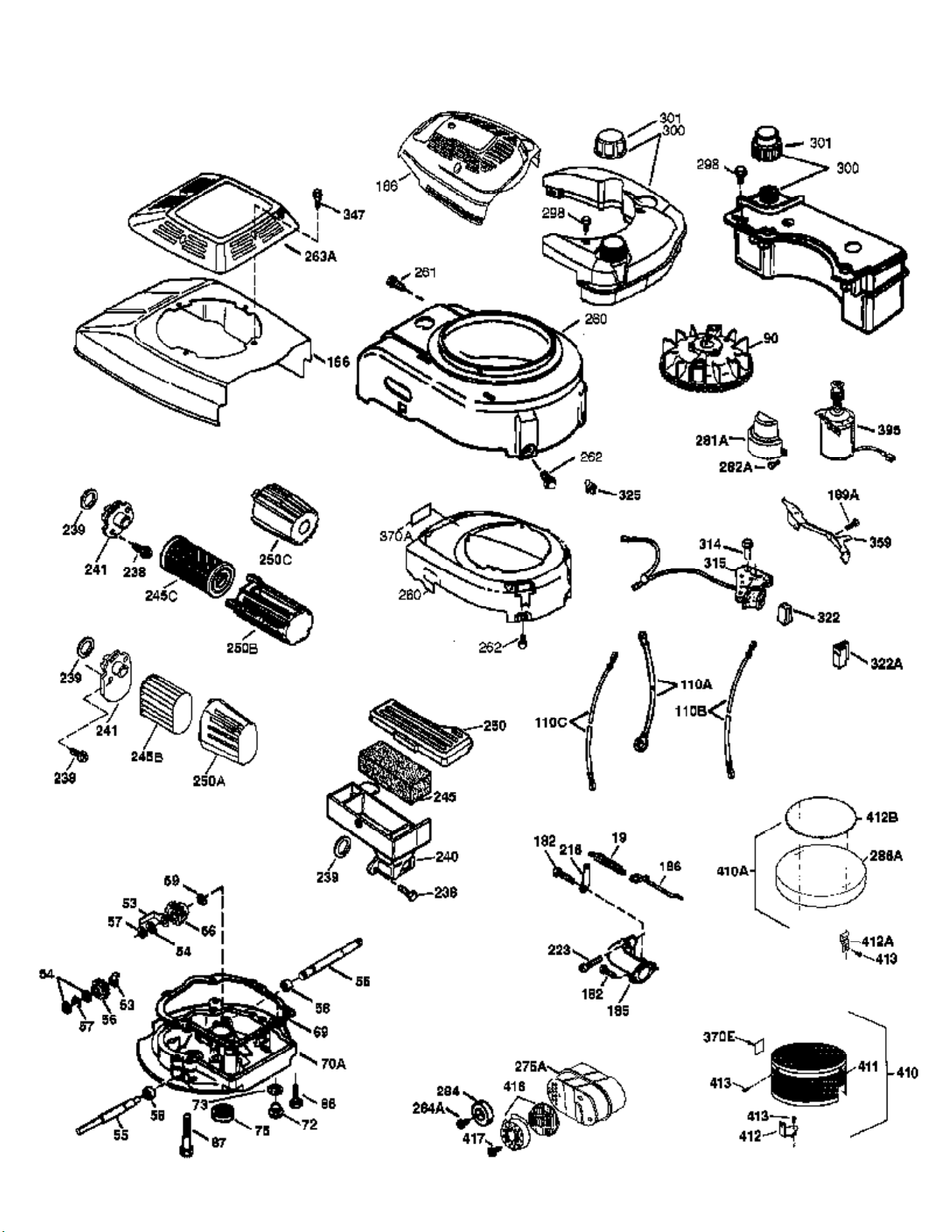

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV115-350022B Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 36281 Extension Spring1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 35261 Mounting Flange Gasket1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611112 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 36785 Intake Pipe1
186 32653 Governor Link1
216 33086 R.P.M. Adjusting Lever1
223 650451 Screw, 1/4-20 x 1"2
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 35797 Air Cleaner Collar1
245 35066 Air Cleaner Filter1
250 35986 Air Cleaner Cover1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
370A 36261 Lubrication Decal1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
