Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

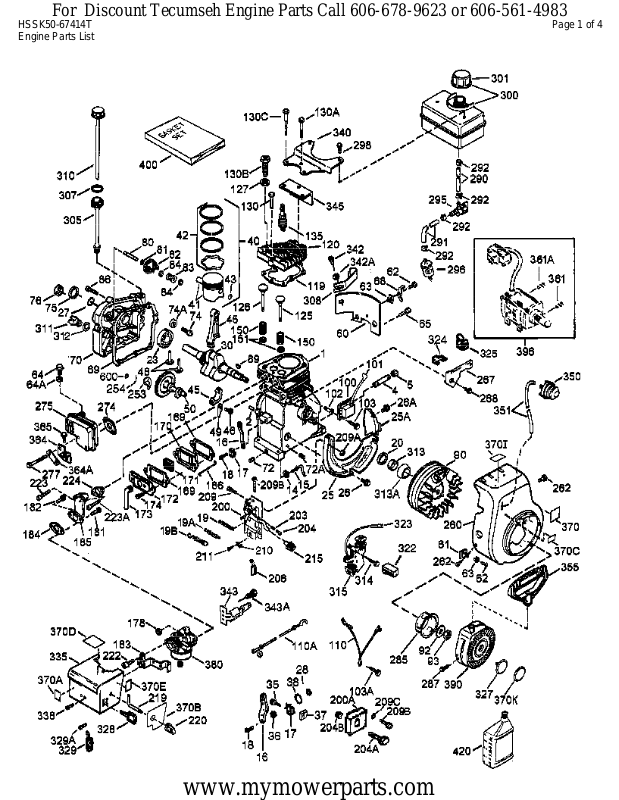

HSSK50-67414T Page 1 of 4
Engine Parts List
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HSSK50-67414T Page 2 of 4
Engine Parts List
Ref # Part Number Qty Description
1 36469A Cylinder (Incl. 2,20,72 & 125)1
2 26727 Dowel Pin2
14 28277 Washer1
15 31334 Governor Rod1
16 37729 Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, T-15, 8-32 x 19/64"1
19 30342 Extension Spring1
20 32600 Oil Seal1
25 36552 Blower Housing Baffle (Incl. 262)1
26 650802 Screw, 1/4-20 x 5/8"2
30 37681 Crankshaft1
40 36073 Piston, Pin & Ring Set (Std.)1
40 36074 Piston, Pin & Ring Set (.010" OS)1
40 36075 Piston, Pin & Ring Set (.020" OS)1
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 36072 Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 36076 Ring Set (Std.)1
42 36077 Ring Set (.010" OS)1
42 36078 Ring Set (.020" OS)1
43 20381 Piston Pin Retaining Ring2
45 32875A Connecting Rod Ass'y. (Incl. 46 & 49)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
49 32654 Oil Dipper1
50 33158 Camshaft (BCR)1
60 29745 Blower Housing Extension1
64 30063 Screw, T-30, 1/4-20 x 1/2"1
64A 8345 Washer1
65 650128 Screw, 10-24 x 1/2"1
69 27677A * Cylinder Cover Gasket1
70 34674C Cylinder Cover (Incl. 75 thru 83)1
72 27642 Oil Plug2
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Assembly (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"7
89 610961 Flywheel Key1
90 611199 Flywheel (W/Ring Gear)1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, T-15, 10-24 x 15/16"2
103A 650821 Screw, 10-32 x 1/2"1
110 37682 Ground Wire1
110A 37685 Ground Wire1
119 36443 * Cylinder Head Gasket1
120 37675 Cylinder Head (Incl. 131)1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS) (Incl. 151)1
126 32644A Intake Valve (Std.) (Incl. 151)1
127 650691 Washer2
130 6021A Screw, 5/16-18 x 1-1/2"2
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HSSK50-67414T Page 3 of 4
Engine Parts List
Ref # Part Number Qty Description
130B 650818 Screw, 5/16-18 x 1-1/2"1
130A 650694A Screw, 5/16-18 x 2"4
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
169 27234A * Valve Cover Gasket2
170 27666 Breather Body1
171 31410 Breather Element1
172 34146 Valve Cover1
173 35350 Breather Tube1
174 650783 Screw, 10-24 x 3/4"2
178 29752 Nut & Lock Washer, 1/4-28"2
181 650870 Screw, 1/4-28 x 1-11/16"1
182 6201 Screw, 1/4-28 x 7/8"1
183 34583A Choke Bracket1
184 26756 * Carburetor To Intake Pipe Gasket1
185 33691 Intake Pipe1
186 32698 Governor Link1
200A 30846 Governor Spring Adjust Bolt Bracket1
204A 30845A Speed Adjusting Bolt1
204B 651016 Nylon Nut1
209B 30200 Screw, 10-24 x 9/161
209C 650518 Lock Washer1
219 34582 Choke Rod1
222 28820 Screw, 10-32 x 1/2"2
223 650664 Screw, 1/4-20 x 1-19/32"2
224 33673A * Intake Pipe Gasket1
260 35656A Blower Housing1
262 650737 Screw, 1/4-20 x 1/2"2
274 33670A * Exhaust Gasket1
275 37684 Muffler (Incl. 274)1
277 792005 Screw, 1/4-20 x 2-27/64"2
285 36467A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 30705 Fuel Line1
292 26460 Fuel Line Clamp4
305 35554 Oil Fill Tube1
307 35499 O-ring1
308 35539 Fill Tube Clip1
310 35556 Dipstick1
313 34080 Spacer1
335 35072 Carburetor Cover1
338 650257 Screw, 8-32 x 5/16"2
350 570682A Primer Assembly1
351 37683 Primer Line1
355 590574 Starter Handle (Mitten Grip)1
361 650738 Screw, 1/4-20 x 5/8"2
361A 650561 Screw, 1/4-20 x 19/32"1
364 33333 Carburetor Cover Bracket1
364A 37673 Locking Plate1
365 650735 Screw, 10-24 x 3/8"1
370I 37119 Warning Decal1
370A 36261 Instruction Decal1
370K 36695 Starter Decal1
380 640299A Carburetor (Incl. 184)1
390 590743 Rewind Starter (Note: this engine could have been built with
1
the 590712 starter)
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HSSK50-67414T Page 4 of 4
Engine Parts List
Ref # Part Number Qty Description
396 37657 Electric Starter Motor1
400 36444 * Gasket Set (Incl. items marked PK i n notes)1
420 730226 SAE 5W30 4-Cycle Engine Oil (Quart)1
www.mymowerparts.com
