HM85-155853C Page 1 of 8

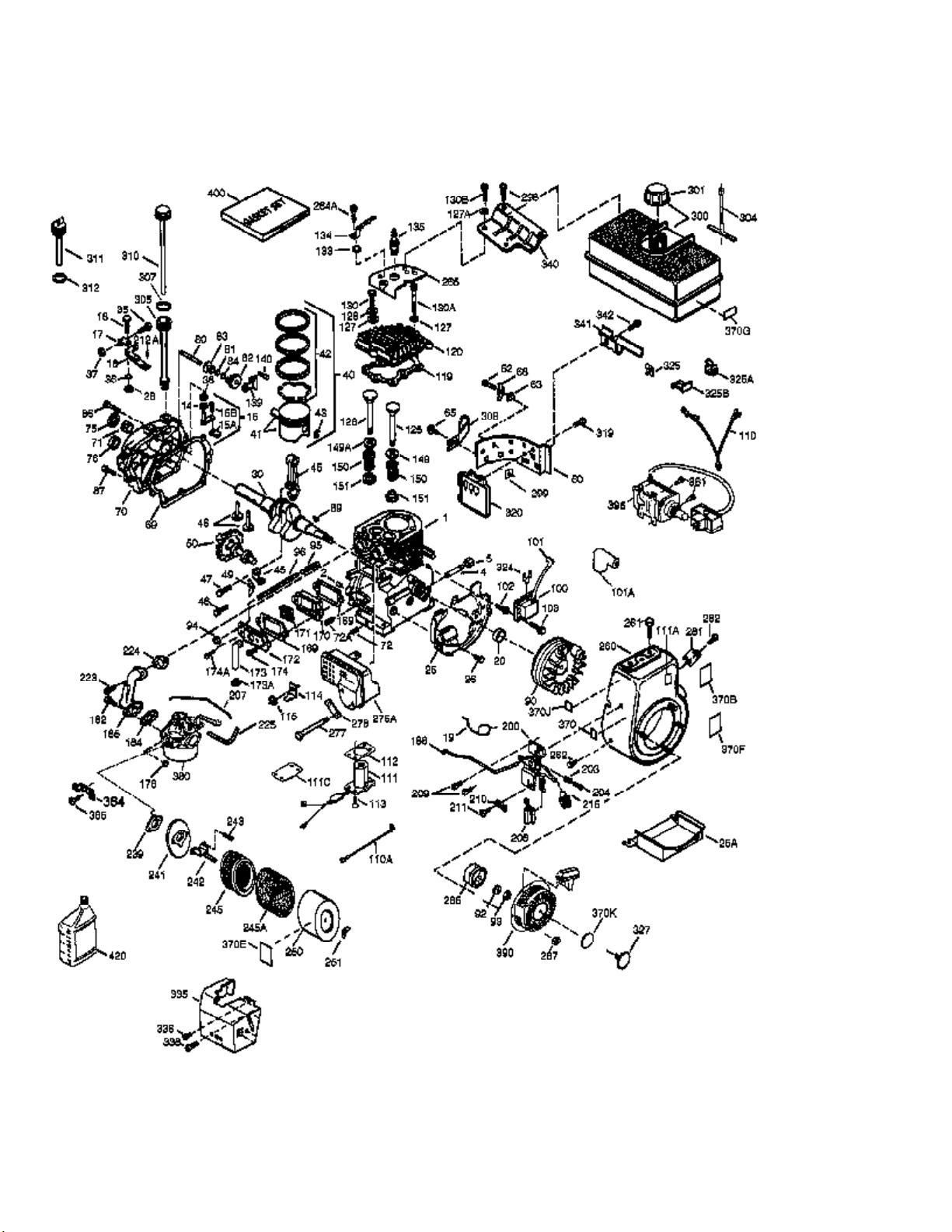

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 2 of 8
Engine Parts List #1
Ref # Part Number Qty Description
1 35385 Cylinder (Incl. 2, 20 & 72)1
2 27652 Dowel Pin2
4 0 Oil Drain Extension (Purchase Locally )1
5 30969 Extension Cap1
14 28277 Washer1
15 30699C Governor Rod (Incl. 15A & 15B)1
15B 650494 Screw, 6-40 x 5/16"1
15A 30700 Governor Yoke1
16 37255A Governor Lever (Incl. 212A)1
17 29916 Governor Lever Clamp1
18 651028 Screw, T-15, 8-32 x 3/8"1
19 34663 Speed Control Spring1
20 35319 Oil Seal1
25 36460 Blower Housing Baffle1
26 650561 Screw, 1/4-20 x 19/32"2
28 30322 Lock Nut, 8-321
30 36283A Crankshaft1
35 29826 Screw, 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut, 10-321
38 29642 Retaining Ring1
40 40011 Piston, Pin & Ring Set (Std.)1
40 40012 Piston, Pin & Ring Set (.010" OS)1
41 40009 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40010 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40013 Ring Set (Std.)1
42 40014 Ring Set (.010" OS)1
43 27888 Piston Pin Retaining Ring2
45 36897 Connecting Rod Ass'y. (Incl. 47 & 49)1
47 651033 Connecting Rod Bolt2
48 34034 Valve Lifter2
49 36896 Oil Dipper1
50 35375 Camshaft (MCR)1
60 33273A Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
69 37342 * Cylinder Cover Gasket1
70 35376A Cylinder Cover (Incl. 71,75,80 Thru 8 4)1
71 35377 Crankshaft Bushing1
72 28582 Oil Drain Plug1
75 35319 Oil Seal1
80 37587 Governor Shaft1
81 651080 Washer1
82 37588 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring1
86 650833 Screw, 1/4-20 x 1-3/16"7
87 650832 Screw, 1/4-20 x 1-11/16"1
89 32589 Flywheel Key1
90 611090 Flywheel1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
100 35135A Solid State Ignition (Incl. 101)1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, T-15, 10-24 x 15/16"2
110 35187 Ground Wire1
119 36448 * Cylinder Head Gasket1
120 36449 Cylinder Head1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 3 of 8
Engine Parts List #1
Ref # Part Number Qty Description
125 27878A Exhaust Valve (Std.) (Incl. 151)1
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)1
126 34035 Intake Valve (Std.) (Incl. 151)1
127 650691 Washer9
128 650690 Belleville Washer9
130A 650273 Screw, 5/16-18 x 5/8"2
130 650694A Screw, 5/16-18 x 2"9
130B 651031 Screw, 1/4-20 x 9/16"1
135 33636 Resistor Spark Plug (RJ17LM)1
139 33369 Governor Gear Bracket1
140 650836 Screw, 10-24 x 1/2"2
149A 35862 Valve Spring Cap1
149 27882 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Breather Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173 35350 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
178 29752 Nut & Lock Washer, 1/4-282
182 30088A Screw, 1/4-28 x 1"2
184 33263 * Carburetor To Intake Pipe Gasket1
185 34707 Intake Pipe1
186 34667 Governor Link1
200 34677 Control Bracket (Incl. 19,203,204,206 & 209)1
203 31342 Compression Spring1
204 651029 Screw, T-10, 5-40 x 7/16"1
206 610973 Terminal1
207 37448 Throttle Link1
209 650821 Screw, 10-32 x 1/2"2
212 36288 Bushing1
215 35882 Control Knob1
223 650378 Screw, T-30, 5/16-18 x 1-3/32"2
224 27915A * Intake Pipe Gasket1
239 27272A * Air Cleaner Gasket1
242 33267 Air Cleaner Bracket1
243 651081 Screw, 10-32 x 15/32"2
245A 35881 Air Cleaner Filter1
245 33268 Air Cleaner Filter1
250 33269A Air Cleaner Cover1
251 37444 Wing Nut, 1/4-201
260 36250 Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, T-40, 5/16-24 x 21/32"2
264A 650802 Screw, 1/4-20 x 5/8"1
265 33272D Cylinder Head Cover1
276 31588 Locking Plate1
277 650729 Screw, 5/16-18 x 3-3/16"1
281 33013 Starter Bubble Cover1
282 650760 Screw, 8-32 x 3/8"1
285 35985B Starter Cup1
287 29752 Nut & Lock Washer, 1/4-284
298 650665 Screw, 1/4-15 x 3/4"2
300 34186A Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35554 Oil Fill Tube1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 4 of 8
Engine Parts List #1
Ref # Part Number Qty Description
307 35499 "O" Ring1
308 35540 Fill Tube Clip1
310 36205 Dipstick1
325 29443 Wire Clip1
327 35392 Starter Plug1
342 30063 Screw, T-30, 1/4-20 x 1/2"1
370J 35703 Throttle Decal1
370G 35274 Oil Instruction Decal1
380 640260A Carburetor (Incl. 184)1
390 590746 Rewind Starter (NOTE: This engine could hav e been built
400 36450C * Gasket Set (Incl. items marked PK i n notes)1
420 730225A SAE 30 4-Cycle Engine Oil (Quart)1
1
with 590704 starter).
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 5 of 8
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 6 of 8
Engine Parts List #2
Ref # Part Number Qty Description
4 0 Oil Drain Extension (Purchase Locally )1
5 30969 Extension Cap1
72 28582 Oil Drain Plug1
84 29193 Retaining Ring1
92 650880 Lock Washer1
212 36288 Bushing1
239 27272A * Air Cleaner Gasket1
240 33266 Air Cleaner Bracket1
243 651081 Screw, 10-32 x 15/32"2
245 33268 Air Cleaner Filter1
245A 35881 Air Cleaner Filter1
250 33269A Air Cleaner Cover1
251 37444 Wing Nut, 1/4-201
260 36250 Blower Housing1
275 34185B Muffler1
277 650729 Screw, 5/16-18 x 3-3/16"1
285 35985B Starter Cup1
291 30962 Fuel Line1
292 26460 Fuel Line Clamp2
380 640260A Carburetor (Incl. 184)1
390 590746 Rewind Starter (NOTE: This engine could hav e been built
1
with 590704 starter).
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 7 of 8

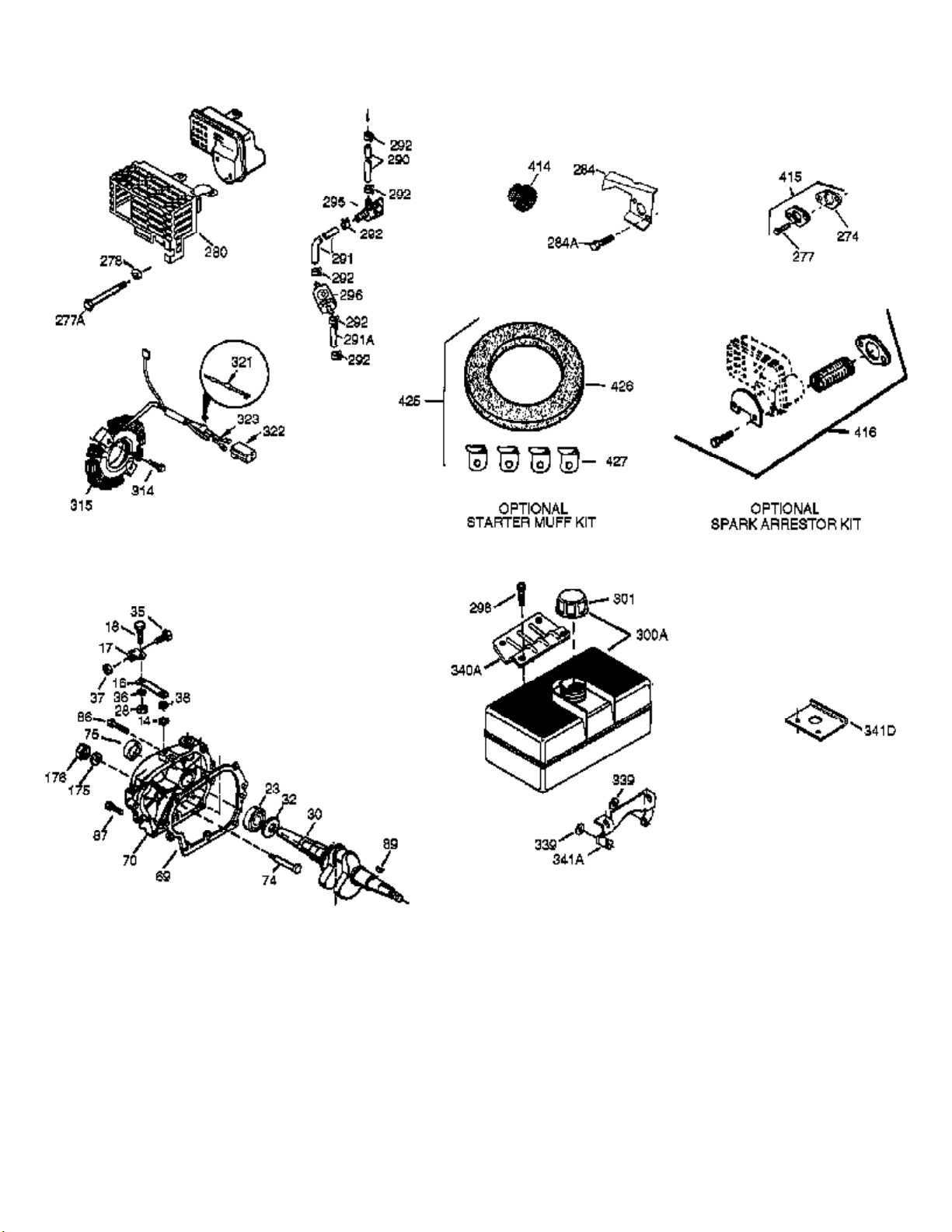

Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM85-155853C Page 8 of 8
Engine Parts List #3
Ref # Part Number Qty Description
14 28277 Washer1
16 37255A Governor Lever (Incl. 212A)1
17 29916 Governor Lever Clamp1
18 651028 Screw, T-15, 8-32 x 3/8"1
28 30322 Lock Nut, 8-321
30 36283A Crankshaft1
35 29826 Screw, 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut, 10-321
38 29642 Retaining Ring1
69 37342 * Cylinder Cover Gasket1
70 35376A Cylinder Cover (Incl. 71,75,80 Thru 8 4)1
75 35319 Oil Seal1
84 29193 Retaining Ring1
86 650833 Screw, 1/4-20 x 1-3/16"7
87 650832 Screw, 1/4-20 x 1-11/16"1
89 32589 Flywheel Key1
212 36288 Bushing1
277A 651036 Screw, 5/16-18 x 3-31/32"1
277 650729 Screw, 5/16-18 x 3-3/16"1
278 36908 Spacer1
280 36799A Heat Shield (Incl. 277A & 278)1
291 30962 Fuel Line1
292 26460 Fuel Line Clamp2
298 650665 Screw, 1/4-15 x 3/4"2
301 36246 Fuel Cap1
339 35880 Spacer2
340A 34259 Fuel Tank Bracket1
341A 34258A Fuel Tank Bracket1
416 34479A Spark Arrestor Kit (Optional)1
