HM80-155690T Page 1 of 8

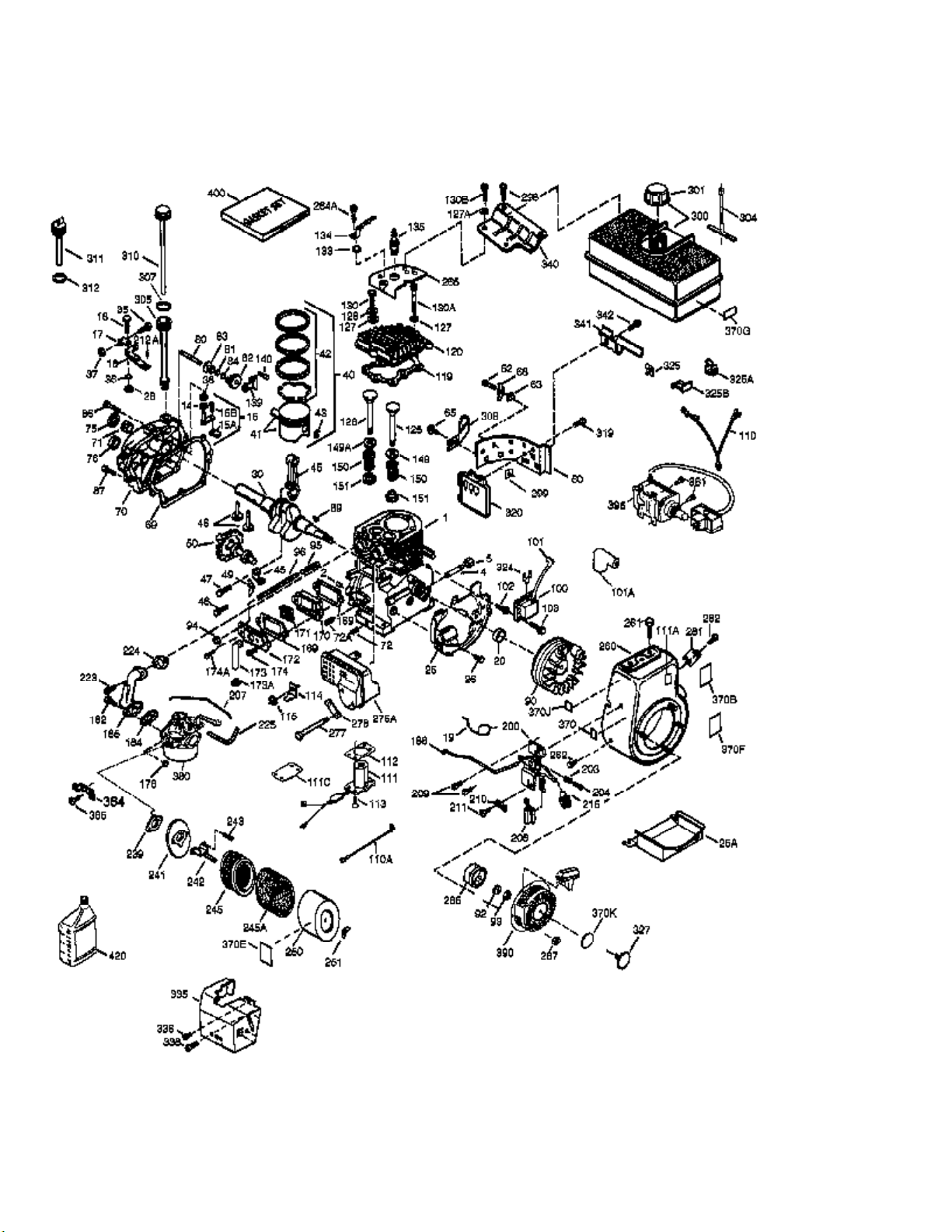

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155690T Page 2 of 8
Engine Parts List #1
Ref # Part Number Qty Description
1 35385 Cylinder (Incl. 2, 20 & 72)1
2 27652 Dowel Pin2
14 28277 Washer1
15 30699C Governor Rod (Incl. 15A & 15B)1
15A 30700 Governor Yoke1
15B 650494 Screw, 6-40 x 5/16"1
16 37255A Governor Lever (Incl. 212A)1
17 29916 Governor Lever Clamp1
18 651028 Screw, Torx T-15, 8-32 x 3/8"1
19 34663 Extension Spring1
20 35319 Oil Seal1
25 36460 Blower Housing Baffle1
26 650561 Screw, 1/4-20 x 5/8"2
28 30322 Lock Nut, 8-321
30 36245 Crankshaft1
35 29826 Screw, 10-32 x 3/4"1
36 29918 Lock Washer1
37 29216 Lock Nut, 10-321
38 29642 Retaining Ring1
40 40011 Piston, Pin & Ring Set (Std.)1
40 40012 Piston, Pin & Ring Set (.010" OS)1
41 40009 Piston & Pin Ass'y (Std.) (Incl. 43)1
41 40010 Piston & Pin Ass'y (.010" OS) (Incl. 43)1
42 40013 Ring Set (Std.)1
42 40014 Ring Set (.010" OS)1
43 27888 Piston Pin Retaining Ring2
45 36897 Connecting Rod Ass'y (Incl. 47 & 49)1
47 651033 Connecting Rod Bolt2
48 34034 Valve Lifter2
49 36896 Oil Dipper1
50 35444 Camshaft (MCR)1
60 33273A Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
69 35262A * Cylinder Cover Gasket1
70 35445A Cylinder Cover (Incl. 75, 76 & 80)1
71 35377 Crankshaft Bushing1
72 27642 Oil Drain Plug2
75 35319 Oil Seal1
76 28926 Oil Seal1
80 31845 Governor Shaft1
81 30590A Washer1
82 35378 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
84 29193 Retaining Ring1
86 650833 Screw, 1/4-20 x 1-3/16"7
87 650832 Screw, 1/4-20 x 1-11/16"1
89 32589 Flywheel Key1
90 611093 Flywheel1
92 650880 Lock Washer1
93 650881 Flywheel Nut1
100 35135A Solid State Ignition1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 35187 Ground Wire1
119 36448 * Cylinder Head Gasket1
120 36449 Cylinder Head1
125 27878A Exhaust Valve (Std.) (Incl. 151)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155690T Page 3 of 8
Engine Parts List #1
Ref # Part Number Qty Description
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)1
126 34035 Intake Valve (Std.) (Incl. 151)1
127 650691 Washer9
128 650690 Belleville Washer7
130A 650727 Screw, 5/16-18 x 1-25/32"2
130 650694A Screw, 5/16-18 x 2"7
130B 650273 Screw, 5/16-18 x 17/32"2
135 33636 Resistor Spark Plug (RJ17LM)1
139 33369 Governor Gear Bracket1
140 650836 Screw, 10-24 x 1/2"2
149 27882 Valve Spring Cap1
149A 35862 Valve Spring Cap1
150 27881 Valve Spring2
151 32581 Valve Spring Keeper2
169 27896A * Breather Gasket2
170 28423 Breather Body1
171 28424 Breather Element1
172 28425 Valve Cover1
173A 32446 Breather Tube Grommet1
173 34696 Breather Tube1
174 650128 Screw, 10-24 x 1/2"2
178 29752 Nut & Lock Washer, 1/4-282
182 30088A Screw, 1/4-28 x 1"2
184 33263 * Carburetor To Intake Pipe Gasket1
185 34707 Intake Pipe1
186 34667 Governor Link1
200 34664 Remote Control Bracket (Incl. 203,204 ,206 & 209)1
203 31342 Compression Spring1
204 651029 Screw, Torx T-10, 5-40 x 7/16"1
206 610973 Terminal1
207 37448 Throttle Link1
209 650821 Screw, 10-32 x 1/2"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
212A 36288 Bushing1
223 650378 Screw, Torx T-30, 5/16-18 x 1-1/8"2
224 27915A * Intake Pipe Gasket1
239 27272A * Air Cleaner Gasket1
242 34699 Air Cleaner Bracket1
245A 34703 Air Cleaner Filter1
245 34700A Air Cleaner Filter1
250 35602 Air Cleaner Cover1
251 650886 Wing Nut, 1/4-201
260 34833B Blower Housing1
261 650788 Screw, 5/16-18 x 3/4"2
262 29747B Screw, Torx T-40, 5/16-24 x 21/32"2
264A 650802 Screw, 1/4-20 x 5/8"1
265 33272D Cylinder Head Cover1
276 31588 Locking Plate1
277 650729 Screw, 5/16-18 x 3-3/16"2
281 33013 Starter Bubble Cover1
282 650760 Screw, 8-32 x 3/8"1
285 35985B Starter Cup1
287 29752 Nut & Lock Washer, 1/4-284
298 650665 Screw, 1/4-15 x 3/4"2
300 34186A Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
305 35554 Oil Fill Tube1
