Tecumseh HM80-155158G Parts Manuals

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

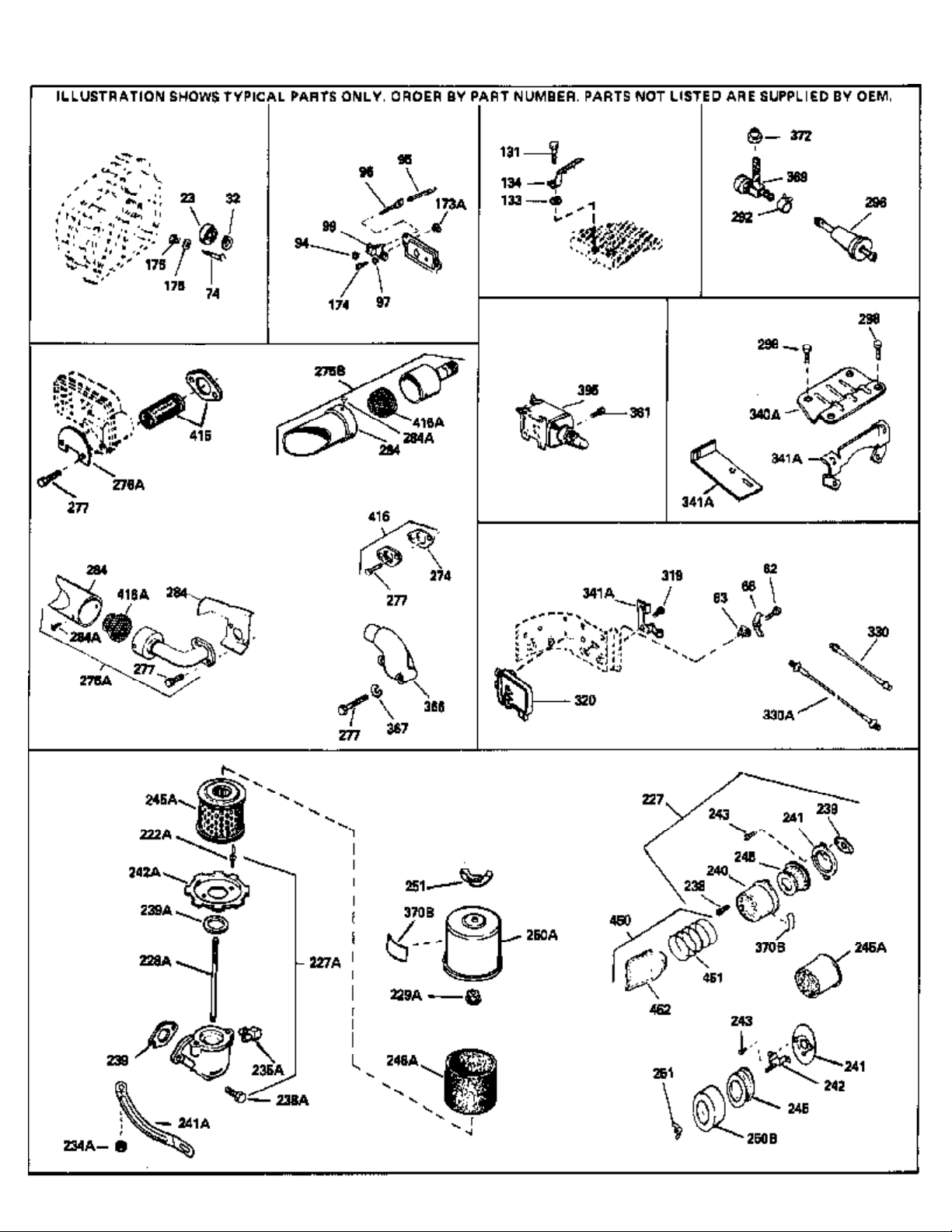

HM80-155158G Page 1 of 11
Engine Parts List #1

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

HM80-155158G Page 2 of 11
Engine Parts List #1

Ref # Part Number Qty Description

1 34348B Cylinder (Incl.2,20,72,72A) (3-1/8" B ore)
2 27652 Pin, Dowel
3 650820 Screw, 1/4-20 x 1/2"

15 30699C Rod Assy., Governor (Incl. 15A & 15B)
15B 650494 Screw, 6-40 x 5/16"
15A 30700 Yoke, Governor

16 33454 Governor Lever Assy.

17 29916 Clamp, Governor lever

18 650548 Screw, 8-32 x 5/16"

19 34663 Spring, Speed control

20 32630 Seal, Oil

25 35256A Baffle, Blower housing

26 650561 Screw, 1/4-20 x 5/8"

30 33719B Crankshaft (Incl. 108 & 109)

35 29826 Screw, 10-32 x 3/4"

36 29918 Lockwasher, # 8 E.T.

37 29216 Nut & Lockwasher, 10-32 "Keps"
37A 30322 Locknut, Hex "Keps", 8-32

38 29642 Ring, Retaining

40 34552 Piston, Pin & Ring Set (Std.) (3-1/8" )

40 34553 Piston, Pin & Ring Set (.010" OS)

40 34554 Piston, Pin & Ring Set (.020" OS)

41 34329A Piston & Pin Ass'y.(Std)(Incl.43)(3-1 /8")

41 34330A Piston & Pin Ass'y. (.010" OS)(Incl. 43)

41 34331A Piston & Pin Ass'y. (.020" OS)(Incl. 43)

42 34332 Ring Set (Std.) (3-1/8" Bore)

42 34333 Ring Set (.010" OS)

42 34334 Ring Set (.020" OS)

43 27888 Ring, Piston pin retaining

45 32591C Rod Assy., Connecting (Incl. 49)

47 650662C Bolt, Connecting rod (2 pieces)

48 34034 Lifter, Valve

49 34242 Dipper, Oil

50 34143 Camshaft (MCR)

60 33273A Extension, Blower housing

61 34126 Bracket, Grommet mounting

62 650760 Screw, 8-32 x 3/8"

63 28545 Grommet, Plastic

65 650128 Screw, 10-24 x 1/2"

69 35262 * Gasket, Cylinder cover

70 33367B Cylinder Cover (Incl. 71, 75, 80, 311 & 312)

71 33368 Bushing, Crankshaft

72 27642 Plug, Oil drain

75 31950 Seal, Oil

80 31845 Shaft, Mechanical governor

81 30590A Washer, Flat

82 30591 Gear Assy., Governor (Incl. 81)

83 30588A Spool, Governor

84 29193 Ring, Retaining

86 650833 Screw, 1/4-20 x 1-3/16"

87 650832 Screw, 1/4-20 x 1-11/16"

89 32589 Key, Flywheel

92 650815 Washer, Belleville

93 8116 Nut, Hex (1/2-20)

101 610118 Cover, Spark plug (Use as required)
103 650489 Screw, 1/4-20 x 5/8"
108 29783 Pin, Crankshaft gear
109 33245 Gear, Crankshaft

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

HM80-155158G Page 3 of 11
Engine Parts List #1

Ref # Part Number Qty Description

110 34240 Ground Wire
119 34041A * Gasket, Head
120 34030A Head, Cylinder
125 27878A Exhaust Valve (Std.) (Incl. 151)
125 27880A Exhaust Valve (1/32" OS) (Incl. 151)
126 34035 Intake Valve (Std.) (Incl. 151)
126 34036 Intake Valve (1/32" OS) (Incl. 151)

127 650691 Washer (Use as req., but not w/6021A screw)
127A 26073 Washer, Flat (Use as required)
127A 650570 Washer, Flat (Use as required)

128 650690 Washer, Belleville

129 650727 Screw, 5/16-18 x 1-3/4" (Use as requi red)
130A 6021A Screw, 5/16-18 x 1-1/2" (Use as required, but do notuse with

650691 washer)

130 650694A Screw, 5/16-18 x 2" (Use as required)

131 650802 Screw, 1/4-20 x 5/8" (Use as required )

131 650737 Screw, 1/4-20 x 1/2" (Use as required )

131 650738 Screw, 1/4-20 x 5/8" (Use as required )
131A 650713 Screw, 5/16-18 x 5/8" (Use as require d)
131A 792028 Screw, 5/16-18 x 7/8" (Use as require d)

135 33636 Resistor Spark Plug (RJ17LM)

139 33369 Bracket, Governor gear

140 650836 Screw, 10-24 x 1/2"

149 27882 Cap, Upper valve spring
149A 27882 Cap, Upper valve spring

150 27881 Spring, Valve

151 32581 Cap, Lower valve spring

169 27896A * Gasket, Breather cover

170 28423 Body, Breather

171 28424 Element, Breather

172 28425 Cover, Valve spring

173 35350 Tube, Breather

174 650128 Screw, 10-24 x 1/2"

174 650597 Screw, 10-24 x 5/8"

178 29752 Nut & Lockwasher, 1/4-28
179B 30593 Clip, Primer line (Use as required)

182 30088A Screw, 1/4-28 x 1"

184 33263 * Gasket, Carburetor

185 33877 Pipe, Intake

203 31342 Spring, Compression

204 650549 Screw, 5-40 x 7/16"

206 610973 Terminal Assy. (Use as required)

223 650378 Screw, Torx T-30, 5/16-18 x 1-1/8 "

224 27915A * Gasket, Intake pipe

260 34145 Blower Housing (For electric starter)

261 650788 Screw, 5/16-18 x 3/4" (Use as require d)

262 29747B Screw, 5/16-24 x 21/32"

265 33272B Cover, Cylinder head

275 33280A Muffler
275C 35824 Muffler (Optional quiet muffler)

276 31588 Plate, Muffler locking
277A 650696 Screw, 5/16-18x2-3/4" (Used with 276A )

277 650729 Screw, 5/16-18 x 3-3/16"

281 33013 Cover, Starter bubble

282 650760 Screw, 8-32 x 3/8"
286B 33662 Hub & Screen Assy., Starter

287 29752 Nut & Lockwasher, 1/4-28

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

HM80-155158G Page 4 of 11
Engine Parts List #1

Ref # Part Number Qty Description

290 29774 Fuel Line (Braided 8-1/4")(21 cm)(As req.)

290 30705 Fuel Line (Braided 16")(41 cm)(Use as req.)

290 30962 Fuel Line (Braided 32")(81 cm)(Use as req.)

292 26460 Clamp, Fuel line (Use as required)

298 650665 Screw, 1/4-15 x 7/8"

300 34156A Fuel Tank (Incl. 292 & 301) NOTE: These tanks were

builtwith different size fuel inlet openings. Tanks with the
1-3/16" I.D. opening use fuel cap 34210. Tanks with the
1-1/2" I.D. opening use fuel cap 35355.

301 410144B Fuel Cap (White Plastic)(Std)(1-1/2" I.D.)

301 33032 Fuel Cap (Red Plastic) (Spurt Resistant, Low Profile) (1-3/16"

I.D.)

301 34210 Fuel Cap (Red Plastic) (Spurt Resistant, High Profile)

(1-3/16" I.D)

301 35355 Fuel Cap (Red plastic) (1-1/2" I.D.)

305 33893A Tube, Oil fill

306 33590 "O" Ring

310 34011A Dipstick (Incl. 306)

325 29443 Clip, Fuel line (Use as required)

325 34246 Clip, Ground wire (Use as required)

336 650765 Screw, 10-32 x 1/2"

337 34666 Cover, Carburetor

338 28942 Screw, 10-32 x 3/8"

340 34154 Plate, Fuel tank mounting

341 34155 Bracket, Fuel tank mounting

342 650561 Screw, 1/4-20 x 5/8"

359 34141 Guard, Starter

360 32576 Seal, Snow guard

364 33377 Bracket, Carburetor cover mounting

365 650767 Screw, 8-32 x 27/64"
370D 34414 Decal, Warning
370C 34144 Decal, Primer

370 34346 Decal, Instruction

370J 34870 Decal, Instruction Can be used on HM80 with diecast starter.
370A 550223 Decal, Name
370E 34589 Decal, Choke
370E 34679 Decal, Choke

379 631021 Inlet Needle, Seat & Clip Assy.
380 632111 Carburetor (Incl. 184) (Refer to Division 5, Section A, page

170 for breakdown or Fiche18A-1, Grid F-1)

390 590479 Rewind Starter (Refer to Division 5, Section C, page 30 for

breakdown or Fiche 18A-1, Grid G-5)

400 33279G Gasket Set (Incl. items marked*)
408 35570 Screen Seal (Can be used on HM80 with stamped steel

recoil starter)

409 35569 Spacer (Can be used on HM80 with stamped steel recoil

starter)

410 730573 Debris Screen Kit (Incl. 360, 370B, 387, 411 &413) (Can be

used on HM80 with stamped steel recoil starter)

411 35568 Debris Screen (Can be used on HM80 with stamped steel

recoil starter)

413 650907 Screw, 5/16-18 x 1-5/8" (Can be used on HM80 with

stamped steel recoil starter)
