For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 1 of 8
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 2 of 8
Engine Parts List #1
Ref # Part Number Qty Description
1 34137 Cylinder Assy.0
2 27652 Pin, Dowel0
3 32630 Seal, Oil0
4 27642 Plug, Drain0
5A 30699C Rod Assy., Governor0
5 30699B Rod Assy., Governor0
6 30700 Yoke, Governor0
7 650494 Screw0
8 29642 Ring, Retaining0
9 29916 Clamp, Governor lever0
10 29826 Screw0
11 29216 Nut0
12 650548 Screw, Hex washer hd., 8-32 x 5/160
13 33454 Lever, Governor0
14 29918 Lockwasher0
15 30322 Nut & Lockwasher0
16 29536 Baffle, Blower housing0
17 650561 Screw0
18 27275 Clip, Hi-tension wire0
18A 29443 Clip, Fuel line0
19 33459A Crankshaft Assy.0
20 29783 Pin, Crankshaft gear0
21 33245 Gear, Crankshaft0
22 34540 Piston, Pin & Ring Assy. (Std.) (3-1/16")0
22 34541 Piston, Pin & Ring Assy. (.010 oversize)0
22 34542 Piston, Pin & Ring Assy. (.020 oversize)0
22A 33869B Piston & Pin Assy. (Std.) (3-1/16")0
22A 33870B Piston & Pin Assy. (.010 oversize)0
22A 33871B Piston & Pin Assy. (.020 oversize)0
23 27888 Ring, Piston pin retaining0
24 33873 Ring Set, Piston (Standard) (3-1/16")0
24 33874 Ring Set, Piston (.010 oversize)0
24 33875 Ring Set, Piston (.020 oversize)0
25 32591C Rod Assy., Connecting0
26 650662B Bolt, Connecting rod0
27 34242 Dipper, Oil0
27A 32590 Plate, Lock & Oil dipper0
28 34034 Lifter, Valve0
29 34143 Camshaft (Mechanical Compression Release)0
30 33253 Gasket, Mounting flange0
31 33367A Cover, Cylinder0
32 33368 Bushing, Crankshaft0
33 31950 Seal, Oil0
34 31845 Shaft, Mechanical governor0
35 30588A Spool, Governor0
36 29193 Ring, Retaining0
37 30591 Gear Assy., Governor0
38 33369 Bracket, Governor gear0
39 650836 Screw, Hex washer hd. thread forming, 10-240
40 30590A Washer, Flat0
41 650488 Screw0
42 650493 Screw, Hex hd. Sems, 1/4-20 x 1-3/40
43 34035 Valve, Intake (Standard)0
43 34036 Valve, Intake (1/32" oversize)0
44 27878A Valve, Intake (Standard)0
44 27880A Valve, Intake (1/32" oversize)0
45 27882 Cap, Upper valve spring0
46 27881 Spring, Valve0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 3 of 8
Engine Parts List #1
Ref # Part Number Qty Description
47 32581 Cap, Lower valve spring0
48 650489 Screw0
49 610118 Cover, Spark plug0
50 32589 Key, Flywheel0
53A 33662 Hub & Screen Assy., Starter0
54A 650815 Washer, Belleville0
55 8116 Nut0
56 34030 Head, Cylinder0
57 33270 Gasket, Cylinder head0
58 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
58 650692 Screw, Hex hd., 5/16-18 x 1-3/40
58 650711 Screw, Hex hd., 5/16-18 x 1-5/80
58 650737 Screw, Hex washer hd. taptite, 1/4-20 x 1/20
59 650727 Screw, Special hex hd. tapped, 5/16-18 x0
60 650691 Washer, Flat0
61 33272 Cover, Cylinder head0
62 26073 Washer, Connecting rod bolt0
62 650570 Washer, Flat0
63 650713 Screw, Hex hd., 5/16-18 x 5/80
63 792028 Screw, Hex hd. Sems, 5/16-18 x 7/80
65 33636 Plug, Spark (Champion J-8 or equivalent)0
65 34251 Resistor Spark Plug0
66 28423 Body, Breather0
67 28424 Element, Breather0
68 27896 Gasket, Breather cover0
69 28425 Cover, Valve chamber0
70 27627 Tube, Breather0
71 650128 Screw0
72 27915 Gasket, Intake pipe0
73 33877 Pipe, Intake0
74 33861 Gasket, Carburetor0
75 650378 Screw0
76 30088A Screw, Phil. fil. hd. Sems, 1/4-28 x 10
77 29752 Nut0
80 34240 Wire, Ground (One female, one double male &0
82 26073 Washer, Connecting rod bolt0
82 650570 Washer, Flat0
83 650273 Screw0
83 650713 Screw, Hex hd., 5/16-18 x 5/80
83 650788 Screw, Hex hd. spin-lock thr'd forming,0
83 792028 Screw, Hex hd. Sems, 5/16-18 x 7/80
84 33371 Link, Governor lever0
86 33878 Link, Governor lever-to-throttle0
87 27793 Clip, Conduit0
88 28942 Screw0
89 34145 Housing, Blower (6.375 starter mtg. bolt0
90 29747A Screw0
104A 33461A Control Assy., Speed (Remote)0
105 650549 Screw0
106 31342 Spring, Compression0
107 33374 Spring, Extension0
108F 34155 Bracket, Lower fuel tank mtg.0
109 34154 Plate, Upper fuel tank mtg.0
112 650561 Screw0
113 33273 Extension, Blower housing0
114 650128 Screw0
115 29752 Nut0
116 34141 Guard, Starter0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 4 of 8
Engine Parts List #1
Ref # Part Number Qty Description
117 32576 Seal, Snow guard0
124 34160 Tank Assy., Fuel (Yellow Poly) (1 gal.)0
125 33032 Cap, Fuel filler (Red Plastic) (Spurt0
125 34210 Cap, Fuel filler (Red Plastic) (Spurt0
125 410144B Cap, Fuel filler (White Plastic) (Std.)0
126 29774 Line, Fuel (Braided 8.25")0
126 30705 Line, Fuel (Braided 16")0
126 30962 Line, Fuel (Braided 32")0
127 26460 Clamp, Fuel line0
129 650767 Screw, Hex washer hd. Sems, taptite, 8-36 x0
130 33377 Bracket, Carburetor cover mtg.0
131 34140 Cover, Carburetor0
134 31291 Plug, Cover0
135 650765 Screw, Hex washer hd. self-drilling, 10-32 x0
136 28942 Screw0
157 33876 Gasket, Stator0
160 33013 Cover, Starter bubble0
161 650760 Screw0
162 30968 Nipple, Oil (2-1/2")0
163 30969 Cap, Oil drain0
165 28545 Grommet, Plastic0
166 650643 Screw0
181 34126 Bracket, Grommet mounting0
182 34138 Bracket, Choke wire0
183 34139 Control, Choke wire0
184 650257 Screw, Pan hd. Sems, 8-32 x 5/160
199 33280A Muffler0
200 650729 Screw0
201 31588 Plate, Muffler locking0
214 32182 Primer Assy.0
215 32183 Bulb, Primer0
216 32184 Body, Primer0
217 32312 Retainer, Primer bulb0
218 32180B Line, Primer0
222 31297 Dipstick, Oil0
224 29673 Gasket, Filler plug0
247A 34316 Decal, Name0
247 34346 Decal, Instruction0
248 30547A Contact Assy., Breaker0
249 30548B Condenser0
250A 631021 Inlet Needle, Seat & Clip Assy.0
251 631924 Carburetor0
252 610848 Magneto, Tecumseh (w/ring gear) (12 Volt)0
253 590479 Starter, Rewind0
257 33279C Gasket Set0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 5 of 8

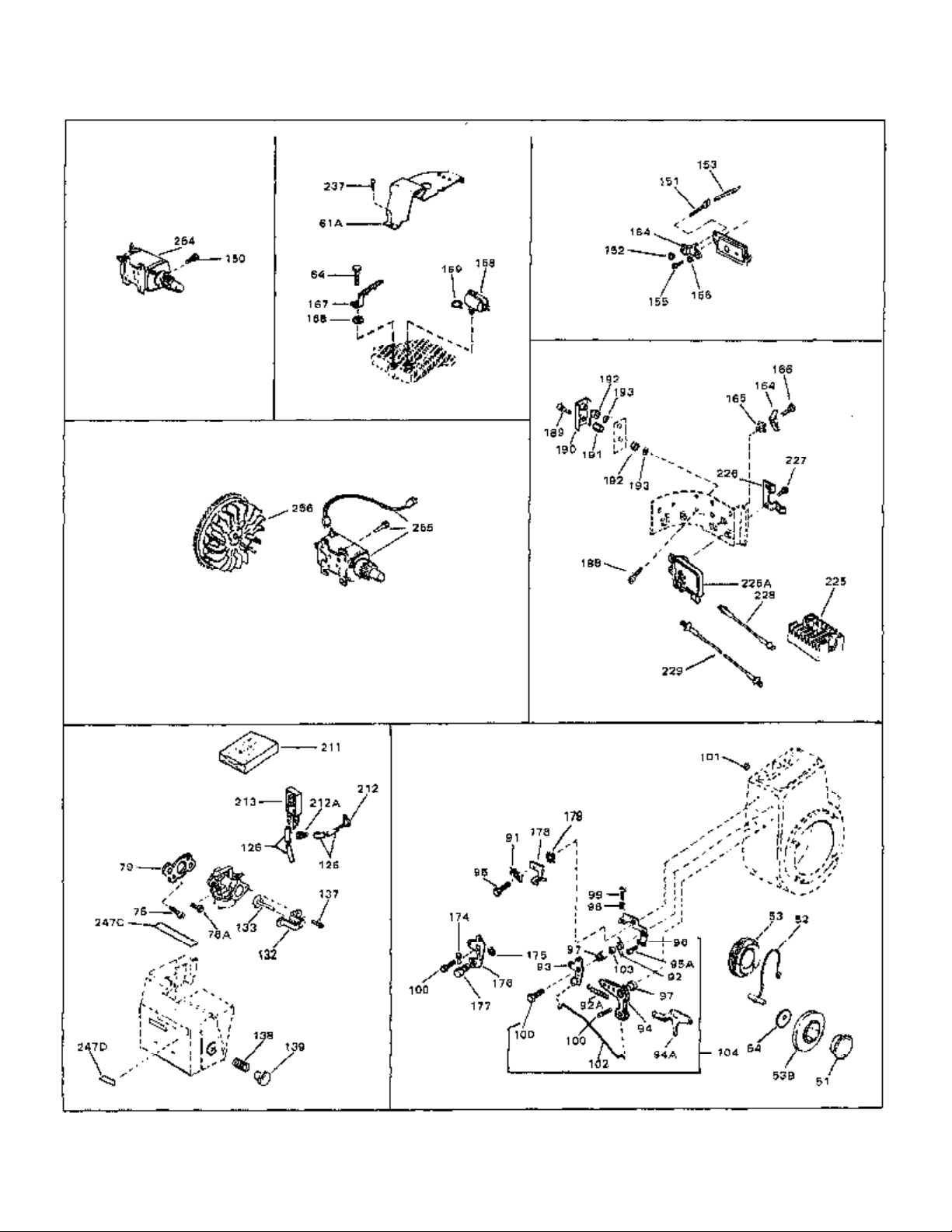

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 6 of 8
Engine Parts List #2
Ref # Part Number Qty Description
64 650737 Screw, Hex washer hd. taptite, 1/4-20 x 1/20
75 650378 Screw0
91 27793 Clip, Conduit0
126 29774 Line, Fuel (Braided 8.25")0
126 30705 Line, Fuel (Braided 16")0
126 30962 Line, Fuel (Braided 32")0
165 28545 Grommet, Plastic0
166 650643 Screw0
255 33329 Starter Motor Kit (110-120 Volt)0
255 33329A Starter Motor Kit (110-120 Volt)0
255 33329B Starter Motor Kit (110-120 Volt)0
255 33519 Starter Motor Kit (110-120 Volt)0
255 33519A Starter Motor Kit (110-120 Volt)0
255 33519B Starter Motor Kit (110-120 Volt)0
256 610847 Flywheel0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 7 of 8

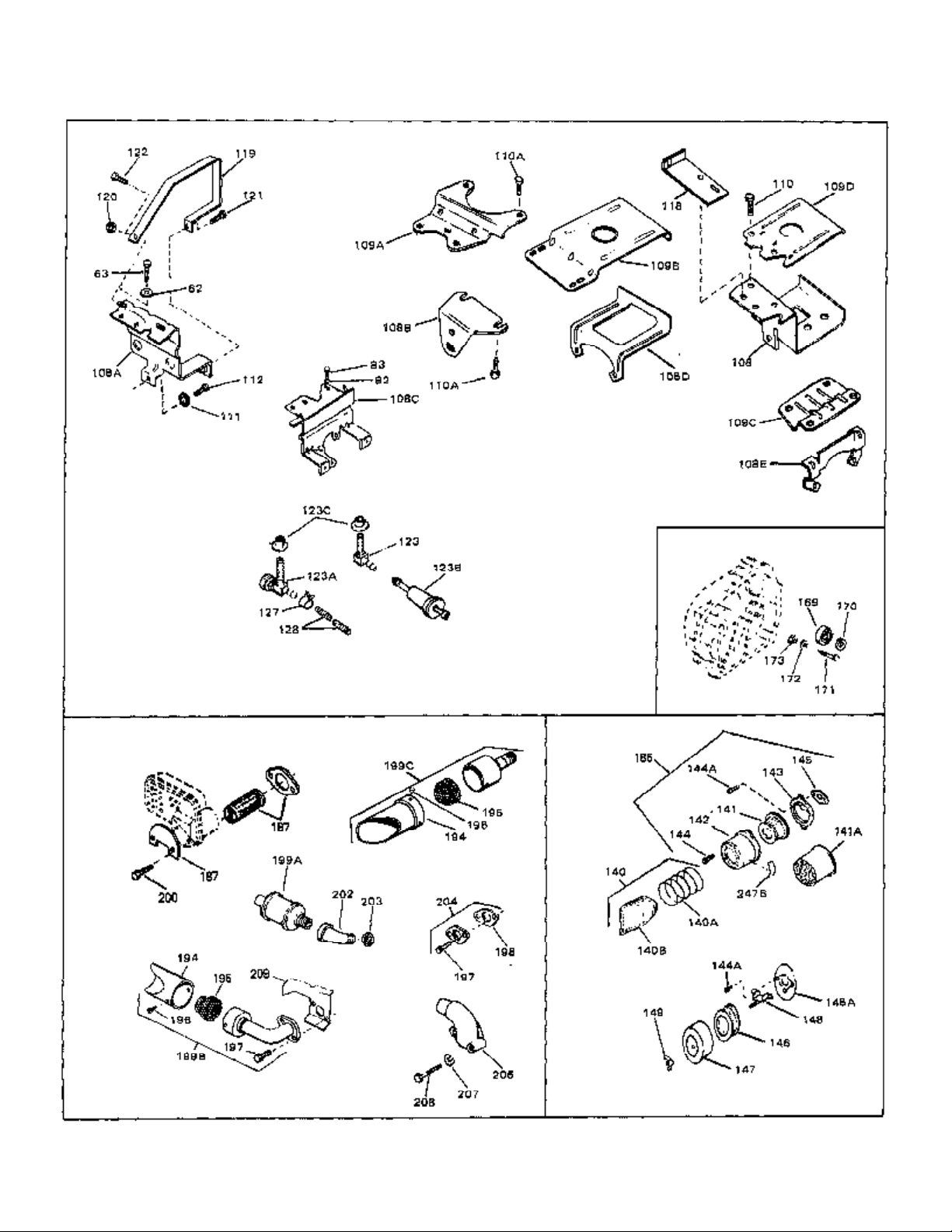

Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
HM80-155013C Page 8 of 8
Engine Parts List #3
Ref # Part Number Qty Description
62 26073 Washer, Connecting rod bolt0
62 650570 Washer, Flat0
63 650713 Screw, Hex hd., 5/16-18 x 5/80
63 792028 Screw, Hex hd. Sems, 5/16-18 x 7/80
82 26073 Washer, Connecting rod bolt0
82 650570 Washer, Flat0
83 650273 Screw0
83 650713 Screw, Hex hd., 5/16-18 x 5/80
83 650788 Screw, Hex hd. spin-lock thr'd forming,0
83 792028 Screw, Hex hd. Sems, 5/16-18 x 7/80
110A 650665 Screw0
112 650561 Screw0
123A 32961 Valve, Fuel shut-off0
127 26460 Clamp, Fuel line0
128 28819 Spring, Fuel line0
185 730127 Cleaner Assy., Air (Poly)0
185 730164 Cleaner Assy., Air (Paper)0
199C 391026 Muffler0
200 650729 Screw0
202 30209 Elbow, Exhaust (45ΓΈ)0
204 730130 Muffler Adapter Kit0
www.mymowerparts.com
