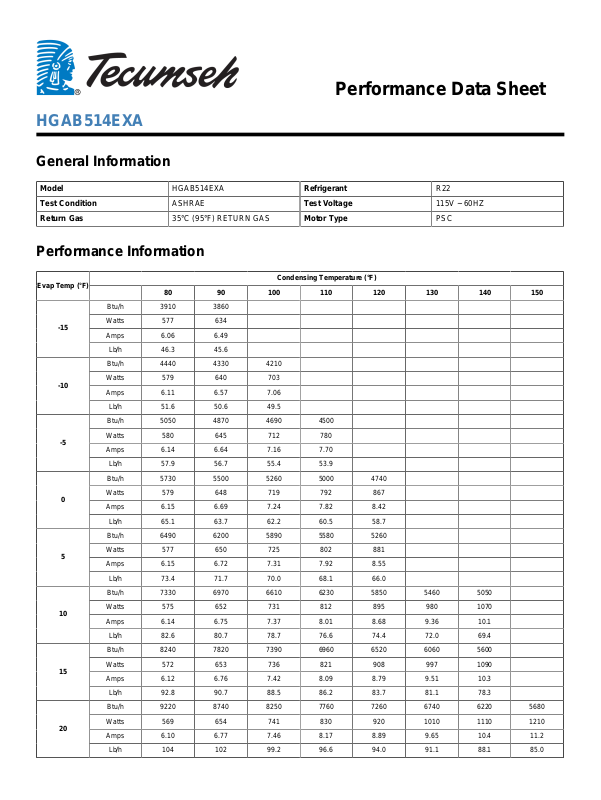

Performance Data Sheet

HGAB514EXA

General Information

Model HGAB514EXA Refrigerant R22 Test Condition ASHRAE Test Voltage 115V ~ 60HZ Return Gas 35°C (95°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140 150

Btu/h 3910 3860 Watts 577 634 Amps 6.06 6.49

Lb/h 46.3 45.6

Btu/h 4440 4330 4210 Watts 579 640 703 Amps 6.11 6.57 7.06

Lb/h 51.6 50.6 49.5

Btu/h 5050 4870 4690 4500 Watts 580 645 712 780 Amps 6.14 6.64 7.16 7.70

Lb/h 57.9 56.7 55.4 53.9

Btu/h 5730 5500 5260 5000 4740 Watts 579 648 719 792 867 Amps 6.15 6.69 7.24 7.82 8.42

Lb/h 65.1 63.7 62.2 60.5 58.7

Btu/h 6490 6200 5890 5580 5260 Watts 577 650 725 802 881 Amps 6.15 6.72 7.31 7.92 8.55

Lb/h 73.4 71.7 70.0 68.1 66.0

Btu/h 7330 6970 6610 6230 5850 5460 5050 Watts 575 652 731 812 895 980 1070 Amps 6.14 6.75 7.37 8.01 8.68 9.36 10.1

Lb/h 82.6 80.7 78.7 76.6 74.4 72.0 69.4

Btu/h 8240 7820 7390 6960 6520 6060 5600 Watts 572 653 736 821 908 997 1090 Amps 6.12 6.76 7.42 8.09 8.79 9.51 10.3

Lb/h 92.8 90.7 88.5 86.2 83.7 81.1 78.3

Btu/h 9220 8740 8250 7760 7260 6740 6220 5680 Watts 569 654 741 830 920 1010 1110 1210 Amps 6.10 6.77 7.46 8.17 8.89 9.65 10.4 11.2

Lb/h 104 102 99.2 96.6 94.0 91.1 88.1 85.0

Btu/h 10300 9730 9190 8630 8070 7500 6910 6310

Watts 565 655 746 838 933 1030 1130 1230 Amps 6.07 6.77 7.50 8.24 9.00 9.78 10.6 11.4

Lb/h 116 114 111 108 105 102 98.9 95.5

Btu/h 11400 10800 10200 9570 8950 8320 7670 7020 Watts 562 656 751 847 945 1050 1150 1250 Amps 6.04 6.78 7.53 8.30 9.09 9.91 10.7 11.6

Lb/h 129 126 124 120 117 114 111 107

Btu/h 12600 11900 11300 10600 9900 9210 8510 7790 Watts 559 657 756 856 958 1060 1170 1280 Amps 6.00 6.78 7.57 8.37 9.19 10.0 10.9 11.8

Lb/h 143 140 137 134 130 127 123 120

Btu/h 13800 13100 12400 11700 10900 10200 9410 8640 Watts 557 659 762 866 972 1080 1190 1300 Amps 5.97 6.78 7.60 8.44 9.29 10.2 11.1 12.0

Lb/h 158 155 152 148 145 141 137 133

Btu/h 15200 14400 13600 12800 12000 11200 10400 9550 Watts 556 662 768 876 986 1100 1210 1330 Amps 5.95 6.79 7.64 8.51 9.40 10.3 11.2 12.2

Lb/h 174 171 167 163 160 156 151 147

Btu/h 16500 15700 14900 14000 13200 12300 11400 10500 Watts 556 665 776 888 1000 1120 1230 1350 Amps 5.93 6.81 7.69 8.59 9.50 10.4 11.4 12.4

Lb/h 191 187 184 180 175 171 167 162

Btu/h 18000 17100 16200 15300 14400 13400 12500 11600 Watts 557 670 785 900 1020 1140 1260 1380 Amps 5.93 6.83 7.75 8.68 9.62 10.6 11.6 12.6

Lb/h 209 205 201 197 192 188 183 179

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 7.480762E+03 5.156749E+01 2.127205E+00 7.477739E+01 C2 2.448004E+02 -7.333083E+00 -5.888436E-02 1.958385E+00 C3 -2.215883E+01 6.650315E+00 5.093747E-02 -1.248551E-01 C4 1.486980E+00 -1.597977E-02 -2.334170E-04 2.027134E-02 C5 -1.274766E+00 9.381092E-02 8.075545E-04 -5.533681E-03 C6 2.222480E-02 -4.606473E-03 -4.859524E-05 3.059469E-04 C7 -1.860182E-03 2.970809E-04 3.016540E-06 -7.822000E-06 C8 4.793020E-04 -3.748475E-05 -4.111684E-07 -5.477942E-06 C9 2.680491E-04 -6.689526E-05 -6.712415E-07 5.560195E-06

C10 -2.316449E-04 4.844775E-05 5.073973E-07 -3.190283E-06

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
