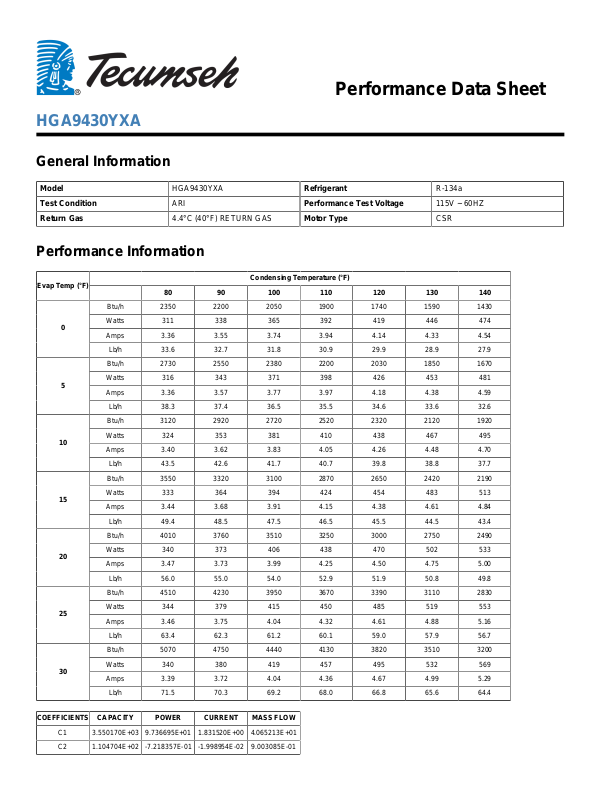

Tecumseh HGA9430YXA Performance Data Sheet

Performance Data Sheet

HGA9430YXA

General Information

Model HGA9430YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSR

Performance Information

Evap Temp (°F)

0

5

10

15

20

25

30

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 2350 2200 2050 1900 1740 1590 1430
Watts 311 338 365 392 419 446 474
Amps 3.36 3.55 3.74 3.94 4.14 4.33 4.54

Lb/h 33.6 32.7 31.8 30.9 29.9 28.9 27.9

Btu/h 2730 2550 2380 2200 2030 1850 1670
Watts 316 343 371 398 426 453 481
Amps 3.36 3.57 3.77 3.97 4.18 4.38 4.59

Lb/h 38.3 37.4 36.5 35.5 34.6 33.6 32.6

Btu/h 3120 2920 2720 2520 2320 2120 1920
Watts 324 353 381 410 438 467 495
Amps 3.40 3.62 3.83 4.05 4.26 4.48 4.70

Lb/h 43.5 42.6 41.7 40.7 39.8 38.8 37.7

Btu/h 3550 3320 3100 2870 2650 2420 2190
Watts 333 364 394 424 454 483 513
Amps 3.44 3.68 3.91 4.15 4.38 4.61 4.84

Lb/h 49.4 48.5 47.5 46.5 45.5 44.5 43.4

Btu/h 4010 3760 3510 3250 3000 2750 2490
Watts 340 373 406 438 470 502 533
Amps 3.47 3.73 3.99 4.25 4.50 4.75 5.00

Lb/h 56.0 55.0 54.0 52.9 51.9 50.8 49.8

Btu/h 4510 4230 3950 3670 3390 3110 2830
Watts 344 379 415 450 485 519 553
Amps 3.46 3.75 4.04 4.32 4.61 4.88 5.16

Lb/h 63.4 62.3 61.2 60.1 59.0 57.9 56.7

Btu/h 5070 4750 4440 4130 3820 3510 3200
Watts 340 380 419 457 495 532 569
Amps 3.39 3.72 4.04 4.36 4.67 4.99 5.29

Lb/h 71.5 70.3 69.2 68.0 66.8 65.6 64.4

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 3.550170E+03 9.736695E+01 1.831520E+00 4.065213E+01
C2 1.104704E+02 -7.218357E-01 -1.998954E-02 9.003085E-01

C3 -1.507783E+01 2.674031E+00 1.917333E-02 -9.029993E-02
C4 6.058466E-01 1.551942E-02 1.324575E-04 1.295255E-02
C5 -4.984607E-01 2.459251E-02 2.952826E-04 -5.080785E-04
C6 4.054429E-03 -3.745508E-04 -4.879143E-06 7.969627E-05
C7 8.135421E-03 -3.264902E-03 -2.829160E-05 7.494811E-05
C8 -3.146447E-03 1.214426E-03 1.044872E-05 -3.037319E-05
C9 3.006567E-04 -1.109577E-04 -9.447492E-07 3.045697E-06

C10 -3.200061E-05 3.548858E-06 4.221719E-08 -6.078679E-07

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
