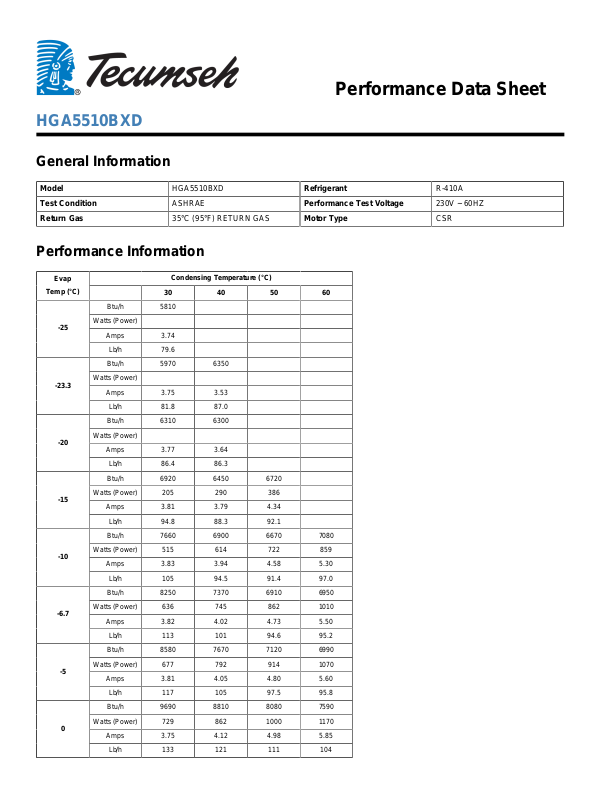

Tecumseh HGA5510BXD Performance Data Sheet

Performance Data Sheet

HGA5510BXD

General Information

Model HGA5510BXD Refrigerant R-410A
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 35°C (95°F) RETURN GAS Motor Type CSR

Performance Information

Evap

Temp (°C)

-25

-23.3

-20

-15

-10

-6.7

-5

0

Condensing Temperature (°C)

30 40 50 60

Btu/h 5810

Watts (Power)

Amps 3.74

Lb/h 79.6

Btu/h 5970 6350

Watts (Power)

Amps 3.75 3.53

Lb/h 81.8 87.0

Btu/h 6310 6300

Watts (Power)

Amps 3.77 3.64

Lb/h 86.4 86.3

Btu/h 6920 6450 6720

Watts (Power) 205 290 386

Amps 3.81 3.79 4.34

Lb/h 94.8 88.3 92.1

Btu/h 7660 6900 6670 7080

Watts (Power) 515 614 722 859

Amps 3.83 3.94 4.58 5.30

Lb/h 105 94.5 91.4 97.0

Btu/h 8250 7370 6910 6950

Watts (Power) 636 745 862 1010

Amps 3.82 4.02 4.73 5.50

Lb/h 113 101 94.6 95.2

Btu/h 8580 7670 7120 6990

Watts (Power) 677 792 914 1070

Amps 3.81 4.05 4.80 5.60

Lb/h 117 105 97.5 95.8

Btu/h 9690 8810 8080 7590

Watts (Power) 729 862 1000 1170

Amps 3.75 4.12 4.98 5.85

Lb/h 133 121 111 104

Btu/h 11000 10300 9600 8890

5

7.2

10

15

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.235319E+04 1.686916E+02 1.018595E+01 1.692242E+02
C2 -6.019458E+01 -1.107291E+01 -1.287017E-01 -8.249428E-01
C3 -7.254388E+01 2.682224E+01 -4.962585E-01 -9.938582E-01
C4 -5.219113E+00 -1.559110E+00 -1.514415E-03 -7.154550E-02
C5 1.610328E+01 4.735219E-01 4.396298E-03 2.206197E-01
C6 -9.725184E-01 -3.730652E-01 1.170523E-02 -1.332075E-02
C7 3.918988E-02 5.248570E-02 -2.179101E-05 5.379182E-04
C8 3.247702E-01 5.229032E-03 6.463504E-06 4.449527E-03
C9 -1.991849E-01 -1.107810E-03 -2.467426E-05 -2.728906E-03

C10 1.429190E-02 3.400777E-03 -7.728861E-05 1.957730E-04

Watts (Power) 712 866 1030 1210

Amps 3.62 4.12 5.09 6.06

Lb/h 151 142 131 122

Btu/h 11700 11100 10400 9700

Watts (Power) 692 856 1030 1220

Amps 3.53 4.10 5.12 6.12

Lb/h 160 153 143 133

Btu/h 12600 12300 11700 10900

Watts (Power) 663 841 1020 1230

Amps 3.40 4.05 5.13 6.18

Lb/h 173 168 160 150

Btu/h 14500 14700 14400 13800

Watts (Power) 623 827 1030 1270

Amps 3.09 3.88 5.07 6.22

Lb/h 199 201 197 189

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
