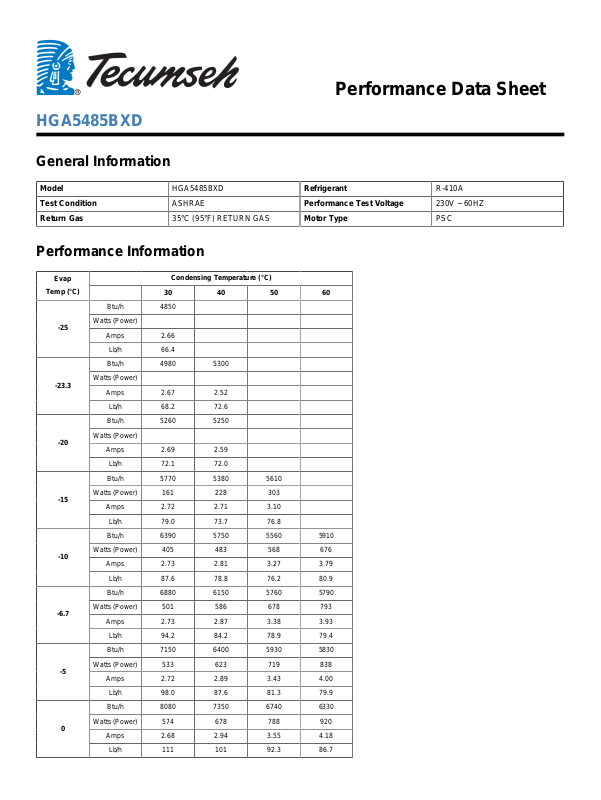

Tecumseh HGA5485BXD Performance Data Sheet

Performance Data Sheet

HGA5485BXD

General Information

Model HGA5485BXD Refrigerant R-410A
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 35°C (95°F) RETURN GAS Motor Type PSC

Performance Information

Evap

Temp (°C)

-25

-23.3

-20

-15

-10

-6.7

-5

0

Condensing Temperature (°C)

30 40 50 60

Btu/h 4850

Watts (Power)

Amps 2.66

Lb/h 66.4

Btu/h 4980 5300

Watts (Power)

Amps 2.67 2.52

Lb/h 68.2 72.6

Btu/h 5260 5250

Watts (Power)

Amps 2.69 2.59

Lb/h 72.1 72.0

Btu/h 5770 5380 5610

Watts (Power) 161 228 303

Amps 2.72 2.71 3.10

Lb/h 79.0 73.7 76.8

Btu/h 6390 5750 5560 5910

Watts (Power) 405 483 568 676

Amps 2.73 2.81 3.27 3.79

Lb/h 87.6 78.8 76.2 80.9

Btu/h 6880 6150 5760 5790

Watts (Power) 501 586 678 793

Amps 2.73 2.87 3.38 3.93

Lb/h 94.2 84.2 78.9 79.4

Btu/h 7150 6400 5930 5830

Watts (Power) 533 623 719 838

Amps 2.72 2.89 3.43 4.00

Lb/h 98.0 87.6 81.3 79.9

Btu/h 8080 7350 6740 6330

Watts (Power) 574 678 788 920

Amps 2.68 2.94 3.55 4.18

Lb/h 111 101 92.3 86.7

Btu/h 9190 8620 8000 7420

5

7.2

10

15

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.030051E+04 1.327108E+02 7.282011E+00 1.410833E+02
C2 -5.019288E+01 -8.709117E+00 -9.278639E-02 -6.879219E-01
C3 -6.049355E+01 2.109731E+01 -3.547372E-01 -8.273460E-01
C4 -4.351768E+00 -1.226429E+00 -1.122426E-03 -5.957139E-02
C5 1.342739E+01 3.724410E-01 3.187493E-03 1.839400E-01
C6 -8.108233E-01 -2.934258E-01 8.363219E-03 -1.113614E-02
C7 3.267362E-02 4.128677E-02 -1.549032E-05 4.463986E-04
C8 2.708022E-01 4.113274E-03 5.428743E-06 3.709266E-03
C9 -1.660862E-01 -8.710676E-04 -1.822131E-05 -2.275119E-03

C10 1.191639E-02 2.674846E-03 -5.519771E-05 1.634402E-04

Watts (Power) 560 681 807 953

Amps 2.58 2.94 3.64 4.33

Lb/h 126 118 110 102

Btu/h 9750 9290 8710 8090

Watts (Power) 544 673 807 960

Amps 2.52 2.93 3.66 4.37

Lb/h 134 127 119 111

Btu/h 10500 10200 9750 9120

Watts (Power) 522 661 805 968

Amps 2.43 2.89 3.66 4.42

Lb/h 144 140 134 125

Btu/h 12100 12200 12000 11500

Watts (Power) 490 651 814 996

Amps 2.20 2.77 3.63 4.44

Lb/h 166 168 164 157

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
