H60-75359P Page 1 of 5

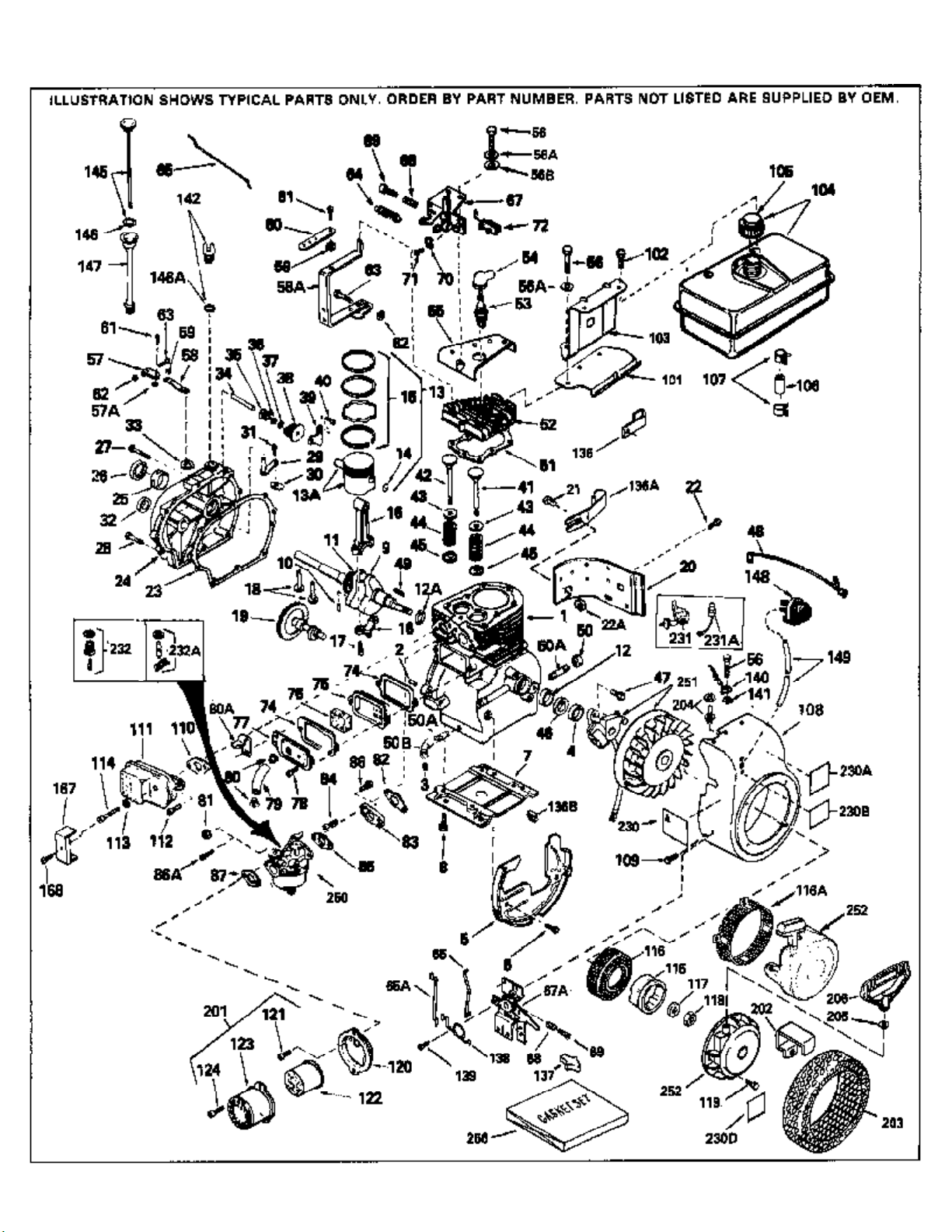

Engine Parts List
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H60-75359P Page 2 of 5
Engine Parts List
Ref # Part Number Qty Description
2 27652 Pin, Dowel
3 27642 Pipe plug, 1/4-18
5 29536 Blower Housing Baffle (Without electric starter knock out)
(Use as required)
5 35256A Blower Housing Baffle (With electric starter knockout) (As
req.)(point ign.)
6 650561 Screw, 1/4-20 x 5/8"
7 29538 Base, Engine mounting
8 650542 Screw, 5/16-18 x 3/4"
9 35223 Crankshaft
10 29783 Pin, Crankshaft gear (Used on early p rod.)
11 27884 Gear, Crankshaft (Used on early produ ction) This gear is
serviceable ONLY when it is pinned to the crankshaft.
13 34531 Piston, Pin & Ring Set (Std.) (2-5/8" Bore)
13 34532 Piston, Pin & Ring Set (.010" OS)
13 34533 Piston, Pin & Ring Set (.020" OS)
13A 33312B Piston & Pin Ass'y. (Std.)(2-5/8")(In cl.14)
13A 33313B Piston & Pin Ass'y. (.010" OS) (Incl. 14)
13A 33314B Piston & Pin Ass'y. (.020" OS) (Incl. 14)
14 27888 Ring, Piston pin retaining
15 34854 Ring Set (Std.) (2-5/8" Bore)
15 34855 Ring Set (.010" OS)
15 34856 Ring Set (.020" OS)
16 31380C Rod Assy., Connecting (Incl. 17)
17 650662C Bolt, Connecting rod (Incl. 2 pieces)
18 34034 Lifter, Valve
20 30622A Extension, Blower housing
21 650128 Screw, 10-24 x 1/2"
22 650561 Screw, 1/4-20 x 5/8" (Use as required )
22 30063 Screw, 1/4-20 x 1/2" (Use as required )
23 30684 Gasket Cylinder Cover
24 31451A Cylinder Cover (Incl.26, 34, 127A, 12 9 & 130)
26 28460 Seal, Oil
27 650488 Screw, 1/4-20 x 1-1/4"
28 650493 Screw, 1/4-20 x 1-3/4"
29 30699C Rod Assy., Governor (Incl. 30 & 31)
30 30700 Yoke, Governor
31 650494 Screw, 6-40 x 5/16"
33 29642 Ring, Retaining
34 31845 Shaft, Mechanical governor
35 30588A Spool, Governor
36 35479 Washer, Flat
37 29193 Ring, Retaining
38 30591 Gear Assy., Governor
39 31843A Bracket, Governor gear
40 650836 Screw, 10-24 x 1/2"
41 32783 Intake Valve (Std.)
41 32784 Intake Valve (1/32" OS)
42 27878A Exhaust Valve (Std.)
42 27880A Exhaust Valve (1/32" OS)
43 27882 Cap, Upper valve spring
44 27881 Spring, valve
45 32581 Cap, Lower valve spring
47 650814 Screw, 10-24 x 1"
49 32589 Key, Flywheel
51 28938C Gasket, Cylinder head
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H60-75359P Page 3 of 5
Engine Parts List
Ref # Part Number Qty Description
52 30938A Head, Cylinder
54 610118 Cover, Spark plug (Use as required)
55 30939A Cover Assy., Cylinder head
56A 650691 Washer, Flat (Use as required)
56 650697A Screw, 5/16-18 x 2-1/2" (Use as requi red)
56 650694A Screw, 5/16-18 x 2" (Use as required)
56 650695A Screw, 5/16-18 x 2-1/4" (Use as requi red)
56B 650690 Washer, Belleville (Use as required)
57 29916 Clamp, Governor lever (Use as require d)
57A 30322 Locknut, 8-32
58A 32326A Lever, Governor
59 29918 Washer, Lock, No. 8 E.T.
60 30205 Bracket, Governor adjusting
61 650548 Screw, 8-32 x 5/16"
62 29216 Locknut, 10-32
63 29826 Screw, 10-32 x 3/4"
65 32327 Link, Throttle
72 610973 Terminal Assy. (Use as required)
74 27896A Gasket, Valve chamber cover
75 28423 Breather Assy., Valve
76 28424 Element, Breather
77 28425 Cover, Valve spring box
78 650128 Screw, 10-24 x 1/2"
79 35350 Tube Breather
82 27915A * Gasket, Intake pipe to cylinder
83 34712 Flange, Carburetor (Incl. 86A)
84 30196 Screw, 5/16-18 x 3/4"
85 31688A * Gasket, Carburetor
86A 650517 Screw, 1/4-20 x 13/16"
87 27272A * Air Cleaner Gasket (Use as required)
87 30767 Spacer, Cleaner (Use as required)
94A 34819 Elbow Assy., Air cleaner (Incl. 90,91,92,93,94,96) (Use in
730561 assembly only)
101 34158 Bracket, Fuel tank
102 650665 Screw, 1/4-14 x 7/8"
103 34159 Plate, Fuel tank mounting
104 34186A Fuel Tank (Incl. 105 & 107) NOTE: These tanks were built
with different size fuel inlet openings. Tanks with the 1-3/16"
I.D. opening use fuel cap 33032 or 34210. Tanks with the
1-1/2" I.D. opening use fuel cap 35355.
105 410144B Fuel Cap (White Plastic)(Std.)(As req uired)
105 33032 Fuel Cap (Red Plastic) (Spurt resistant, Low profile) (Use as
required)
105 34210 Fuel Cap (Red Plastic) (Spurt resistant, High profile) (Use as
required)
105 35355 Fuel Cap (Red plastic) (Use as requir ed)
106 29774 Fuel Line (Braided, 8 1/4") (Use as r equired)
106 30962 Fuel Line (Braided, 32") (Use as requ ired)
107 26460 Clamp, Fuel line (Use as required)
108 32158E Blower Housing (For electric starter)
109 29747B Screw, 5/16-24 x 21/32"
110 27930A * Gasket, Exhaust flange
111C 391026 Opt.Spark Arrest Muf.(Incl.143,143A,1 43B)
111D 33714 Opt.Spark Arrest Muf.(Incl.112,143,14 4,144A)
111E 34390 Deflector, Exhaust (Optional)
111 32401 Muffler
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H60-75359P Page 4 of 5
Engine Parts List
Ref # Part Number Qty Description
112 30196 Screw, 5/16-18 x 3/4"
113 26073 Washer, Flat
114 650694A Screw, 5/16 - 18 x 2"
115 32125 Cup, Starter
117 650815 Washer, Belleville
118 8116 Nut, Hex
119 29716 Screw, 1/4-28 x 7/16"
120 31691 Bracket, Air cleaner
121 28820 Screw, 10-32 x 1/2"
123 31715 Body, Air cleaner
124 650152 Screw, 8-32 x 3/8"
127 31793 Bearing, Ball
127A 31855 Retainer, Bearing
128 31792 Washer, Thrust
129 650778 Washer, Lock
130 650580 Nut, Lock
131 30845A Bolt, Governor spring adjusting
132 33450 Nut, 10-32 Lock
133 30886A Spring, Extension
136A 35540 Clip, Oil fill tube
140 30747 Clip, Spark plug shorting
141 650890 Lockwasher,Shakeproof, 5/16
143B 33185 Cover & tube, Muffler (Use as require d)
143A 33171 Screen, Muffler (Use as required)
143 650578 Screw, 8-18 x 3/8" (Use as required)
144 33700 Cover & Tube, Muffler (Use as require d)
144A 33323 Screen, Muffler (Use as required)
145 35555 Dipstick
146 34999 "O" Ring
147 35554 Oil Fill Tube
178 650597 Screw, 10-24 x 5/8"
179 Lock Washer, #10 Heavy Split (Buy loc ally)
180 32328 Bracket, Speed adjusting
201B 730561 Air Cleaner Kit
(Incl.74,79,80,87,88,89,90,91,92,94,95,96,97,99,100 & 230C)
(Used only on engine with an externally vented fully
adjustable carburetor)
201 730164 Air Cleaner Ass'y. (Red Poly)(Incl.87,120,121,122,123,124 &
230)(As req.)
201 730164 Air Cleaner Kit, Mini bike (Incl.87,120,121,122,123 & 124)
(Use as required)
201A 730130 Muffler Adapter Kit (Incl.110,112)(As req.)
209 611084 Flywheel
210 650872 Stud, Solid State mounting
211 34443A Solid State Assy. (Incl. 54)
230 34346 Decal, Instruction
231 30547A Breaker Assy (Used on Std. Point igni tion)
232A 631021 Inlet, Needle Seat & Clip Assy.
240 611077 Alternator (Optional)
241 650868 Screw, 8-18 x 1-1/8" (3 required)(Opt .)
242 611078 Connector, A.C. Lighting (Optional)
242 611079 Connector, D.C. Charging (Optional)
243 590610 Tube, Centering (Optional)
244 590613 Alternator Shaft (Optional)
250 632230 Carburetor (Incl. 85) (Refer to Division 5, Section A, Page
182 for breakdown)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H60-75359P Page 5 of 5
Engine Parts List
Ref # Part Number Qty Description
252 590420A Rewind Starter (Refer to Division 5, Section C, page 25 for
breakdown)
254 33328D Starter Motor Kit (110-120 volt) This 110-120 volt starter
motor kit may have been added to this engine. It can be
added only if cylinder hasdrilled and tapped starter mounting
bosses and a ring gear flywheel (see#255). Refer to service
number stamped on end cap of motor or on decal for
identificat
255 30811A Flywheel (Ring gear flywheel requiredon engines using
110-120 volt starter motor kits listed above) (Used on Std.
point ignition before 1982)
255 611042 Flywheel (Ring gear flywheel requiredon engines using
110-120 volt starter motor kits listed above) (Used on Std.
point ignition 1982 or later)
255 611085 Flywheel (Minimum ring gear flywheel required on engines
using 110-120 volt starter motor kits listed above) (Used on
solid state external ignition)
256 33235A Gasket Set (Incl. items marked*)
