H30-35480Z Page 1 of 6
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35480Z Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 36560 Cylinder (Incl. 2, 20, 72 & 125)1
2 26727 Dowel Pin2
14 28277 Washer1
15 31334 Governor Rod1
16 31336 Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 34593 Extension Spring1
20 32600 Oil Seal1
25 36552 Blower Housing Baffle (Incl. 262)1
25A 35883 Baffle Extension1
26 650802 Screw, 1/4-20 x 5/8"2
26A 650926 Screw, 8-32 x 21/64"1
30 34709 Crankshaft1
40 40020 Piston, Pin & Ring Set (Std.)1
40 40021 Piston, Pin & Ring Set (.010" OS)1
41 40018 Piston & Pin Ass'y (Std.) (Incl. 43)1
41 40019 Piston & Pin Ass'y (.010" OS) (Incl. 43)1
42 40022 Ring Set (Std.)1
42 40023 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y (Incl. 46 & 49)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
49 28594 Oil Dipper1
50 32197A Camshaft (MCR)1
60 29745 Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
69 27677A * Cylinder Cover Gasket1
70 35863A Cylinder Cover (Incl. 75 thru 83,311)1
72 27642 Oil Drain Plug2
75 26208 Oil Seal1
80 30574A Governor Shaft & Spool Ass'y1
81 30590A Washer1
82 30591 Governor Gear Ass'y (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"7
89 610961 Flywheel Key1
90 611195 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
102 651024 Solid State Mounting Stud2
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 35182 Ground Wire1
119 36437 * Cylinder Head Gasket1
120 36438 Cylinder Head (Incl. 130)1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS) (Incl. 151)1
126 29314B Intake Valve (Std.) (Incl. 151)1
126 29315C Intake Valve (1/32" OS) (Incl. 151)1
127 650691 Washer2
130A 6021A Screw, 5/16-18 x 1-1/2"1
130 650694A Screw, 5/16-18 x 2"7
132 650708 Washer1
135 33636 Resistor Spark Plug (RJ17LM)1
150 31672 Valve Spring2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35480Z Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
151 31673 Valve Spring Cap2
169 27234A * Valve Cover Gasket2
170 27666 Breather Body1
171 31410 Breather Element1
172 34146 Valve Cover1
173 35350 Breather Tube1
174 650783 Screw, 10-24 x 3/4"1
174A 651024 Stud1
178 29752 Nut & Lock Washer, 1/4-282
179 30593 Retainer Clip1
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 36703 Intake Pipe1
186 31341 Governor Link1
200 36677 Control Bracket (Incl. 203 thru 211)1
203 31342 Compression Spring1
204 651029 Screw, Torx T-15, 5-40 x 7/16"1
206 610973 Terminal1
209 650139 Screw, 8-32 x 1/2"2
209A 30322 Lock Nut, 8-322
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
215 35882 Control Knob1
223 650451 Screw, 1/4-20 x 1"2
224 26754A * Intake Pipe Gasket1
238 28820 Screw, 10-32 x 1/2"2
239 27272A Air Cleaner Gasket1
242 31914 Air Cleaner Base1
243 650152 Screw, 8-32 x 3/8"2
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
260 35585 Blower Housing1
262 650737 Screw, 1/4-20 x 1/2"2
275 36493 Muffler (Incl. 277)1
277 650988 Screw, 1/4-20 x 2-5/16"2
279 30200 Screw, 10-24 x 9/16"1
280 37046 Heat Shield1
285 36467A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 29774 Fuel Line1
292 26460 Fuel Line Clamp2
298 650665 Screw, 1/4-15 x 7/8"2
300 35591 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
311 27625 Oil Fill Plug1
313 34080 Spacer1
339 28212 Spacer2
340 35926 Fuel Tank Bracket1
342 650751 Screw, 1/4-20 x 7/16"1
345 32664 Baffle Heat1
370A 36261 Lubrication Decal1
370K 36695 Starter Decal1
380 632615 Carburetor (Incl. 184)1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
1
with 590738 starter).
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35480Z Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
400 36439 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
1
26754A (1), 26756 (1), 27234A (2), 27272A (1), 27677A (1),
29673 (2), 30081A (1), 31688A (2), 36437 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35480Z Page 5 of 6

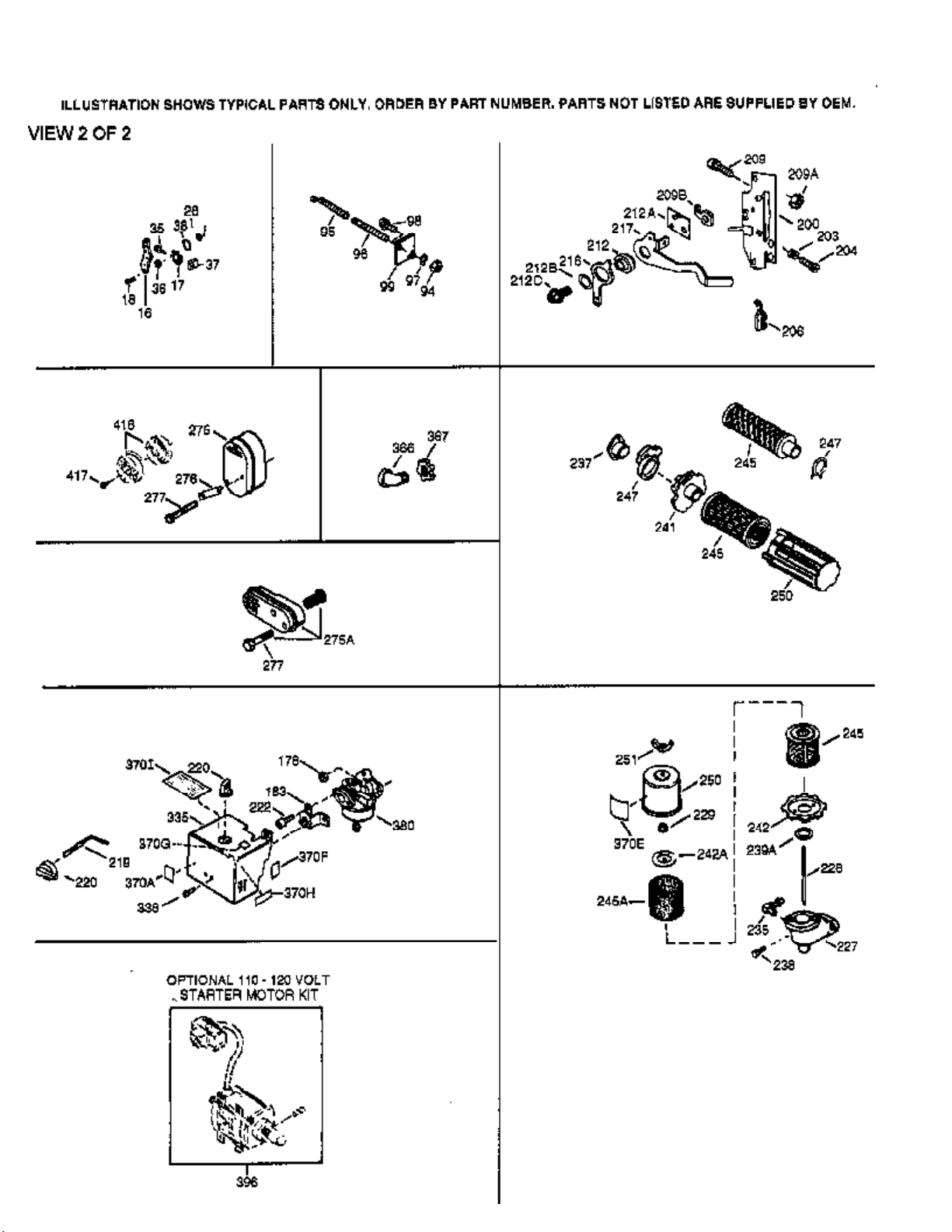

Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35480Z Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
16 31336 Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
174A 651024 Stud1
178 29752 Nut & Lock Washer, 1/4-282
200 36677 Control Bracket (Incl. 203 thru 211)1
203 31342 Compression Spring1
204 651029 Screw, Torx T-15, 5-40 x 7/16"1
206 610973 Terminal1
209 650139 Screw, 8-32 x 1/2"2
209A 30322 Lock Nut, 8-322
238 28820 Screw, 10-32 x 1/2"2
242 31914 Air Cleaner Base1
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
275 36493 Muffler (Incl. 277)1
277 650988 Screw, 1/4-20 x 2-5/16"2
279 30200 Screw, 10-24 x 9/16"1
280 37046 Heat Shield1
370A 36261 Lubrication Decal1
370H 34150 Choke Decal1
380 632615 Carburetor (Incl. 184)1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
